80mm Zinc Plated Fixed Retail Castor Wheel - Grey Thermoplastic Rubber Wheel - 50kg Load Capacity

80mm Zinc Plated Fixed Retail Castor Wheel - Grey Thermoplastic Rubber Wheel - 50kg Load Capacity

£13.90 GBP
£17.30 GBP £13.90 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

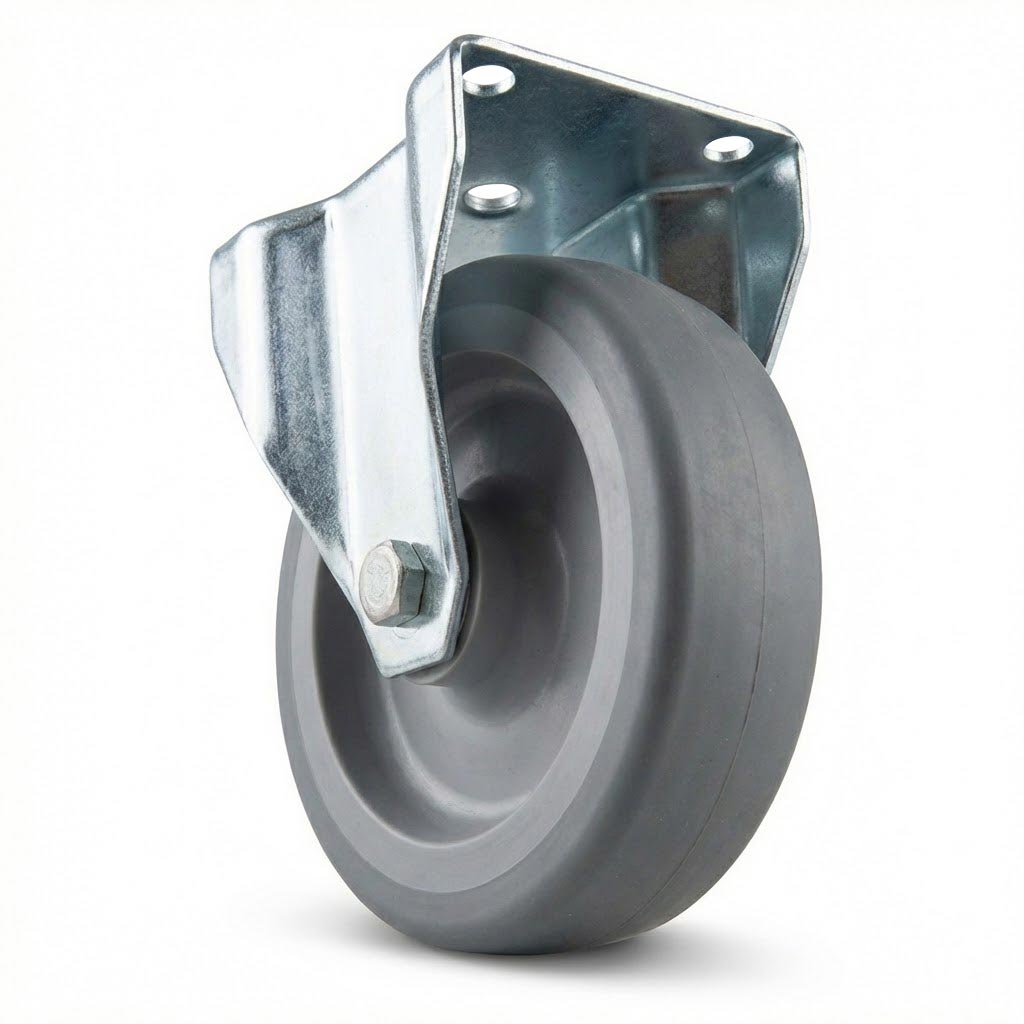

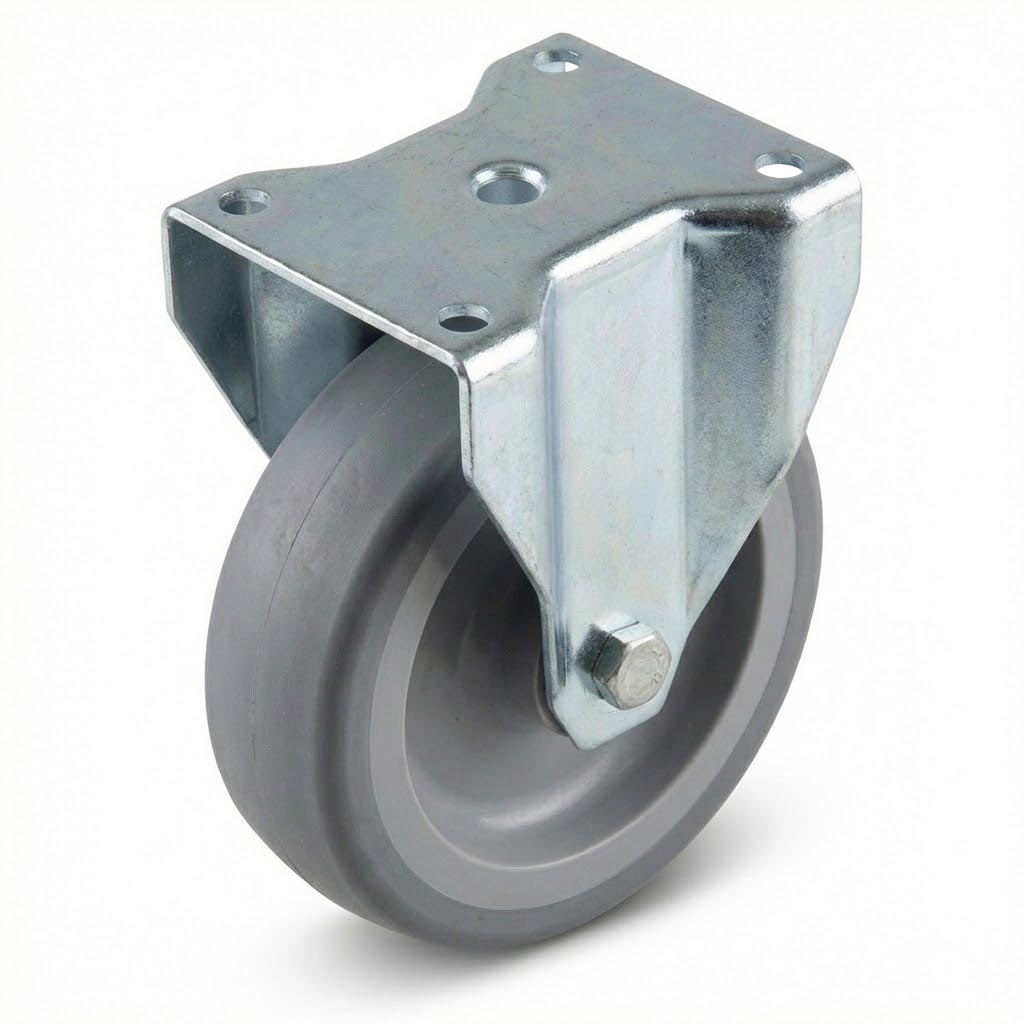

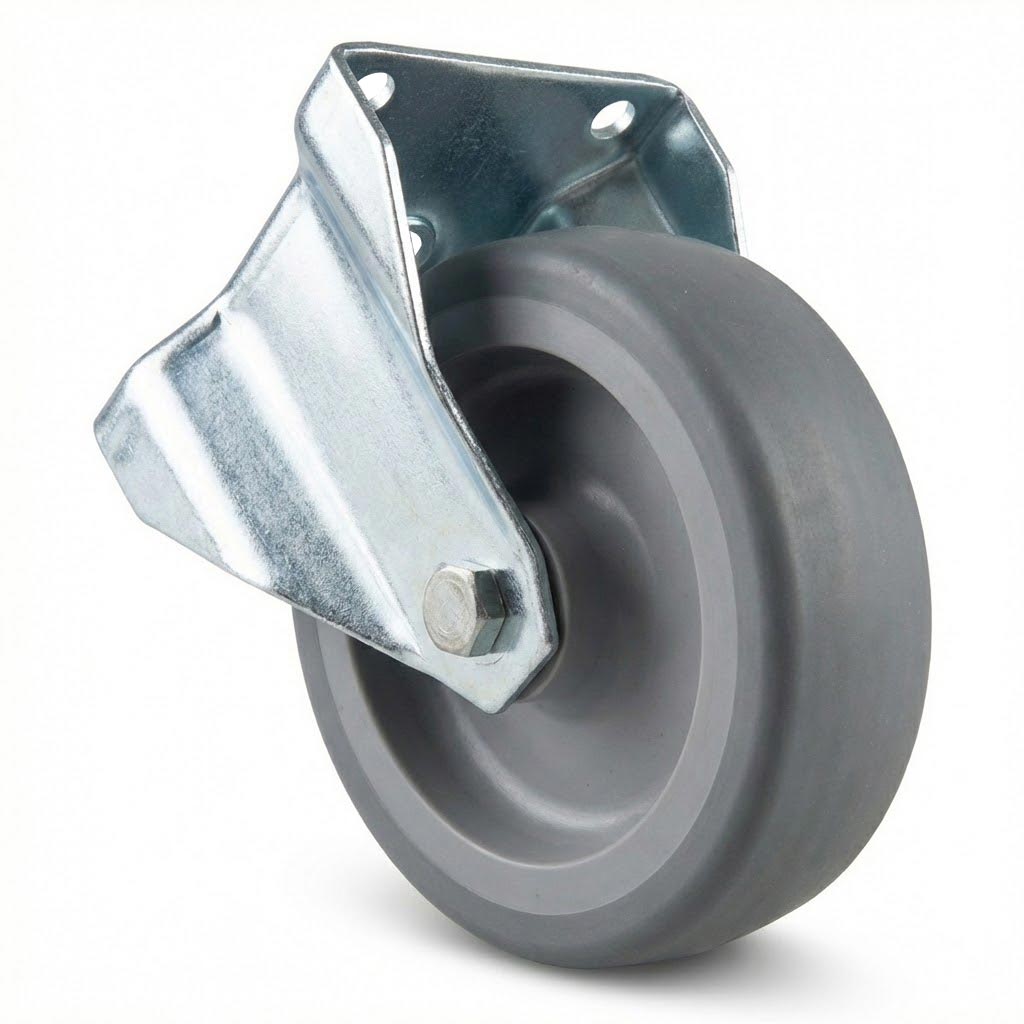

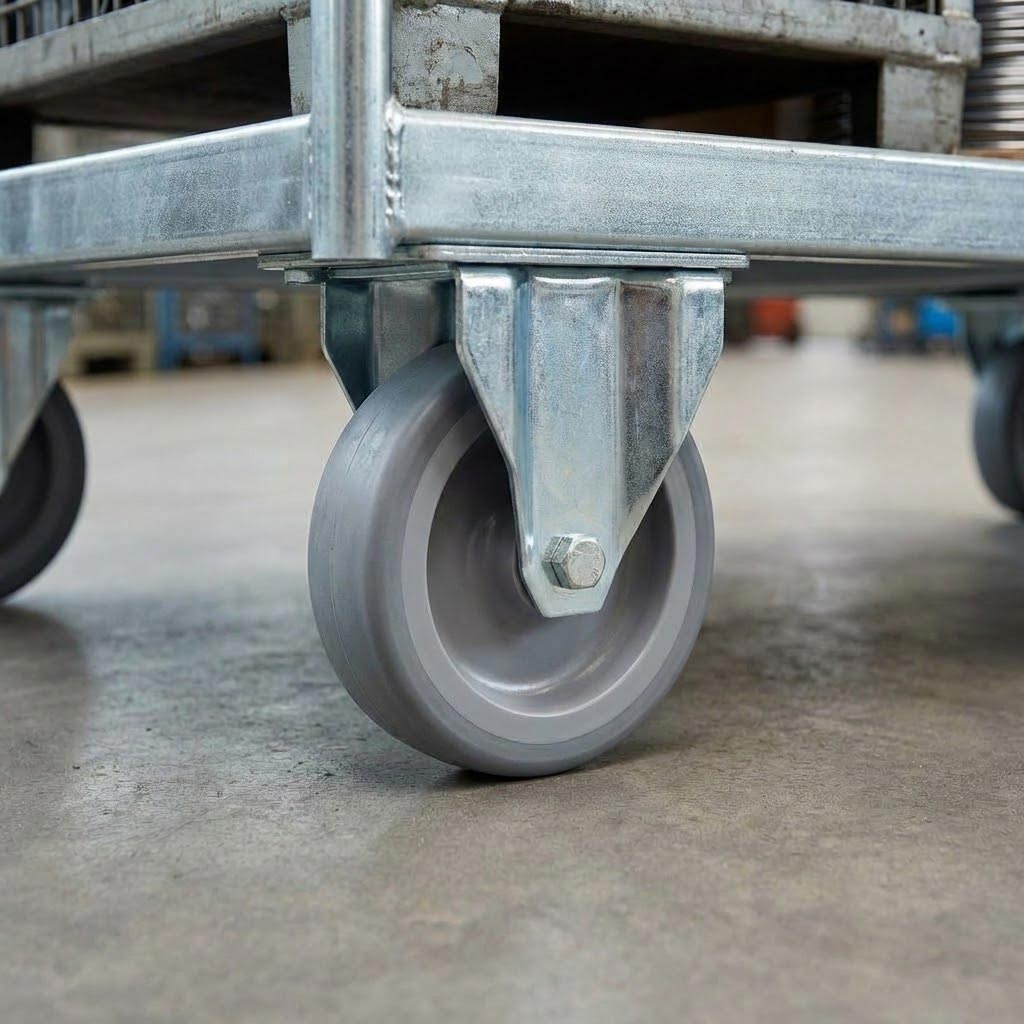

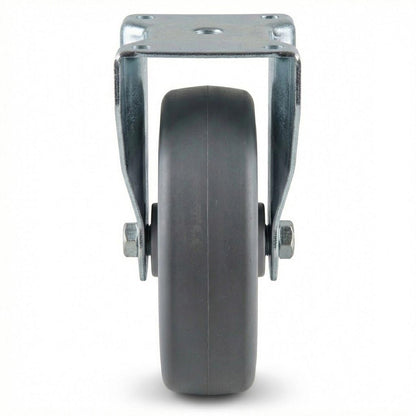

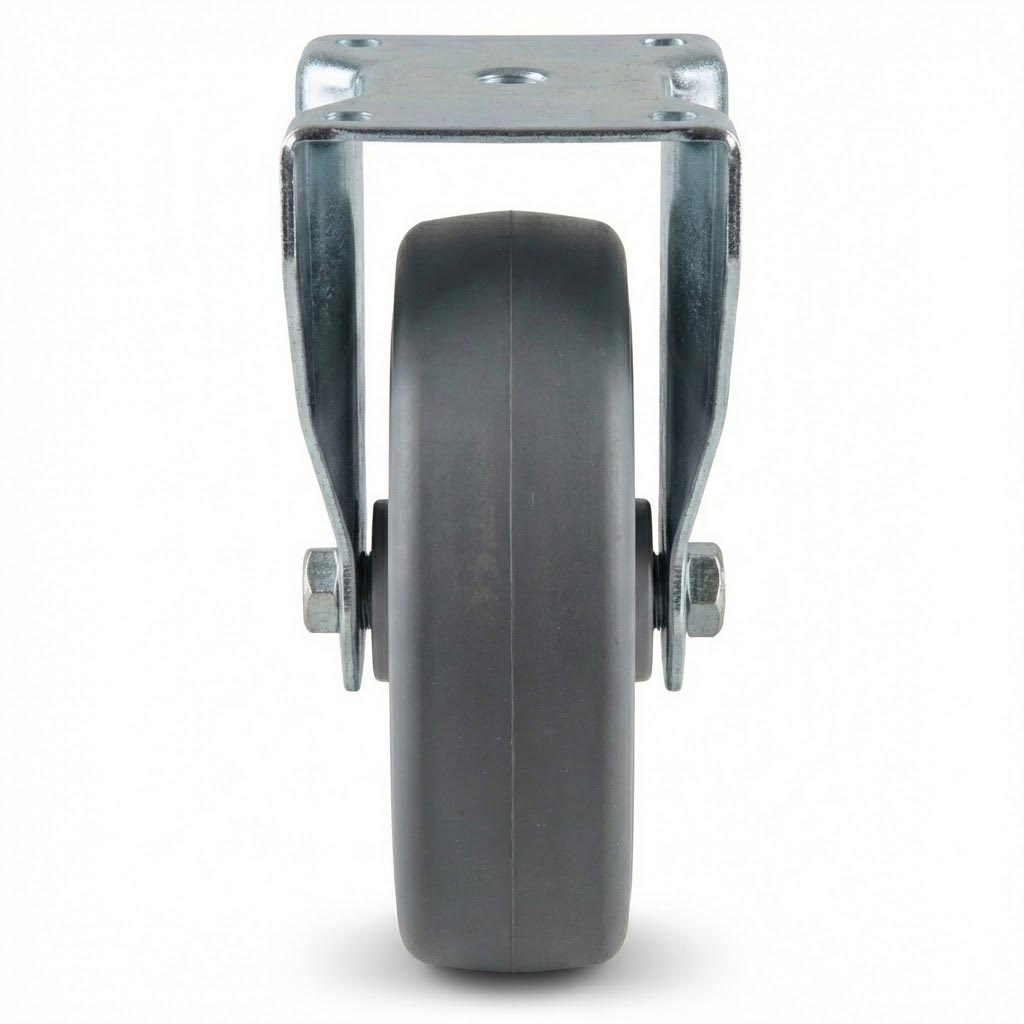

80mm Fixed Retail Castor Wheel

Professional-grade mobility solution engineered for retail displays, light-duty trolleys, and commercial fixtures requiring reliable straight-line movement with superior floor protection.

Product Overview

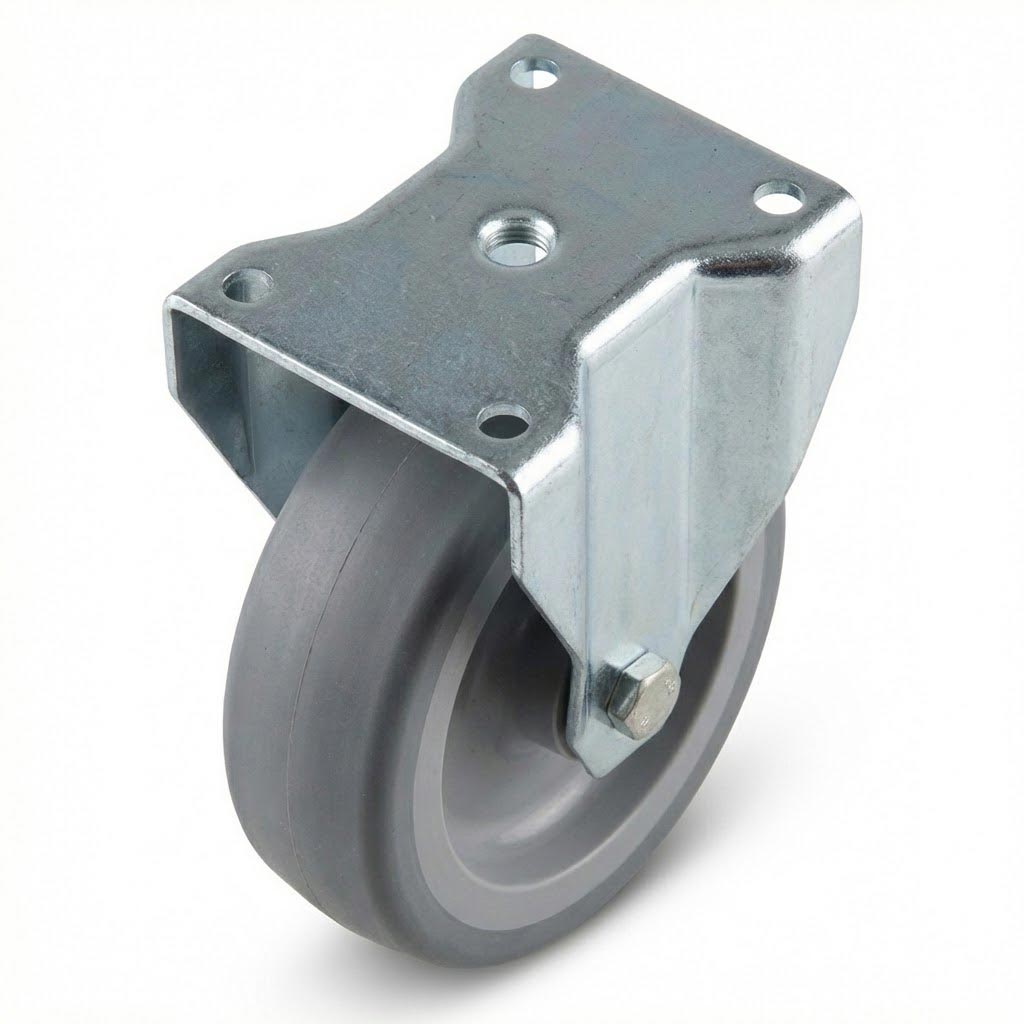

This fixed retail castor combines durability with floor-friendly performance, featuring an 80mm grey thermoplastic rubber wheel mounted on a polypropylene core. Designed specifically for applications where controlled, straight-line movement is essential, this castor delivers smooth operation across hard floors, tiles, and polished surfaces without leaving marks or causing damage. The zinc-plated steel construction ensures long-lasting corrosion resistance, while the fixed mounting configuration provides directional stability for retail equipment, display units, and light commercial trolleys.

Technical Specifications

Wheel Diameter 80mm
Wheel Material Grey Thermoplastic Rubber (TPR)
Wheel Core Material Polypropylene
Tread Width 22mm
Tread Hardness 88 Shore A
Load Capacity 50kg per castor
Castor Type Fixed (Non-Swivel)
Total Height 107mm
Mounting Type Top Plate Fixing
Top Plate Dimensions 65mm x 50mm
Fixing Hole Configuration 4-Hole Pattern
Plate Material Zinc Plated Steel
Finish Zinc Plated (Corrosion Resistant)
Bearing Type Plain Bearing

Key Features & Benefits

Floor Protection Technology

Non-marking thermoplastic rubber wheel glides smoothly across delicate flooring without scuffing, scratching, or leaving residue on tiles, laminate, or polished surfaces.

Directional Stability

Fixed mounting configuration ensures consistent straight-line movement, ideal for applications requiring controlled directional travel and enhanced stability.

Corrosion Resistant Construction

Zinc-plated steel components provide superior resistance to rust and corrosion, ensuring long-term performance in retail and commercial environments.

Quiet Operation

Thermoplastic rubber tread significantly reduces rolling noise, making it perfect for customer-facing retail spaces and quiet commercial settings.

Easy Installation

Standard 4-hole top plate mounting pattern allows for quick, secure attachment to a wide range of equipment and fixtures using common fasteners.

Versatile Application Range

Suitable for retail displays, merchandising units, light trolleys, mobile storage, exhibition stands, and various commercial fixtures requiring mobility.

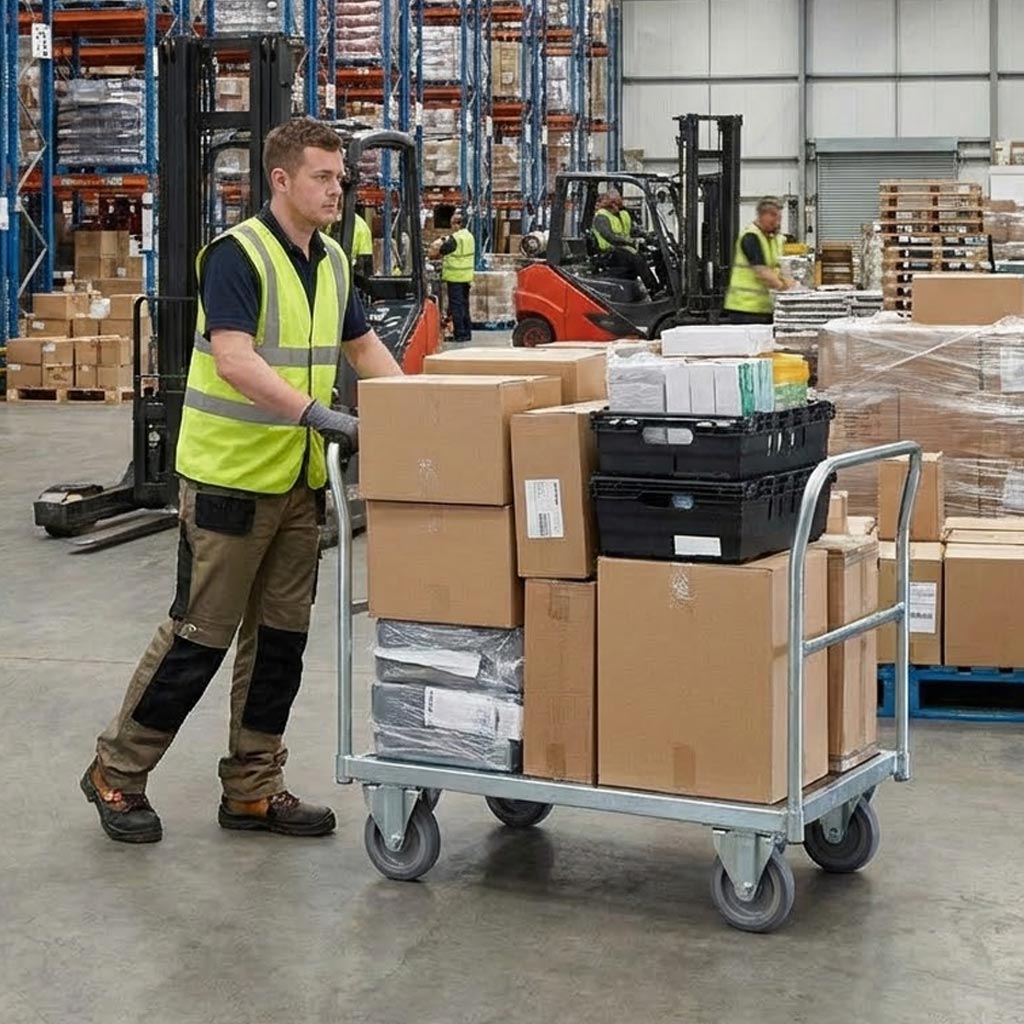

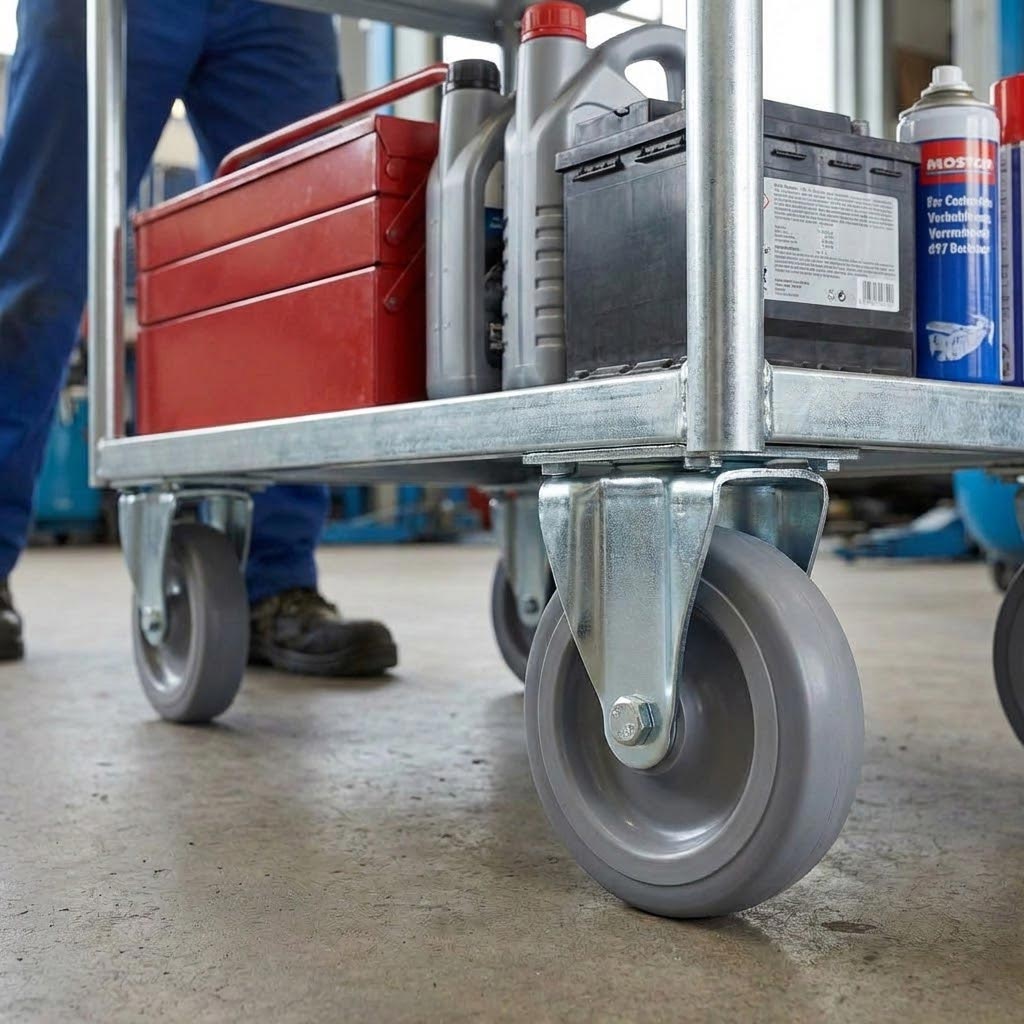

Ideal Applications

  • Retail display units and merchandising fixtures
  • Point-of-sale displays and promotional stands
  • Light-duty shopping trolleys and baskets
  • Mobile storage cabinets and shelving units
  • Exhibition and trade show equipment
  • Office furniture and mobile workstations
  • Hospitality service trolleys and carts
  • Educational equipment and mobile classroom furniture

Frequently Asked Questions

What is the difference between fixed and swivel castors?

Fixed castors only move in a straight line, providing directional stability and are typically used in combination with swivel castors. Swivel castors rotate 360 degrees, allowing for greater manoeuvrability. For optimal performance, most applications use fixed castors at one end and swivel castors at the other.

Will this castor damage my floors?

No, the grey thermoplastic rubber wheel is specifically designed to be non-marking and floor-friendly. It provides excellent protection for tiles, laminate, vinyl, and polished concrete surfaces, making it ideal for retail and commercial environments where floor preservation is important.

How much weight can this castor support?

Each castor has a load capacity of 50kg. For total load capacity, multiply 50kg by the number of castors on your equipment. For example, four castors would support up to 200kg. Always distribute weight evenly and avoid exceeding the maximum capacity to ensure safe operation and longevity.

What tools do I need to install this castor?

Installation is straightforward and requires basic tools. You will need appropriate screws or bolts to match your equipment, a drill with suitable bits for pilot holes, and a screwdriver or spanner. The 4-hole top plate pattern accepts standard fixings and fits most common mounting configurations.

Can these castors be used outdoors?

While the zinc-plated finish provides corrosion resistance, these castors are primarily designed for indoor retail and commercial applications. For outdoor use, consider the environmental conditions and exposure levels. Prolonged exposure to harsh weather may affect performance and longevity.

What is the total height added to my equipment?

The total height of this castor is 107mm, measured from the base of the mounting plate to the bottom of the wheel. This is the height that will be added to your equipment once installed. Consider this measurement when planning clearances and overall equipment dimensions.

Are these castors suitable for uneven surfaces?

These castors perform best on smooth, level surfaces such as retail floors, tiles, and polished concrete. The 80mm wheel diameter and thermoplastic rubber material provide reasonable performance on minor surface irregularities, but they are not designed for rough terrain or significantly uneven ground.

How do I maintain these castors?

Maintenance is minimal. Regularly remove debris, hair, and dust from the wheel and bearing area. Periodically check mounting bolts for tightness and inspect the wheel for wear or damage. Clean with a damp cloth and mild detergent as needed. Proper maintenance ensures smooth operation and extends service life.

Professional Mobility Solution

Engineered for reliability, designed for performance. This fixed retail castor delivers the perfect balance of durability, floor protection, and smooth operation for your commercial equipment needs.
