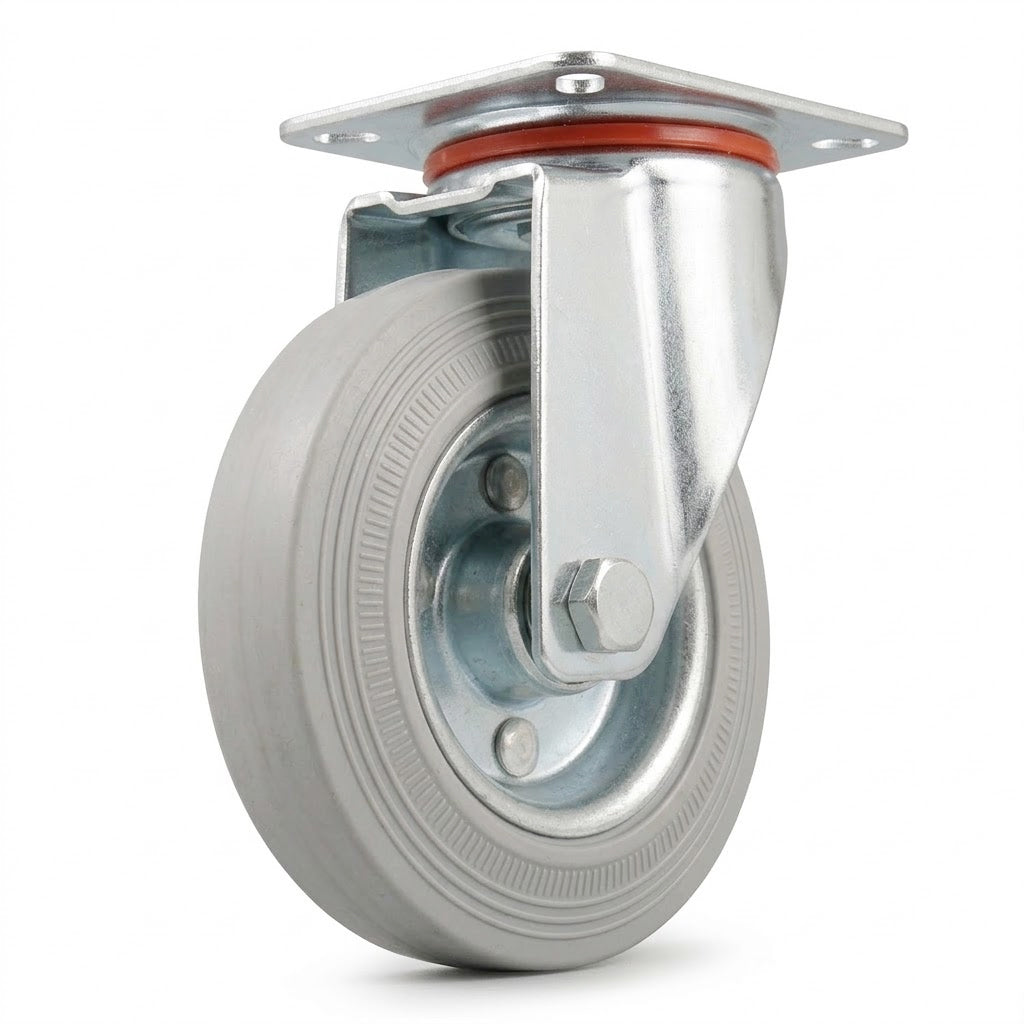

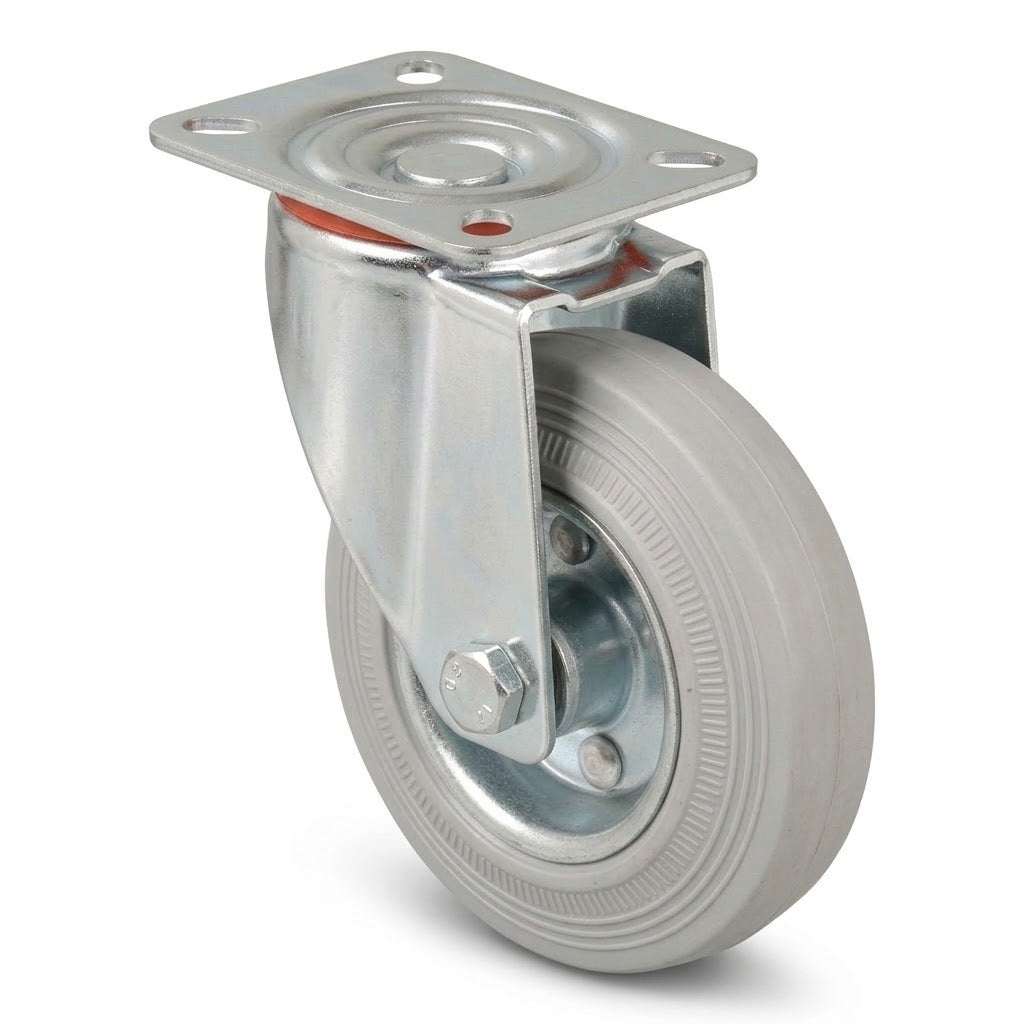

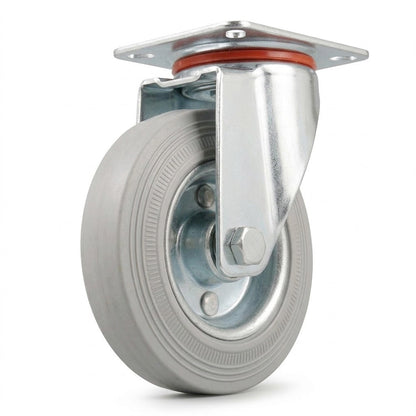

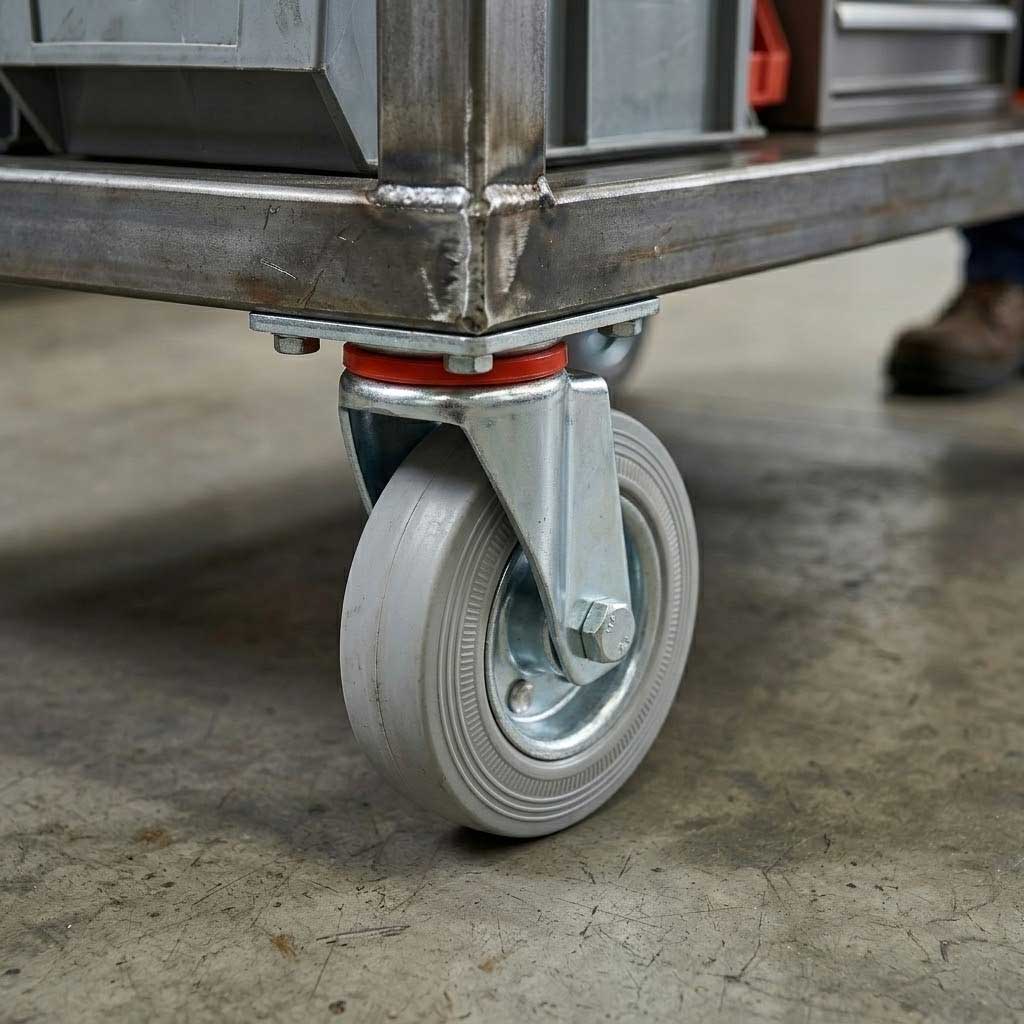

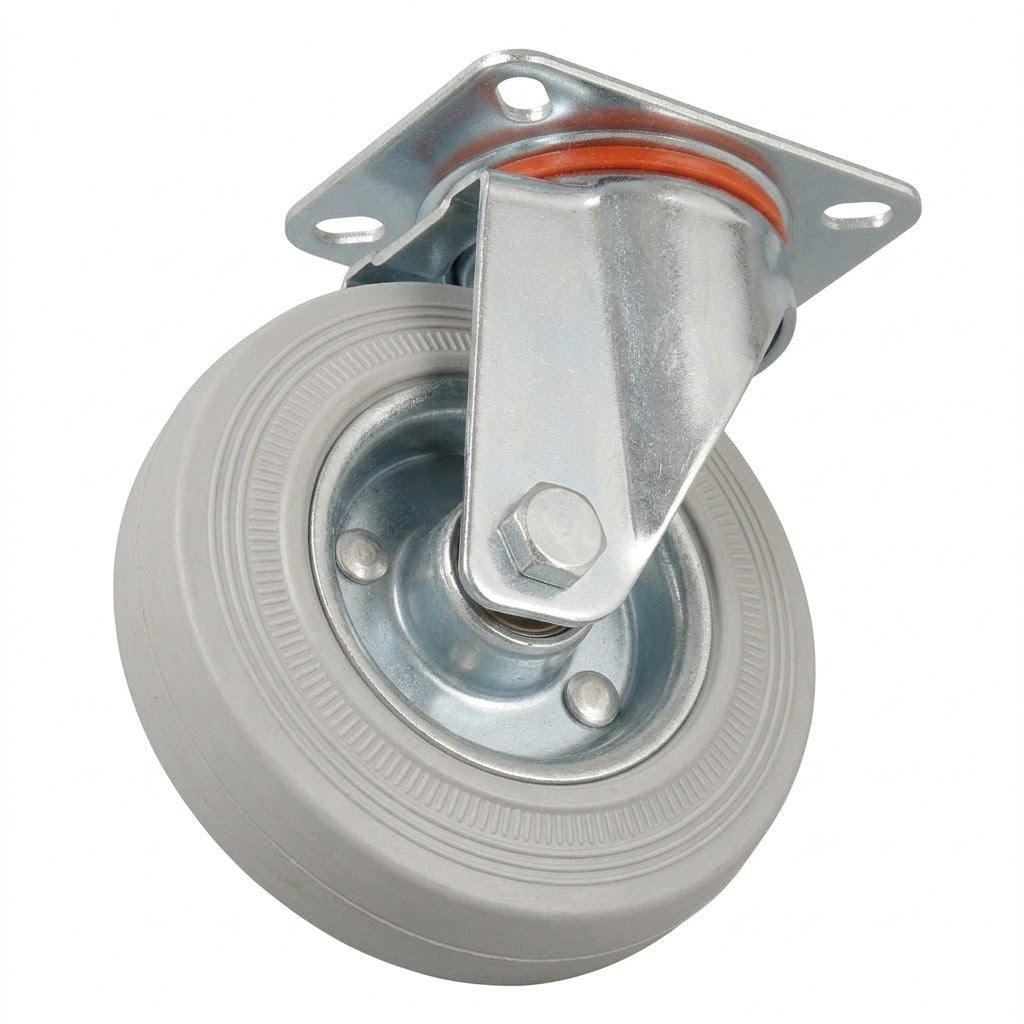

Premium 80mm Swivel Castor for Light-Duty Mobility
This 80mm pressed steel swivel castor combines smooth manoeuvrability with reliable performance for trolleys, carts, and mobile workstations. Featuring a non-marking grey rubber wheel and robust 4-hole top plate mounting, it delivers quiet operation and floor-friendly movement across workshops, retail spaces, and light industrial environments.
Engineered for loads up to 60kg, this compact castor offers 360-degree rotation for effortless directional changes, making it ideal for equipment that requires frequent repositioning in confined spaces.
Technical Specifications
| Wheel Specifications |
| Wheel Diameter |
80mm |
| Wheel Material |
Grey Rubber |
| Wheel Tread |
Non-marking, floor-friendly rubber |
| Wheel Centre Material |
Pressed Steel |
| Wheel Width |
32mm (approx.) |
| Bearing Type |
Ball Bearing |
| Castor Frame & Mounting |
| Castor Type |
Swivel (360° rotation) |
| Frame Material |
Pressed Steel |
| Frame Finish |
Zinc Plated |
| Overall Height |
106mm |
| Mounting Type |
Top Plate (4-Hole) |
| Top Plate Dimensions |
| Plate Size |
100mm × 85mm |
| Plate Length |
100mm |
| Plate Width |
85mm |
| Hole Configuration |
4-Hole fixing pattern |
| Hole Diameter |
11mm (approx.) |
| Hole Spacing (Length) |
80mm (centre to centre) |
| Hole Spacing (Width) |
60mm (centre to centre) |
| Load Capacity & Performance |
| Maximum Load Capacity |
60kg per castor |
| Recommended Use |
Light-duty applications |
| Rotation |
Full 360° swivel |
| Floor Protection |
Non-marking rubber tread |
| Noise Level |
Quiet operation |
Key Features & Benefits
? Smooth 360° Swivel Action: Ball bearing swivel mechanism ensures effortless directional changes and precise positioning, reducing operator fatigue during frequent manoeuvring.
? Floor-Friendly Grey Rubber Wheel: Non-marking rubber tread protects finished floors, tiles, and polished surfaces while providing excellent grip and shock absorption for smooth, quiet rolling.
? Durable Pressed Steel Construction: Zinc-plated pressed steel frame and wheel centre resist corrosion and wear, delivering long-term reliability in workshop and light industrial settings.
? Secure 4-Hole Top Plate Mounting: Standard 100mm × 85mm top plate with 4-hole fixing pattern (80mm × 60mm spacing) ensures stable, secure attachment to trolleys, carts, and mobile equipment.
? Compact 80mm Design: Low-profile 106mm overall height suits applications where ground clearance is limited, while the 80mm wheel diameter balances manoeuvrability with load stability.
Ideal Applications
This versatile swivel castor is perfectly suited for a wide range of light-duty mobile equipment and furniture, including:

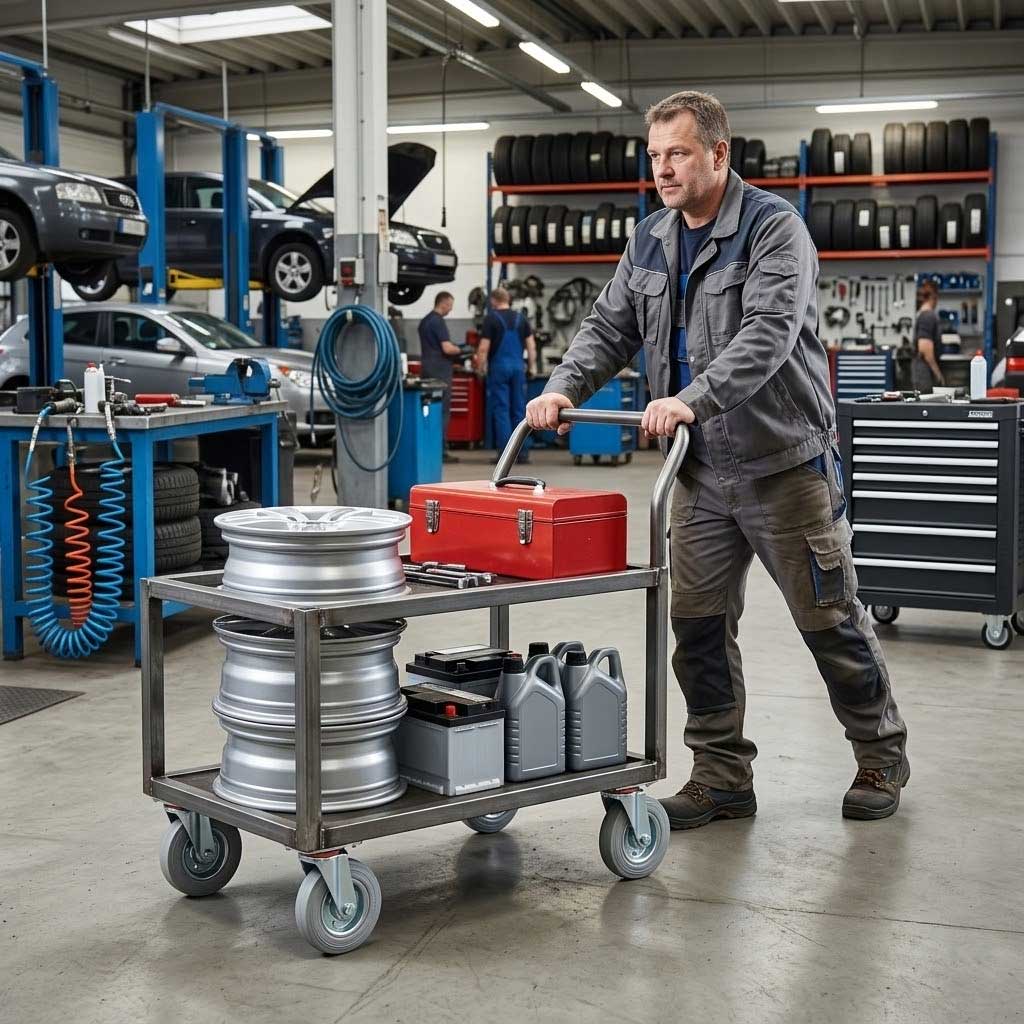

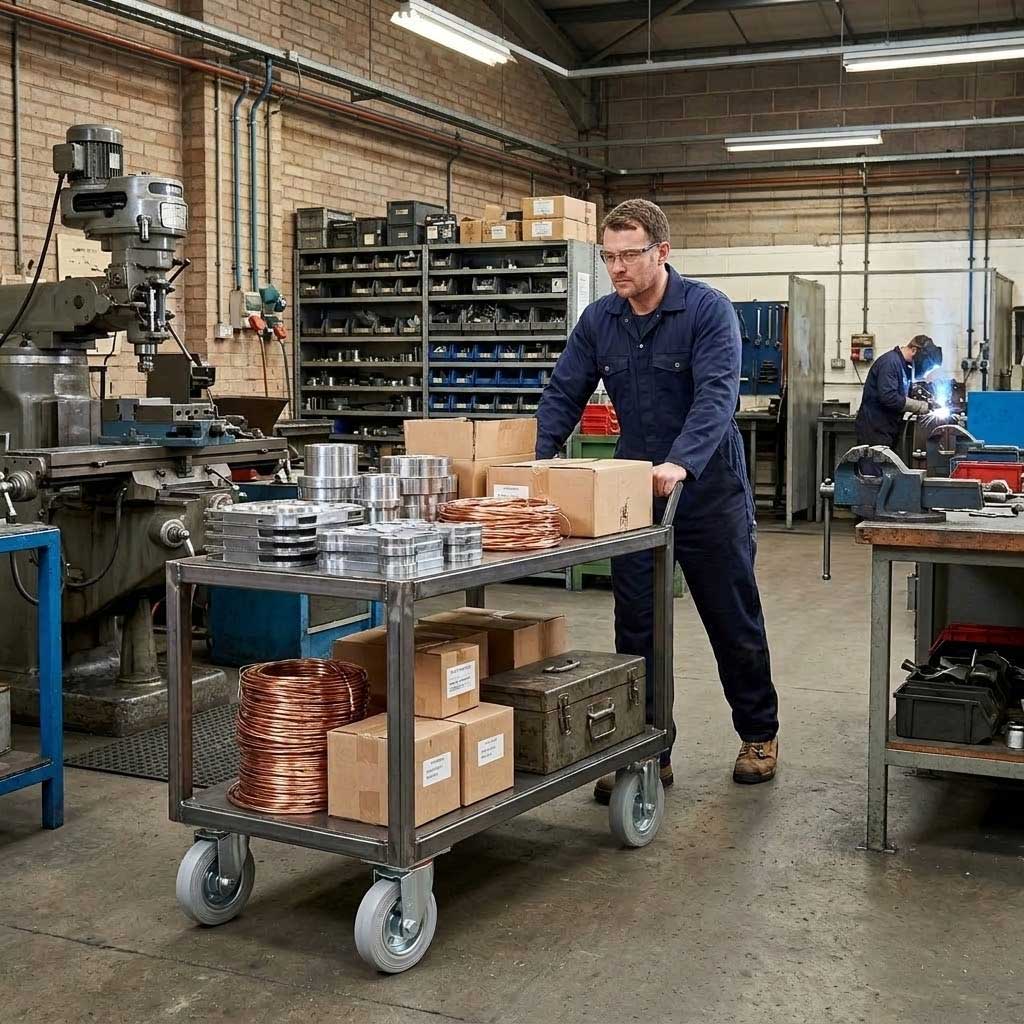

Mobile tool trolleys and service carts, display stands and retail fixtures, office furniture and filing cabinets, light-duty workbenches and assembly tables, storage bins and material handling carts, cleaning equipment and janitorial trolleys, hospitality and catering trolleys, workshop and garage equipment, exhibition and event furniture, and general-purpose wheeled platforms requiring smooth, floor-safe mobility.
Installation & Compatibility
The 4-hole top plate design offers straightforward bolt-on installation to any equipment with a compatible mounting surface. The 100mm × 85mm plate footprint and 80mm × 60mm hole spacing align with standard castor mounting patterns, making replacement and retrofitting simple.
For optimal performance and safety, ensure the combined weight of your equipment and load does not exceed 60kg per castor. When using multiple castors, distribute weight evenly across all mounting points and verify that fixing bolts are tightened securely before operation.
Material & Construction Quality
Manufactured from pressed steel with a protective zinc-plated finish, this castor resists rust and corrosion in typical indoor environments. The grey rubber wheel compound is formulated to remain non-marking across a variety of floor surfaces, including vinyl, laminate, tile, and sealed concrete, while the ball bearing swivel provides smooth, low-friction rotation over extended service life.
Frequently Asked Questions
What is the maximum weight this castor can support?
Each castor is rated for a maximum load capacity of 60kg. For safe operation, calculate the total weight of your equipment plus any load, then divide by the number of castors to ensure you stay within this limit per wheel.
Will this castor damage or mark my floors?
No. The grey rubber wheel is specifically designed with a non-marking tread compound that protects finished floors, tiles, vinyl, laminate, and polished surfaces. The soft rubber also reduces noise and vibration during movement.
What are the mounting hole dimensions and spacing?
The top plate measures 100mm × 85mm with four 11mm diameter fixing holes. The hole spacing is 80mm (centre to centre) along the length and 60mm (centre to centre) across the width, compatible with most standard castor mounting patterns.
Can I use this castor outdoors or in wet environments?
This castor is designed for indoor use in dry environments. While the zinc-plated steel offers some corrosion resistance, prolonged exposure to moisture, outdoor weather, or harsh conditions may reduce service life. For outdoor or wet applications, consider castors with stainless steel or specially sealed components.
