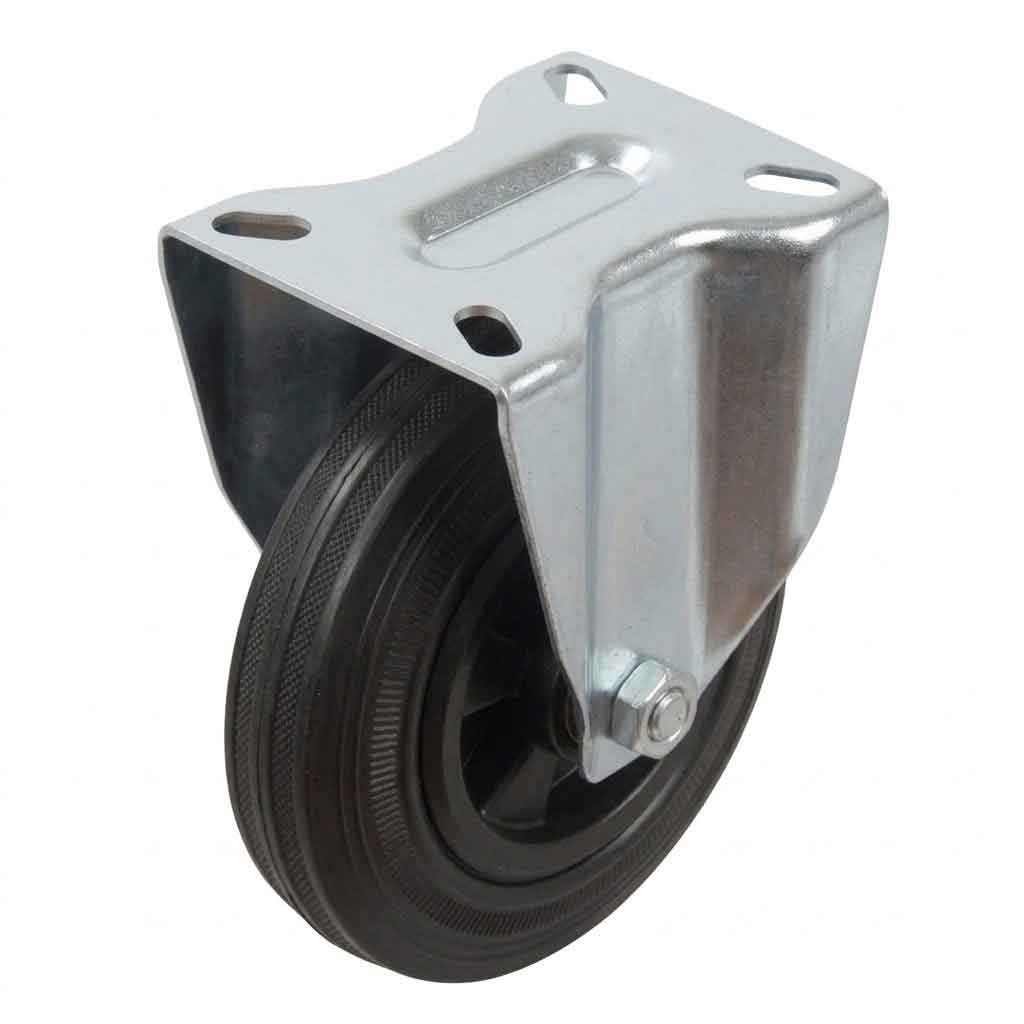

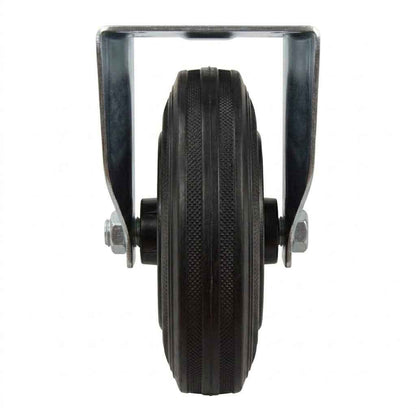

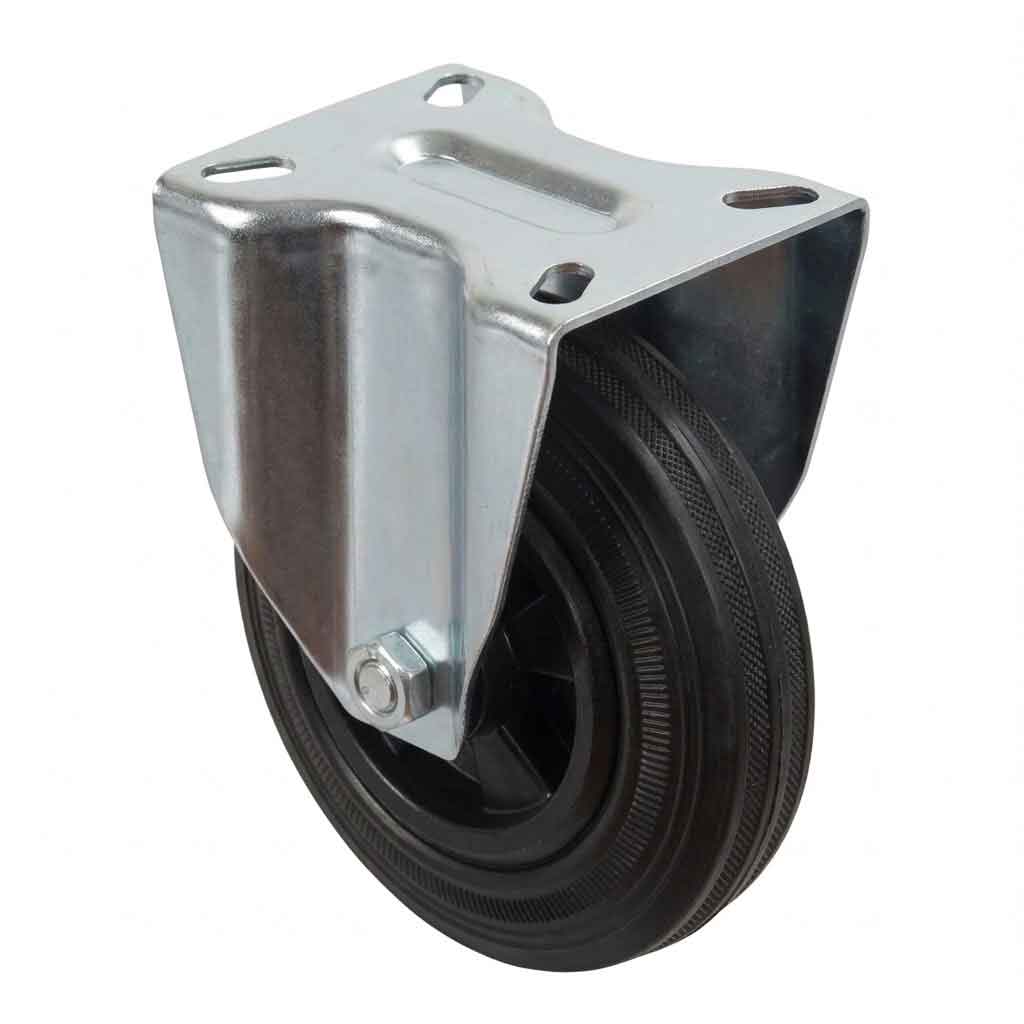

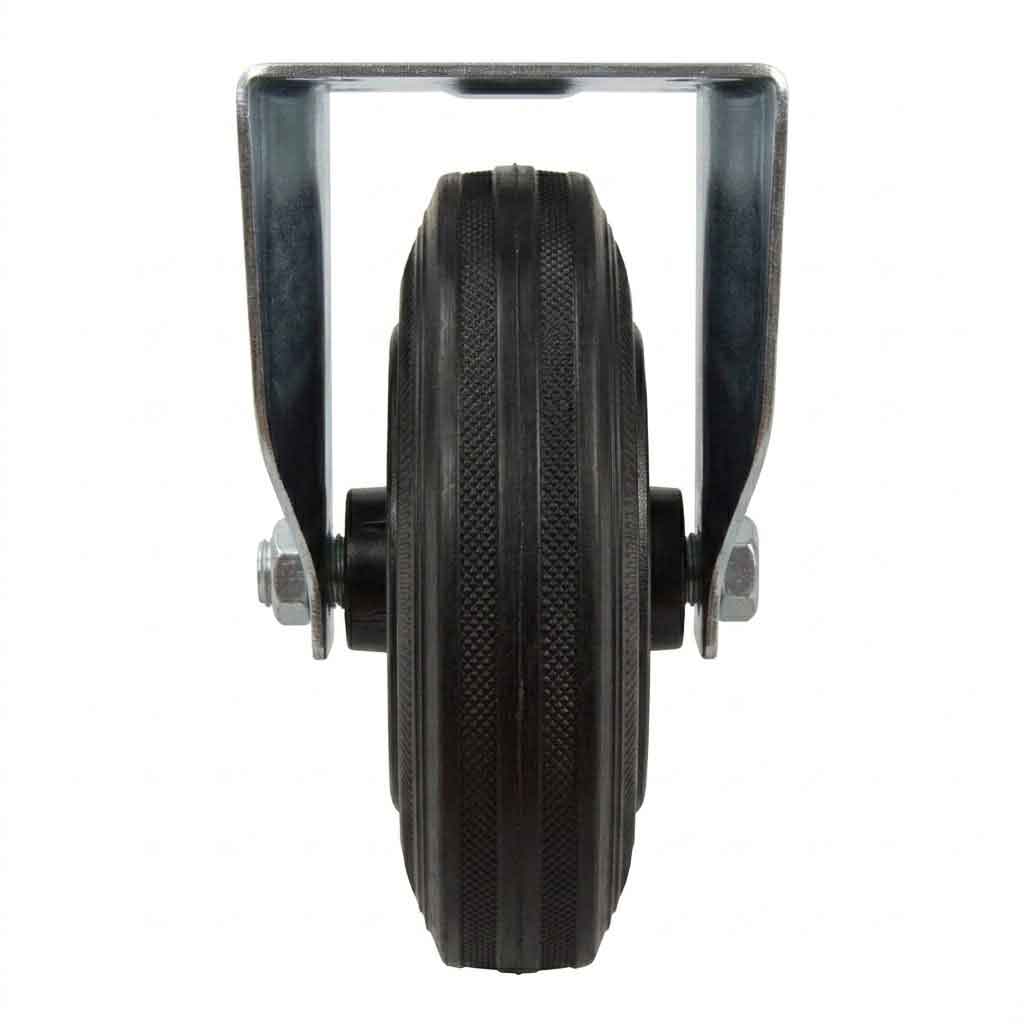

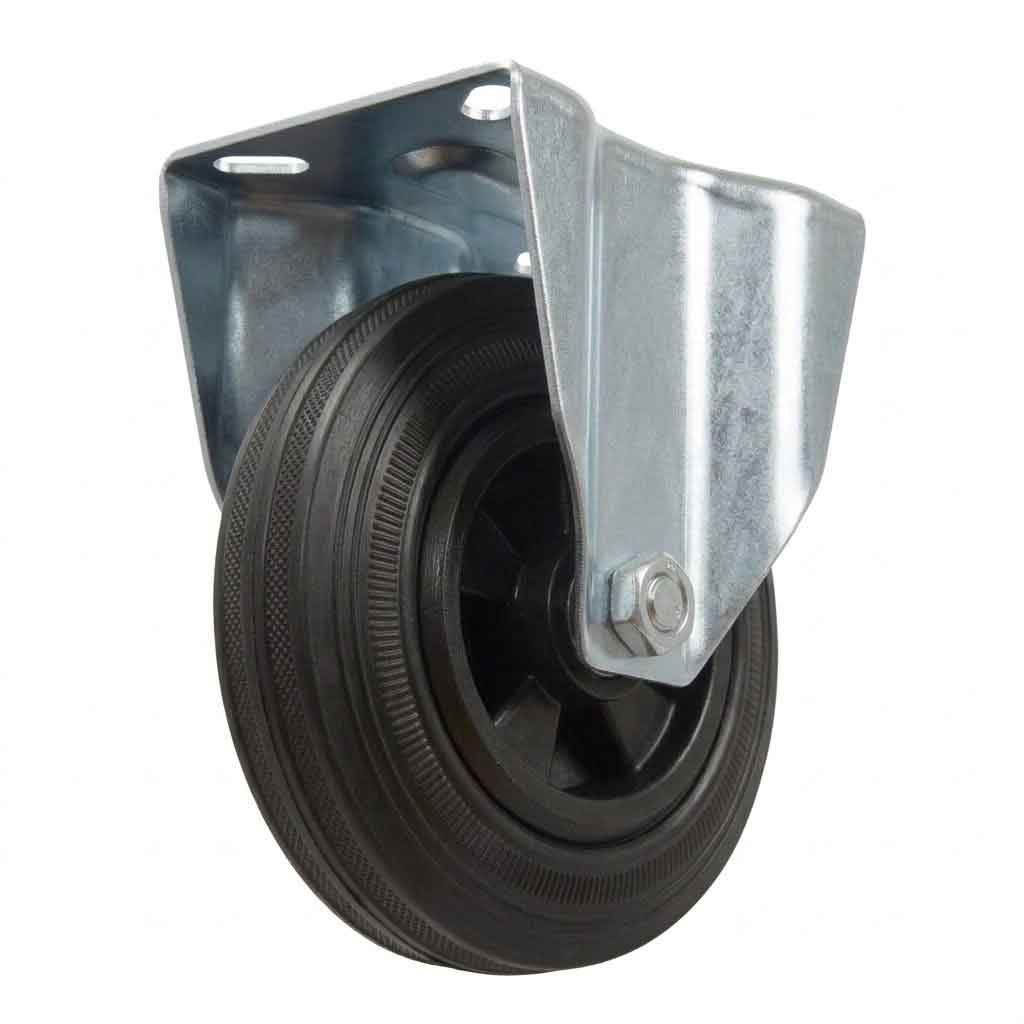

80mm Pressed Steel Fixed Castor with Black Rubber on Polypropylene Wheel

Premium Fixed Mobility Solution ? 60kg Load Capacity

Product Overview

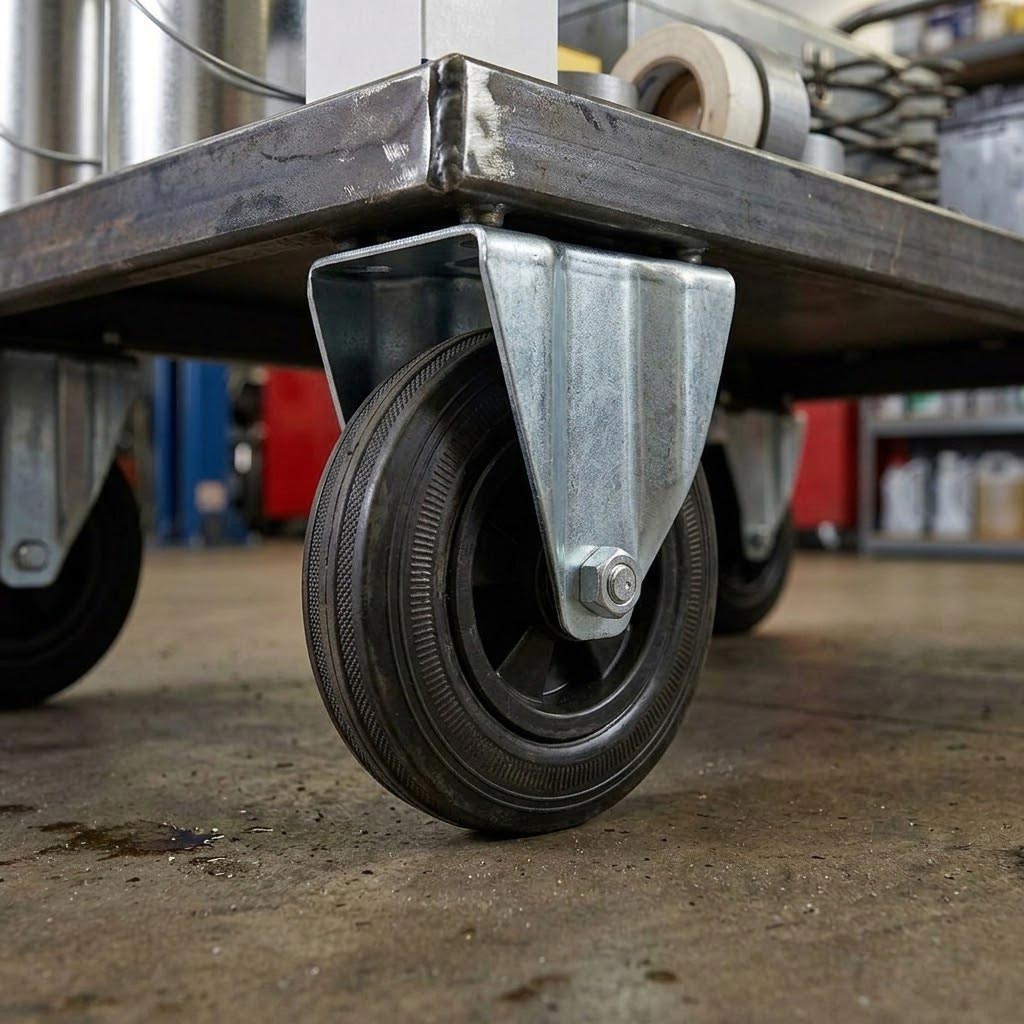

This 80mm pressed steel fixed castor delivers reliable, straight-line mobility for trolleys, carts, and mobile equipment across commercial and industrial environments. Engineered with a black rubber on polypropylene wheel and ball journal bearing, it combines smooth rolling performance with floor-friendly operation.

Designed for applications requiring stable, directional movement without swivel capability, this fixed castor is ideal for equipment that follows a defined path. With a 60kg load capacity per castor, it supports light to medium-duty operations while maintaining consistent performance and durability.

Key Features & Benefits

Fixed Castor Design: Provides stable, straight-line movement with no swivel capability, ensuring consistent directional travel for equipment following a defined path.

60kg Load Capacity: Supports light to medium-duty applications including trolleys, carts, mobile workstations, and handling equipment.

Black Rubber on Polypropylene Wheel: Delivers floor-friendly rolling with excellent shock absorption, vibration reduction, and controlled movement across smooth indoor surfaces.

Ball Journal Bearing: Ensures smooth, low-resistance rolling under load, improving operational efficiency and extending service life.

Top Plate Fixing: Secure 4-bolt mounting system with 100mm x 85mm plate dimensions and 10mm hole diameter for reliable installation.

Compact Profile: 106mm total castor height maintains low equipment clearance while providing effective mobility.

Technical Specifications

Castor Specifications

Castor Type Fixed, Top Plate
Bearing Type Ball Journal
Load Capacity (Per Castor) 60 kg
Max Load Capacity (4 Castors) 180 kg
Total Castor Height 106 mm

Wheel Specifications

Wheel Diameter 80 mm
Wheel Material Black Rubber on Polypropylene
Wheel Colour Black
Tread Width 25 mm
Tread Hardness 85 Shore A

Top Plate Specifications

Plate Length 100 mm
Plate Width 85 mm
Plate Hole Centres 60 mm x 80 mm
Plate Hole Diameter 10 mm
Fixing Type 4-Bolt Top Plate

Common Applications

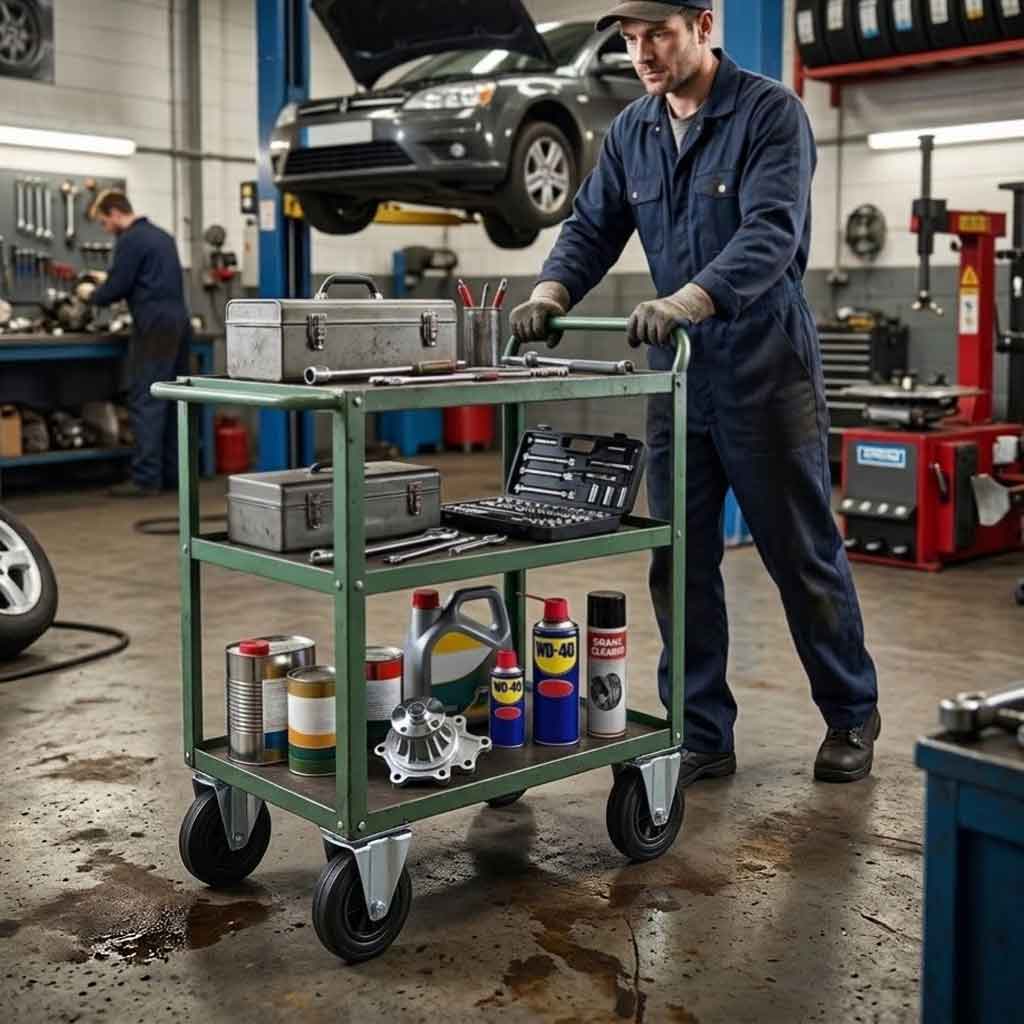

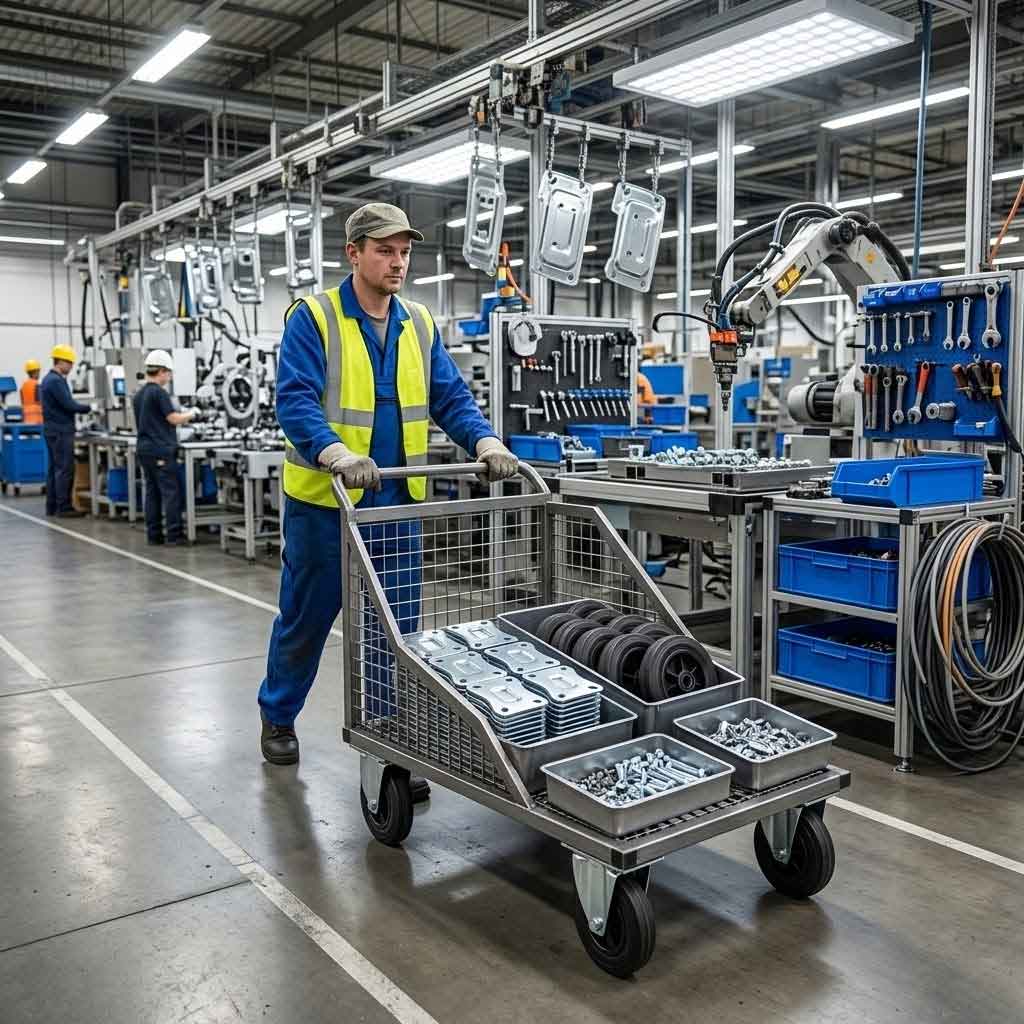

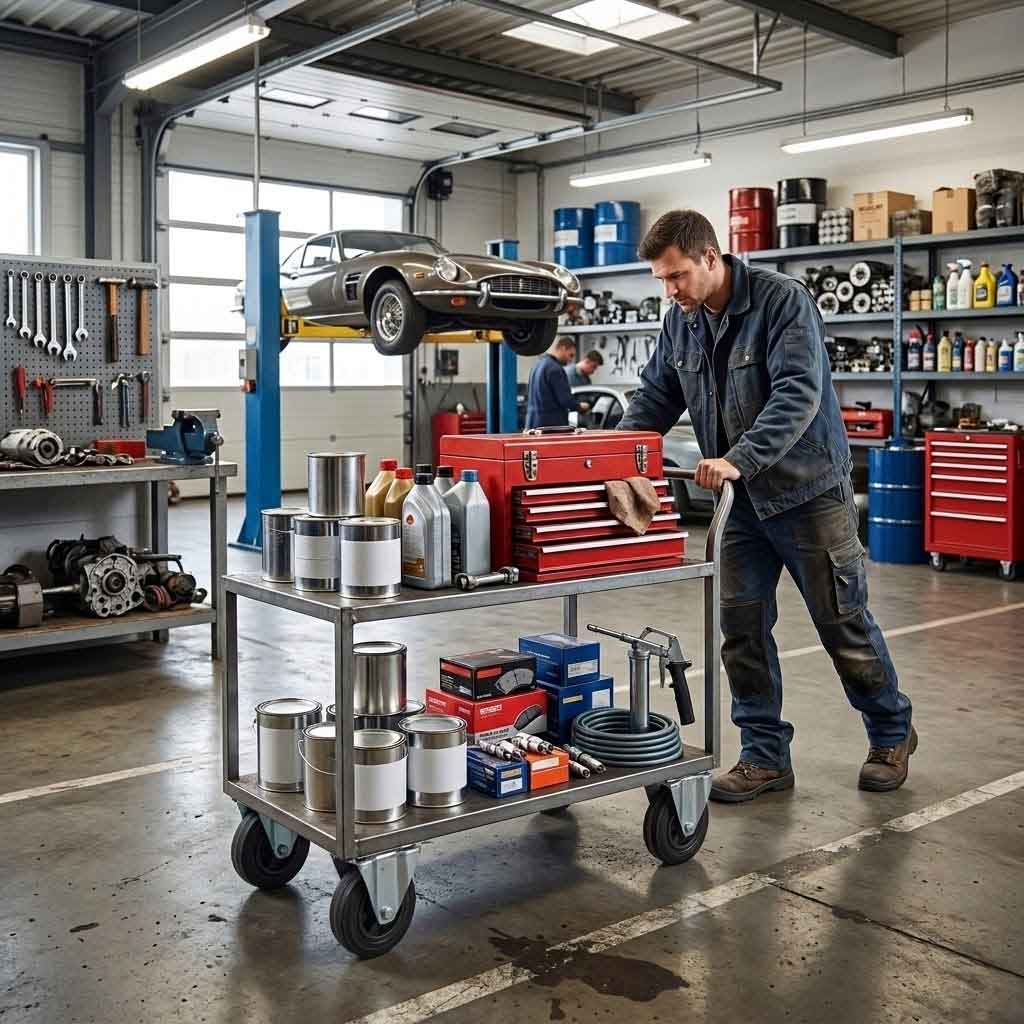

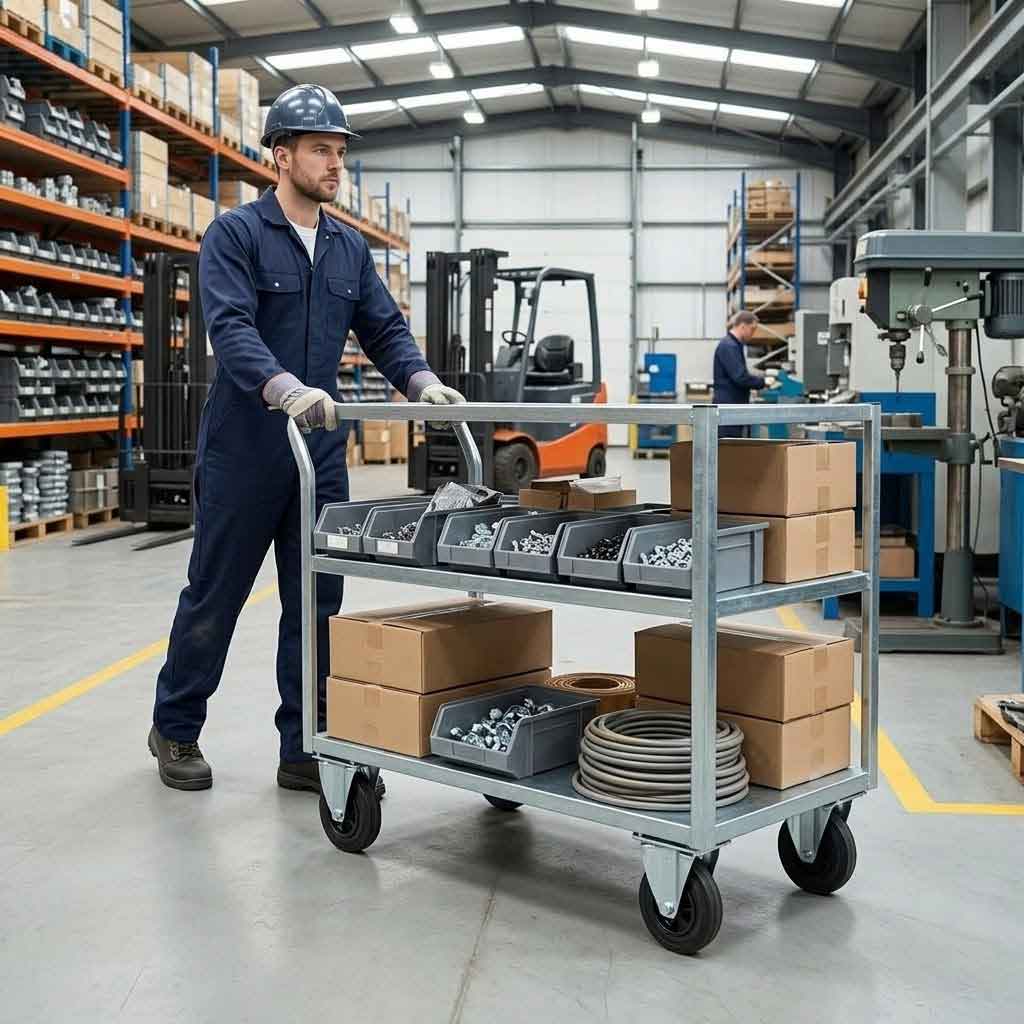

? Trolleys and carts requiring straight-line movement

? Mobile workstations and equipment stands

? Handling and transport equipment

? Workshop and industrial applications

? Retail display units and fixtures

? Indoor environments requiring controlled, floor-friendly rolling

Frequently Asked Questions

What is the difference between a fixed castor and a swivel castor?

A fixed castor only moves in a straight line and cannot rotate, making it ideal for equipment that needs to travel in one direction. A swivel castor can rotate 360 degrees, allowing for greater manoeuvrability. Most applications use a combination of both types, with fixed castors at one end for stability and swivel castors at the other for steering.

How much weight can this castor support?

Each castor has a load capacity of 60kg. When using four castors together, the maximum combined load capacity is 180kg. This rating assumes even weight distribution and proper installation. Always ensure your total equipment weight, including contents, does not exceed the combined capacity of all castors fitted.

What type of flooring is this castor suitable for?

The black rubber on polypropylene wheel is designed for smooth indoor surfaces including concrete, tile, vinyl, laminate, and sealed wood floors. The rubber tread provides floor-friendly operation with minimal marking, while the 85 Shore A hardness offers good shock absorption and vibration reduction. This castor is ideal for warehouse, workshop, retail, and commercial environments.

How do I install this top plate castor?

The castor features a 100mm x 85mm top plate with four 10mm diameter mounting holes. The hole centres are positioned at 60mm x 80mm spacing. Installation requires four bolts (not included) that match the 10mm hole diameter. Ensure the mounting surface is flat, clean, and strong enough to support the intended load. Tighten all bolts securely and check regularly for any loosening during use.

This 80mm pressed steel fixed castor delivers reliable straight-line mobility, smooth rolling performance, and long service life for a wide range of light to medium-duty indoor applications. Engineered for durability and consistent performance in commercial and industrial environments.
