75mm Pressed Steel Swivel Castor Wheel - Black Polypropylene & 4-Hole Top Plate - 75kg Max Load

75mm Pressed Steel Swivel Castor Wheel - Black Polypropylene & 4-Hole Top Plate - 75kg Max Load

£15.65 GBP
£18.95 GBP £15.65 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

75mm Pressed Steel Swivel Castor Wheel ? Black Polypropylene & 4-Hole Top Plate ? 75kg Max Load

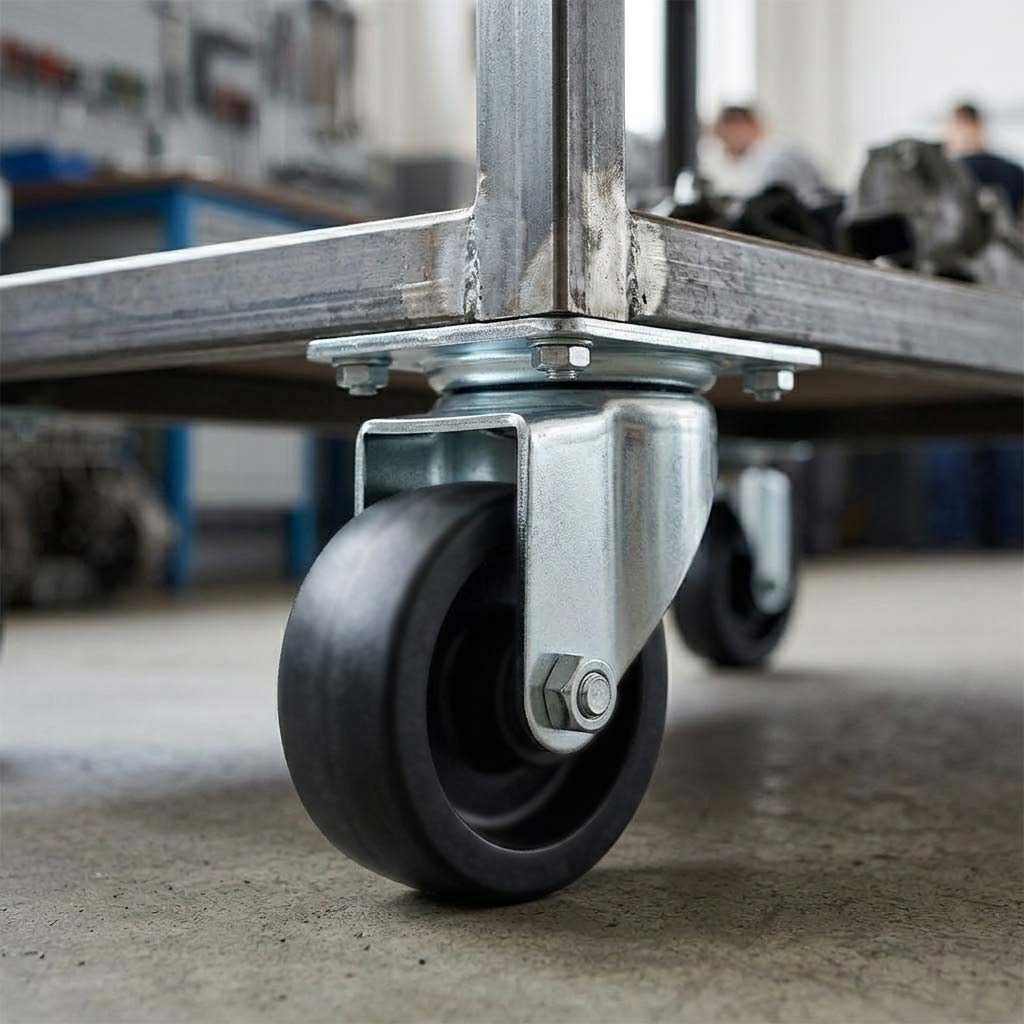

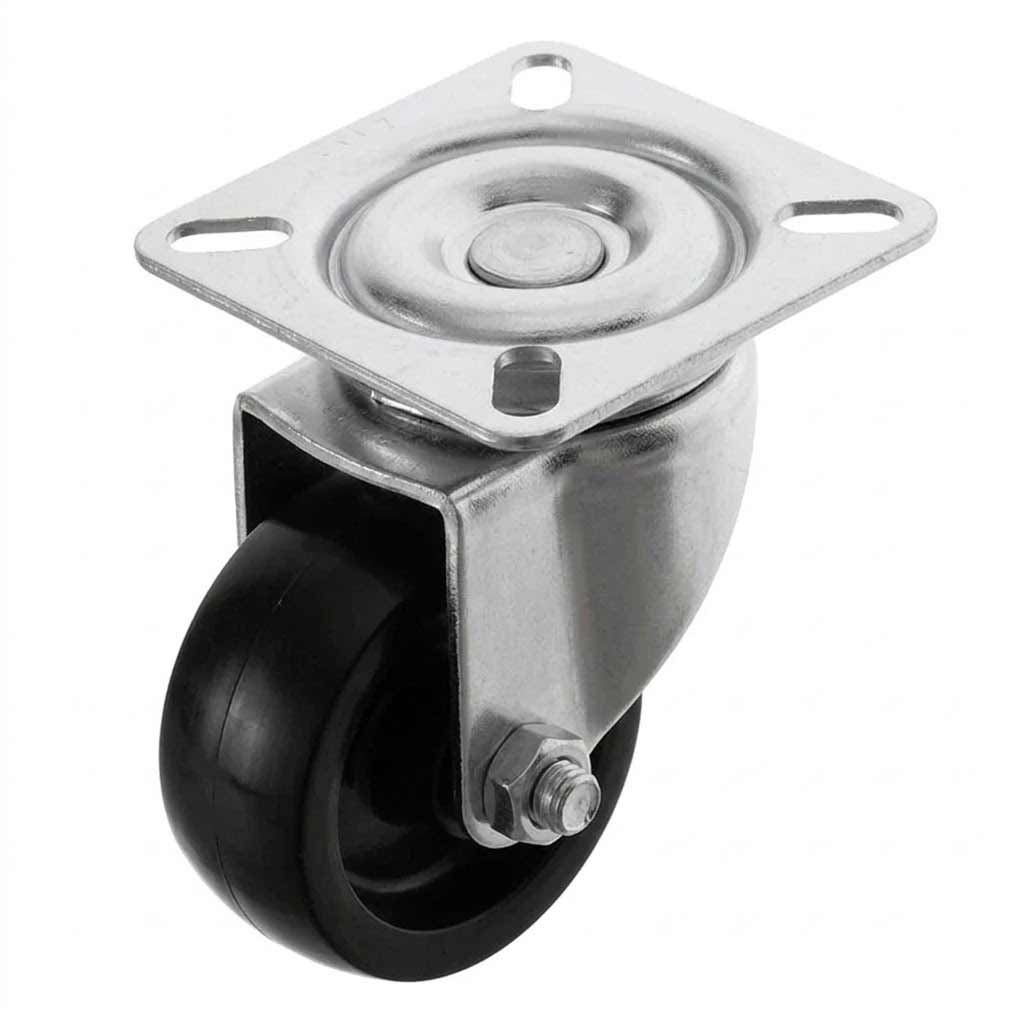

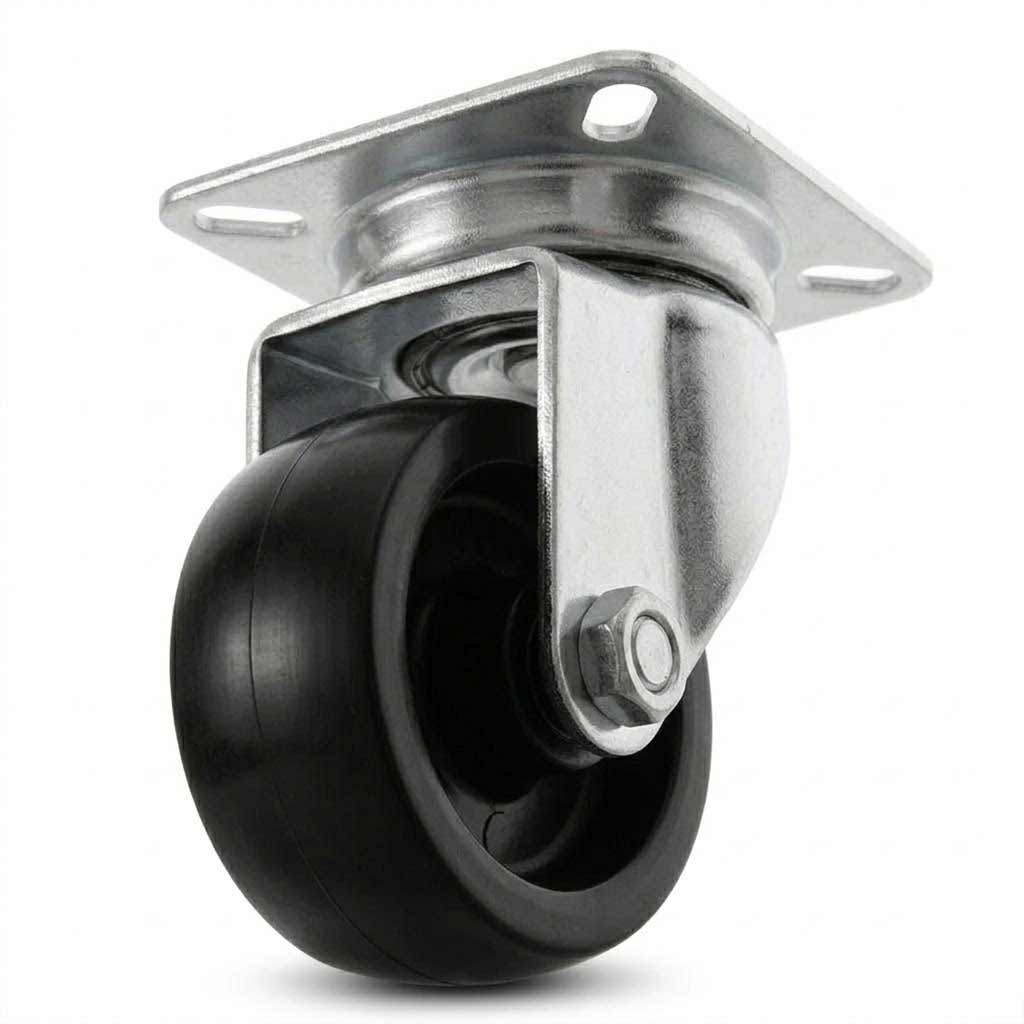

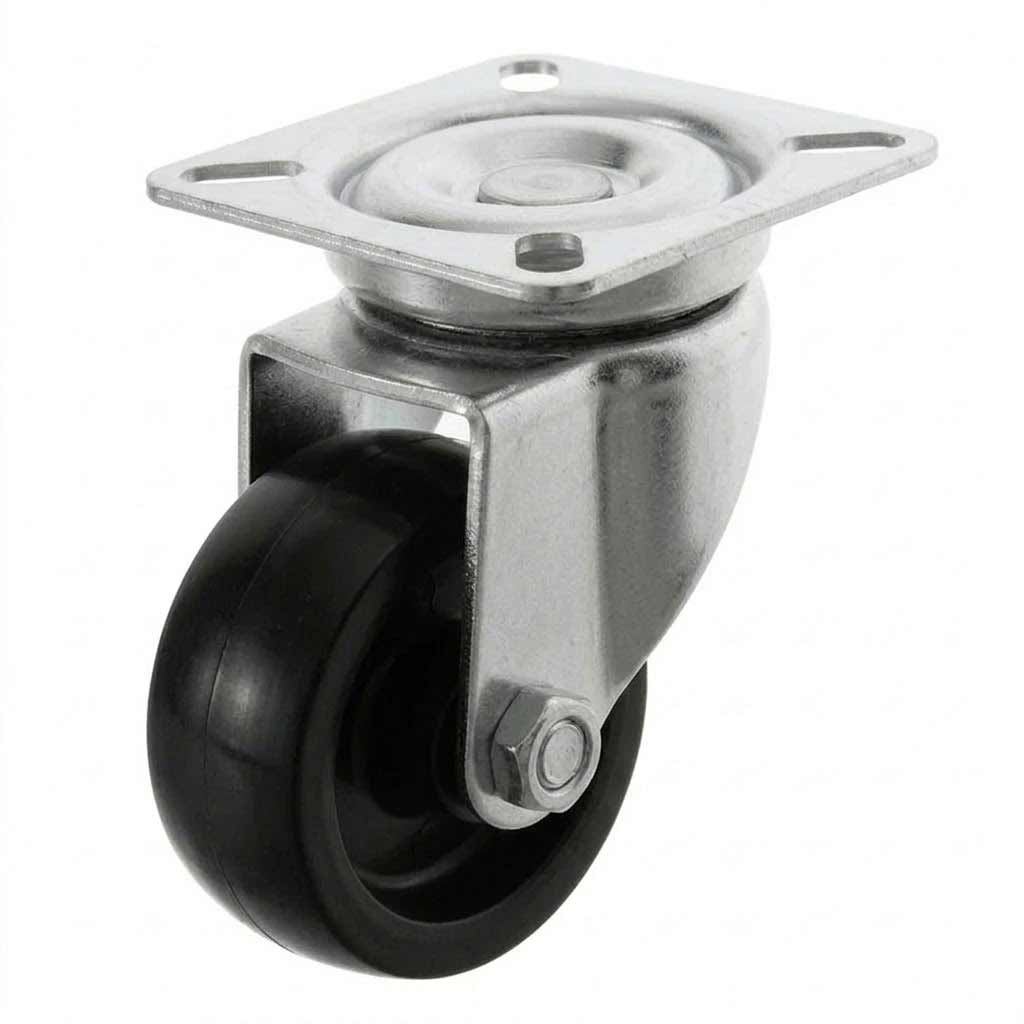

A precision-engineered pressed steel swivel castor fitted with a black polypropylene wheel and a zinc-plated 4-hole top plate. Designed for smooth, responsive movement across hard floor surfaces, this castor is the go-to choice for shopfitters, workshop operators, and facilities teams who demand reliable mobility without compromise. Whether mounted beneath a retail display unit, a workshop trolley, or a storage rack, it delivers consistent, low-effort directional control in even the most confined spaces.

Key Features

  • 75kg Load Capacity ? Handles moderate to medium-duty loads with consistent, dependable performance.
  • Swivel Action ? Full 360° rotation for effortless directional change in tight or congested areas.
  • Black Polypropylene Wheel ? Lightweight, hard-wearing, and suited to smooth hard floor surfaces.
  • Pressed Steel Housing ? Robust swivel head construction for long-term structural integrity.
  • Zinc-Plated Top Plate ? Corrosion-resistant finish for extended service life in demanding environments.
  • Plain Bearing ? Simple, low-maintenance bearing type suited to general-purpose applications.
  • Standard Bolt Pattern ? 4-hole plate with 48/38mm hole centres for straightforward, tool-friendly installation.

Typical Applications

  • Retail & Shopfitting ? Mobile display units, gondola shelving, and point-of-sale fixtures.

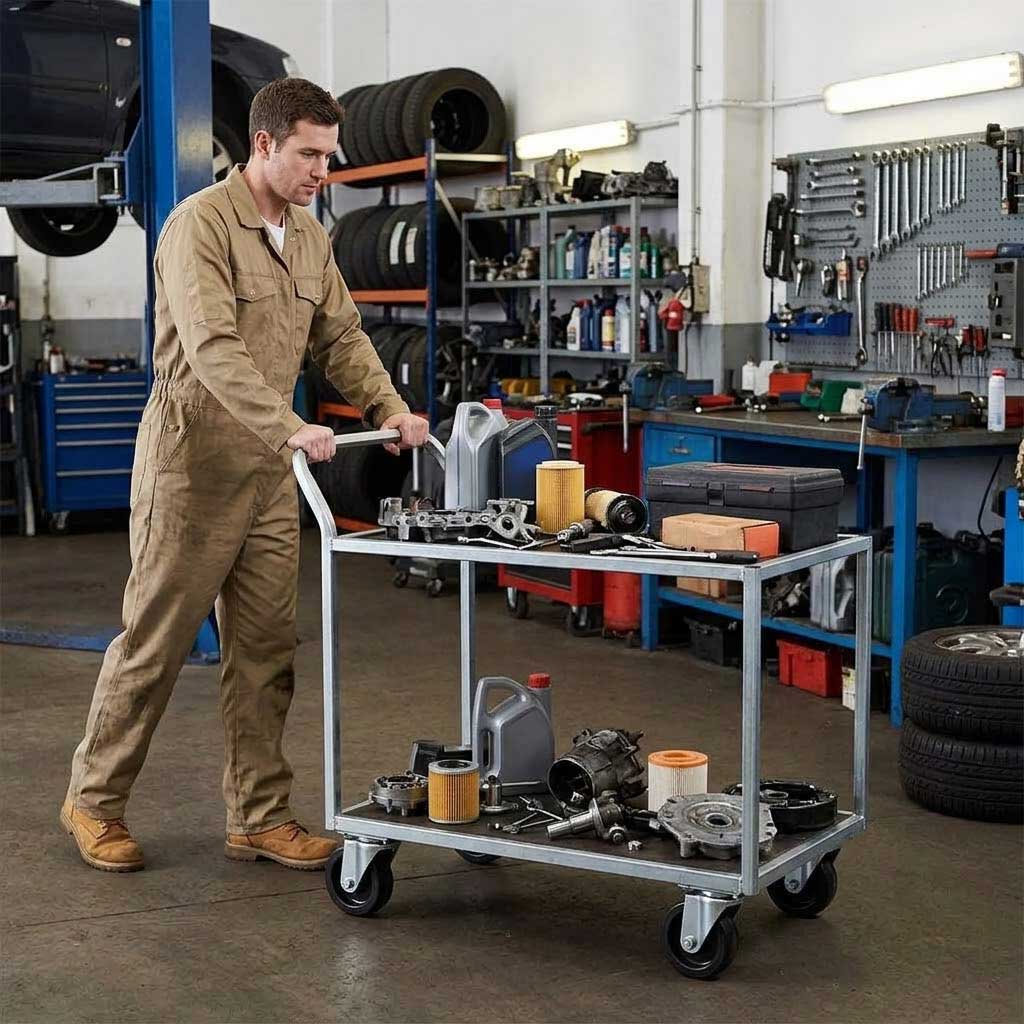

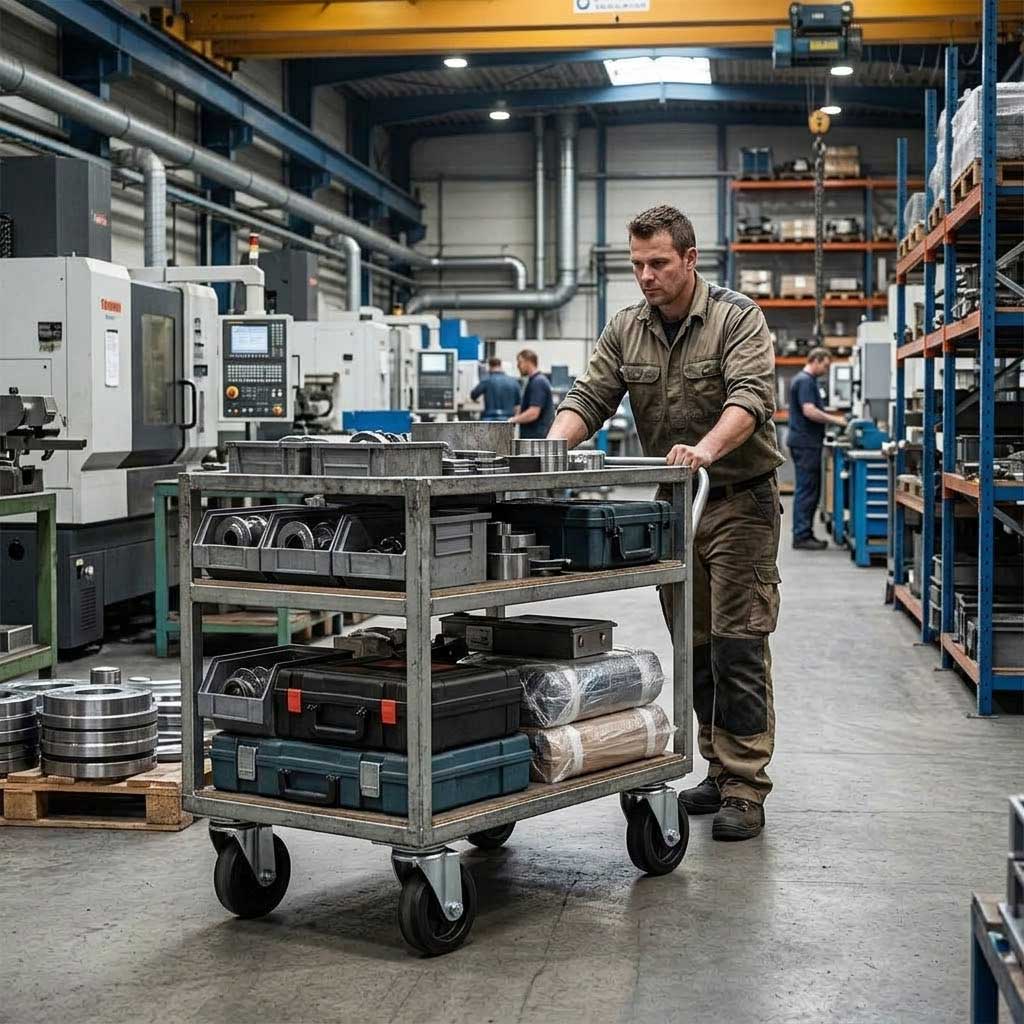

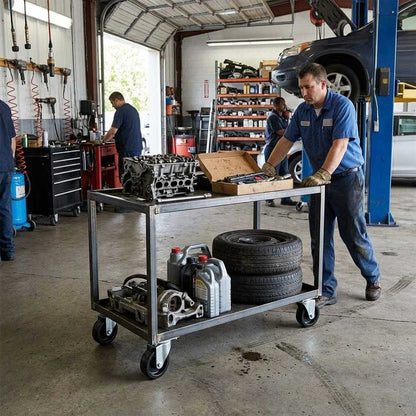

  • Workshop & Industrial ? Tool trolleys, workbenches, and equipment stands requiring frequent repositioning.
  • Warehousing & Storage ? Storage racks, picking trolleys, and mobile shelving units.
  • Furniture & Hospitality ? Catering trolleys, hotel luggage carts, and mobile furniture in commercial settings.

Full Technical Specifications

Specification Detail
Castor Type Top Plate Swivel Castor
Wheel Diameter 75mm
Wheel Material Polypropylene (PP)
Wheel Colour Black
Tread Width 22mm
Total Castor Height 100mm
Swivel Radius 70mm
Bearing Type Plain Bearing
Housing Material Pressed Steel
Plate Dimensions 60mm x 60mm
Number of Plate Holes 4 Holes
Plate Hole Centres 48mm / 38mm
Plate Hole Diameter 6mm
Plate Finish Zinc Plated
Max Load Capacity (Single) 75kg
Max Load Capacity (Set of 4)* 225kg

* When using a set of 4 castors, a safety derating factor applies. The combined rated load of 4 units (4 x 75kg = 300kg) is reduced to 225kg to account for uneven load distribution across all four mounting points.

Frequently Asked Questions

What surfaces are polypropylene castor wheels suitable for?

Polypropylene wheels perform best on smooth, hard floor surfaces such as concrete, tile, vinyl, laminate, and sealed timber. They are not recommended for heavily textured, uneven, or soft surfaces where a rubber or pneumatic wheel would be more appropriate. For indoor commercial and industrial environments with hard flooring, this wheel type offers an excellent balance of durability and rolling ease.

How do I calculate the correct load capacity for my application?

When fitting a set of 4 castors, the total safe working load is not simply 4 times the individual castor rating. A standard safety derating factor is applied to account for uneven load distribution ? typically resulting in a combined capacity of 75% of the theoretical maximum. For this castor, 4 units provide a combined safe working load of 225kg. Always ensure your total load (including the weight of the equipment itself) falls within this figure.

What fixings do I need to mount this castor?

This castor uses a 4-hole top plate measuring 60mm x 60mm, with hole centres of 48mm and 38mm and a hole diameter of 6mm. You will need four M6 bolts, washers, and nuts (or suitable self-tapping screws for timber applications) to secure the plate. Fixings are not included and should be selected based on the substrate material and thickness of the equipment being fitted.

Can this castor be used outdoors?

This castor is primarily designed for indoor use. The zinc-plated top plate offers a degree of corrosion resistance, but prolonged exposure to moisture, rain, or outdoor conditions may reduce the service life of the pressed steel components. For outdoor or wet-environment applications, a stainless steel or nylon-bodied castor with a suitable wheel material would be a more appropriate choice.

Our team brings deep product knowledge and a genuine commitment to reliable supply. If you need guidance on selecting the right castor for your specific application ? load, floor type, environment, or fitting method ? we are here to help you make the right choice with confidence.
