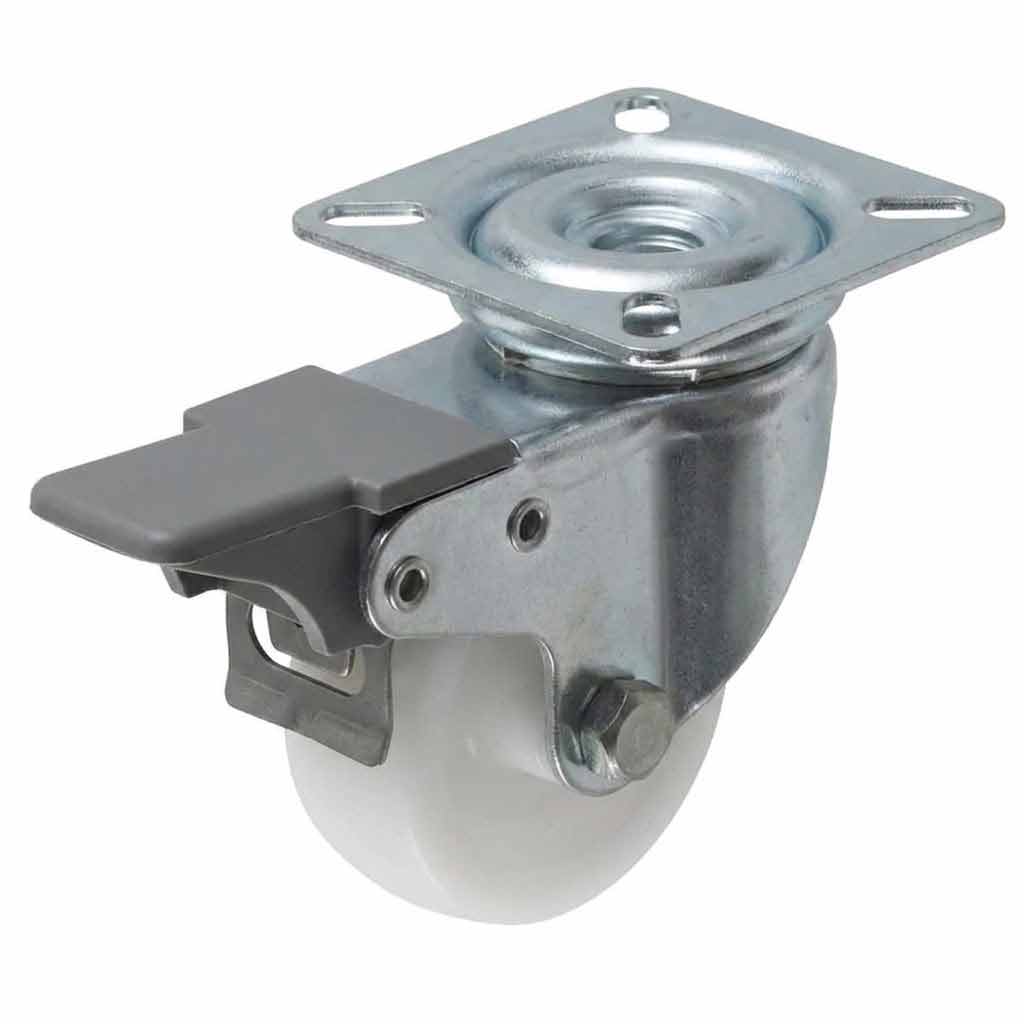

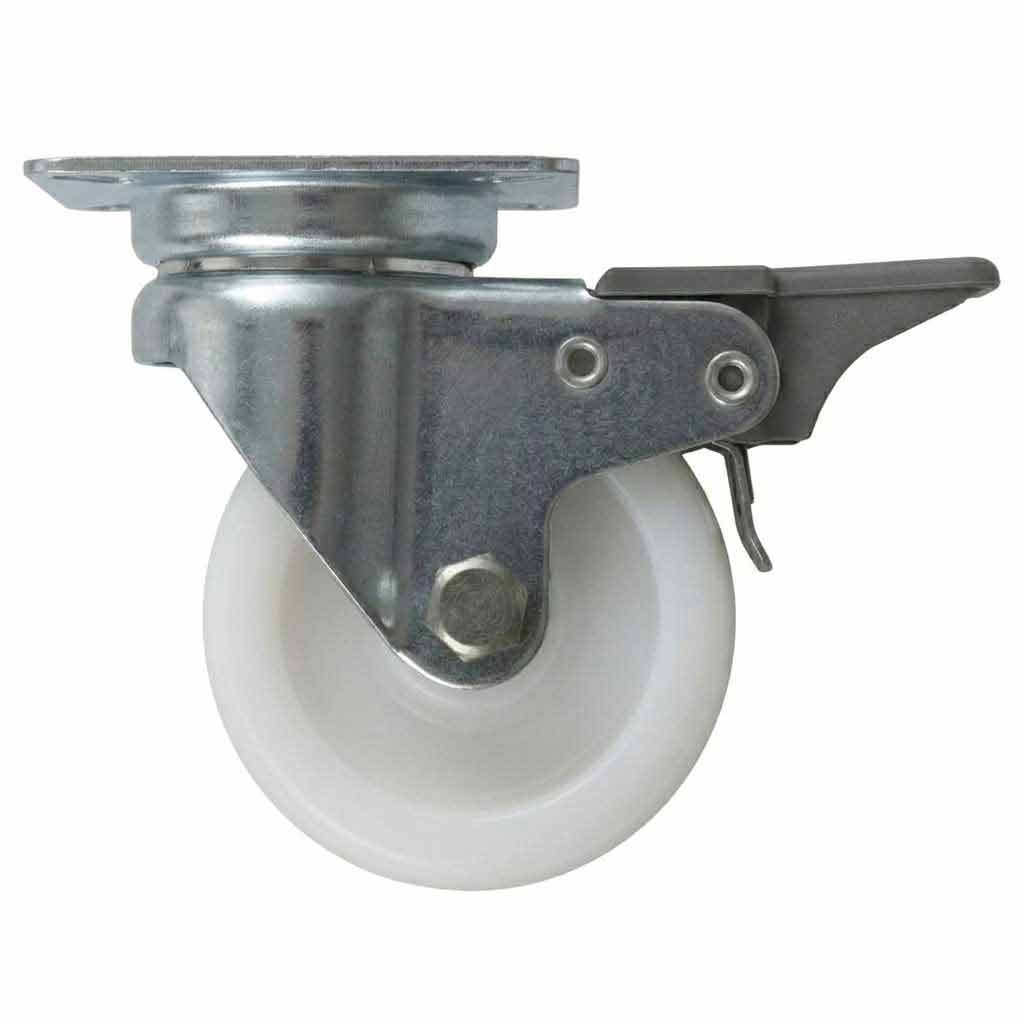

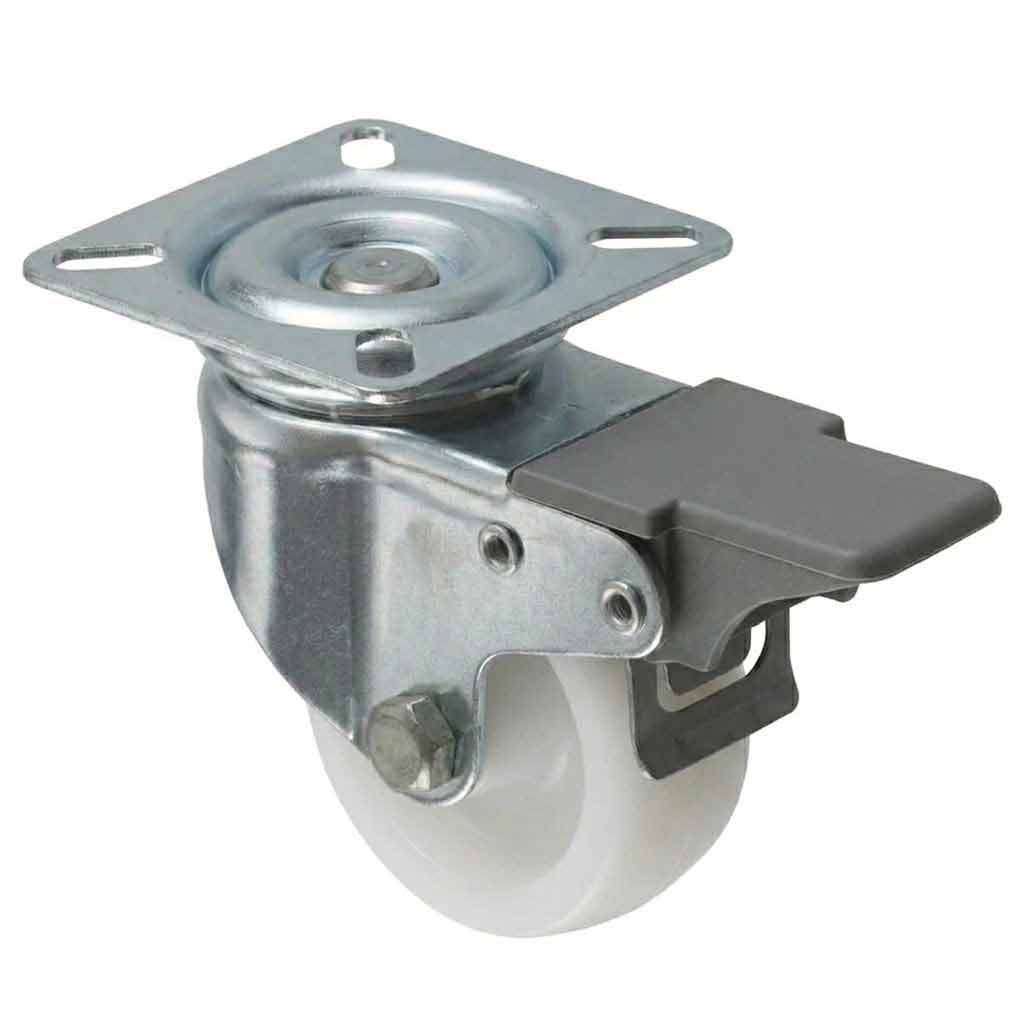

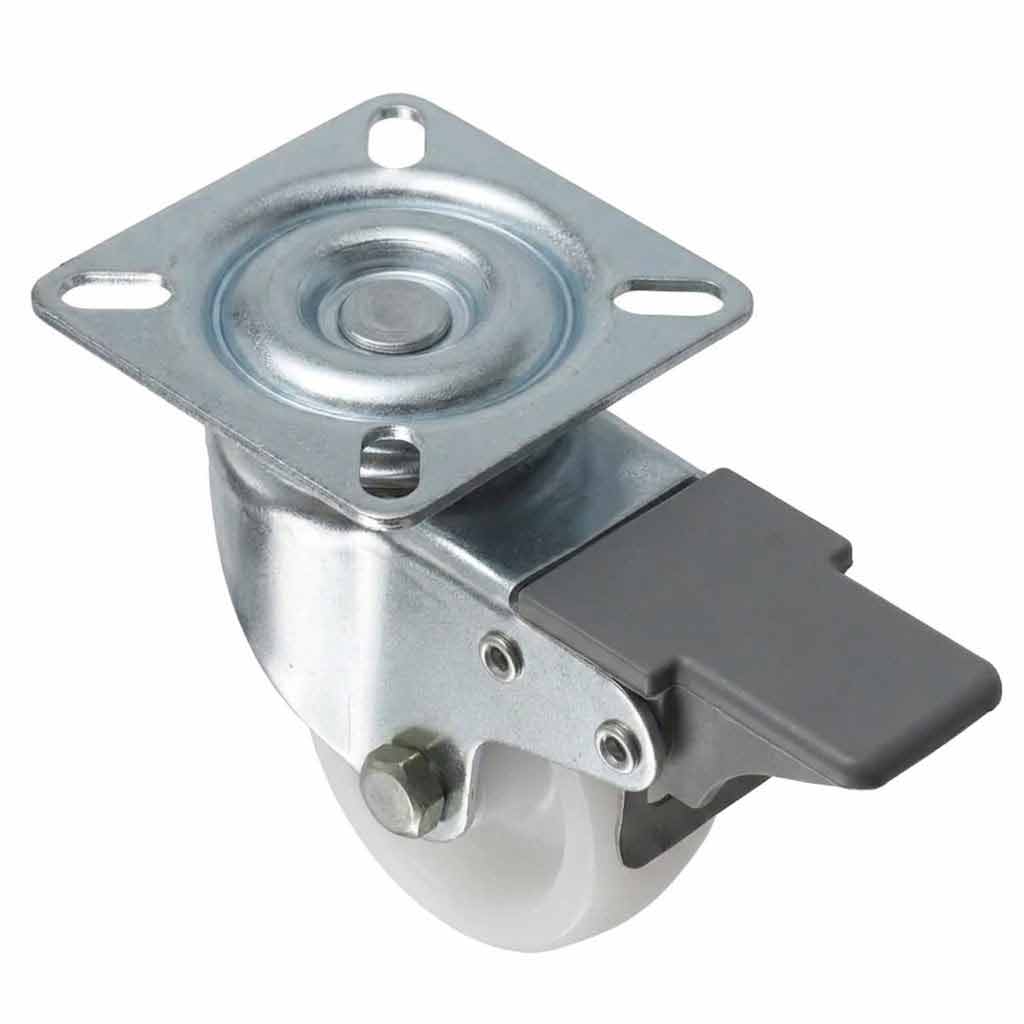

50mm Pressed Steel Swivel Castor Wheel with Brake - White Nylon Wheel & 4-Hole Top Plate - 65kg Load

50mm Pressed Steel Swivel Castor Wheel with Brake - White Nylon Wheel & 4-Hole Top Plate - 65kg Load

£19.20 GBP
£22.65 GBP £19.20 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

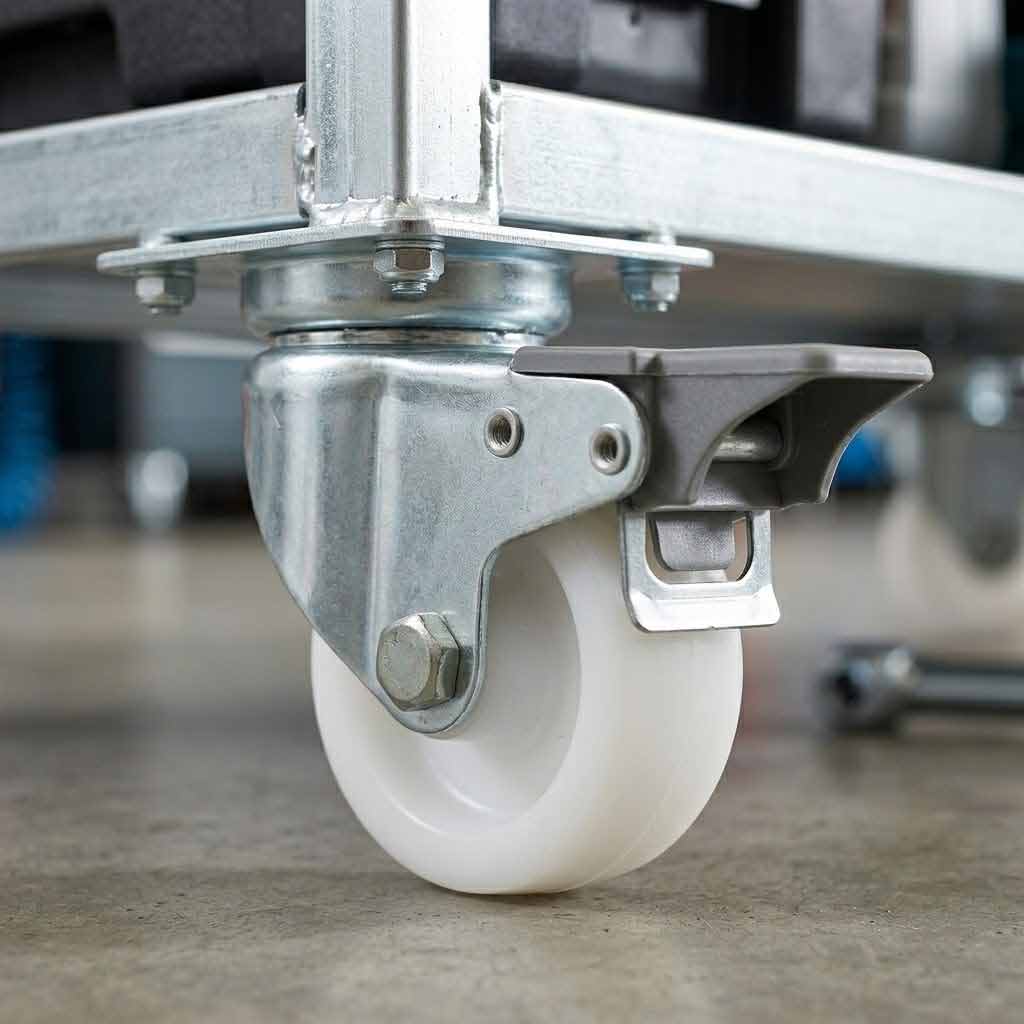

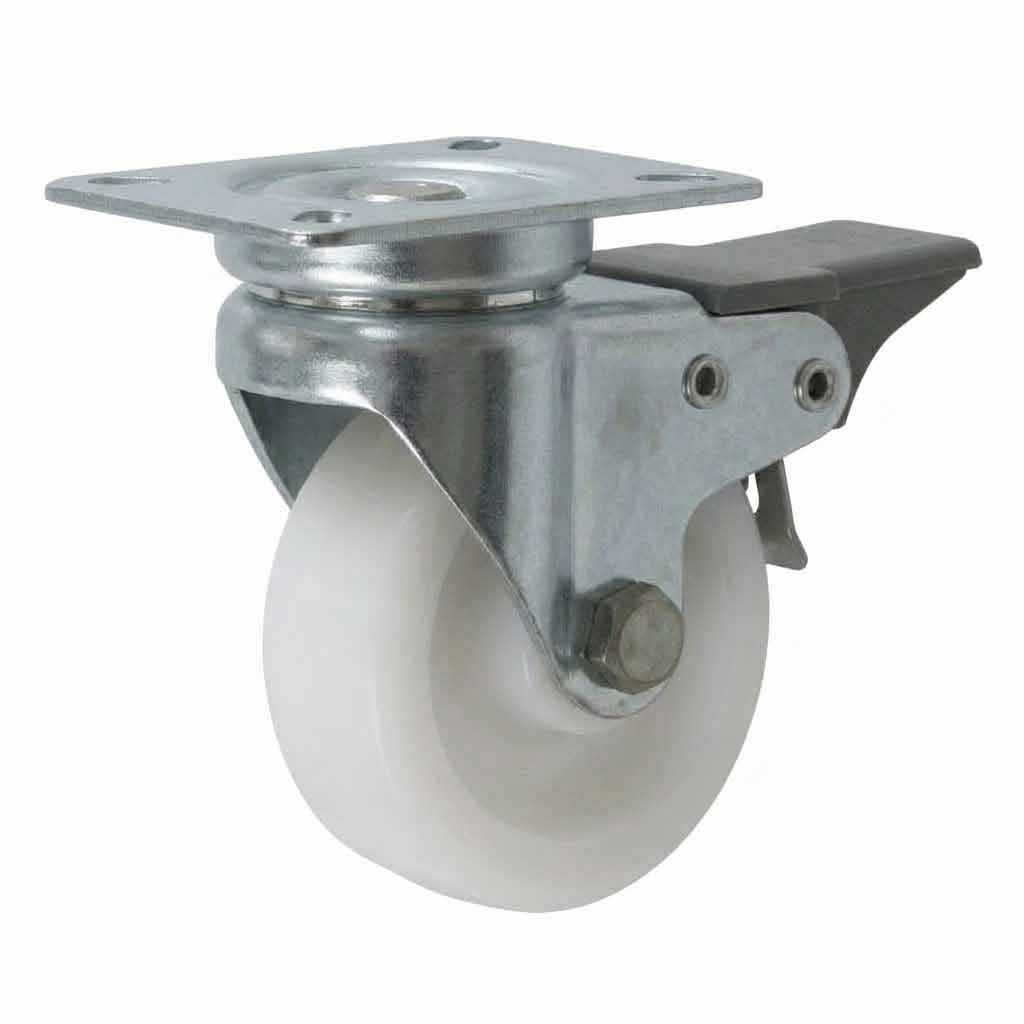

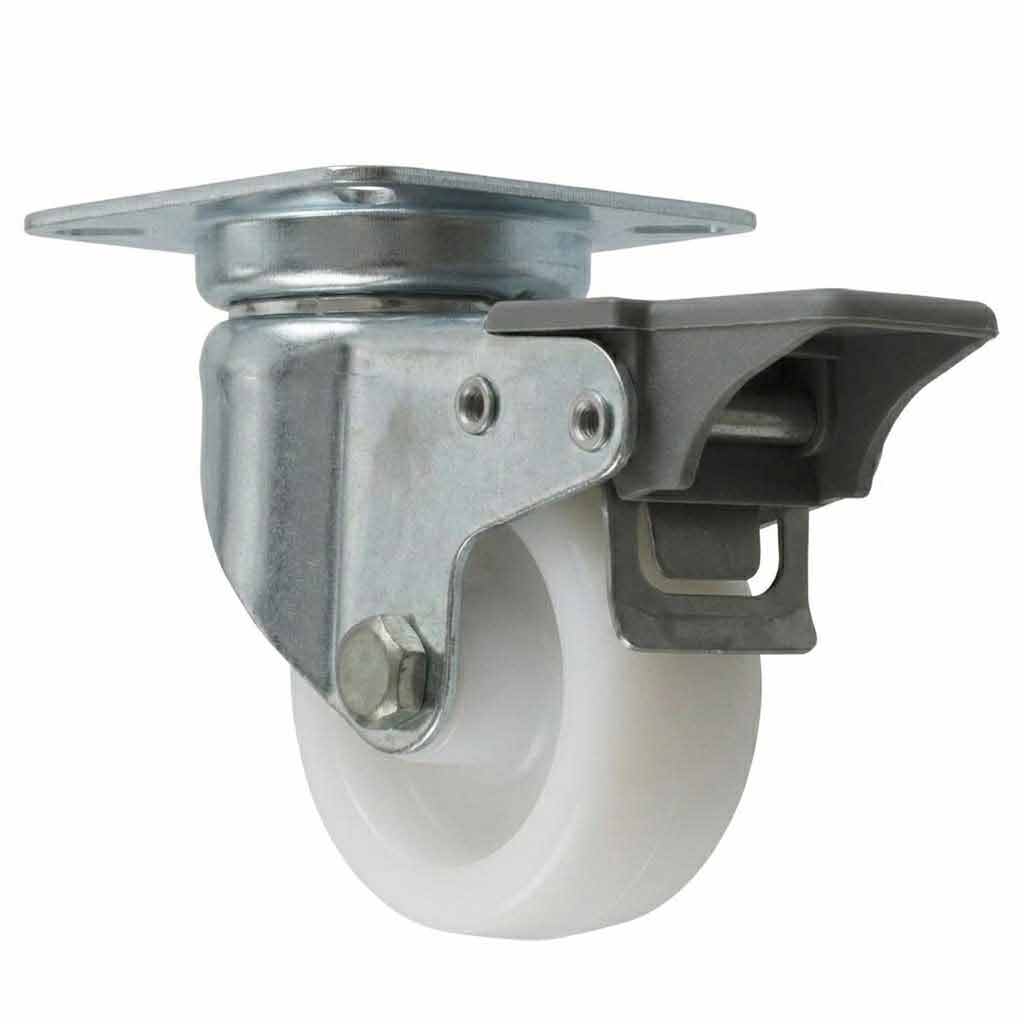

This 50mm pressed steel swivel castor with integrated brake is a compact, high-performance mobility component designed for light-to-medium duty applications. Fitted with a white nylon wheel and secured via a 4-hole top plate, it is widely used in retail display fixtures, workshop trolleys, hospitality furniture, and event staging ? anywhere controlled, smooth movement and reliable locking are essential.

Key Features

  • Swivel action with 85mm radius for effortless directional control in confined spaces
  • Integrated foot-operated brake for secure, stable positioning on demand
  • White nylon wheel delivers smooth, quiet rolling across hard and semi-hard floor surfaces
  • Pressed steel top plate with zinc-plated finish for corrosion resistance and structural rigidity
  • 4-hole bolt pattern for straightforward, secure mounting to a wide range of equipment bases
  • 65kg individual load capacity ? suitable for moderately loaded fixtures and mobile units
  • 22mm tread width provides a stable contact footprint during transit
  • Compact 72mm total height suits low-clearance applications and standard furniture legs

Technical Specifications

Specification Detail
Castor Type Swivel with Brake
Mounting Type Top Plate (4-Hole)
Wheel Diameter 50mm
Wheel Material Nylon
Wheel Colour White
Tread Width 22mm
Total Castor Height 72mm
Swivel Radius 85mm
Bearing Type Plain
Top Plate Material Pressed Steel (Zinc Plated)
Plate Dimensions 60mm x 60mm
Hole Centres 48mm x 38mm
Number of Bolt Holes 4
Brake Type Integrated Foot-Operated Brake
Individual Load Capacity 65kg
Max Load (Set of 4)* 195kg
Finish Zinc Plated

* Maximum load for a set of 4 castors is calculated at 75% of combined individual ratings to account for uneven weight distribution.

Typical Applications

Retail & Shop FittingDisplay units, shelving bays, and gondola fixtures requiring controlled repositioning

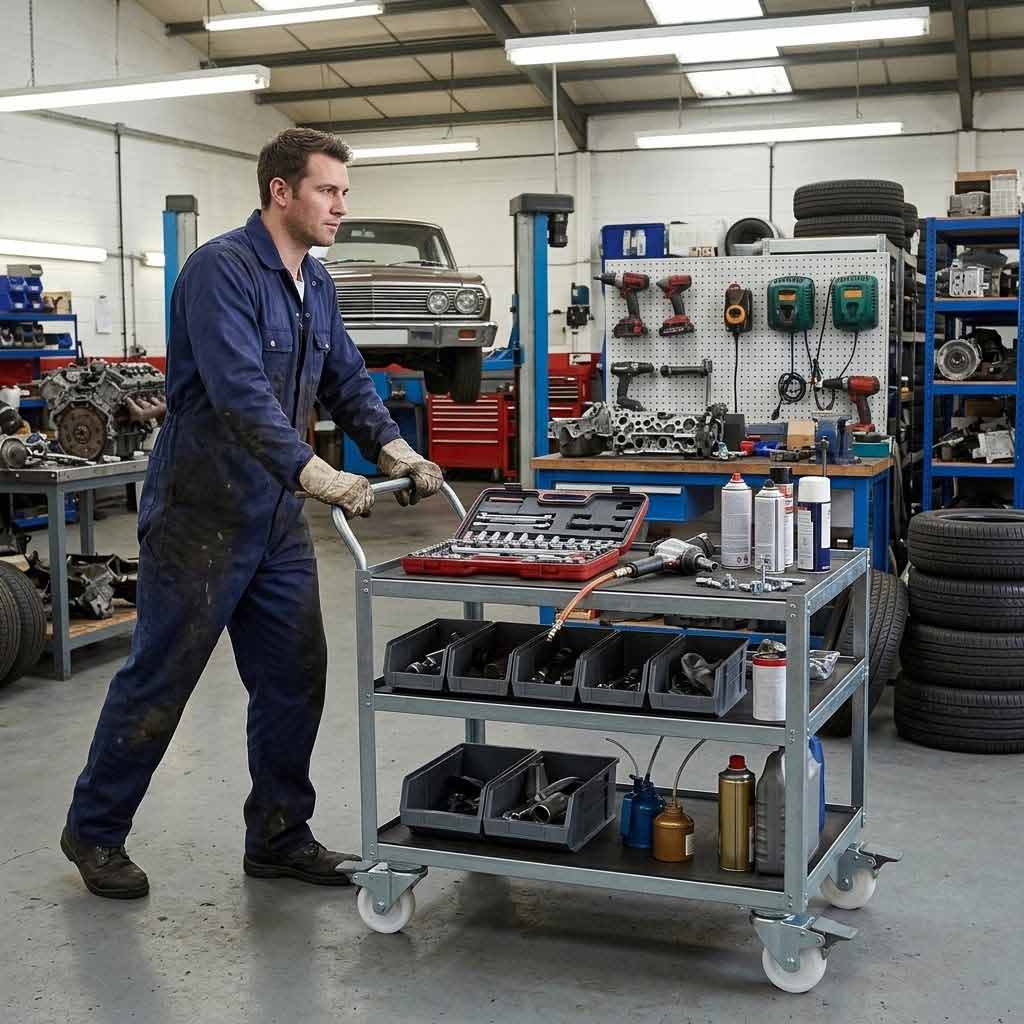

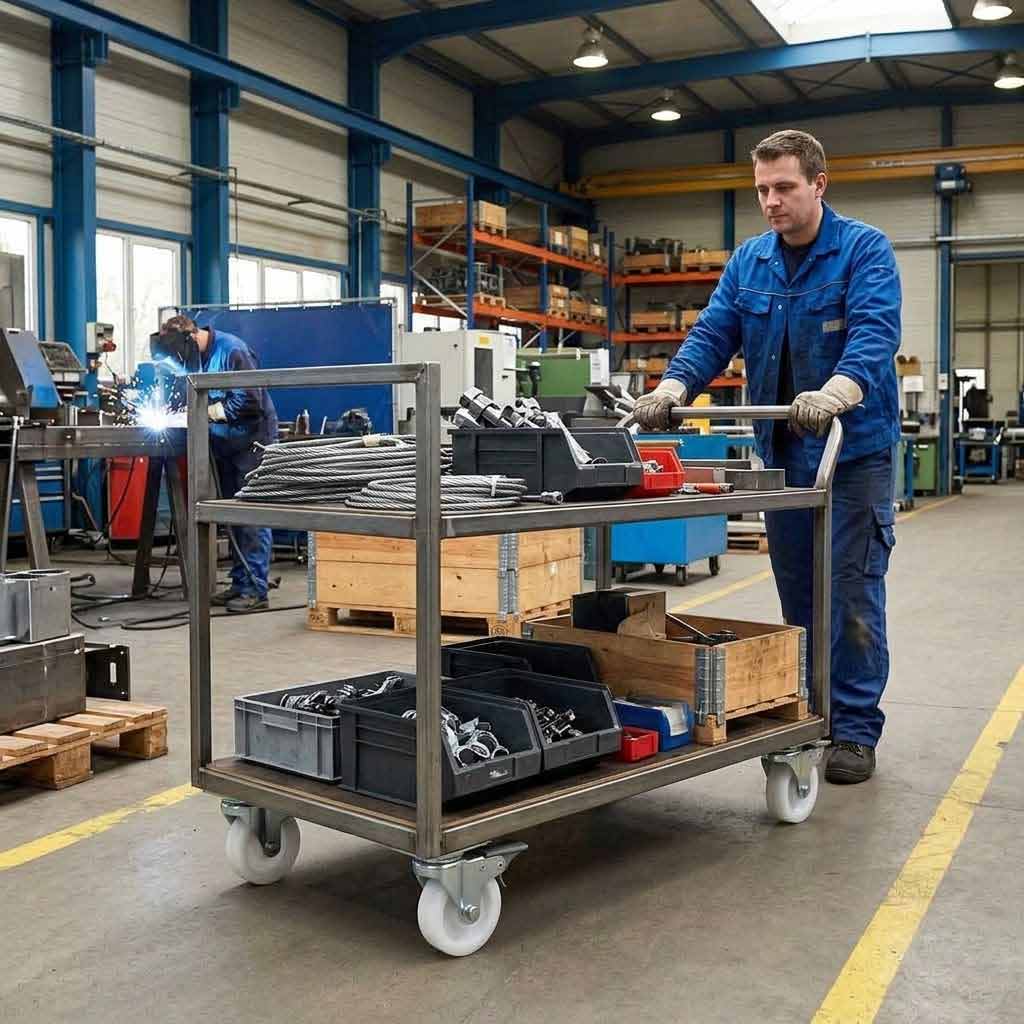

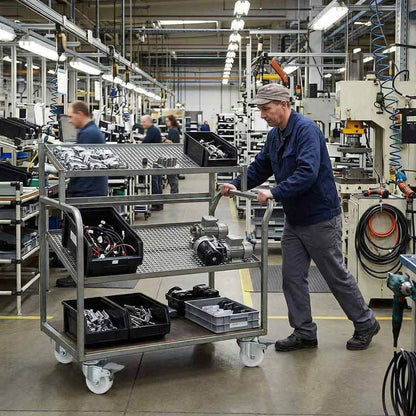

Workshop & Light IndustrialMobile tool cabinets, parts trolleys, and workbench bases in production environments
Hospitality & CateringService trolleys, linen carts, and mobile catering equipment in hotels and venues
Event & ExhibitionStaging platforms, display boards, and portable booth structures requiring quick lock-off
Office & Commercial FurnitureMobile pedestals, filing units, and lightweight office furniture in commercial interiors
Healthcare & EducationMobile equipment stands, storage trolleys, and classroom furniture in managed environments

Frequently Asked Questions

What floor surfaces is this castor suitable for?
The white nylon wheel is best suited to smooth, hard floor surfaces such as concrete, tile, vinyl, laminate, and sealed timber. It is not recommended for deep-pile carpet or heavily textured outdoor surfaces, where a rubber or polyurethane wheel would be more appropriate.
How does the brake mechanism work?
The castor features an integrated foot-operated brake. Pressing the brake lever down with your foot locks the wheel in place, preventing rotation and swivel movement. Lifting the lever releases the brake and restores full mobility. No tools are required to operate it.
How many castors do I need, and what is the combined load capacity?
Most applications use a set of 4 castors. Each castor is rated to 65kg individually; however, the recommended maximum load for a set of 4 is 195kg ? calculated at 75% of the combined total to account for uneven weight distribution during movement. For loads approaching this limit, we recommend verifying the weight distribution of your specific application.
What are the mounting hole dimensions, and how do I fit this castor?

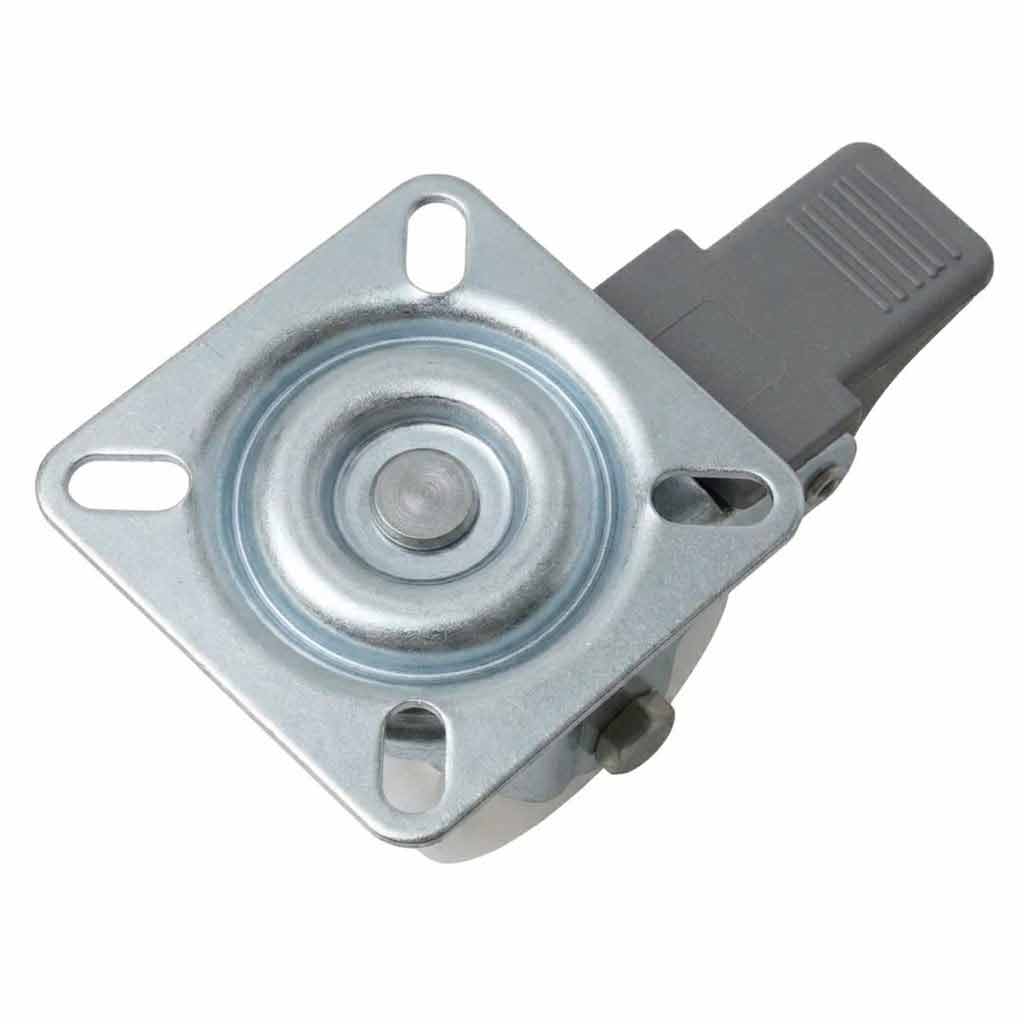

The top plate measures 60mm x 60mm with hole centres of 48mm x 38mm across 4 bolt holes. Fitting requires four appropriately sized bolts (not included) passed through the plate holes and secured into the base of your equipment. Ensure the mounting surface is flat and structurally sound to achieve the rated load capacity.
