200mm Pressed Steel Fixed Castor Wheel - Grey Rubber on Pressed Steel - 180kg Load Capacity

200mm Pressed Steel Fixed Castor Wheel - Grey Rubber on Pressed Steel - 180kg Load Capacity

£48.40 GBP
£52.60 GBP £48.40 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Fixed Castor ? Top Plate Mounting

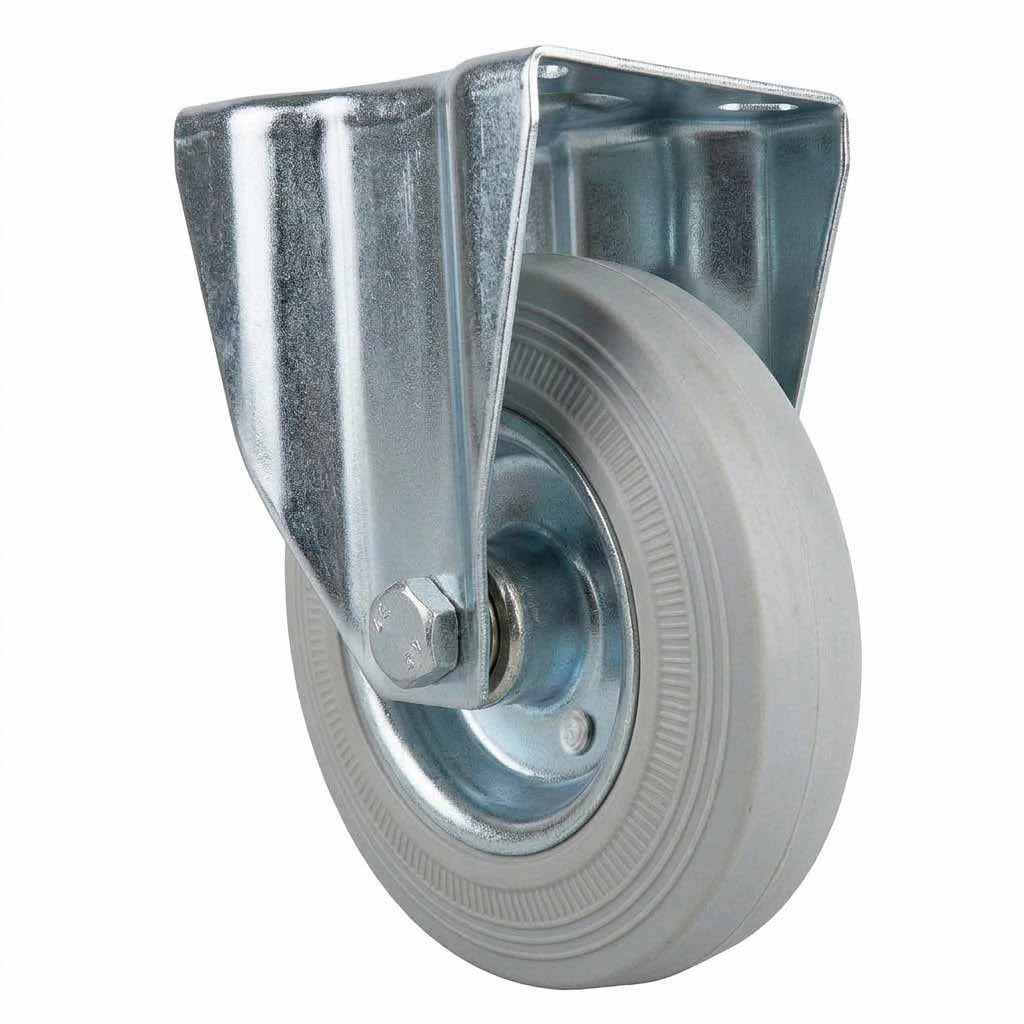

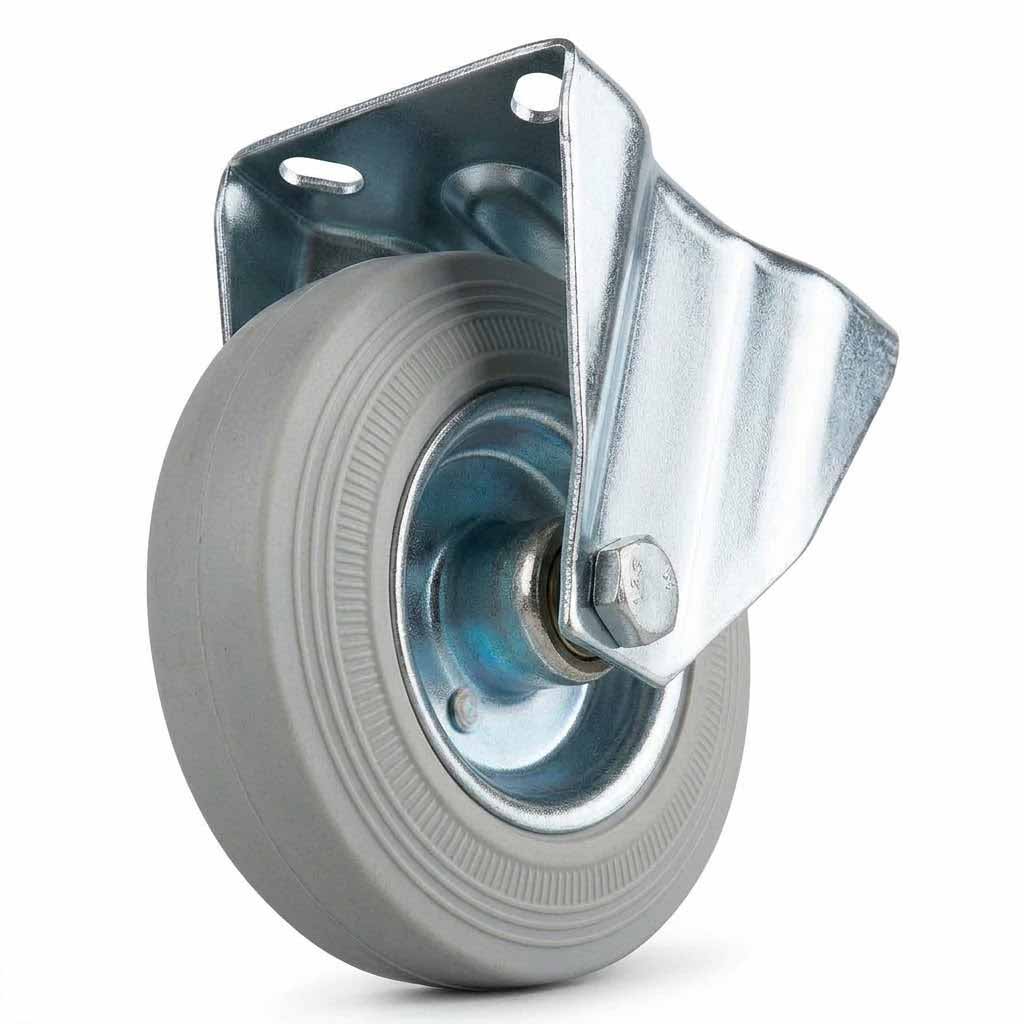

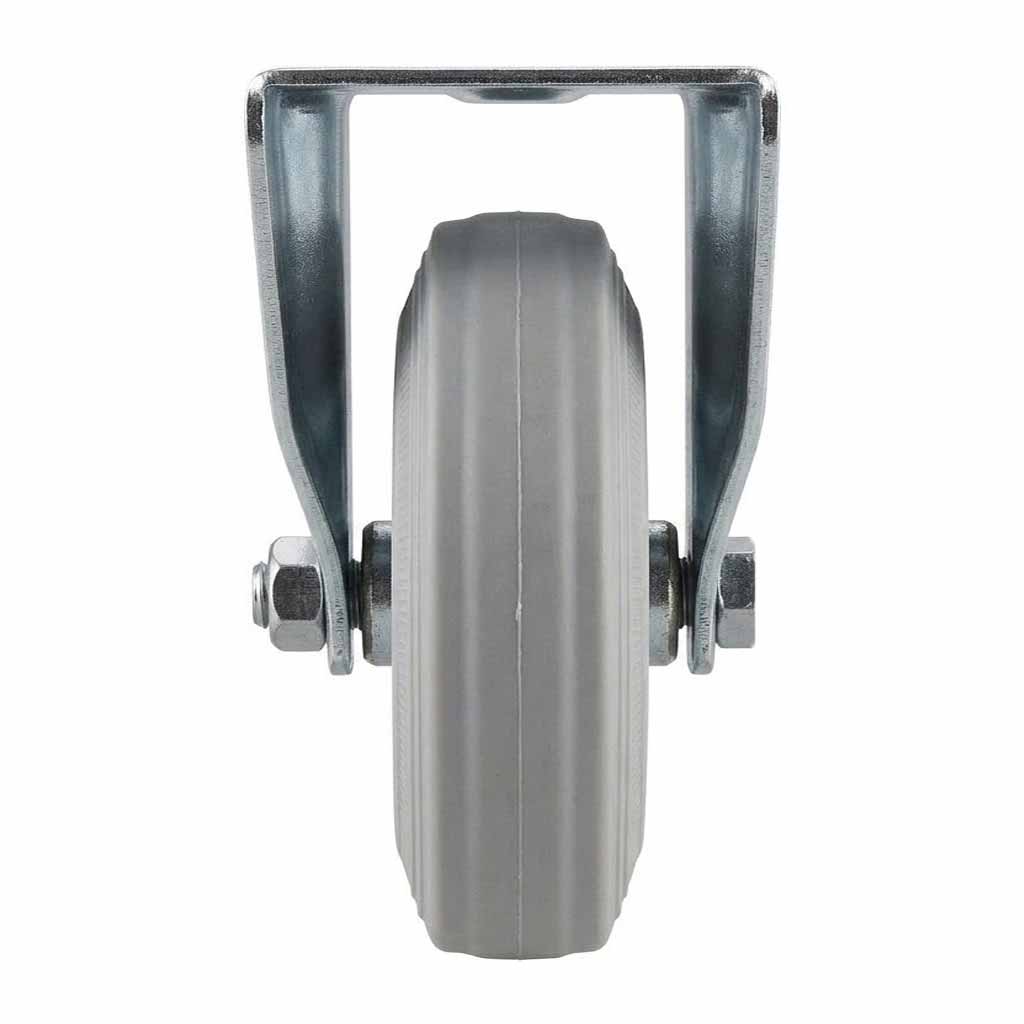

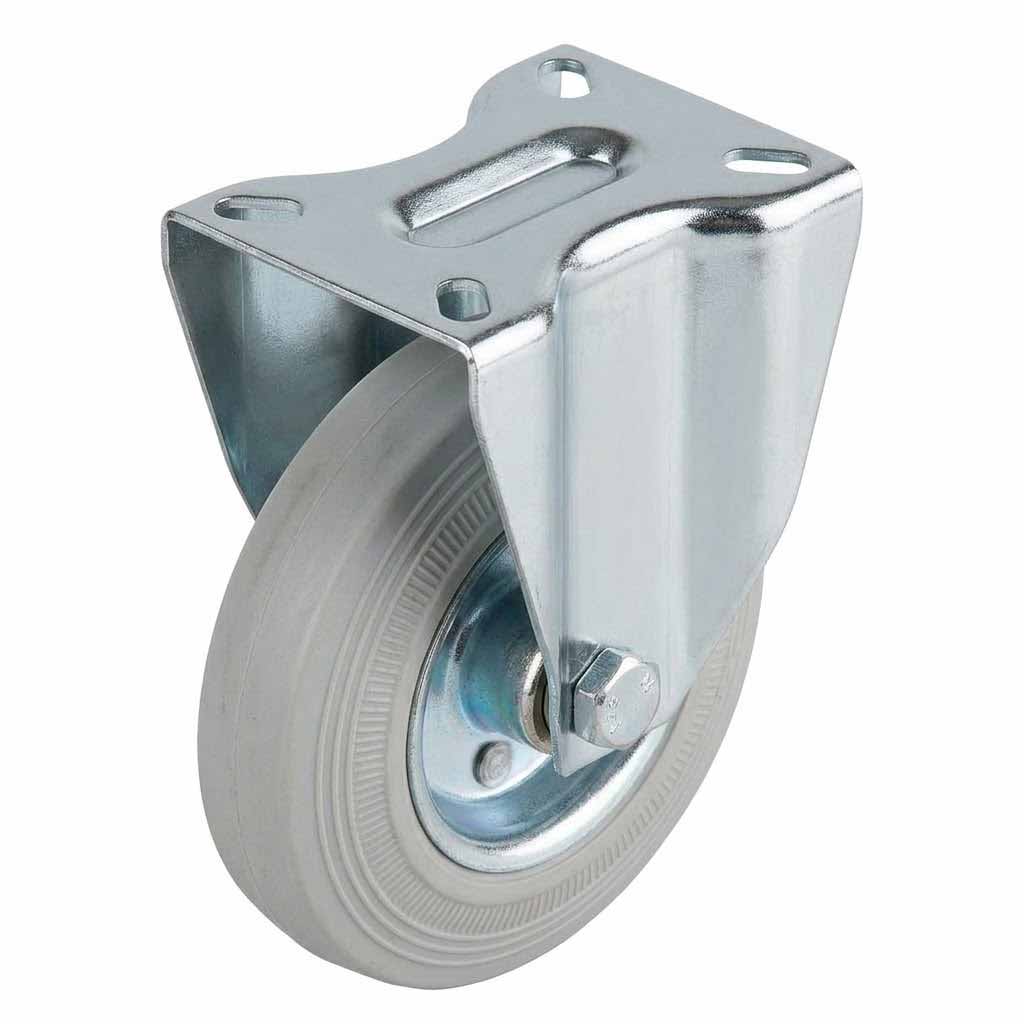

200mm Pressed Steel Fixed Castor Wheel ? Grey Rubber on Pressed Steel ? 180kg Load Capacity

A precision-engineered fixed castor built for demanding industrial and commercial environments, combining a 200mm grey rubber wheel with a robust pressed steel construction and a zinc-plated top plate for long-term performance.

Product Overview

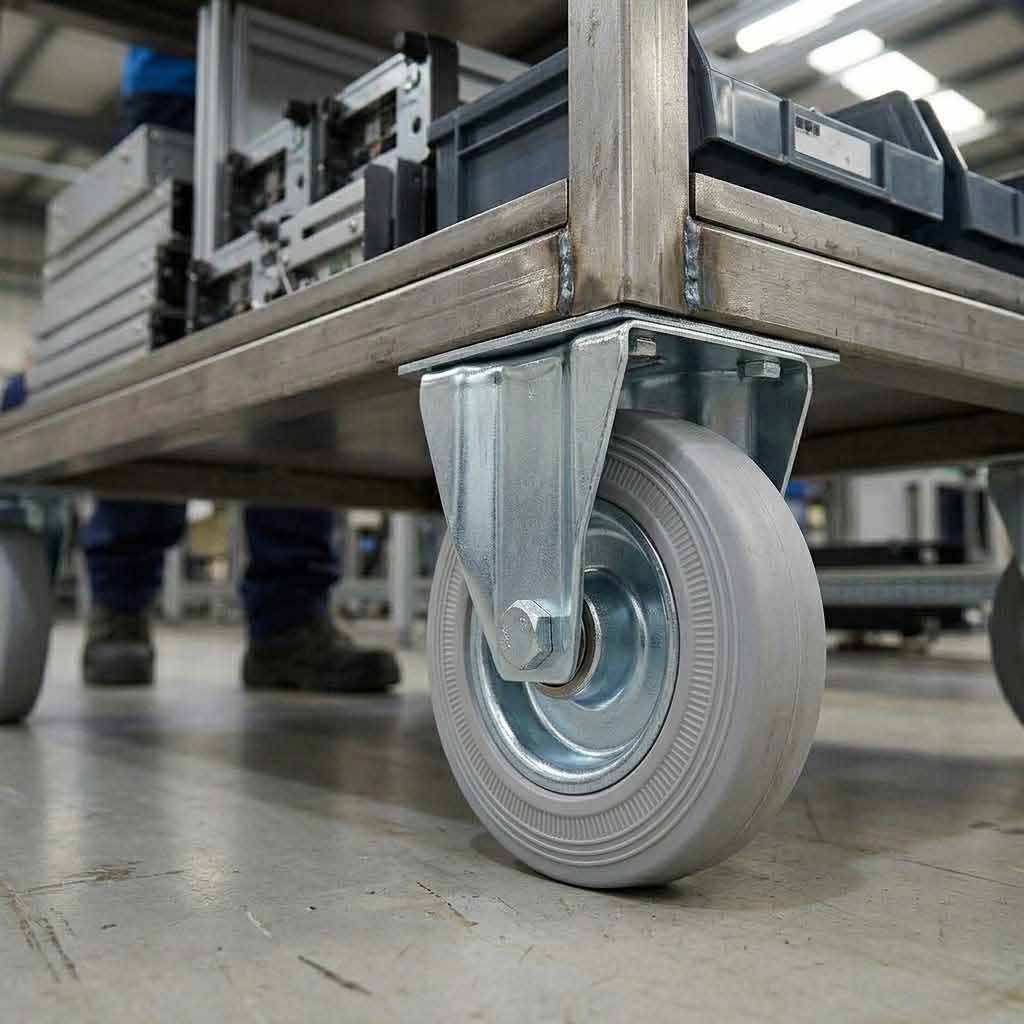

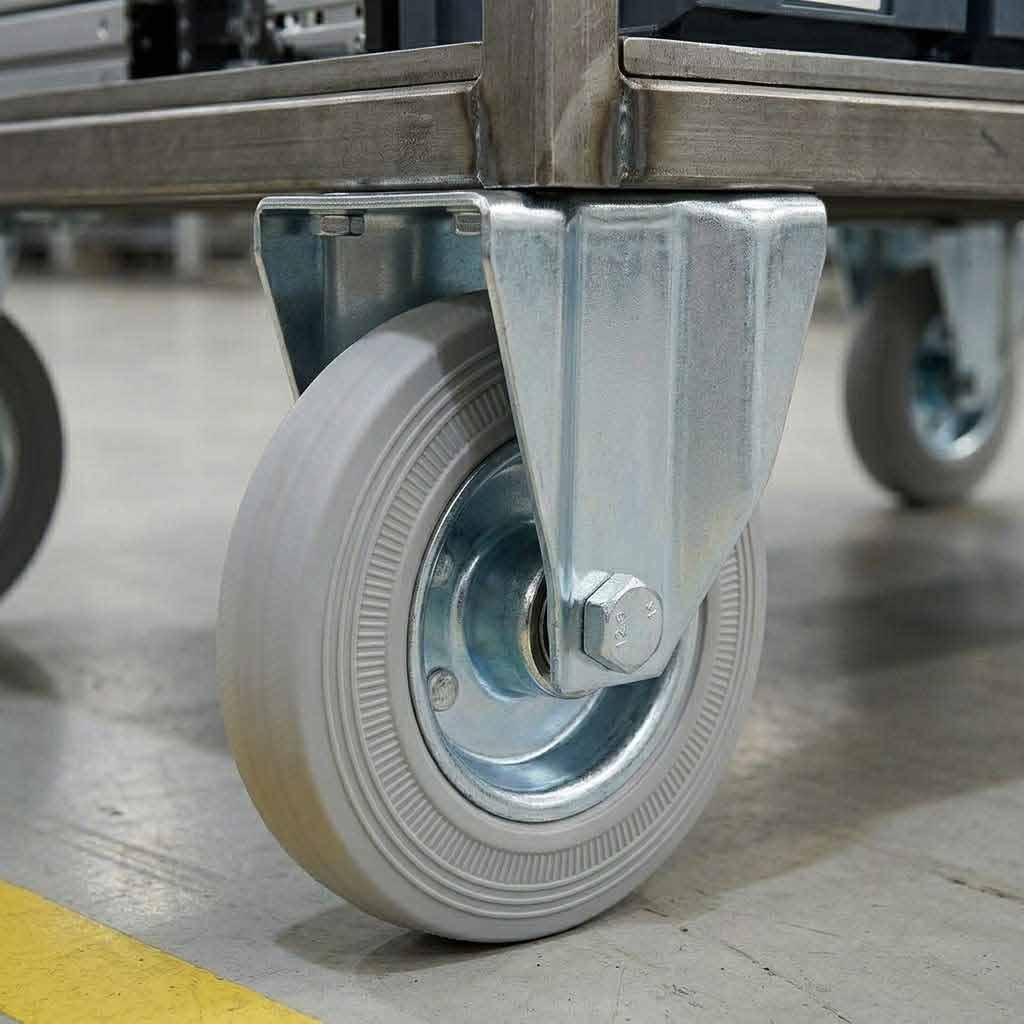

This 200mm fixed castor wheel is designed for applications where directional stability and controlled, straight-line movement are essential. Fitted with a grey rubber tyre bonded to a pressed steel centre, it delivers reliable traction on smooth and semi-smooth floor surfaces while significantly reducing operational noise. The fixed (non-swivel) configuration makes it the preferred choice for the rear positions of trolleys, platform trucks, sack trucks, and heavy-duty carts ? anywhere a stable, load-bearing wheel is required without rotational movement. The zinc-plated top plate provides corrosion resistance suitable for light industrial and indoor commercial settings.

Key Features

200mm Wheel Diameter A larger wheel diameter eases movement over uneven or slightly irregular floor surfaces, reducing rolling resistance and operator effort.
180kg Load Capacity Rated to carry 180kg per castor, with a combined maximum of 540kg across a set of four ? suitable for heavy goods trolleys and industrial carts.
Grey Rubber on Pressed Steel The rubber tyre absorbs vibration and reduces noise during transit, while the pressed steel centre provides structural rigidity under load.
Ball Journal Bearing Precision ball journal bearings deliver smooth, low-friction rolling action, reducing wear and maintaining consistent performance over extended use.
85 Shore A Tread Hardness A medium-firm tread hardness that balances grip, floor protection, and load-bearing capability across a range of indoor surfaces.
Zinc-Plated Top Plate The zinc-plated pressed steel top plate offers corrosion resistance and a clean finish, suitable for indoor industrial and commercial environments.
Fixed (Non-Swivel) Design Provides straight-line directional stability ? ideal for rear-wheel positions on trolleys and carts where controlled movement is required.

Typical Applications

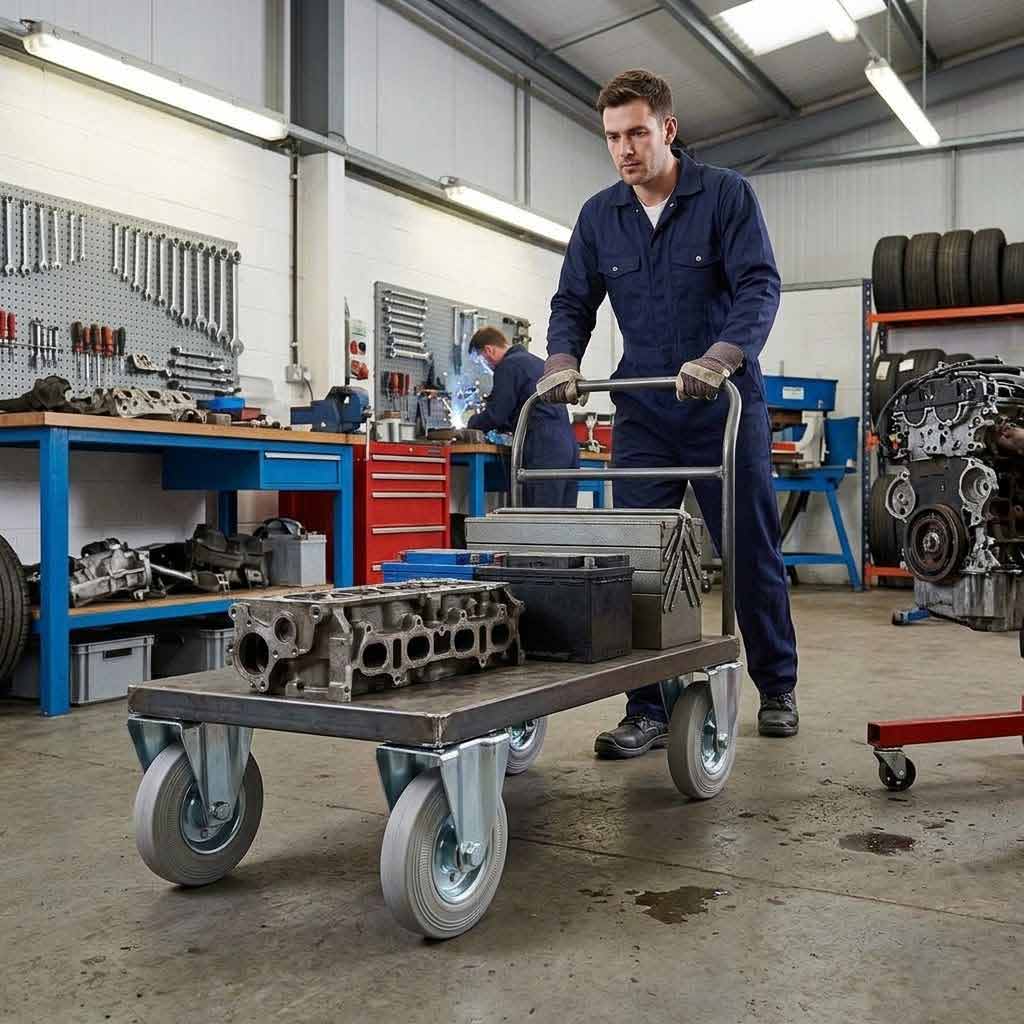

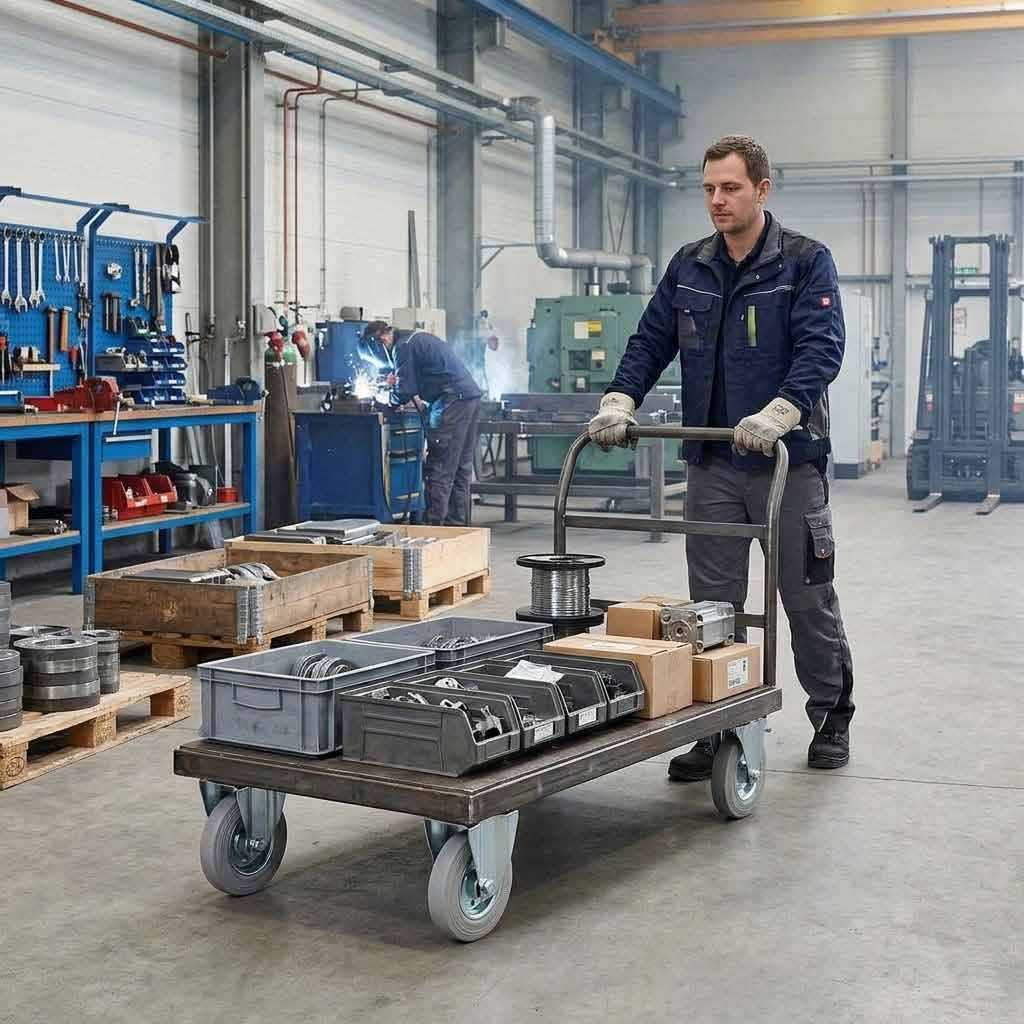

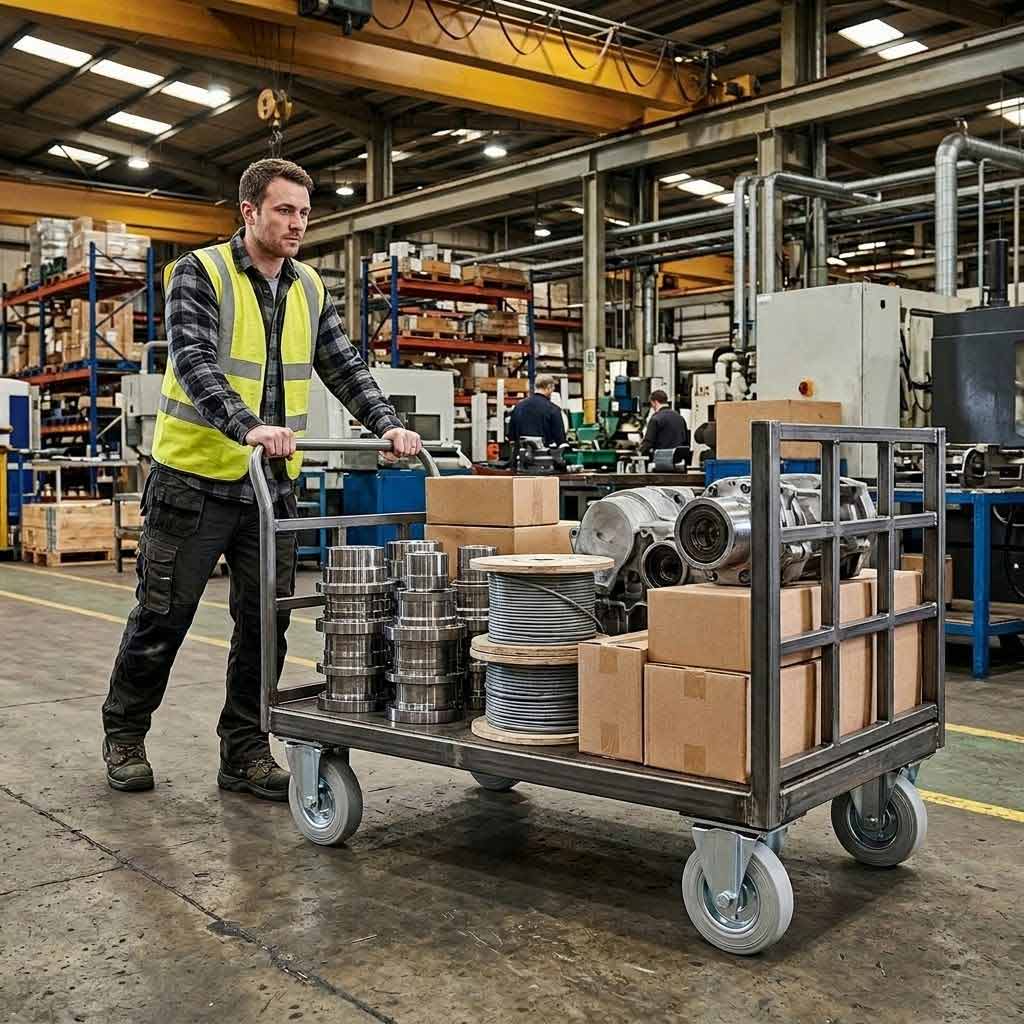

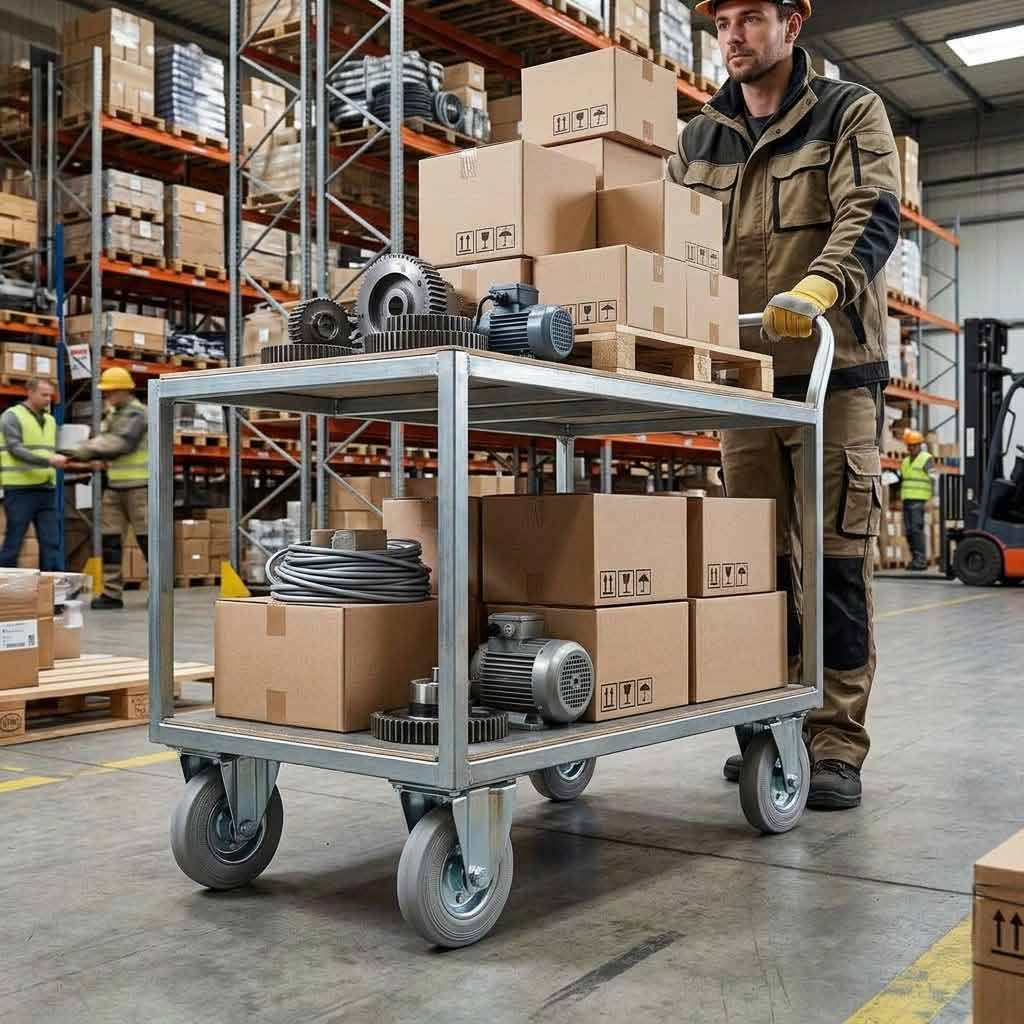

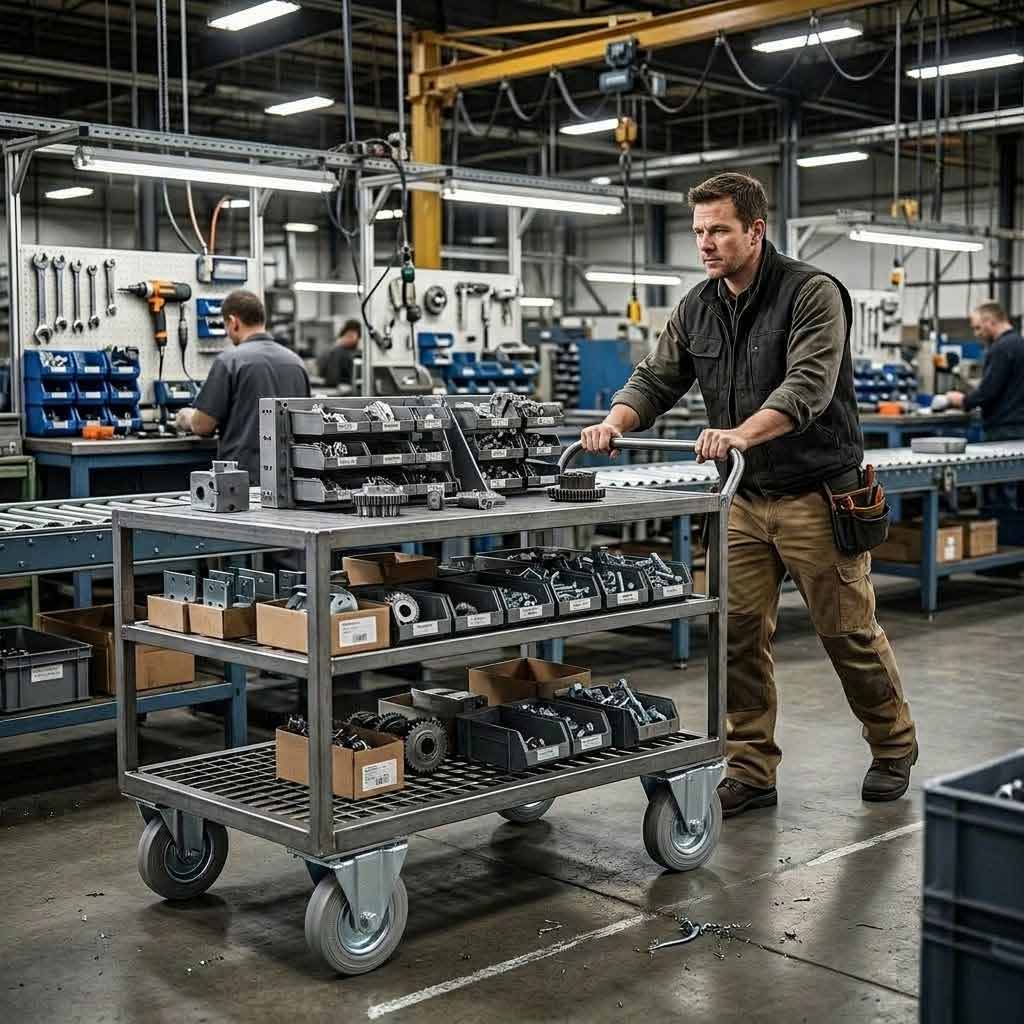

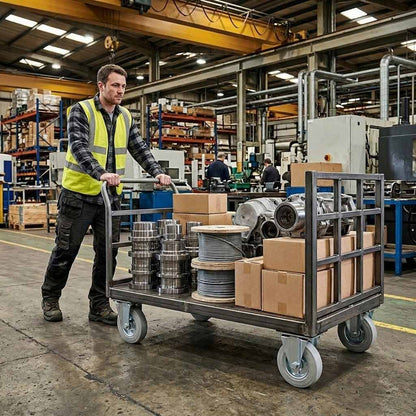

Warehouse trolleys and platform trucks ? Workshop equipment and tool carts ? Retail display units and mobile shelving ? Sack trucks and hand trucks ? Storage cabinets and industrial furniture ? Distribution and logistics handling equipment ? Light manufacturing and assembly line carts

Technical Specifications

All measurements in millimetres unless otherwise stated.

Specification Detail
Castor Type Fixed (Non-Swivel) ? Top Plate Mounting
Wheel Diameter 200mm
Wheel Material Grey Rubber on Pressed Steel
Wheel Colour Grey
Tread Width 50mm
Tread Hardness 85 Shore A
Bearing Type Ball Journal
Load Capacity (Single Castor) 180kg
Max Load Capacity (Set of 4) 540kg
Total Castor Height 242mm
Top Plate Length 141mm
Top Plate Width 115mm
Plate Hole Centres (Width) 80mm / 105mm
Plate Hole Diameter 10mm
Plate Finish Zinc Plated
Mounting Type 4-Bolt Top Plate

Frequently Asked Questions

What is the difference between a fixed castor and a swivel castor?

A fixed castor rolls in one direction only ? forward and backward ? and does not rotate on a vertical axis. A swivel castor can rotate 360°, allowing multi-directional movement. Fixed castors are typically used at the rear of trolleys and carts to provide straight-line stability, while swivel castors are fitted at the front to allow steering.

How do I know if this castor will fit my trolley or equipment?

Check the top plate dimensions and bolt hole pattern on your existing equipment. This castor has a top plate measuring 141mm x 115mm with hole centres of 80mm and 105mm, and a bolt hole diameter of 10mm. If these measurements match your mounting surface, this castor is compatible. The total castor height is 242mm, which will affect the overall height of your equipment.

Is this castor suitable for outdoor use?

This castor is primarily designed for indoor use on smooth to semi-smooth floor surfaces such as concrete, tile, and hardwood. The zinc-plated plate offers a degree of corrosion resistance, but prolonged exposure to moisture, standing water, or outdoor conditions is not recommended. For outdoor or wet environments, a stainless steel or nylon castor would be more appropriate.

How many castors do I need, and what is the total load capacity?

Most trolleys and carts use four castors ? typically two fixed at the rear and two swivel at the front. With a single castor rated at 180kg, a set of four provides a combined maximum capacity of 540kg. When calculating the load, always account for the weight of the equipment itself in addition to the goods being transported, and avoid exceeding the rated capacity to maintain safe operation.

Engineered for reliability in warehouse, workshop, and commercial settings ? this 200mm fixed castor wheel delivers consistent performance where straight-line load movement matters most. Pair with a compatible 200mm swivel castor for a complete four-wheel configuration.
