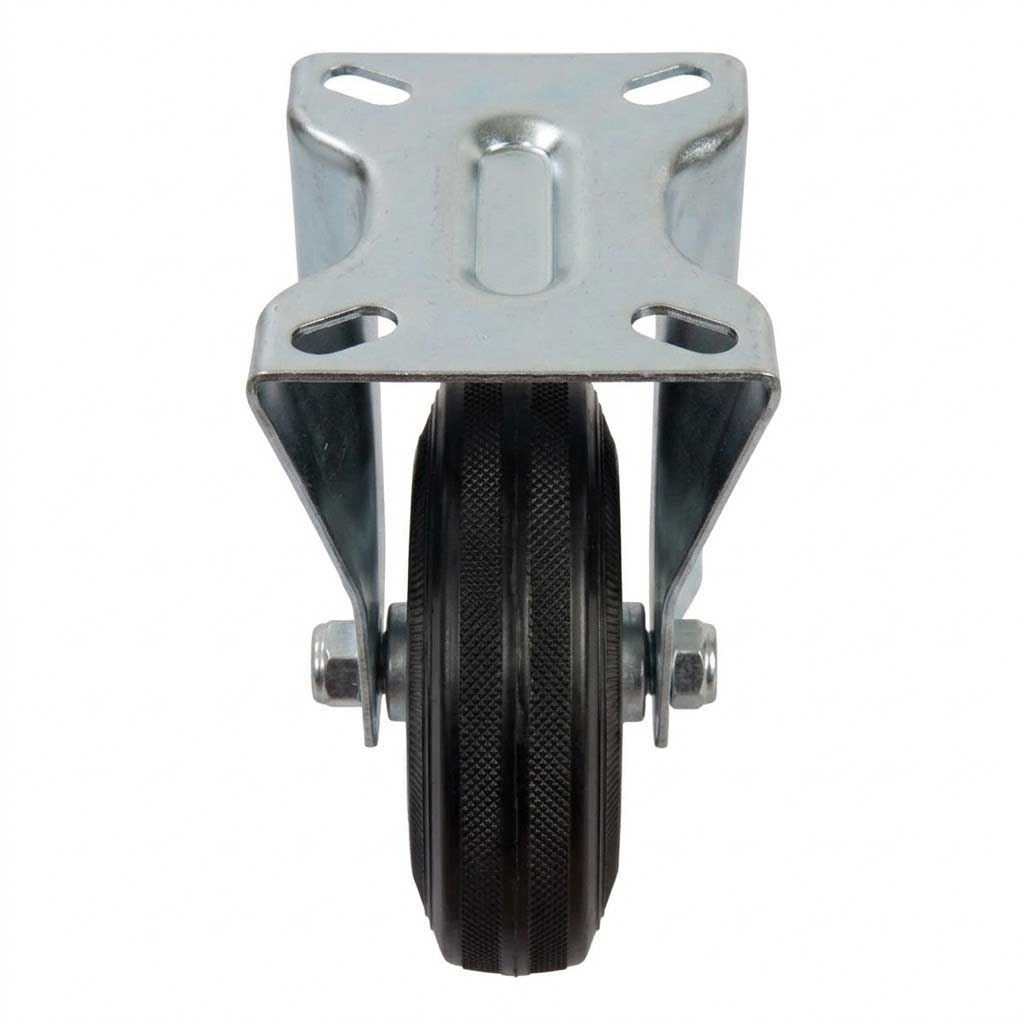

200mm Pressed Steel Fixed Castor Wheel - Black Rubber on Pressed Steel - 180kg Load Capacity

200mm Pressed Steel Fixed Castor Wheel - Black Rubber on Pressed Steel - 180kg Load Capacity

£38.13 GBP
£42.07 GBP £38.13 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

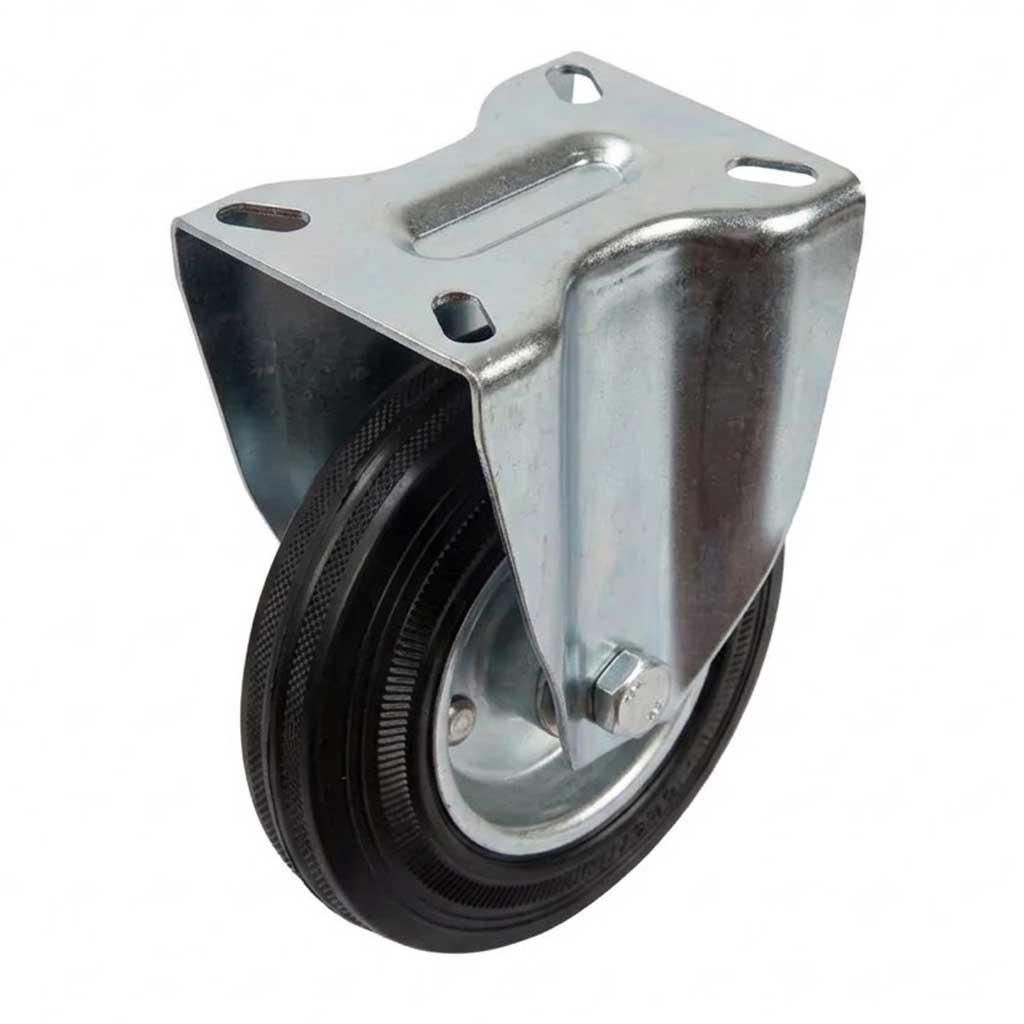

Premium Fixed Castor for Heavy-Duty Industrial Applications

This 200mm pressed steel fixed castor combines robust construction with reliable performance for demanding industrial environments. Engineered with a black rubber tread on a pressed steel wheel core, this heavy-duty castor delivers exceptional load capacity of 180kg per unit, making it ideal for trolleys, carts, material handling equipment, and industrial transport systems. The fixed-wheel design ensures directional stability and precise tracking, while the ball journal bearing system guarantees smooth, consistent rolling performance under continuous use.

Technical Specifications

Castor Type: Fixed, Top Plate Mounting

Load Capacity per Castor: 180 kg

Maximum Load Capacity (Set of 4): 540 kg

Wheel Diameter: 200 mm

Tread Width: 50 mm

Wheel Material: Black Rubber on Pressed Steel Core

Tread Hardness: 85 Shore A

Bearing Type: Ball Journal Bearing

Total Castor Height: 242 mm

Plate Length: 134 mm

Plate Width: 115 mm

Plate Hole Centres (Width): 80 mm / 105 mm

Plate Hole Diameter: 10 mm

Mounting Configuration: 4-Bolt-Hole Top Plate

Finish: Zinc Plated

Key Performance Features

  • ? Heavy-duty pressed steel construction for maximum durability and longevity in industrial settings
  • ? Black rubber tread provides excellent floor protection, noise reduction, and smooth rolling performance
  • ? Ball journal bearing system ensures effortless mobility and extended service life under continuous operation
  • ? Fixed-wheel design delivers superior directional stability and precise tracking for straight-line applications
  • ? Zinc-plated finish offers enhanced corrosion resistance for demanding work environments
  • ? 4-hole top plate mounting configuration enables secure, straightforward installation on various equipment types

Ideal Applications

This premium fixed castor is engineered for professional use across a wide range of industrial and commercial applications where directional stability and heavy load capacity are essential.

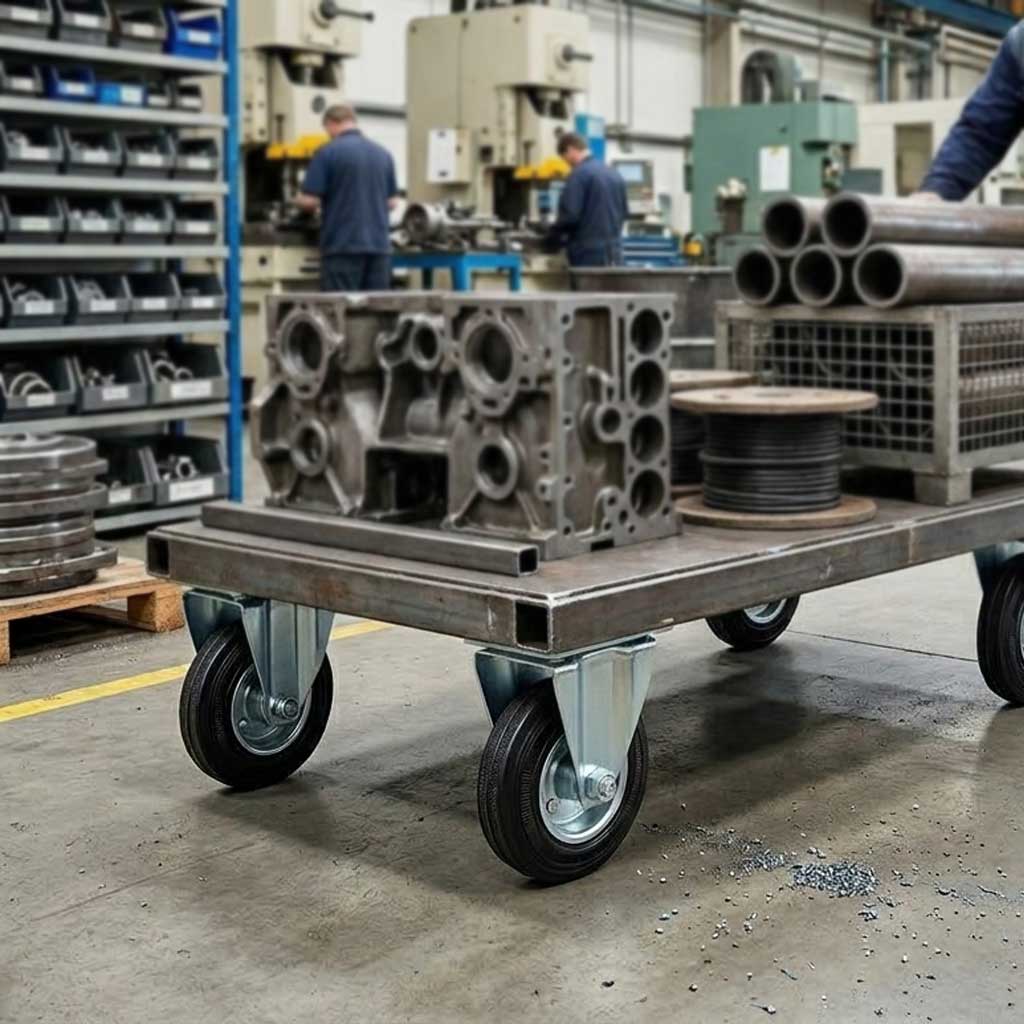

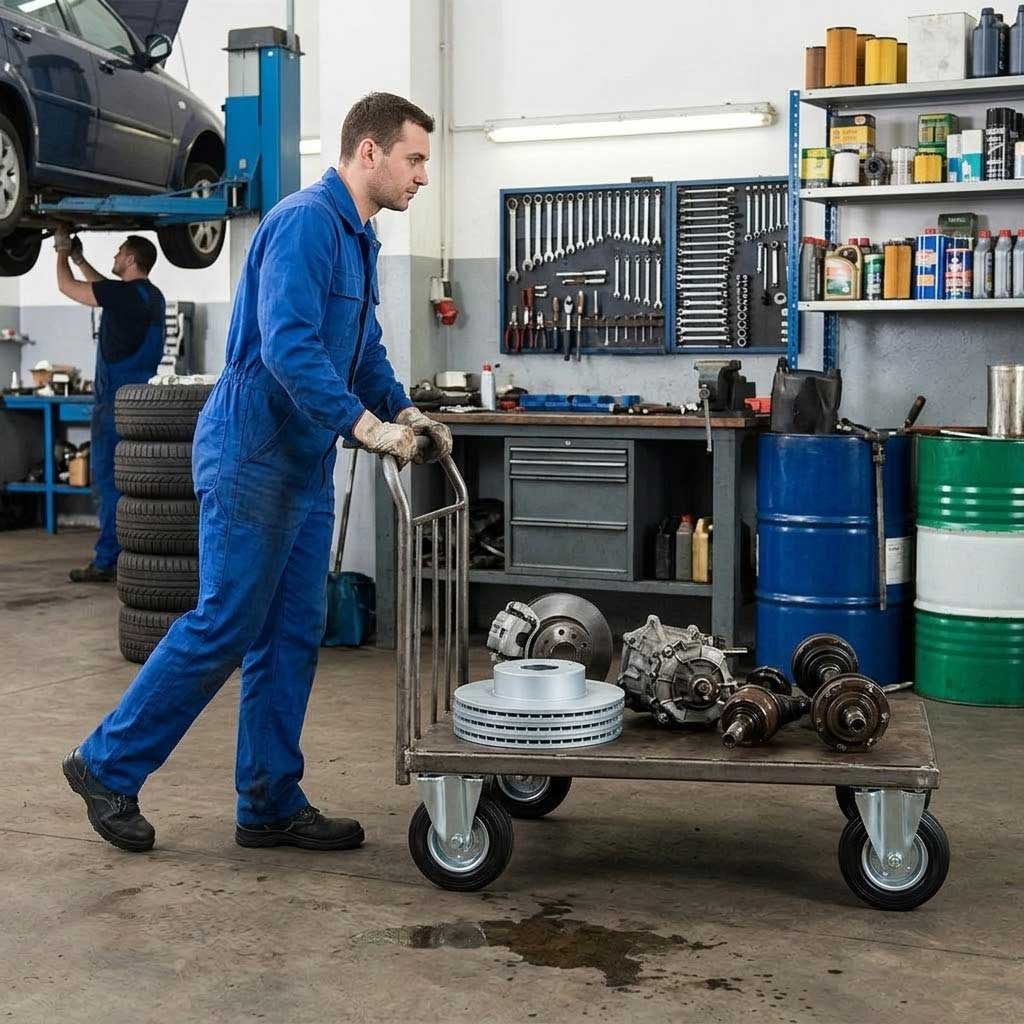

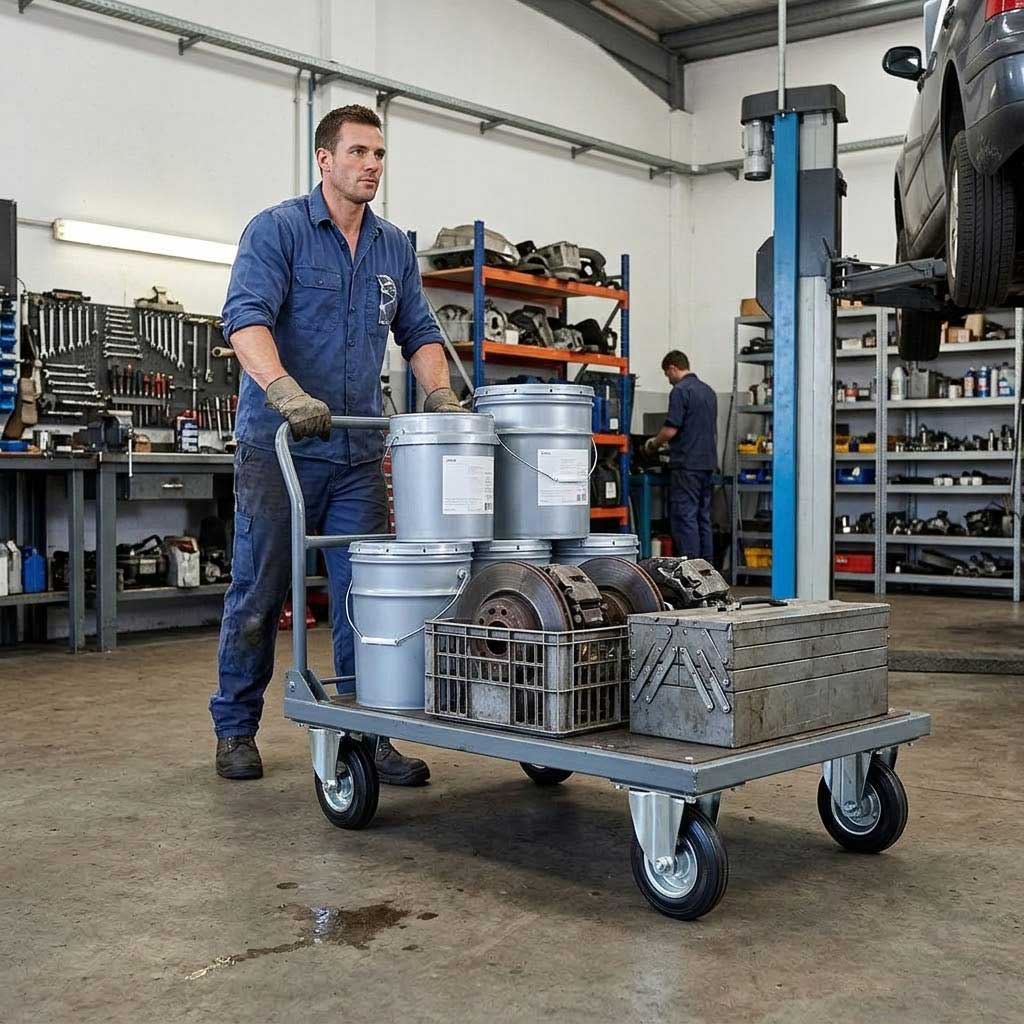

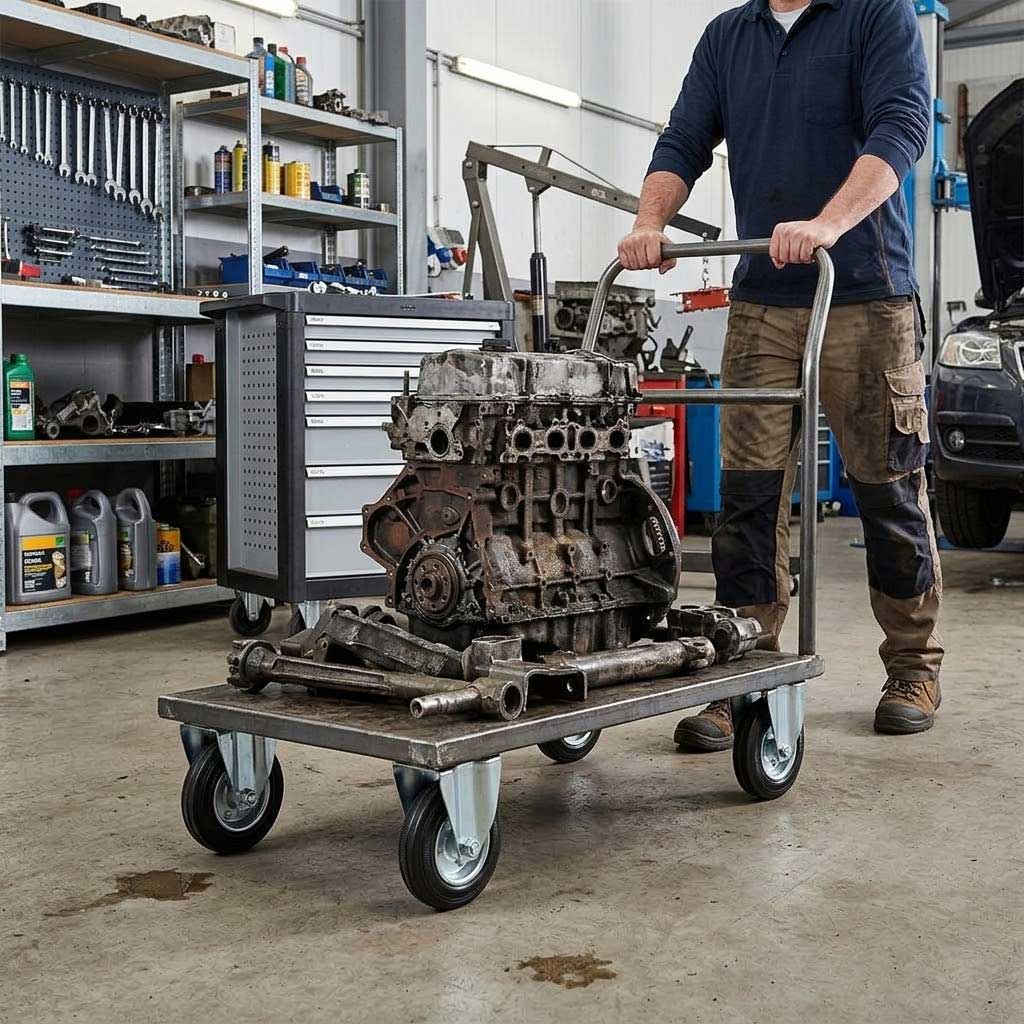

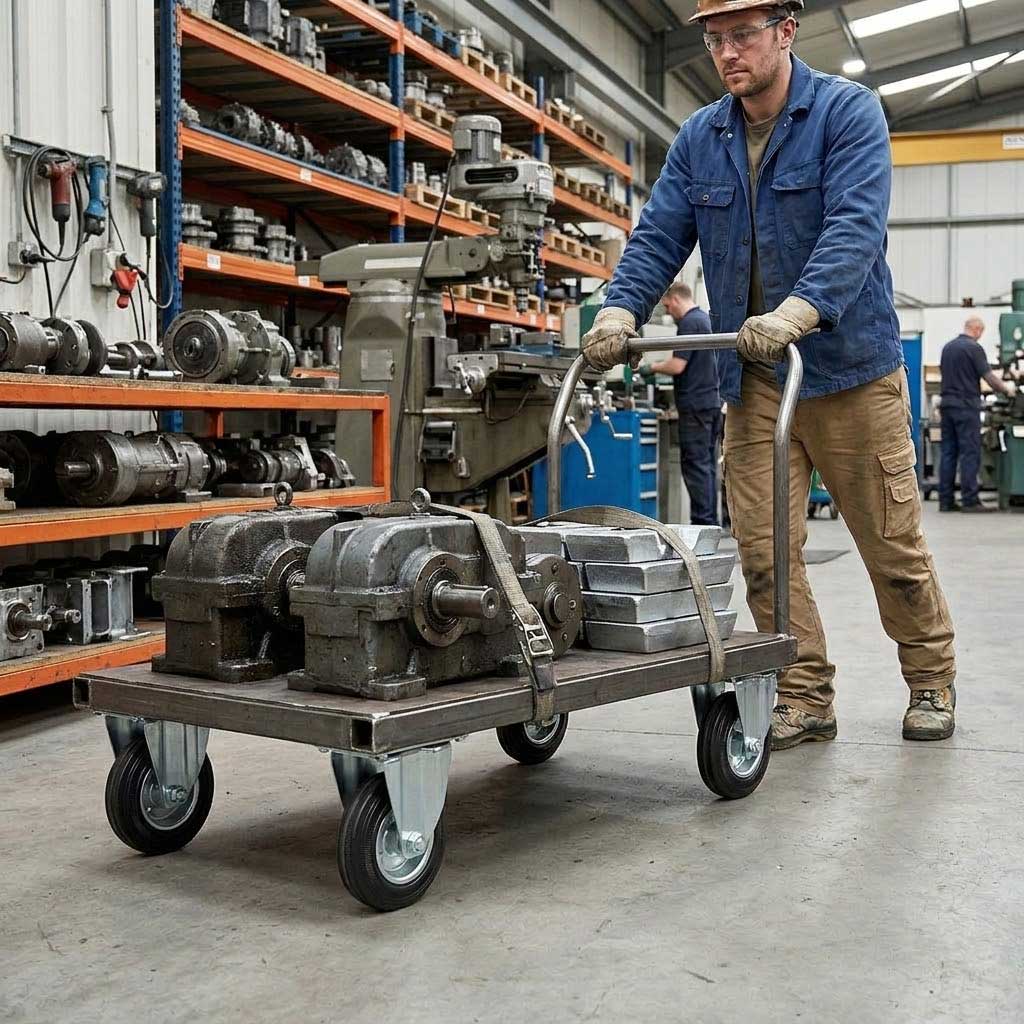

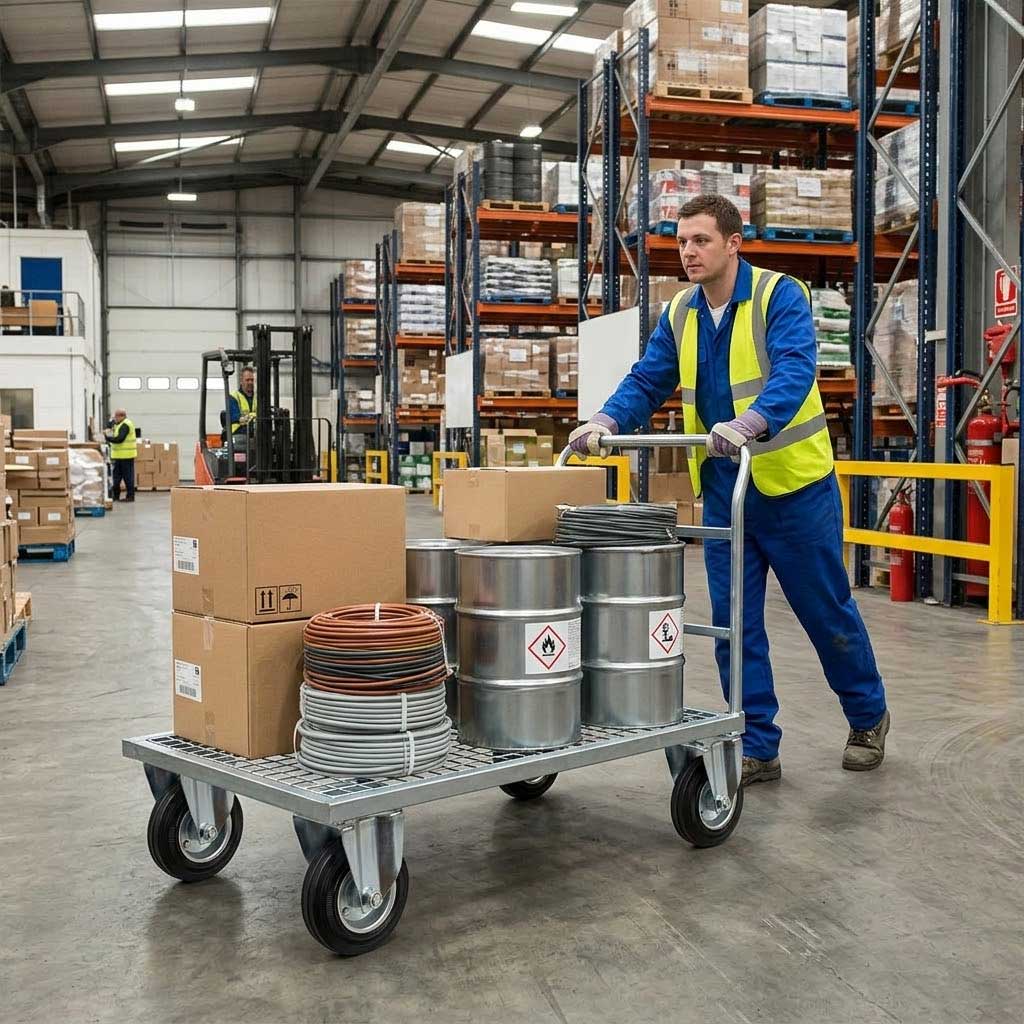

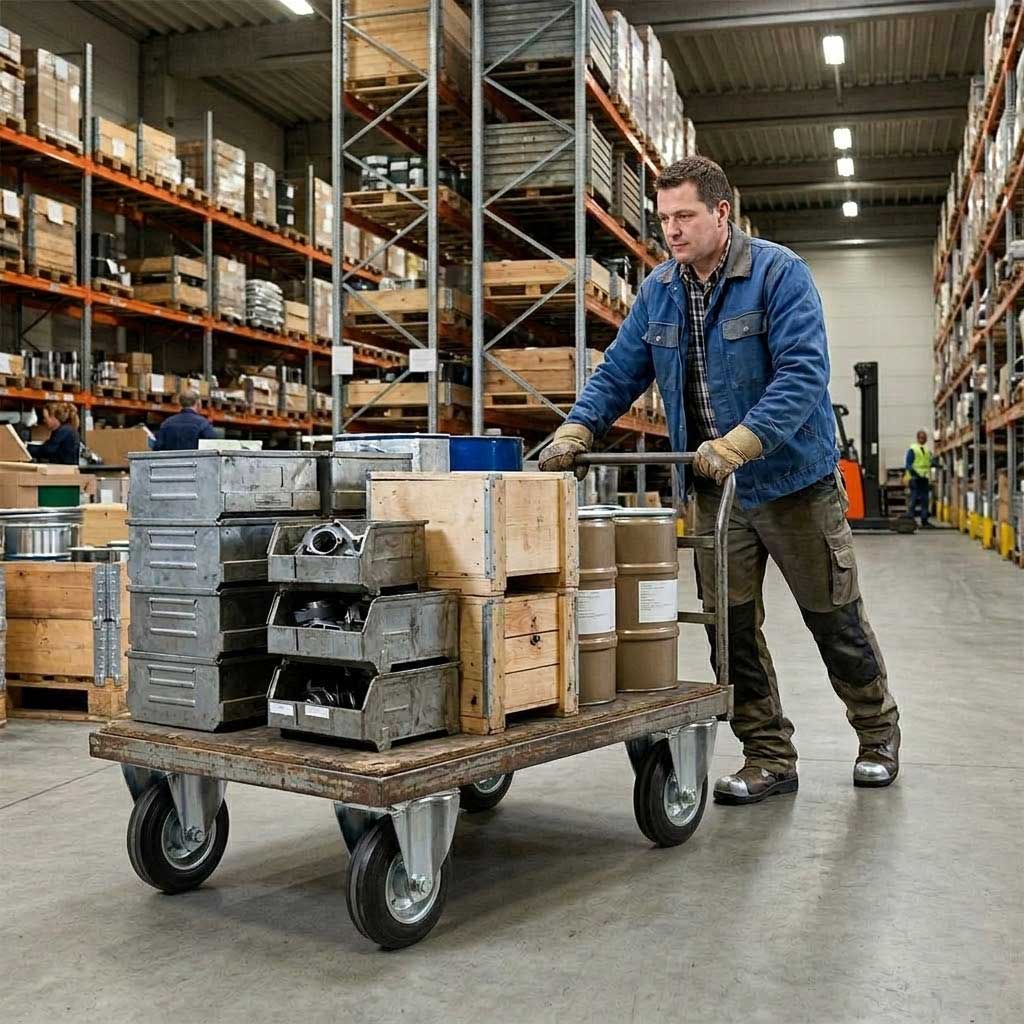

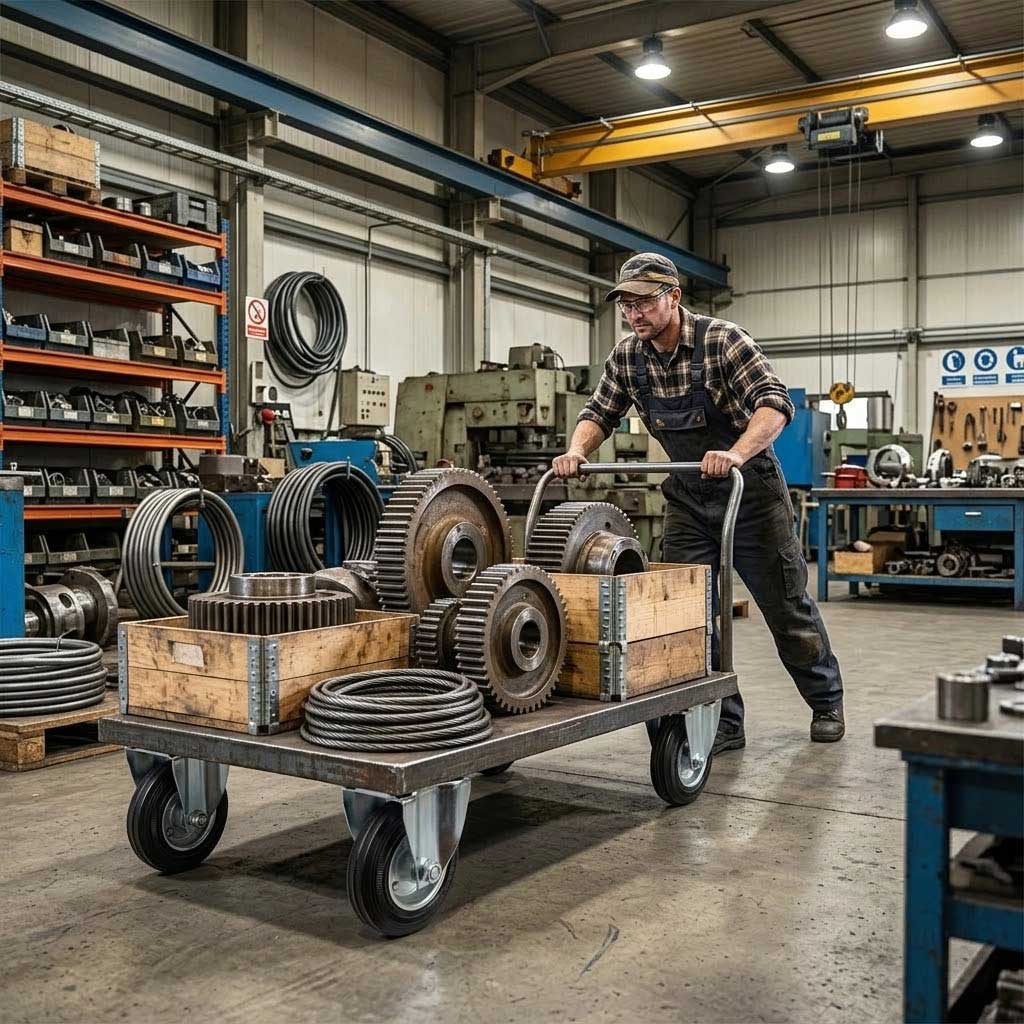

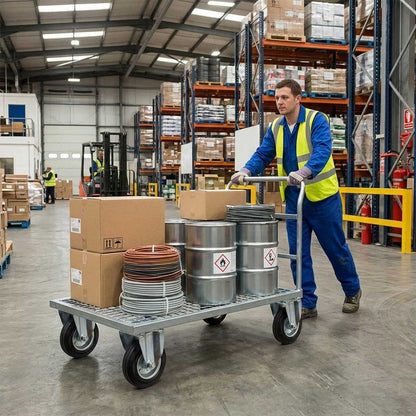

Common Uses: Industrial trolleys and carts, material handling equipment, warehouse transport systems, manufacturing line equipment, workshop benches and mobile workstations, platform trucks, distribution centre logistics equipment, heavy-duty storage solutions, and commercial transport applications.

Frequently Asked Questions

What is the difference between a fixed castor and a swivel castor?

A fixed castor only rolls in a straight line and cannot rotate, providing excellent directional stability and tracking. Swivel castors rotate 360 degrees, offering superior manoeuvrability. For optimal performance, most equipment uses a combination of both types, with fixed castors at one end for stability and swivel castors at the other for steering.

How do I calculate the total load capacity I need for my equipment?

Calculate the total weight of your equipment plus the maximum load it will carry, then divide by the number of castors. Add a safety margin of 25-30% to account for uneven weight distribution and dynamic loads. Each castor should be rated above this calculated figure. For this 180kg castor, a set of four provides a safe working capacity of approximately 540kg total.

Will this castor damage or mark my floors?

The black rubber tread is designed to provide floor protection and reduce rolling noise compared to hard wheels. However, rubber wheels may leave marks on certain floor types over time, particularly light-coloured surfaces. For environments where floor marking is a critical concern, consider non-marking rubber alternatives specifically designed for sensitive flooring.

What maintenance does this castor require?

Regular maintenance extends castor life significantly. Periodically inspect for debris wrapped around the wheel axle, check mounting bolts for tightness, and examine the wheel for wear or damage. Clean the bearing housing and apply appropriate lubricant to the ball journal bearing every 3-6 months depending on usage intensity. Remove any accumulated debris from the tread surface to maintain optimal rolling performance.

Engineered for reliability and built to perform in the most demanding industrial environments, this premium fixed castor delivers the durability and load capacity your operations require.
