150mm Pressed Steel Swivel Castor with Black Rubber on Polypropylene Wheel - 130kg Load Capacity

150mm Pressed Steel Swivel Castor with Black Rubber on Polypropylene Wheel - 130kg Load Capacity

£26.70 GBP
£29.99 GBP £26.70 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

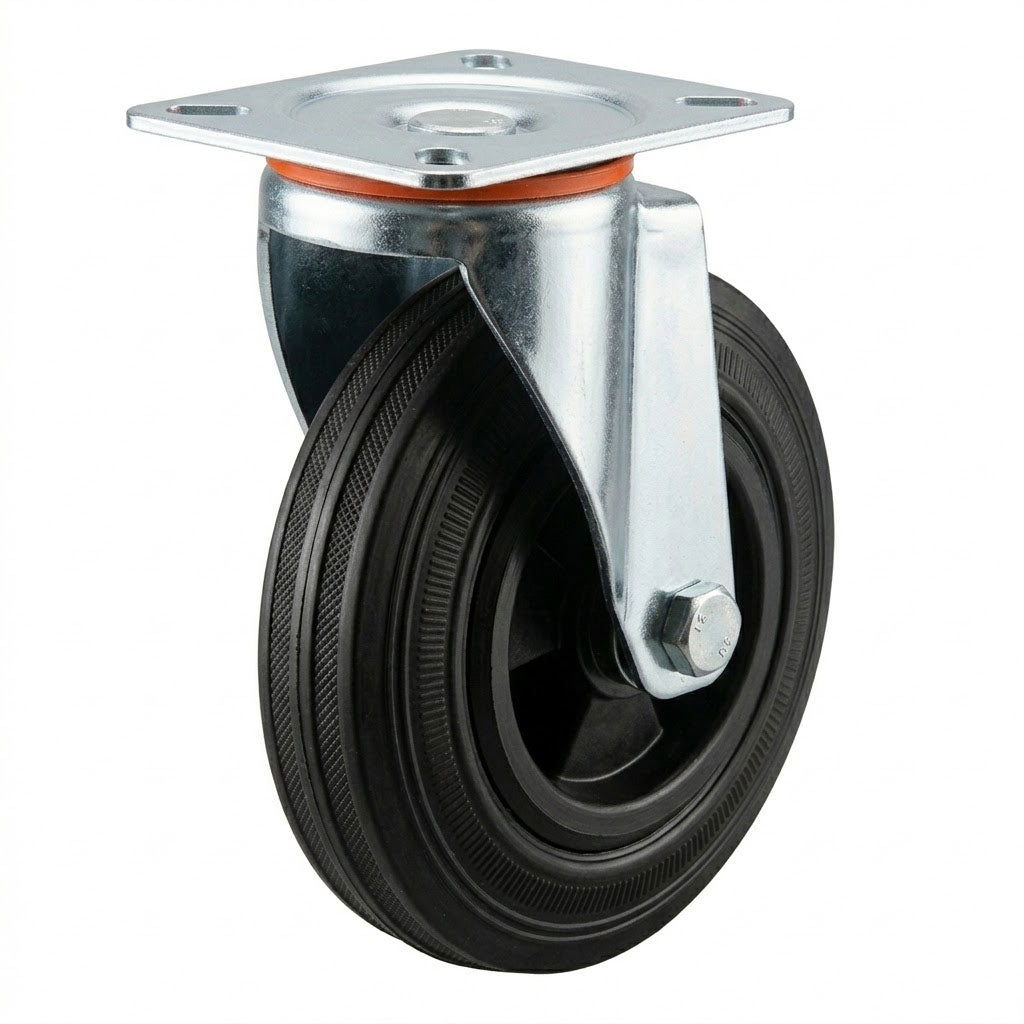

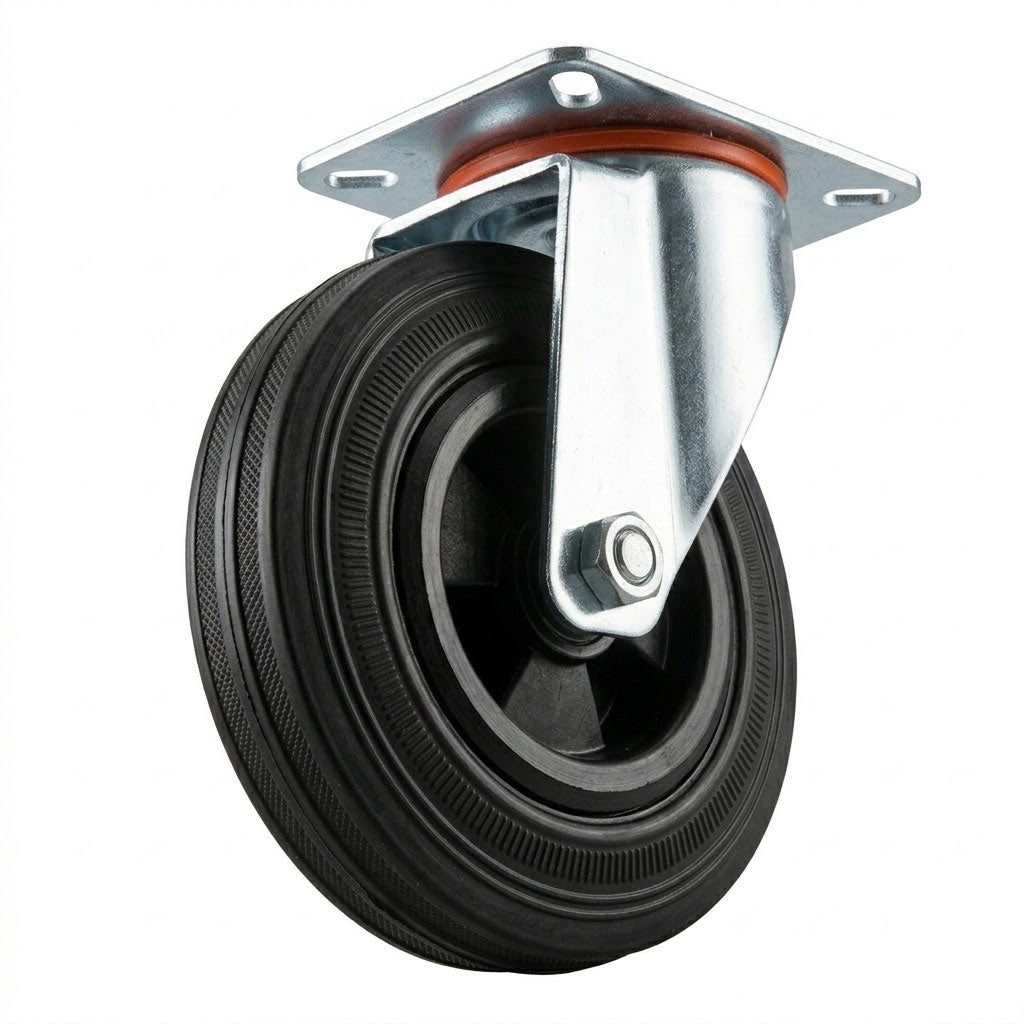

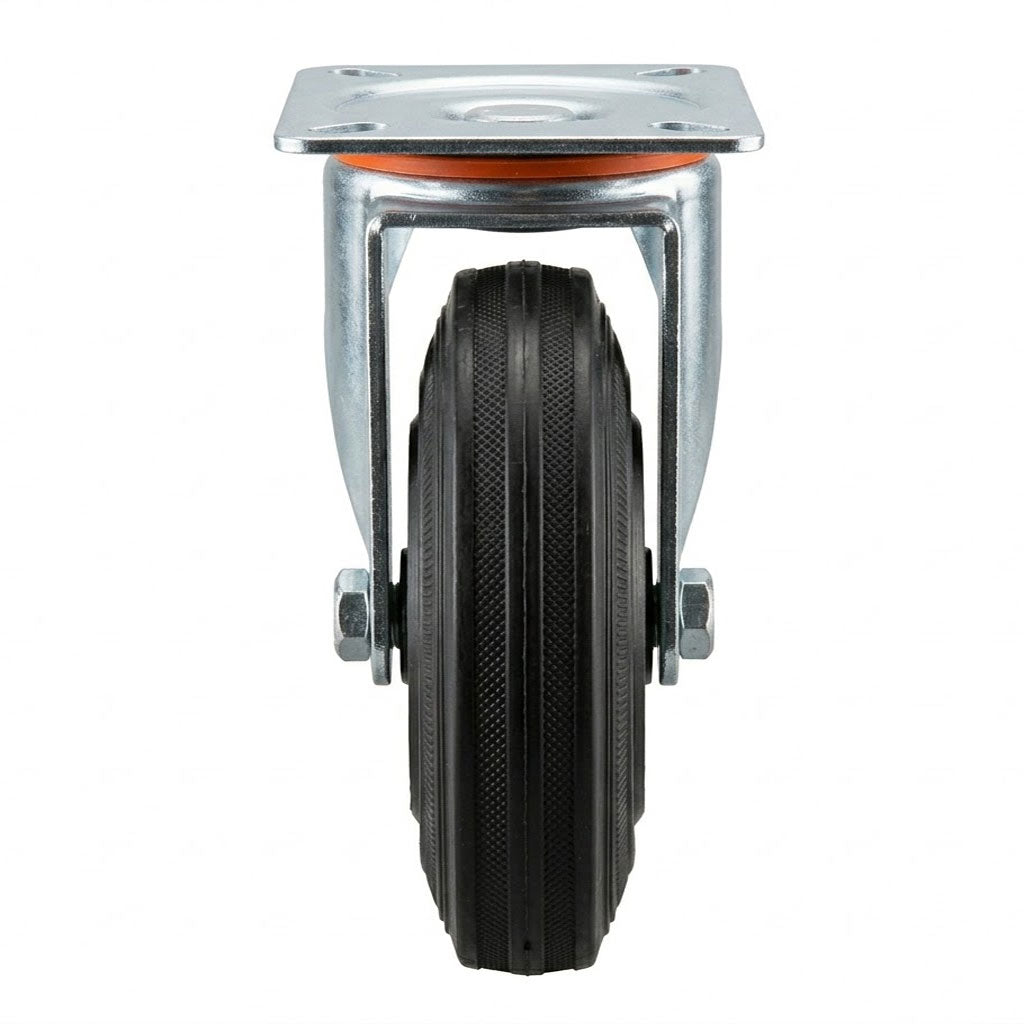

150mm Pressed Steel Swivel Castor with Black Rubber on Polypropylene Wheel

Premium mobility solution engineered for demanding industrial and commercial environments

Product Overview

This 150mm pressed steel swivel castor combines robust construction with smooth manoeuvrability, delivering reliable performance for medium to heavy-duty applications. Featuring a black rubber on polypropylene wheel with 130kg load capacity per castor, it provides exceptional rolling efficiency while protecting floor surfaces.

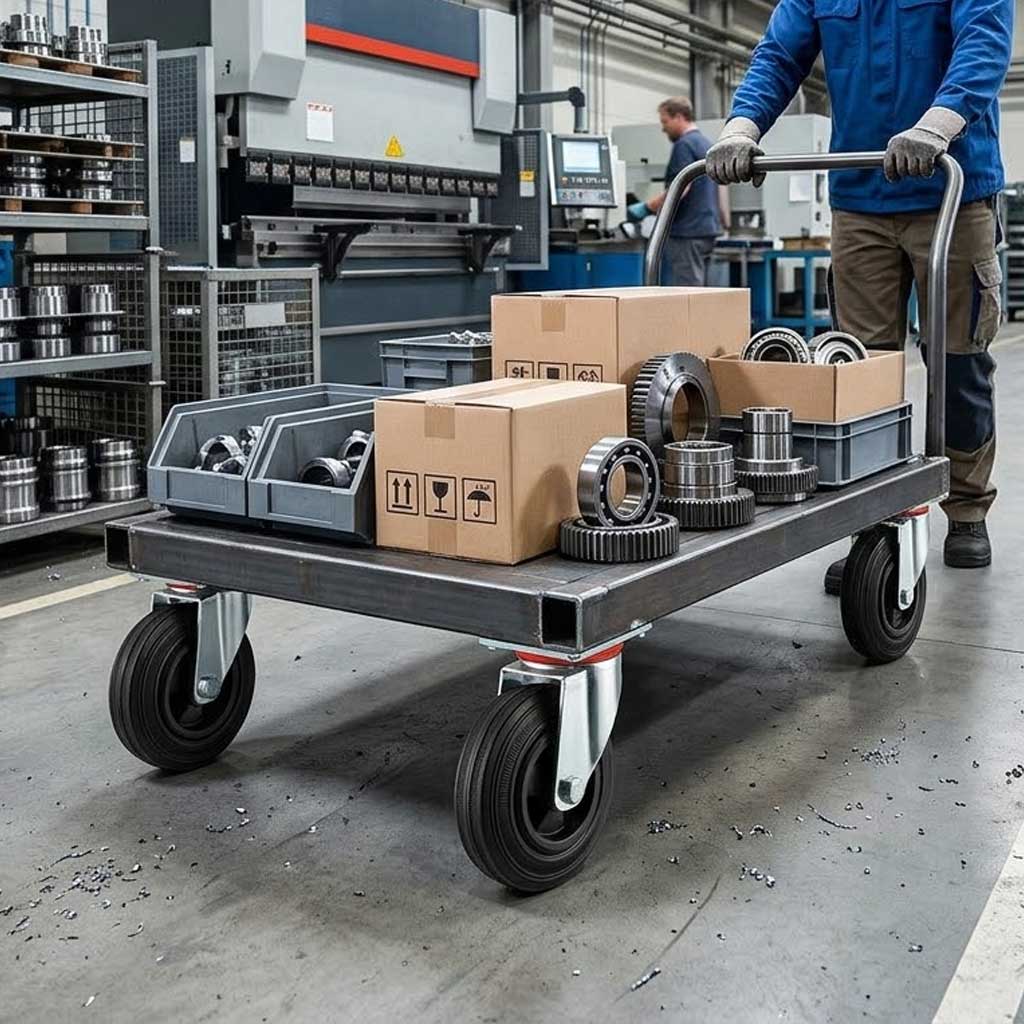

Designed for industrial trolleys, handling equipment, workshop carts, and mobile machinery bases, this castor offers 360-degree swivel rotation via a precision ball journal bearing. The 4-hole top plate mounting system ensures secure installation, while the 181mm total height provides optimal ground clearance for demanding indoor environments.

Technical Specifications

Castor Configuration

Castor Type Swivel with Top Plate Fixing
Bearing Type Ball Journal Bearing
Total Castor Height 181 mm
Housing Material Pressed Steel (Zinc Plated)

Wheel Specifications

Wheel Diameter 150 mm
Tread Width 40 mm
Wheel Material Black Rubber on Polypropylene Core
Wheel Colour Black
Tread Hardness 85 Shore A

Load Capacity

Load Capacity (Per Castor) 130 kg
Maximum Load Capacity (4 Castors) 390 kg

Top Plate Dimensions

Plate Length 100 mm
Plate Width 85 mm
Plate Hole Centres 60 mm × 80 mm
Plate Hole Diameter 10 mm (4-Hole Configuration)

Performance Features

? 360° Swivel Rotation

Effortless directional changes and precise manoeuvrability

? Floor-Friendly Tread

Non-marking rubber protects delicate floor surfaces

? Vibration Dampening

85 Shore A hardness reduces noise and shock transmission

? Corrosion Protection

Zinc-plated pressed steel housing for extended durability

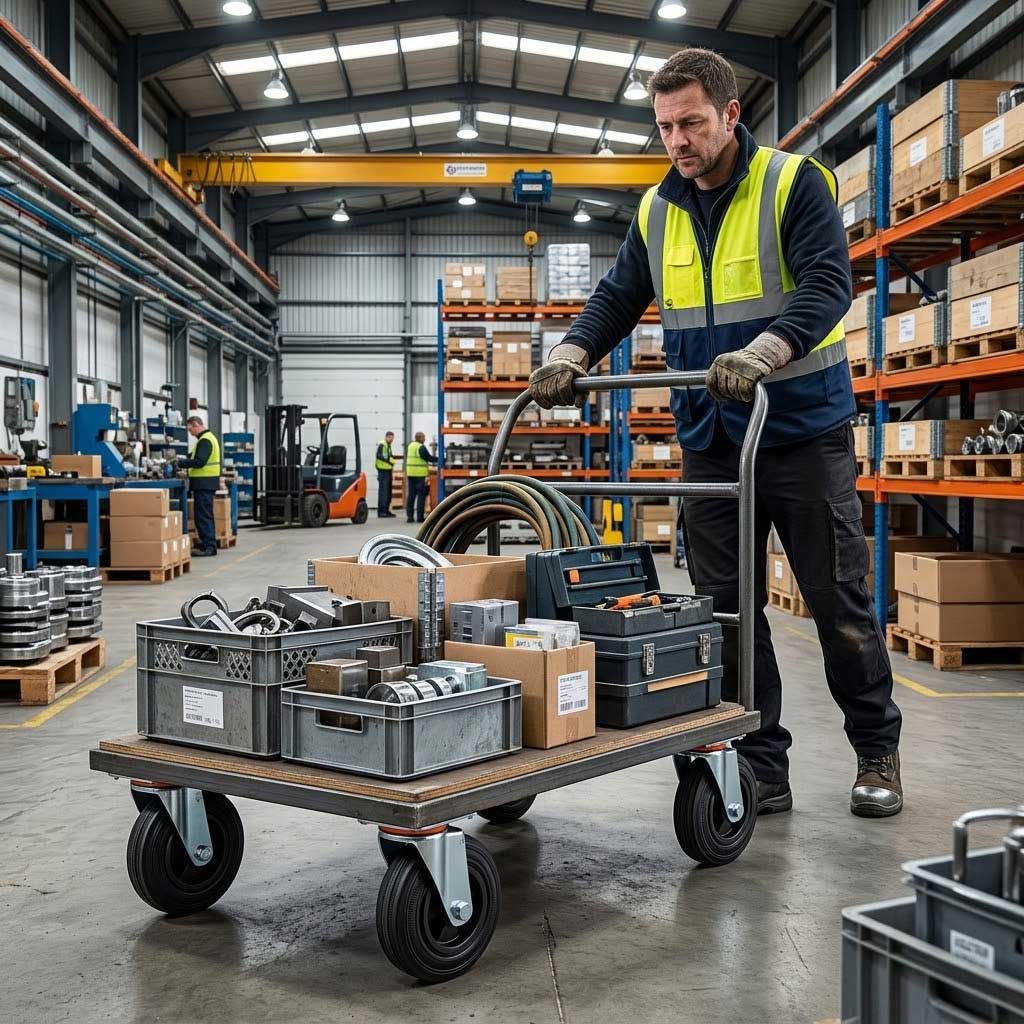

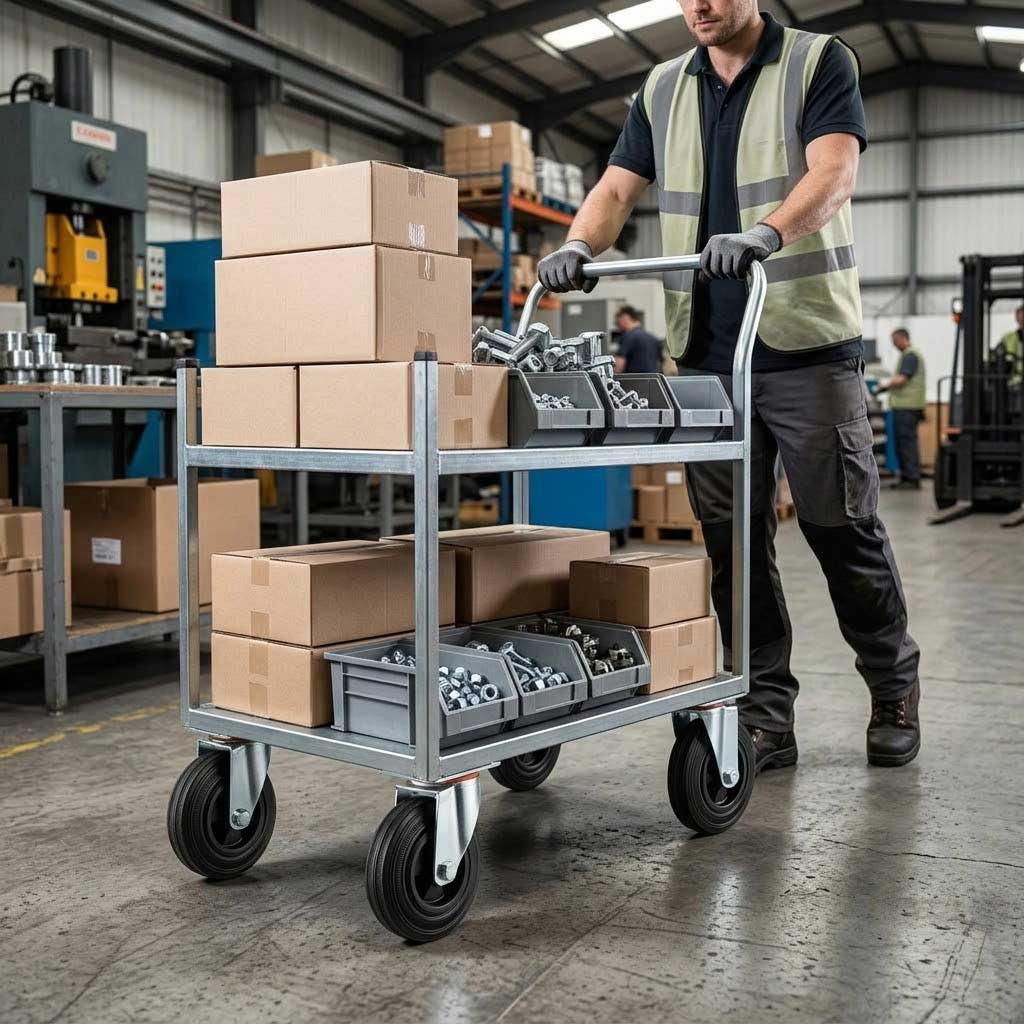

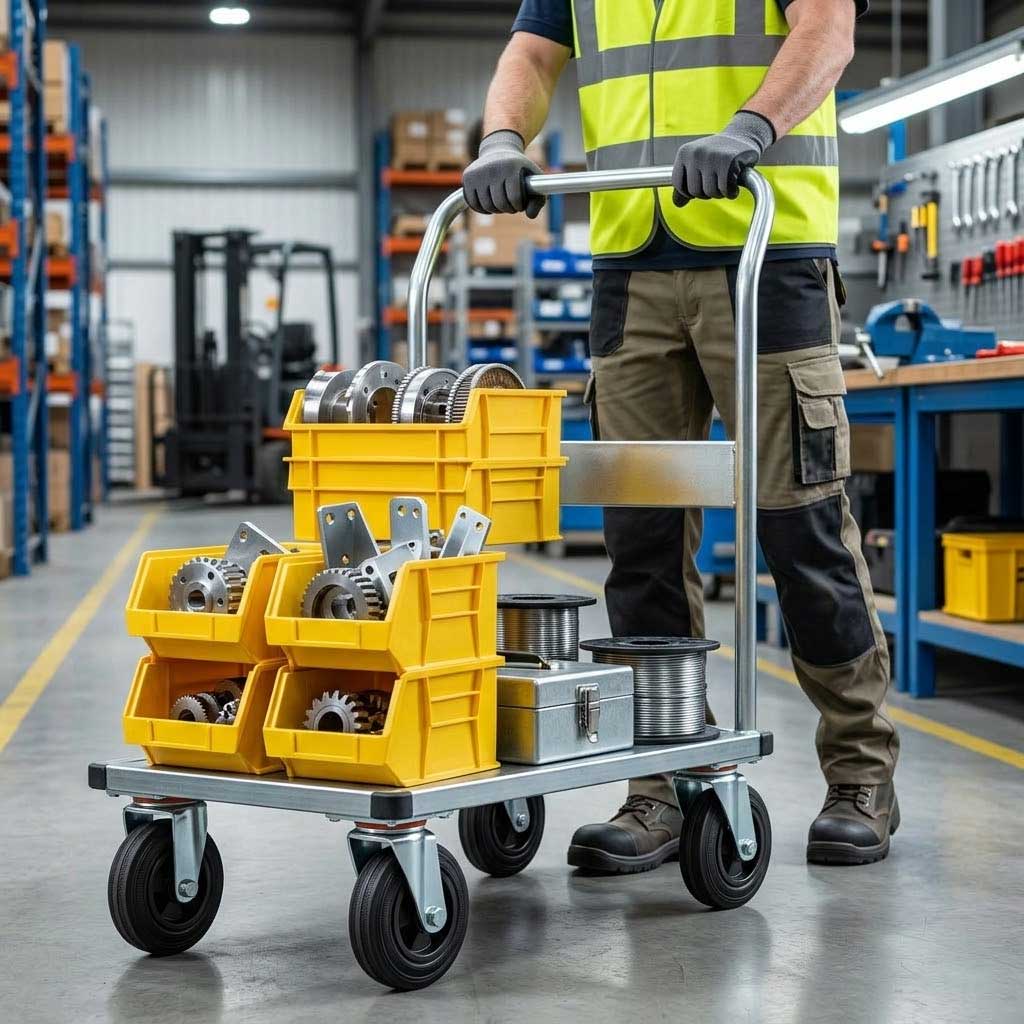

Typical Applications

  • Industrial trolleys and material handling carts
  • Workshop equipment and mobile tool storage units
  • Commercial transport equipment and platform trucks
  • Warehouse picking carts and order fulfilment systems
  • Mobile machinery bases and equipment stands
  • Indoor environments requiring frequent repositioning and smooth movement

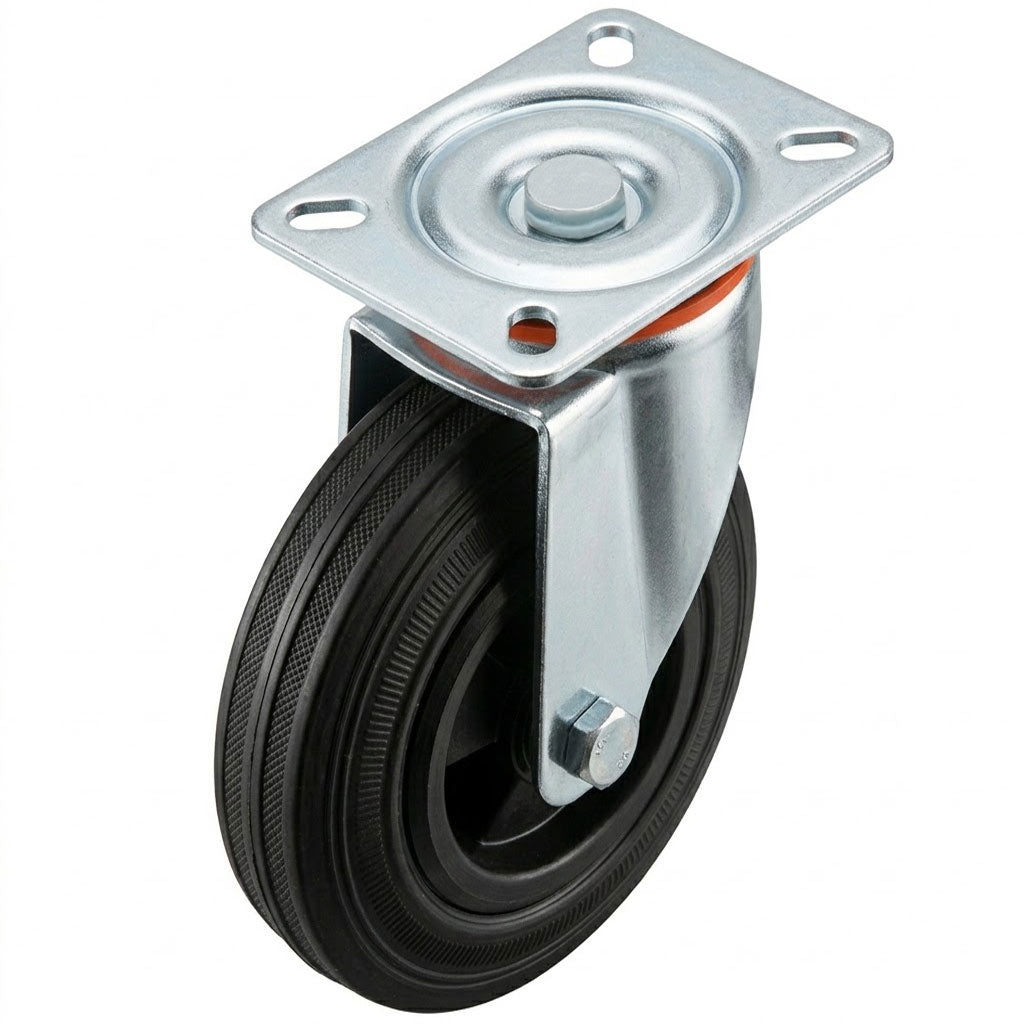

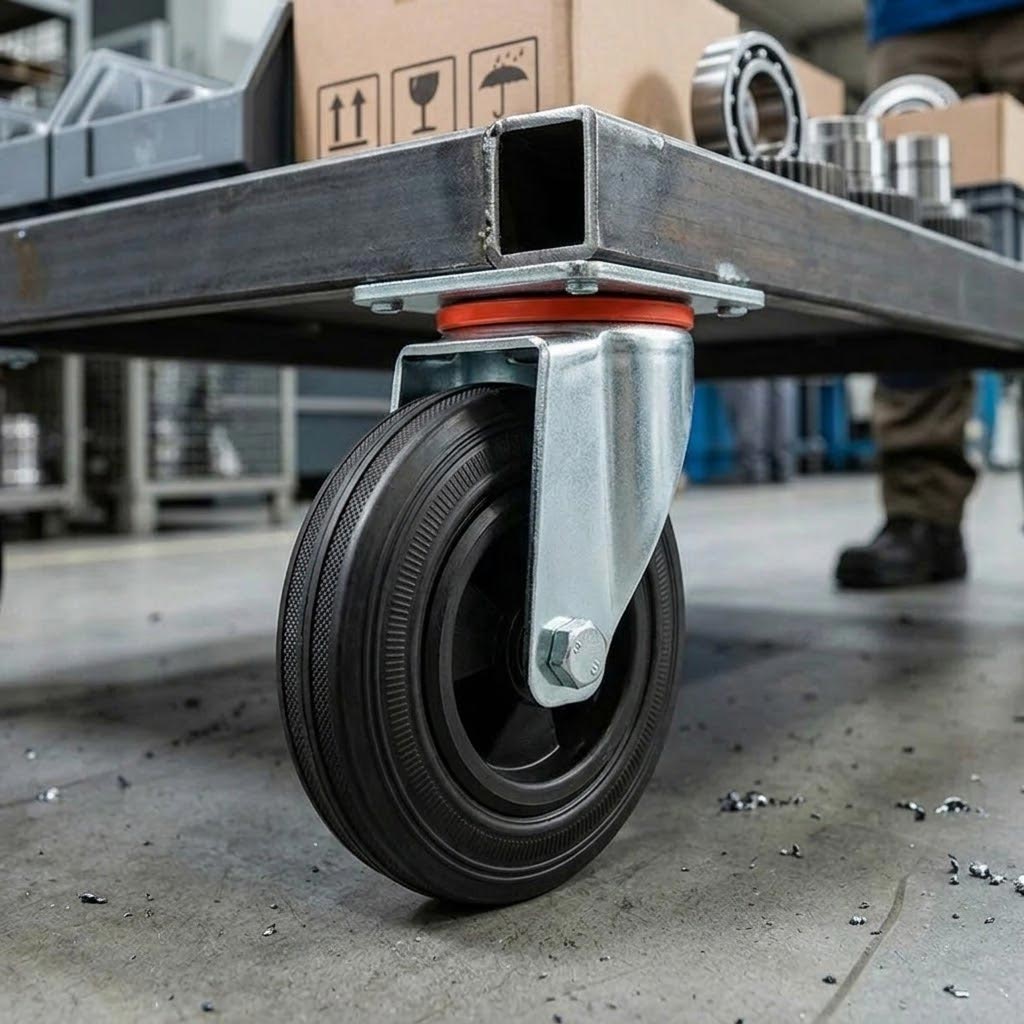

Installation & Mounting

The 4-hole top plate configuration (100mm × 85mm) with 60mm × 80mm hole centres and 10mm diameter mounting holes provides secure attachment to equipment bases. Ensure mounting surface is flat and capable of supporting the combined load. Use appropriate fasteners rated for the application load capacity.

Frequently Asked Questions

What is the maximum weight this castor can support?

Each castor has a load capacity of 130kg. When using four castors on a single piece of equipment, the maximum combined load capacity is 390kg. Always ensure loads are evenly distributed across all mounting points for optimal performance and safety.

Will this castor damage or mark my floors?

No. The black rubber on polypropylene wheel is specifically designed to be floor-friendly and non-marking. The 85 Shore A tread hardness provides excellent floor protection while maintaining smooth rolling performance on tile, concrete, epoxy, and other hard indoor surfaces.

What are the mounting hole dimensions for installation?

The top plate measures 100mm (length) × 85mm (width) with a 4-hole configuration. The hole centres are positioned at 60mm × 80mm spacing, and each mounting hole has a 10mm diameter. This standard configuration fits most industrial trolley and cart bases.

Is this castor suitable for outdoor use?

This castor is optimised for indoor environments. While the zinc-plated pressed steel housing offers corrosion protection, the rubber on polypropylene wheel performs best on smooth, hard indoor surfaces. For outdoor applications or exposure to harsh weather conditions, consider castors specifically designed for exterior use.

Premium Mobility Engineering

Precision-engineered for reliability, performance, and longevity in demanding commercial and industrial applications. Every component is selected for durability and consistent operation under load.
