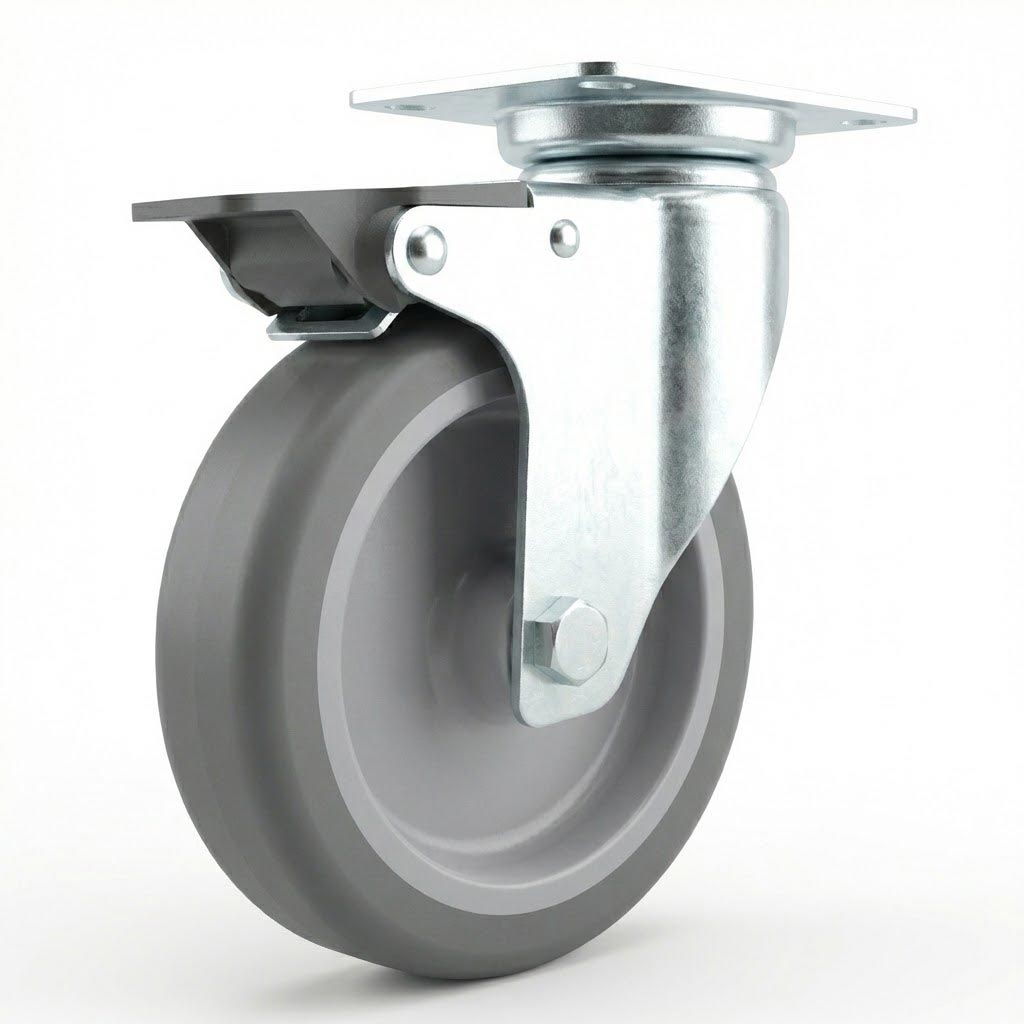

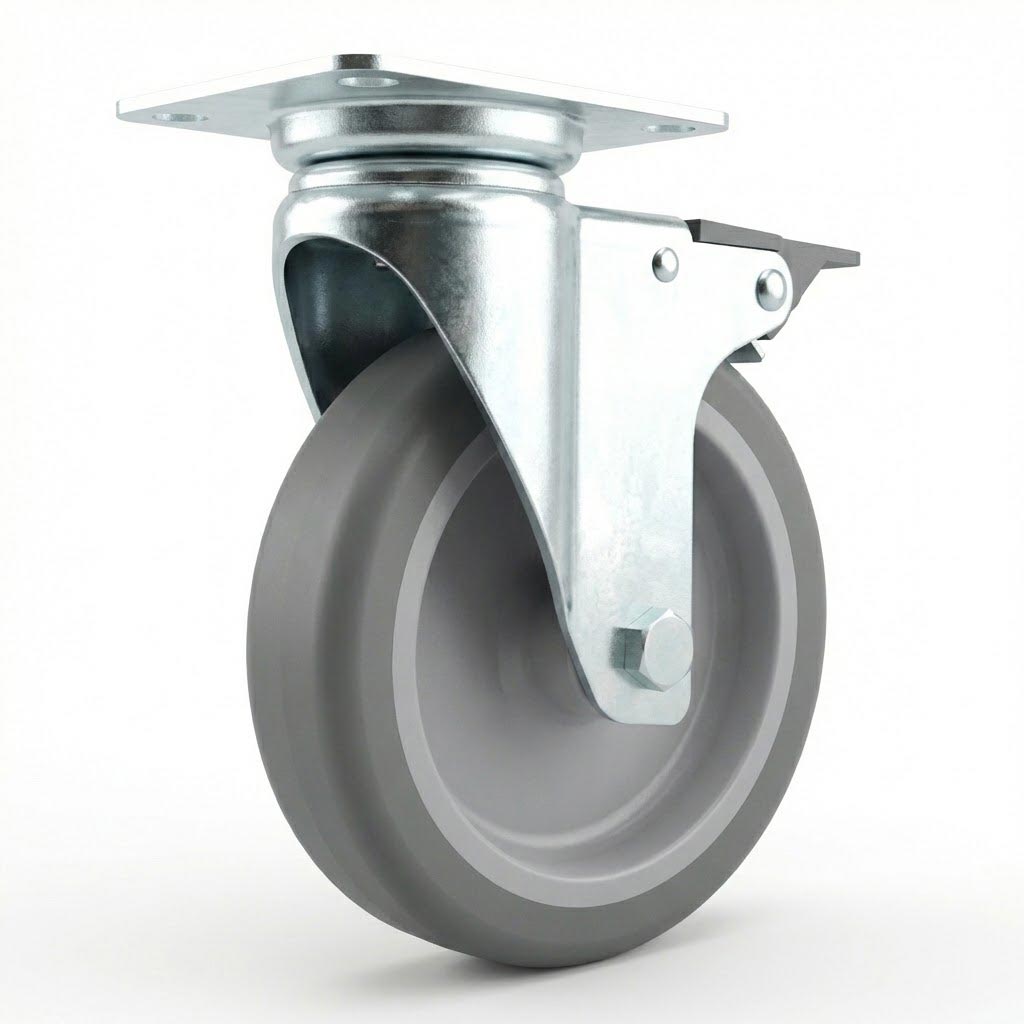

125mm Zinc Plated Swivel Retail Castor Wheel with Brake - Grey Rubber & 4-Hole Top Plate, 100kg Load

125mm Zinc Plated Swivel Retail Castor Wheel with Brake - Grey Rubber & 4-Hole Top Plate, 100kg Load

£36.10 GBP
£40.40 GBP £36.10 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

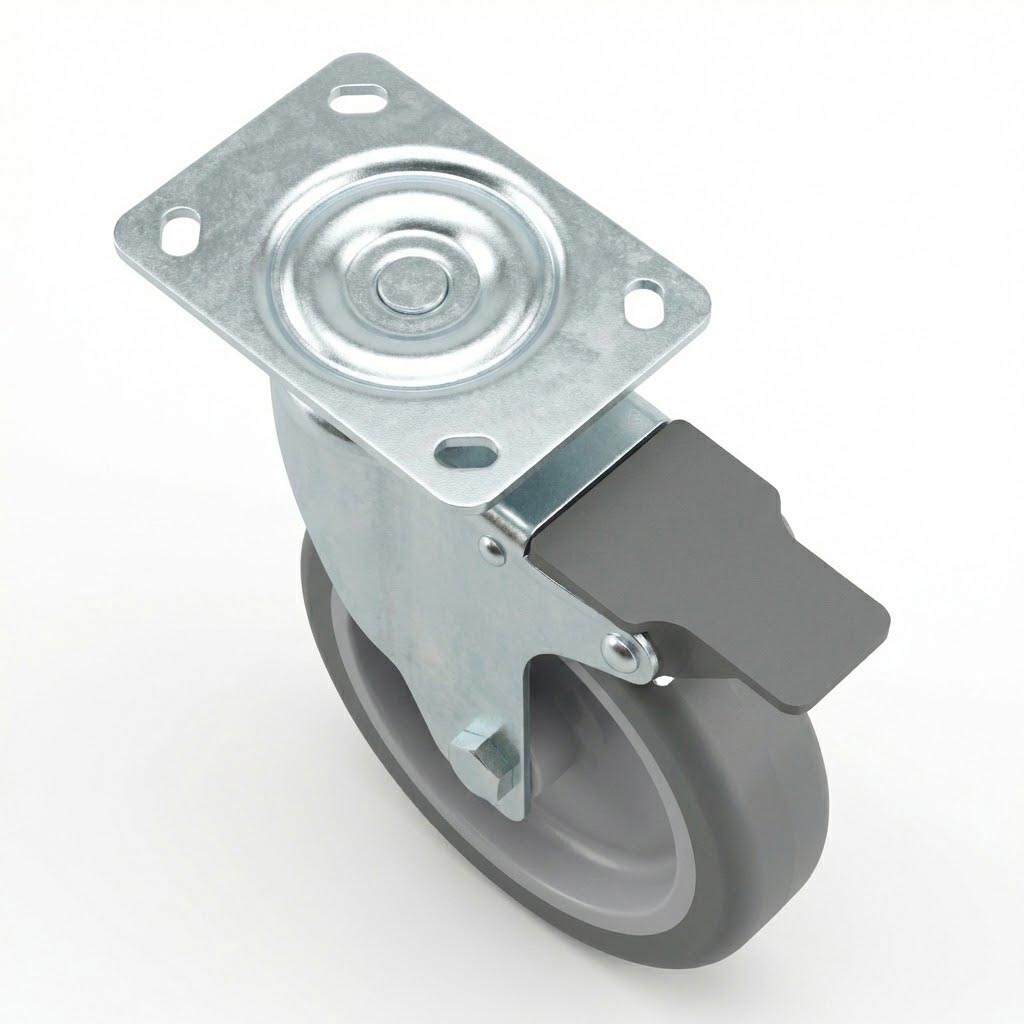

Premium 125mm Swivel Castor with Integrated Brake

Professional-grade mobility solution engineered for retail displays, commercial trolleys, and light industrial applications

Product Overview

This 125mm swivel castor combines robust zinc-plated steel construction with a high-performance grey rubber wheel, delivering exceptional manoeuvrability and reliable braking control. Designed specifically for retail environments and commercial applications, it provides smooth rolling action across various floor surfaces while protecting against marks and scuffs.

The integrated brake mechanism allows for secure positioning of equipment, making it ideal for display units, service trolleys, mobile workstations, and light-duty transport carts. The thermoplastic rubber wheel offers excellent floor protection, quiet operation, and dependable performance in demanding commercial settings.

Technical Specifications

Wheel Specifications
Wheel Diameter 125mm
Tread Width 30mm
Wheel Material Thermoplastic Rubber on Polypropylene Core (Grey)
Tread Hardness 88 Shore A
Bearing Type Plain Bearing
Mounting Plate Specifications

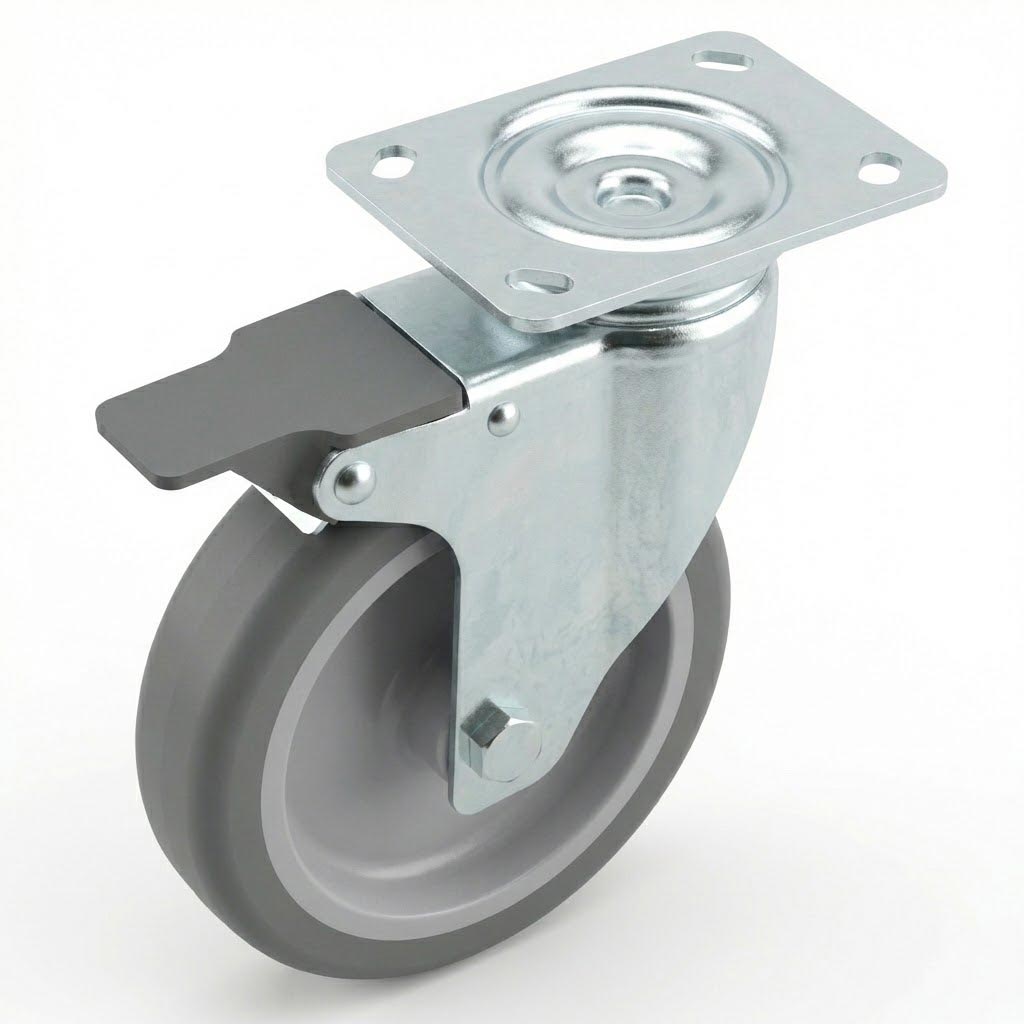

Plate Type 4-Hole Top Plate
Plate Dimensions 95mm (Length) × 70mm (Width)
Plate Material Zinc-Plated Pressed Steel
Hole Centres (Length) 76mm / 70mm
Hole Centres (Width) 50mm / 44.5mm
Mounting Hole Diameter 6mm
Castor Dimensions & Capacity
Total Castor Height 162mm
Load Capacity 100kg per castor
Castor Type Swivel with Integrated Brake
Finish Zinc-Plated Steel (Corrosion Resistant)

Key Features & Benefits

  • ? 360-Degree Swivel Action: Full rotation capability ensures effortless manoeuvrability in tight spaces and around obstacles
  • ? Integrated Brake Mechanism: Reliable braking system locks the wheel securely in place for stable positioning
  • ? Non-Marking Grey Rubber Wheel: Protects delicate flooring from scuffs and marks while providing excellent grip
  • ? Quiet Rolling Performance: Thermoplastic rubber construction minimises noise during operation
  • ? Durable Zinc-Plated Construction: Corrosion-resistant finish ensures long-lasting performance in commercial environments
  • ? 100kg Load Capacity: Robust design supports medium-duty applications with confidence
  • ? Universal 4-Hole Mounting: Standard fixing pattern allows easy installation on most equipment

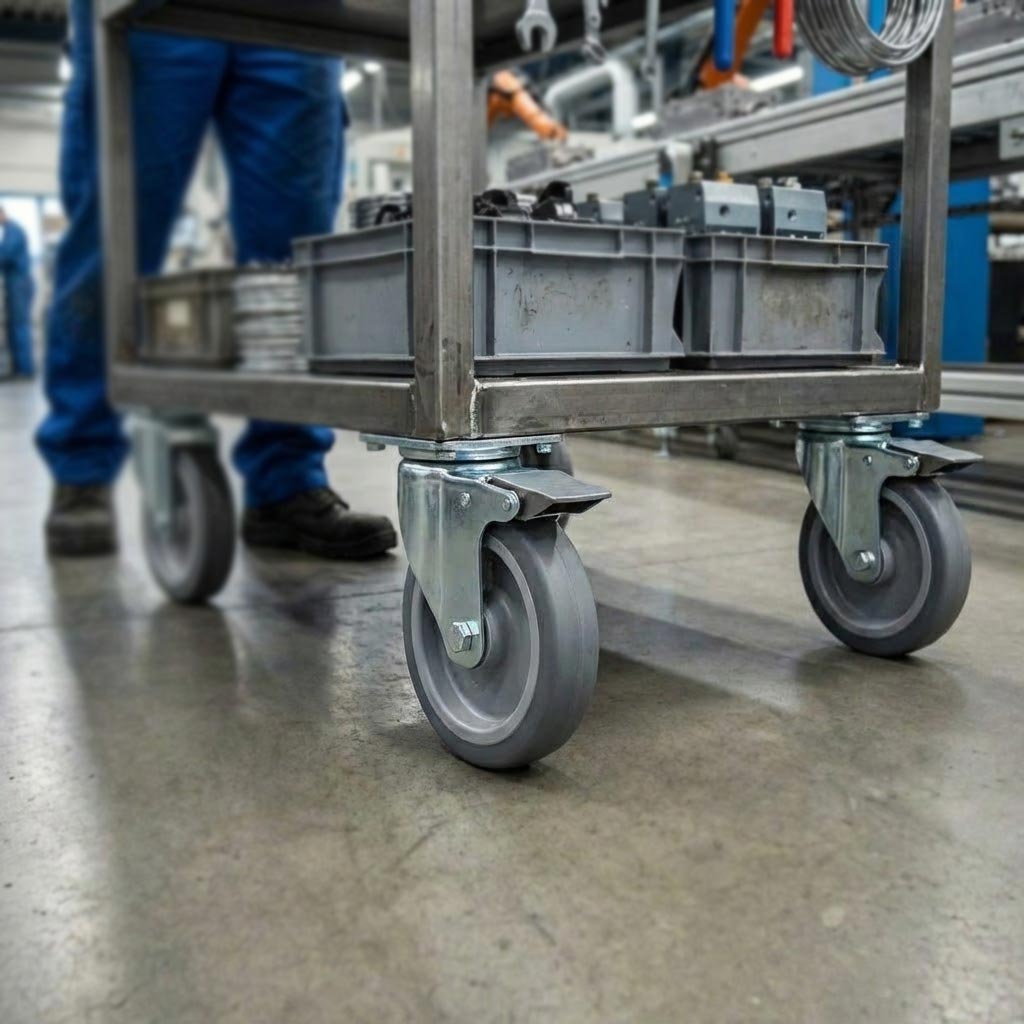

Ideal Applications

Retail display units and merchandising stands

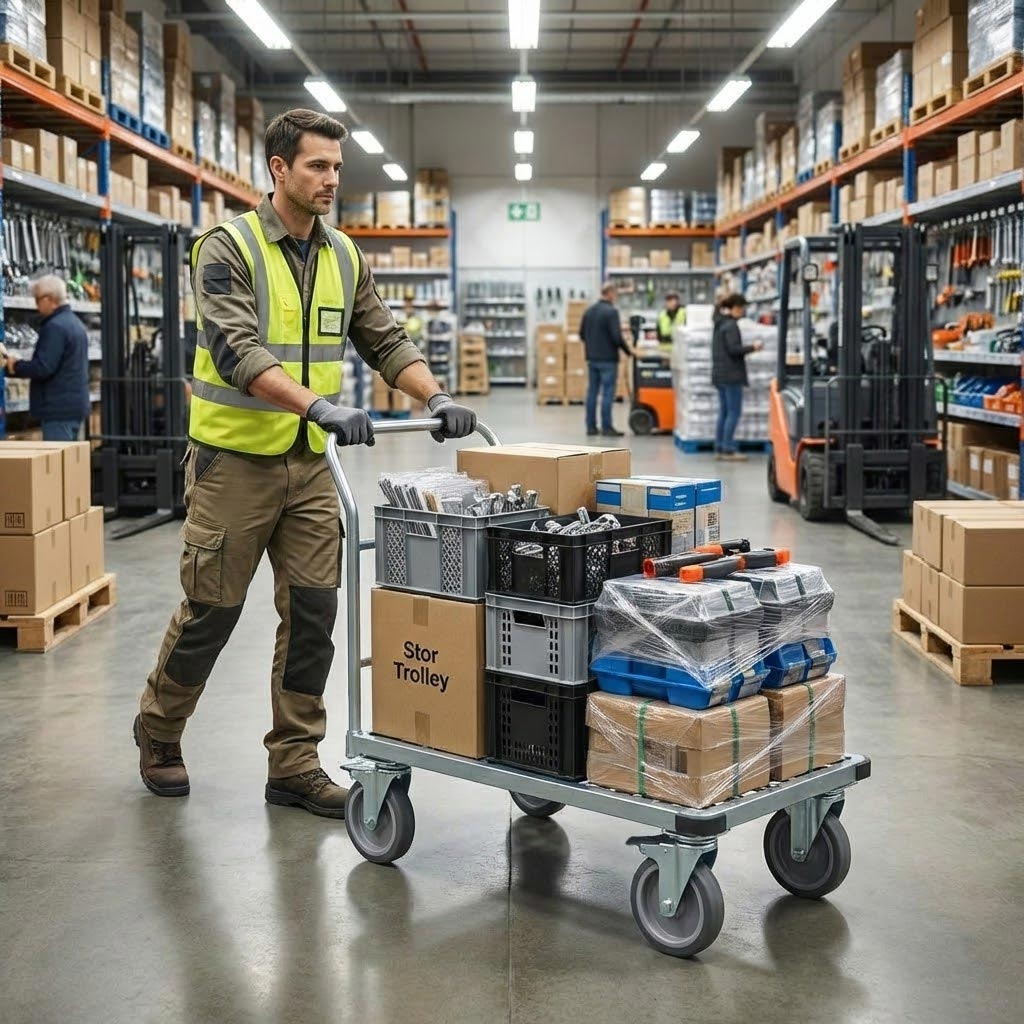

Commercial service trolleys and carts

Mobile workstations and equipment stands

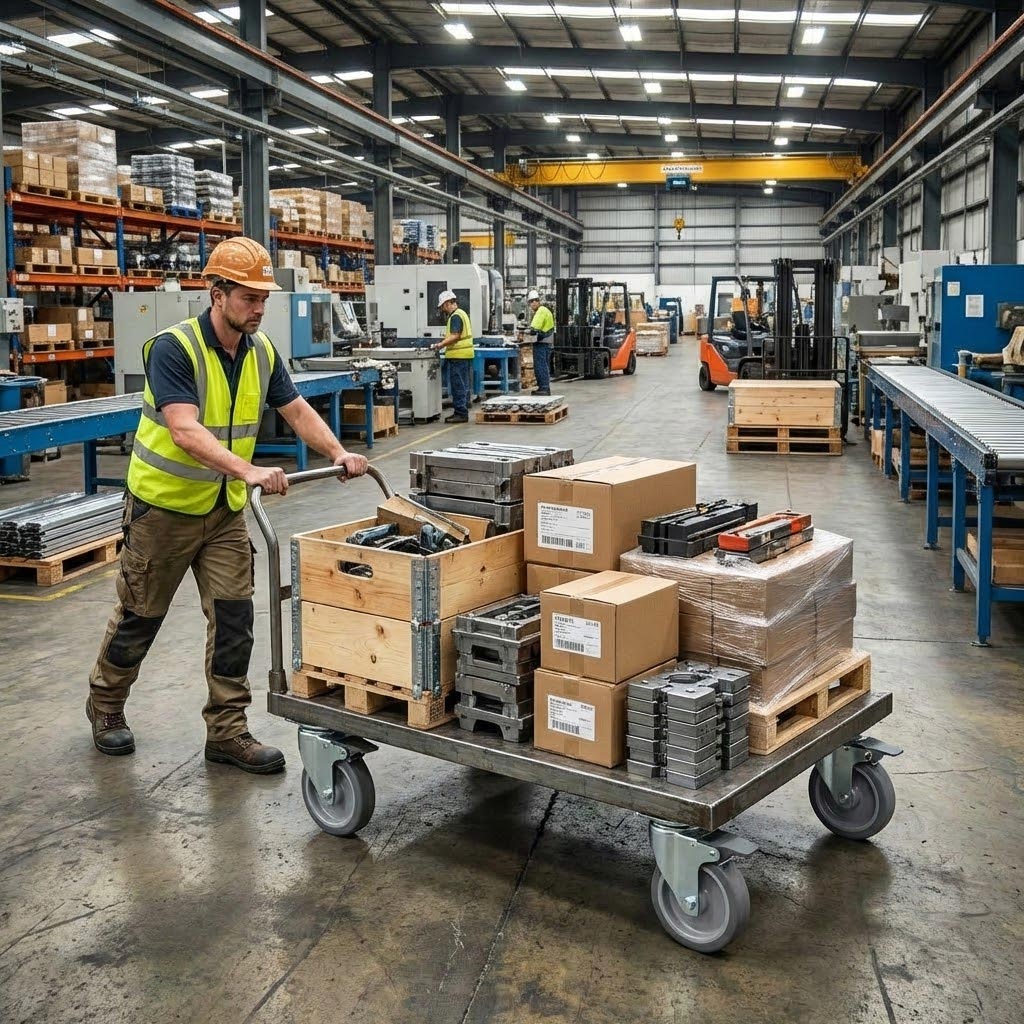

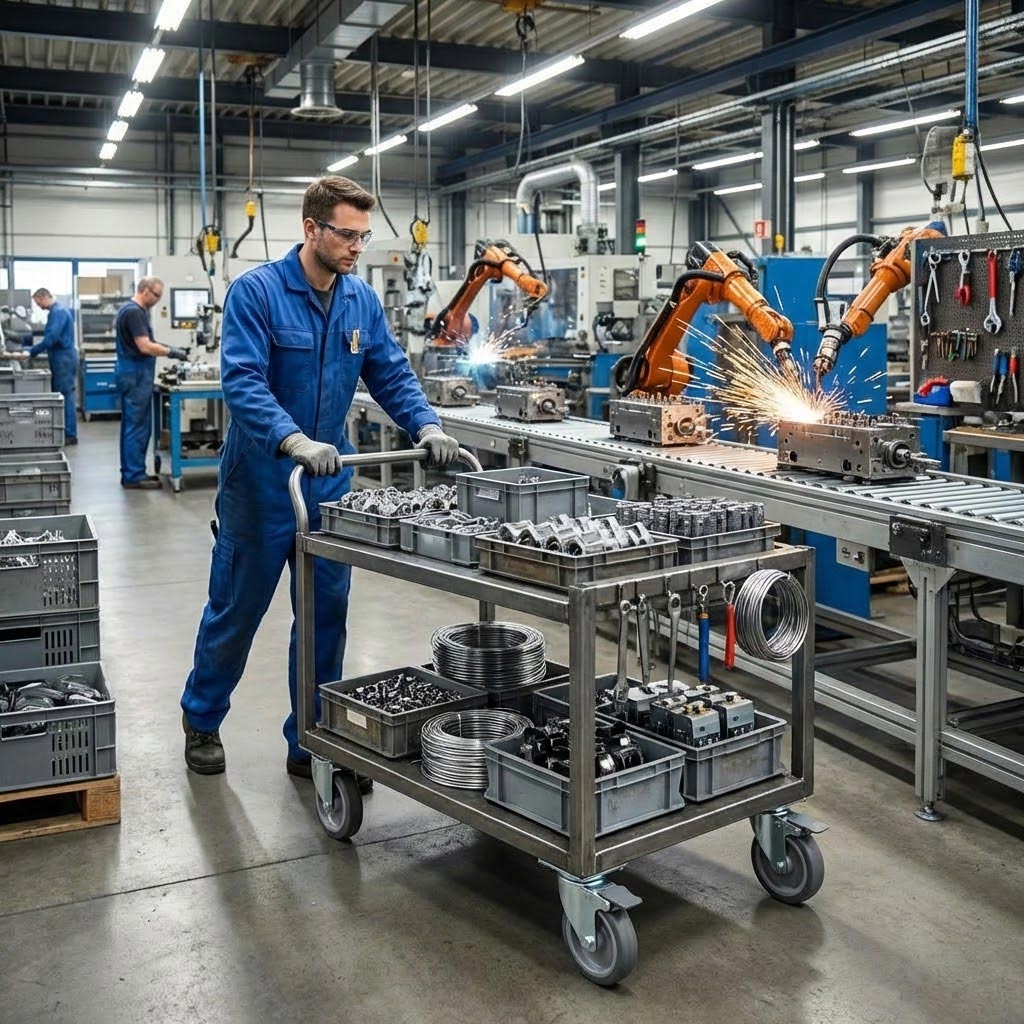

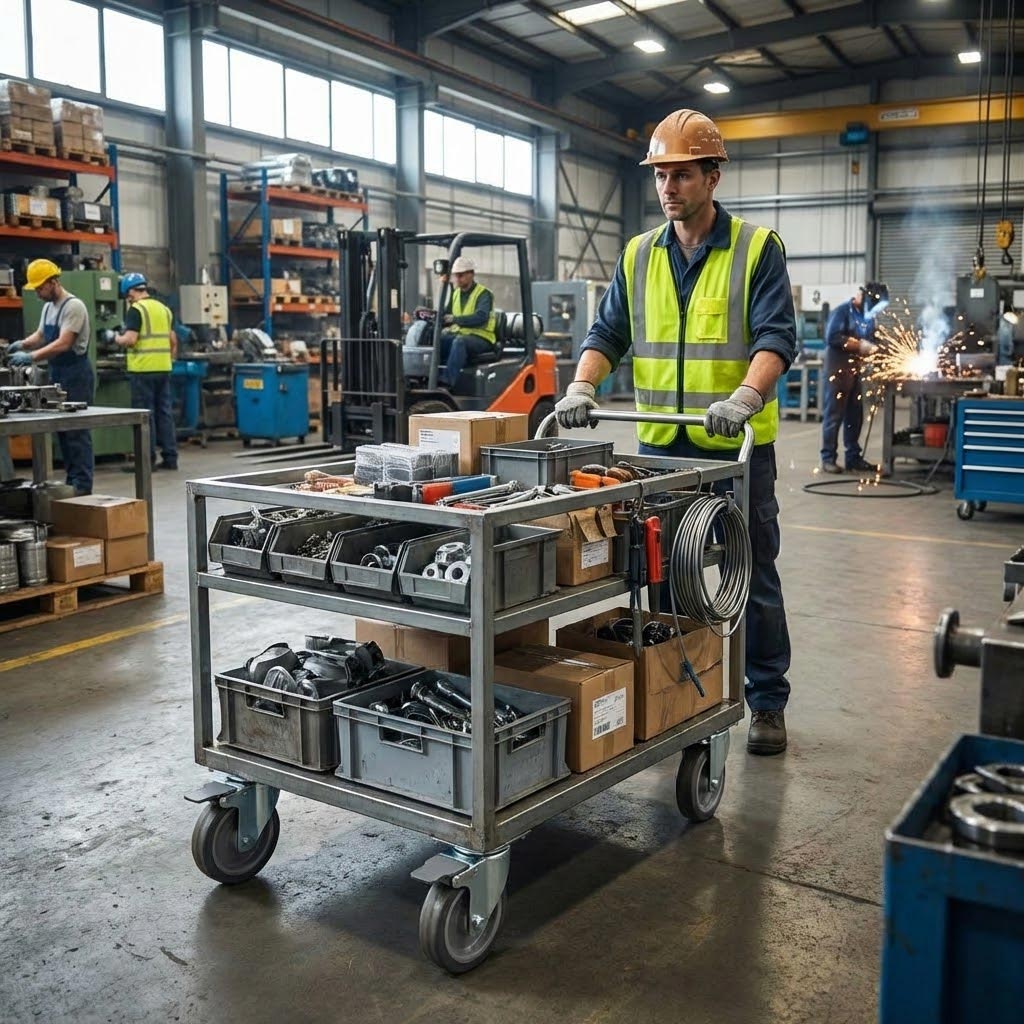

Light industrial transport equipment

Office furniture and mobile storage units

Hospitality and catering equipment

Frequently Asked Questions

What is the maximum weight this castor can support?

Each castor is rated to support up to 100kg. For optimal performance and safety, calculate the total weight of your equipment and load, then divide by the number of castors to ensure you stay within the individual capacity limit.

Will these castors mark or damage my floors?

No, the grey thermoplastic rubber wheel is specifically designed to be non-marking and floor-safe. It provides excellent protection for tiles, vinyl, laminate, and polished concrete surfaces commonly found in retail and commercial environments.

How does the brake mechanism work?

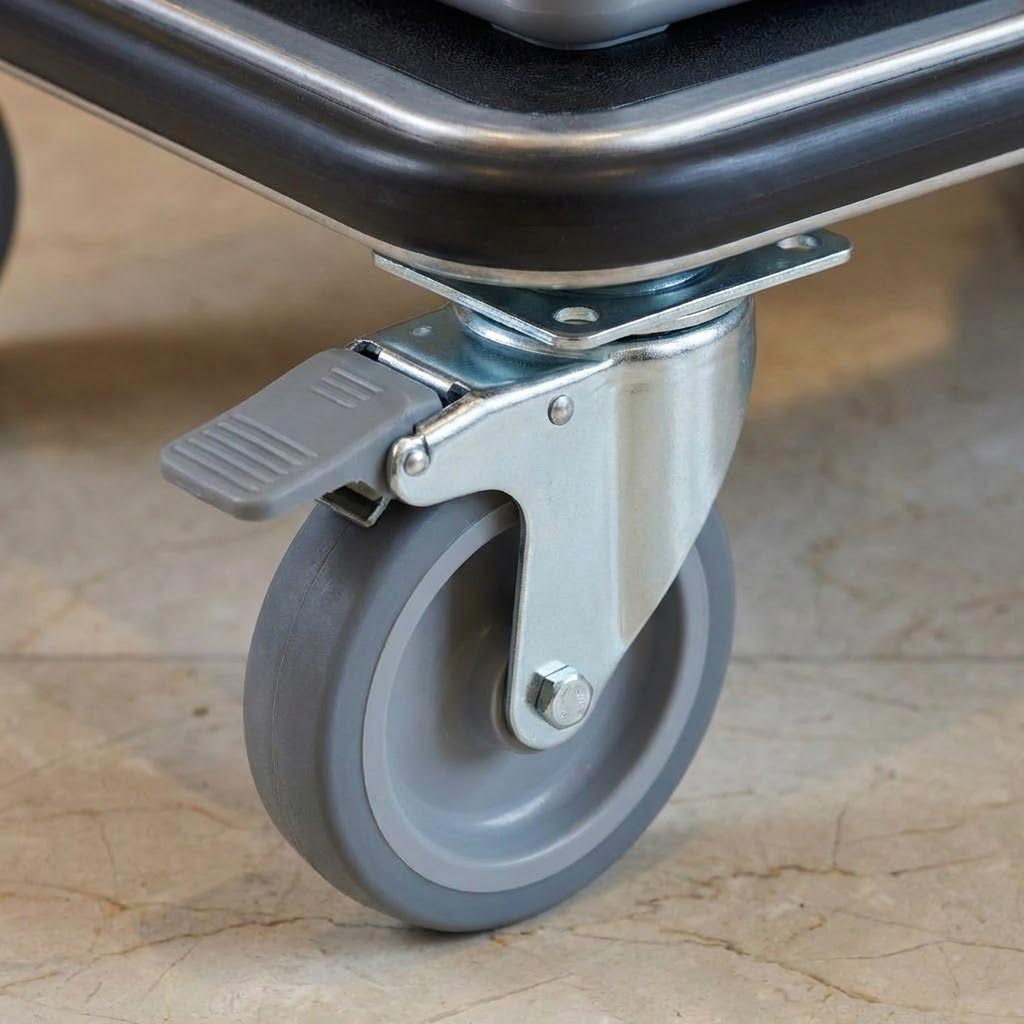

The integrated brake locks the wheel rotation, preventing the castor from rolling. Simply engage the brake pedal with your foot to secure the equipment in place, and release it when you need to move the unit again.

What fixings do I need to install these castors?

The 4-hole top plate features 6mm diameter mounting holes. You'll need four M6 bolts, washers, and nuts per castor (fixings not included). Ensure your mounting surface is strong enough to support the combined weight of the equipment and load.

Can these castors be used outdoors?

While the zinc-plated finish provides corrosion resistance, these castors are primarily designed for indoor retail and commercial use. For permanent outdoor applications, consider castors with enhanced weather protection.

What is the total height added by these castors?

The total castor height from the base of the mounting plate to the floor is 162mm. This is the clearance your equipment will gain when these castors are installed.

Are these castors suitable for uneven surfaces?

These castors perform best on smooth, level surfaces such as retail floors, warehouses, and commercial spaces. The 125mm wheel diameter provides reasonable obstacle clearance for minor surface irregularities.

How many castors do I need for my equipment?

Most applications require four castors for stability. Divide your total load weight by four to determine if each castor stays within the 100kg capacity. For larger or longer equipment, additional castors may be needed for proper weight distribution.

Professional-grade mobility solution engineered for reliability and performance in demanding commercial environments
