125mm Pressed Steel Swivel Castor Wheel with Directional Brake, 4 Hole Top Plate & White Nylon Wheel - 160kg Load Capacity

125mm Pressed Steel Swivel Castor Wheel with Directional Brake, 4 Hole Top Plate & White Nylon Wheel - 160kg Load Capacity

£25.85 GBP
£28.85 GBP £25.85 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

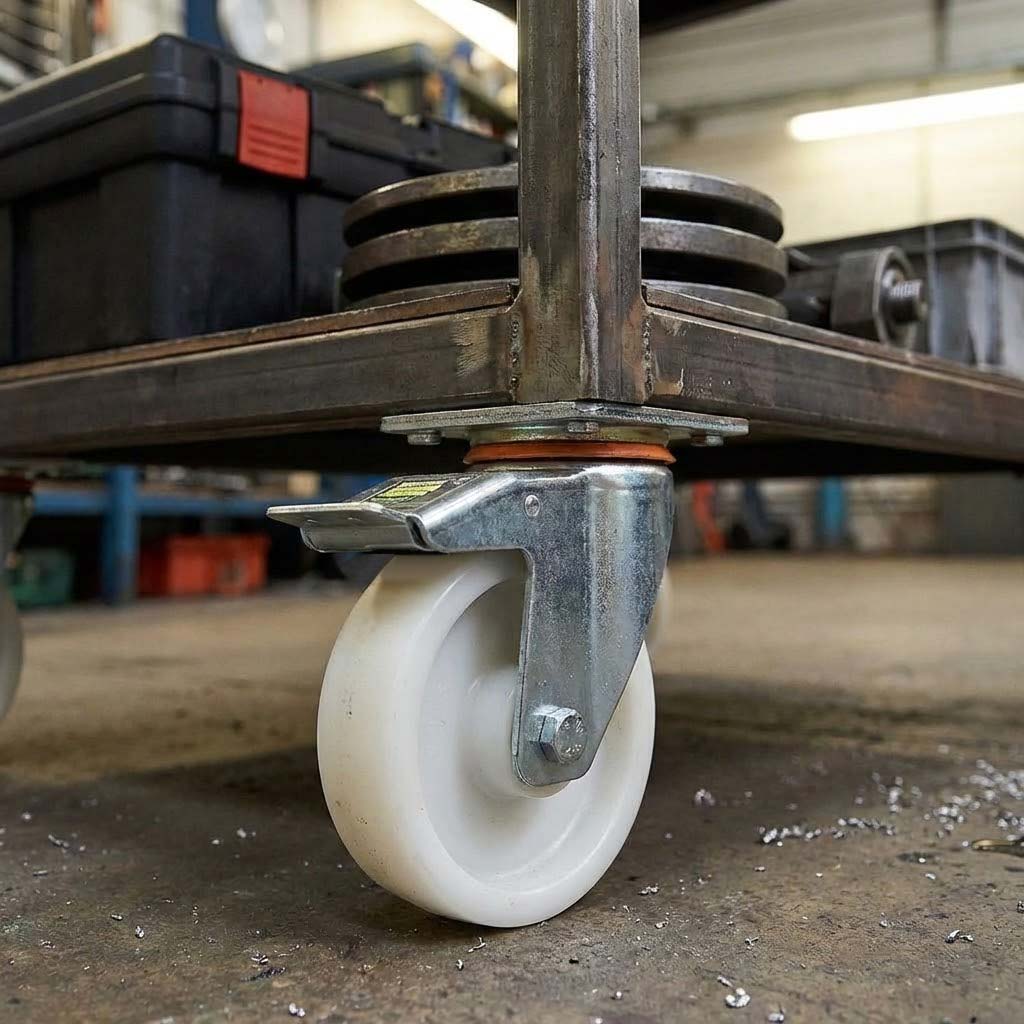

125mm Pressed Steel Swivel Castor with Directional Brake

Premium White Nylon Wheel | 160kg Load Capacity | 4 Hole Top Plate Fixing

Product Overview

This 125mm pressed steel swivel castor combines robust construction with smooth manoeuvrability, making it ideal for medium to heavy-duty applications across industrial, commercial, and institutional environments. Featuring a directional brake mechanism for enhanced control, a durable white nylon wheel for quiet operation, and a reinforced 4-hole top plate for secure mounting, this castor delivers reliable performance for trolleys, equipment stands, workbenches, and mobile storage units. The ball journal bearing ensures effortless 360-degree rotation, whilst the pressed steel construction provides exceptional strength and longevity in demanding settings.

Complete Technical Specifications

Wheel Diameter 125mm
Wheel Material White Nylon
Wheel Width 32mm
Wheel Bore 12mm
Castor Type Swivel with Directional Brake
Mounting Type 4 Hole Top Plate
Top Plate Dimensions 100mm x 85mm
Plate Thickness 3mm
Hole Spacing (Length) 80mm
Hole Spacing (Width) 60mm
Hole Diameter 11mm
Total Height 157mm
Mounting Height 157mm (from floor to underside of plate)
Fork Material Pressed Steel
Bearing Type Ball Journal Bearing
Brake Type Directional Brake (locks swivel rotation)
Load Capacity (per castor) 160kg
Load Capacity (4 castors) 640kg
Finish Zinc Plated Steel
Temperature Range -20°C to ?°C

Key Features & Benefits

Directional Brake Control

Foot-operated directional brake locks the swivel mechanism whilst allowing the wheel to roll freely, providing precise positioning and controlled movement in busy work environments.

White Nylon Wheel

Non-marking white nylon construction ensures floor protection whilst delivering quiet operation, excellent wear resistance, and smooth rolling performance across various surfaces.

Ball Journal Bearing

Precision ball journal bearing system enables effortless 360-degree swivel rotation with minimal friction, reducing operator fatigue and extending service life.

Pressed Steel Construction

Robust pressed steel fork and zinc-plated finish provide superior strength, corrosion resistance, and durability for long-term performance in industrial applications.

4 Hole Top Plate

Standard 100mm x 85mm top plate with four 11mm mounting holes provides secure, stable attachment to equipment bases, trolleys, and mobile units.

160kg Load Capacity

Each castor supports up to 160kg, enabling a total capacity of 640kg when four castors are installed, suitable for medium to heavy-duty mobile equipment.

Ideal Applications

This versatile swivel castor with directional brake is perfectly suited for:

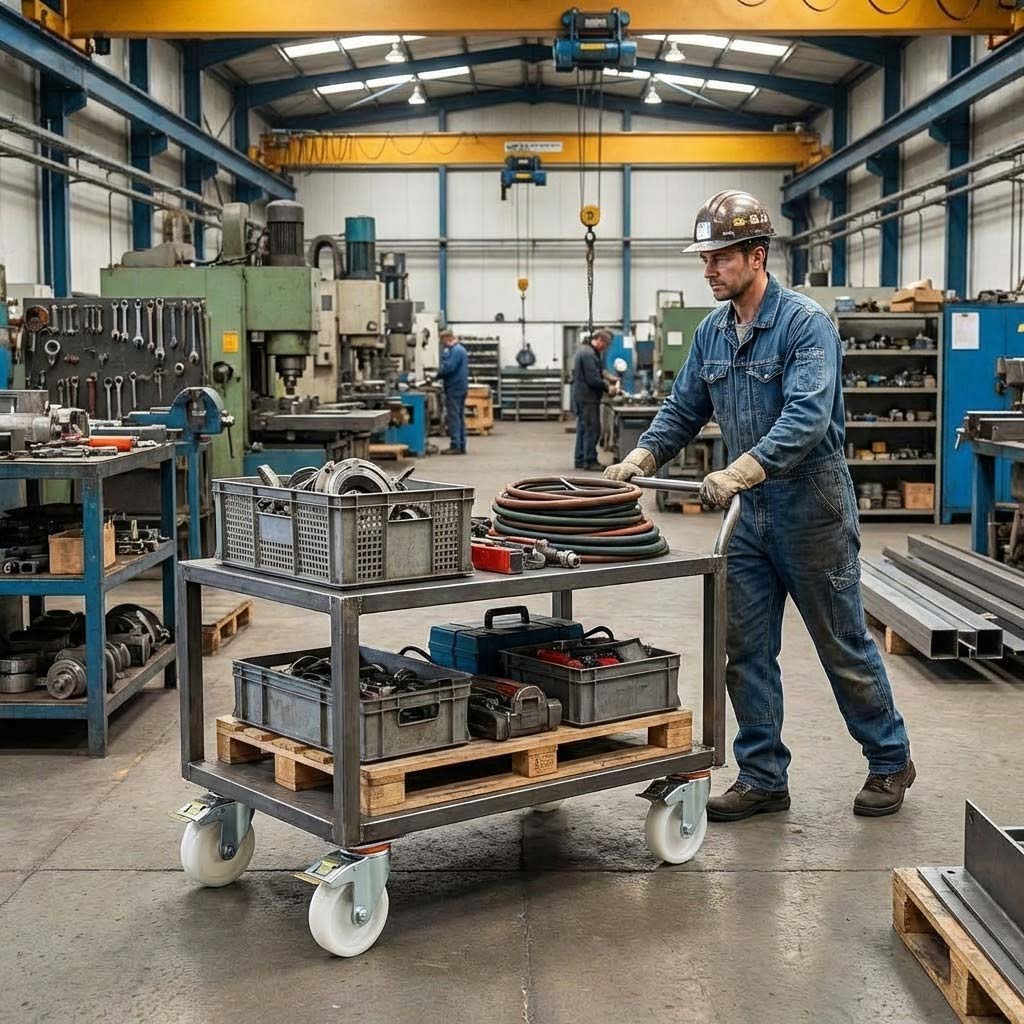

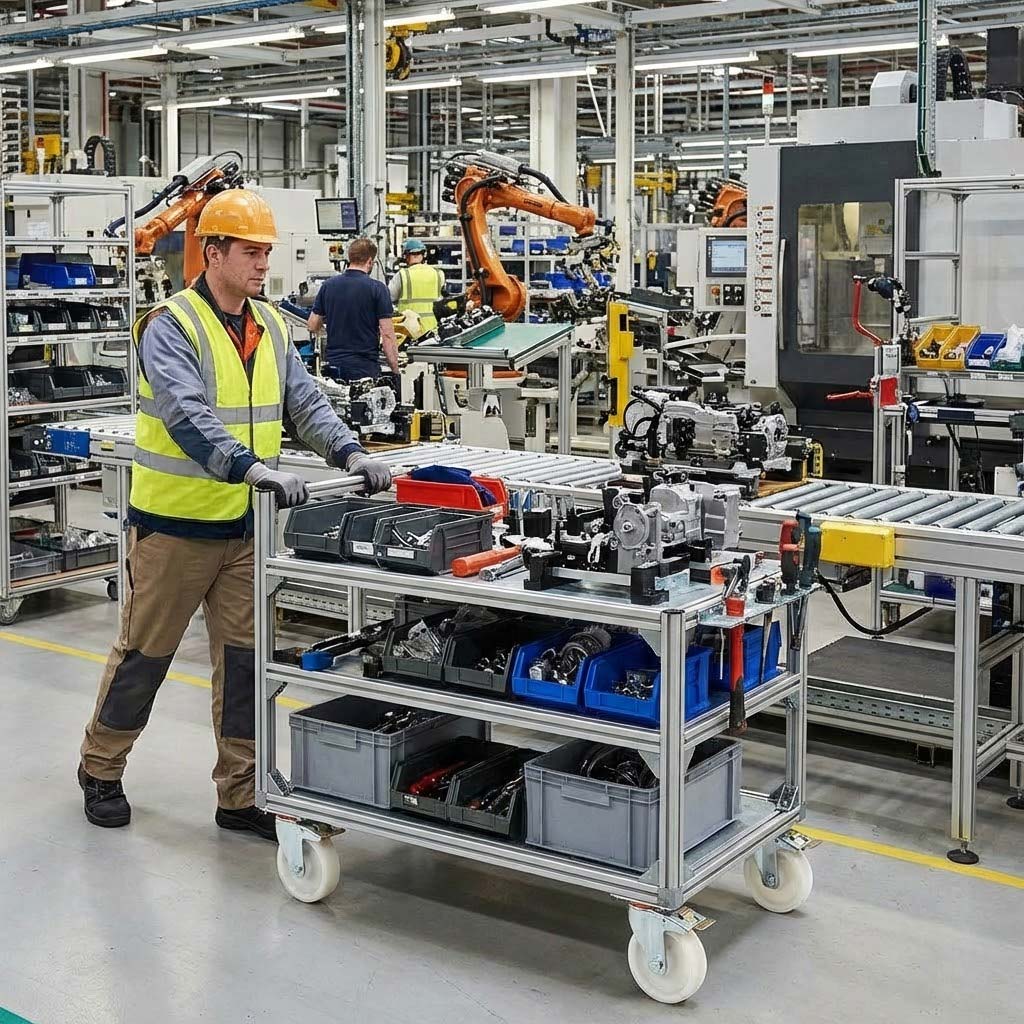

  • Industrial trolleys and material handling carts

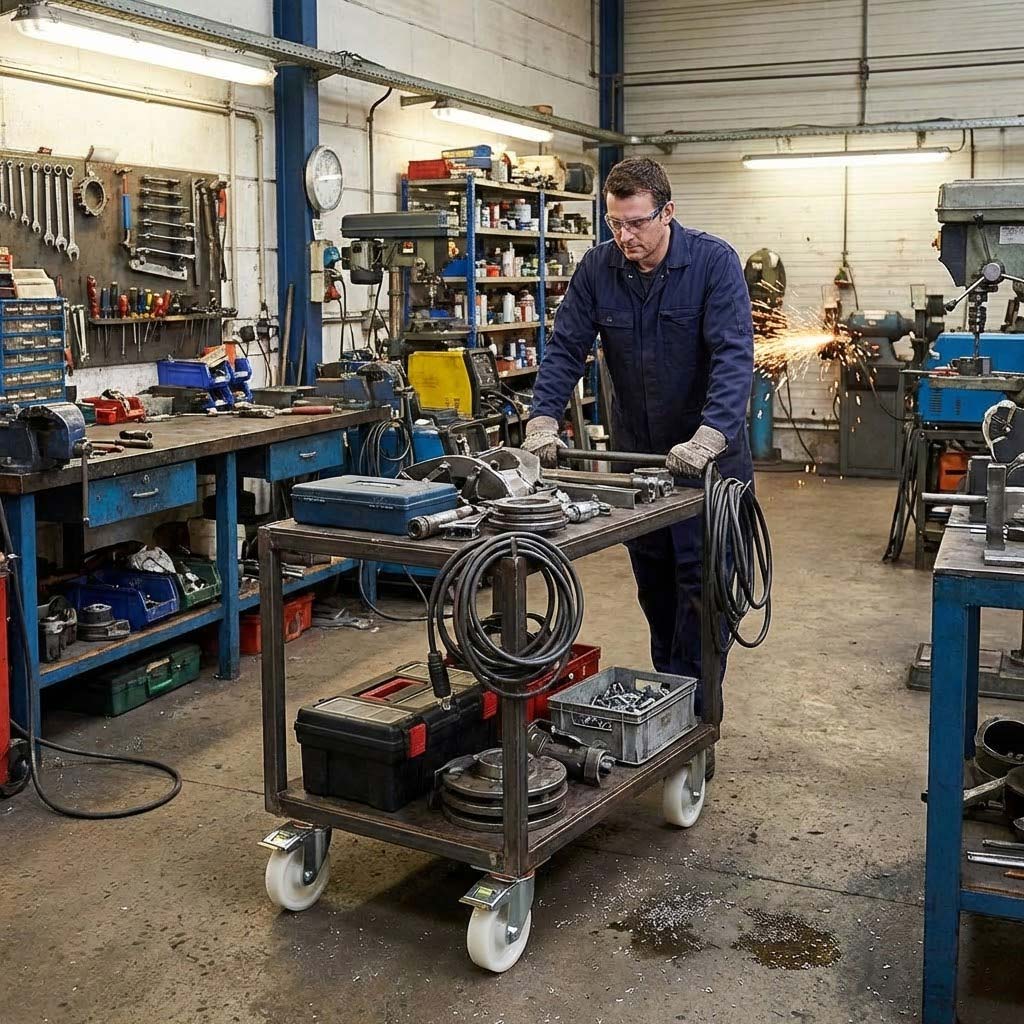

  • Workshop equipment and mobile workbenches
  • Medical equipment stands and hospital trolleys
  • Food service equipment and catering trolleys

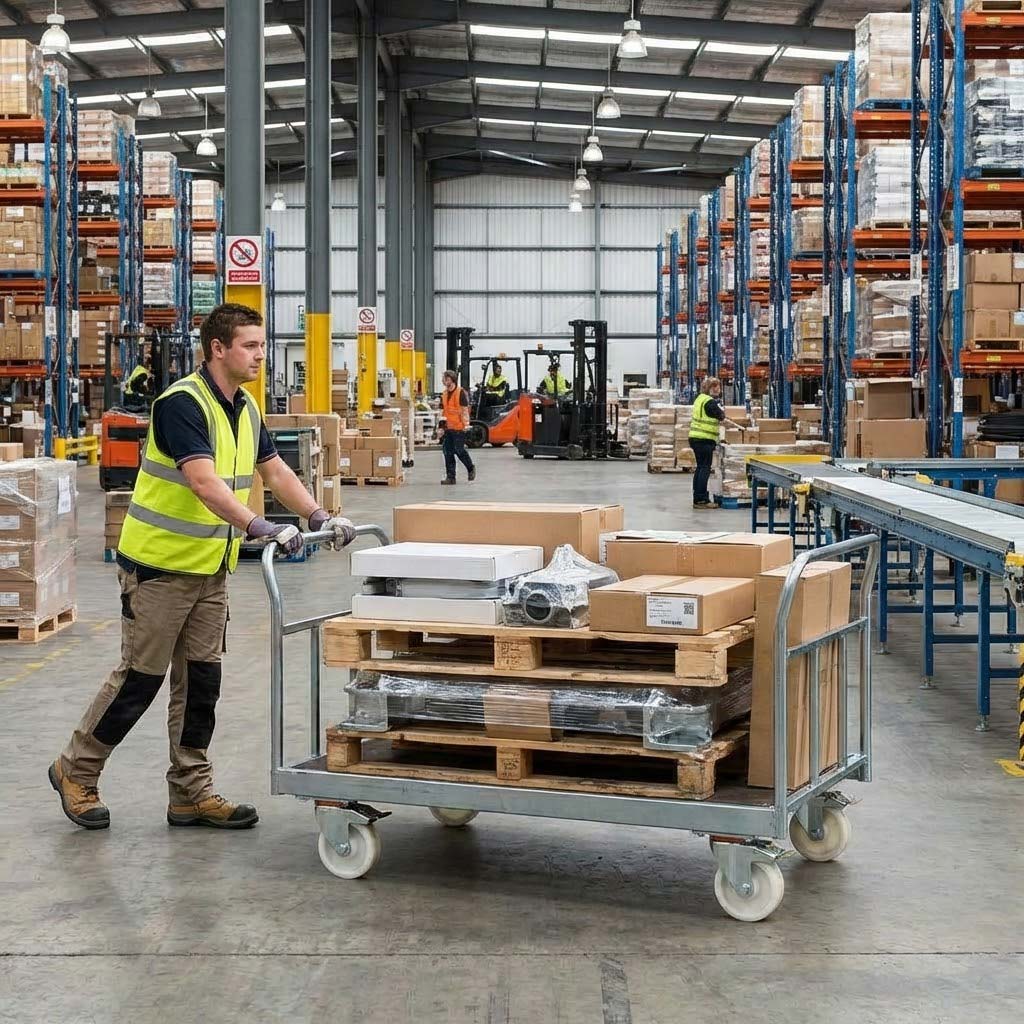

  • Warehouse storage units and picking carts
  • Laboratory furniture and mobile storage cabinets
  • Retail display units and merchandising stands
  • Educational furniture and mobile classroom equipment
  • Cleaning equipment and janitorial carts
  • Office furniture and mobile filing systems

Frequently Asked Questions

What is the difference between a directional brake and a total lock brake?

A directional brake locks only the swivel mechanism, allowing the wheel to continue rolling in a straight line. This is ideal for controlled movement along corridors or aisles. A total lock brake stops both the swivel and the wheel rotation completely, preventing any movement.

What type of floors is this castor suitable for?

The white nylon wheel is non-marking and suitable for most hard floor surfaces including concrete, tile, vinyl, laminate, and sealed wood. It provides excellent floor protection whilst maintaining smooth rolling performance.

How do I calculate the total load capacity I need?

Calculate the total weight of your equipment plus the maximum load it will carry, then divide by the number of castors. Add a 25-30% safety margin. For example, for a 400kg total weight on 4 castors: 400kg ÷ 4 = 100kg per castor, plus 30% safety margin = 130kg minimum capacity required.

What fixings do I need to mount this castor?

The 4-hole top plate requires four M10 bolts or screws with appropriate washers and nuts. The 11mm holes accommodate M10 fixings with clearance. Ensure fixings are suitable for your mounting surface material and thickness.

Can this castor be used outdoors?

Whilst the zinc-plated steel construction offers some corrosion resistance, this castor is primarily designed for indoor use. For outdoor applications or high-moisture environments, consider stainless steel alternatives for enhanced durability.

How does the ball journal bearing improve performance?

Ball journal bearings use precision steel balls to reduce friction between the swivel mechanism and the mounting plate. This results in smoother rotation, easier manoeuvrability, reduced wear, and extended service life compared to plain bearings.

What maintenance does this castor require?

Regular maintenance includes removing debris from the wheel and swivel mechanism, checking mounting bolts for tightness, inspecting for wear or damage, and applying light lubrication to the bearing assembly every 6-12 months depending on usage intensity.

How many swivel castors should I use on my equipment?

For optimal manoeuvrability, use four swivel castors. For better straight-line stability, use two swivel castors at one end and two fixed castors at the opposite end. The swivel castors should typically be positioned at the end where you push or pull the equipment.

Premium Quality Castor Solution

Engineered for reliability, designed for performance, and built to last in demanding environments. This professional-grade swivel castor delivers the perfect balance of manoeuvrability, control, and durability for your mobile equipment needs.
