125mm Pressed Steel Swivel Castor Wheel - Grey Rubber - 4-Hole Top Plate - 110kg Load Capacity

125mm Pressed Steel Swivel Castor Wheel - Grey Rubber - 4-Hole Top Plate - 110kg Load Capacity

£26.57 GBP
£29.97 GBP £26.57 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

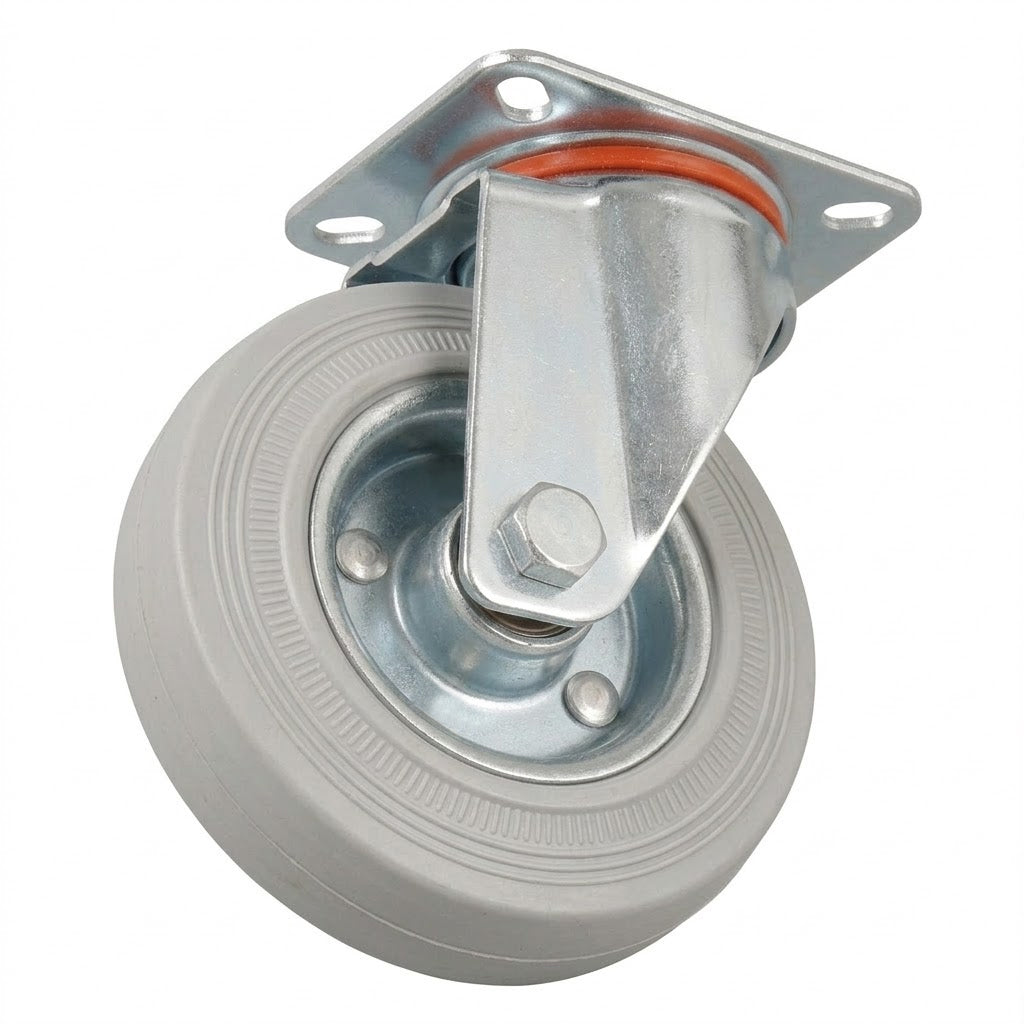

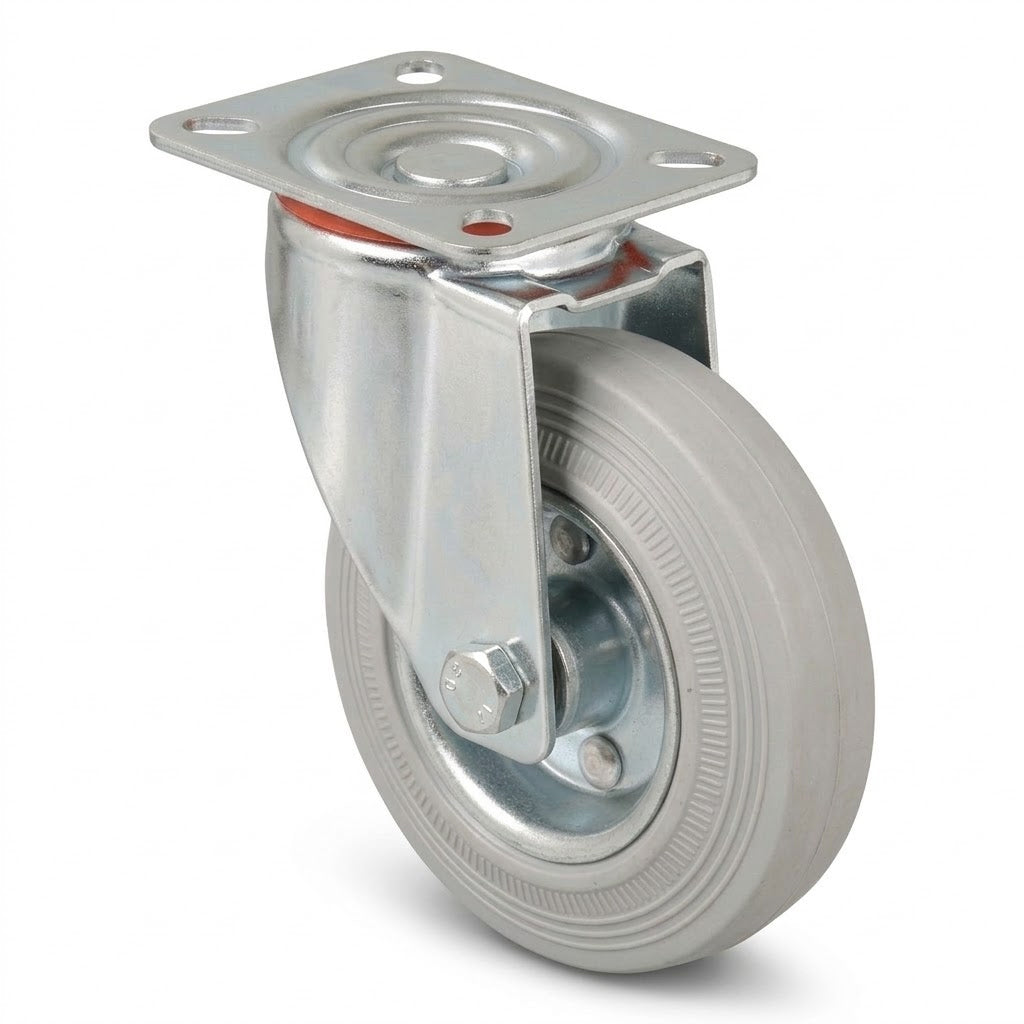

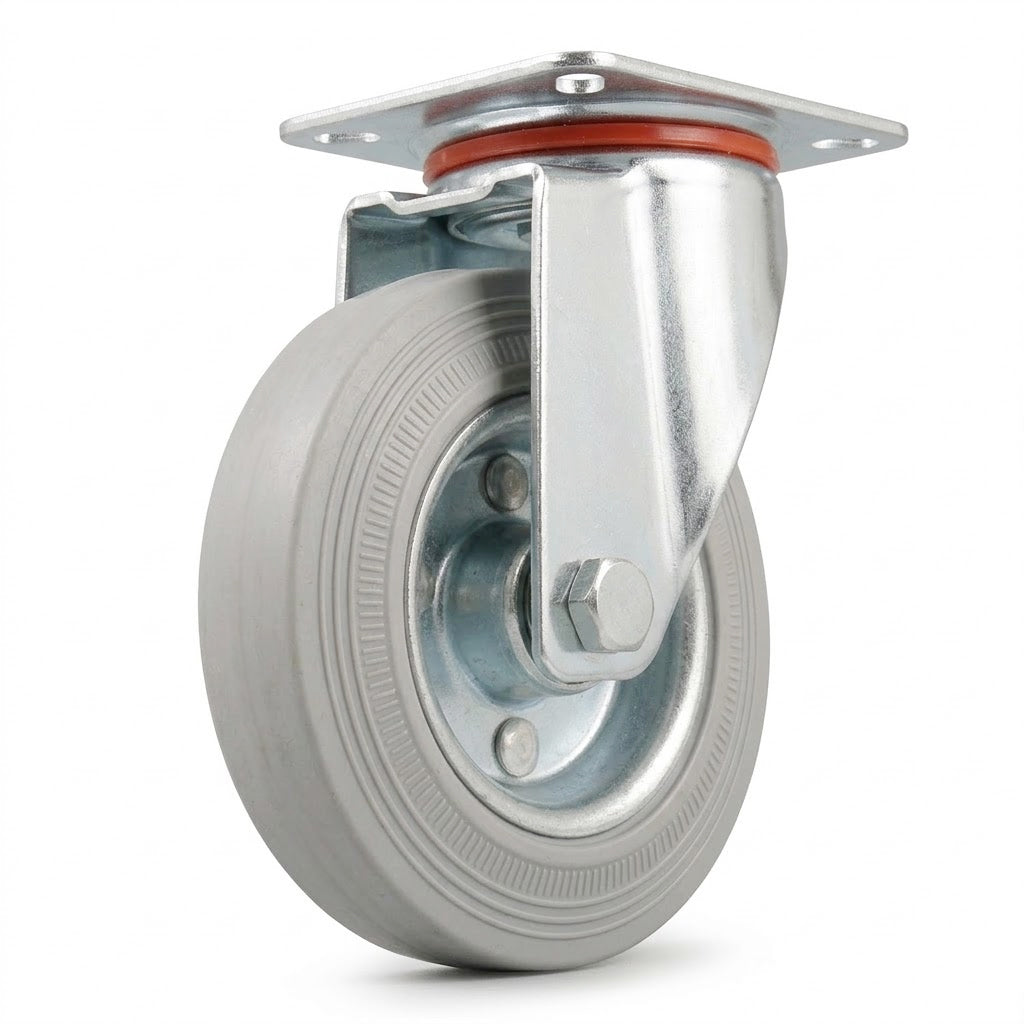

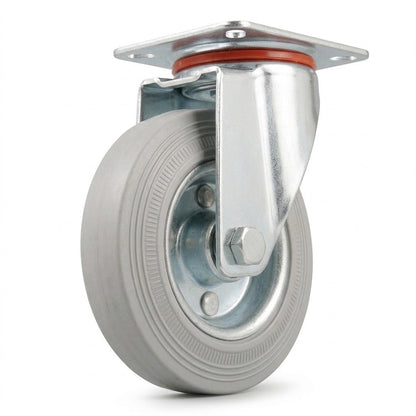

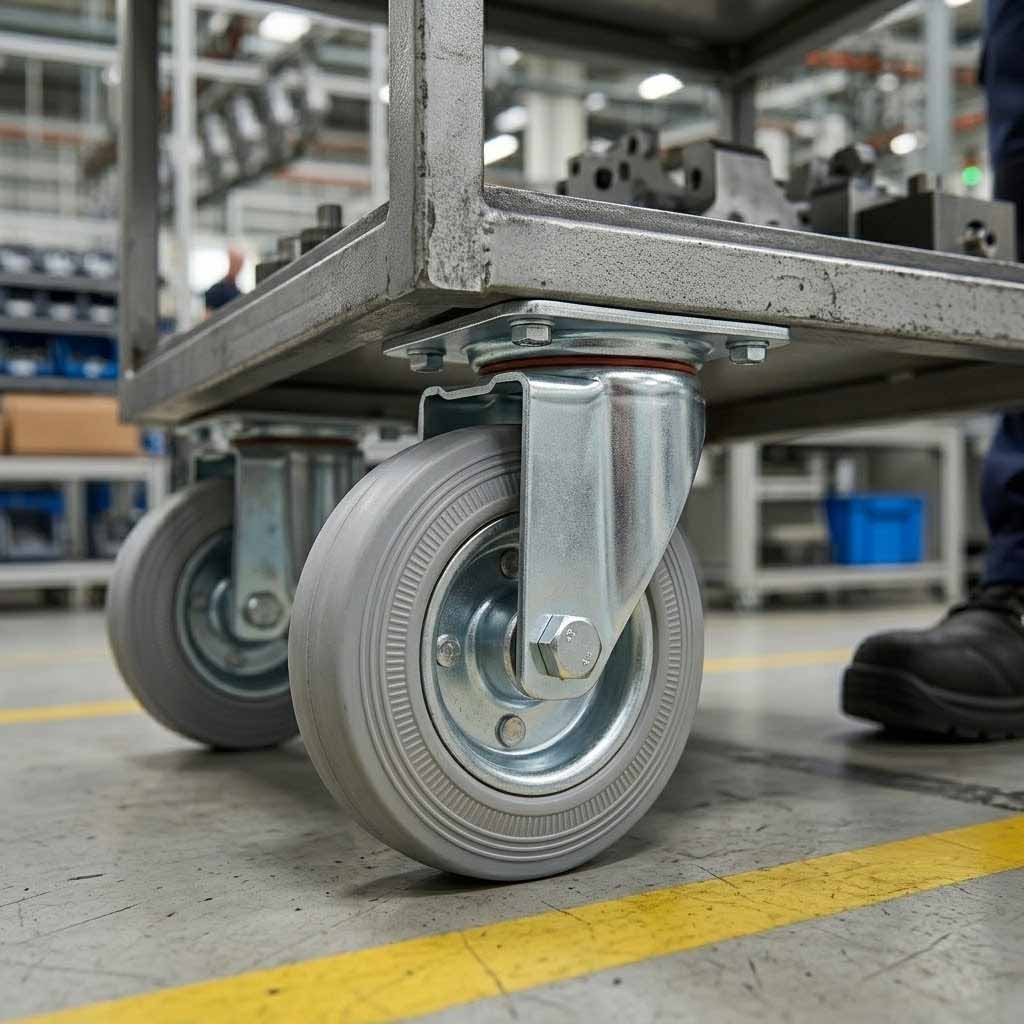

This 125mm pressed steel swivel castor with grey rubber wheel delivers reliable manoeuvrability and load-bearing performance for medium-duty applications. Engineered with a robust swivel housing and ball journal bearing system, this castor enables smooth directional changes while supporting loads up to 110kg per unit. The grey rubber tread on pressed steel wheel construction provides excellent shock absorption, reduced vibration, and quiet operation across hard floors, making it ideal for trolleys, carts, industrial equipment, and mobile furniture in warehouses, workshops, retail environments, and commercial facilities.

Technical Specifications

Castor Configuration
Castor Type Swivel with Top Plate
Bearing Type Ball Journal
Total Castor Height 157 mm
Load Capacity
Load Capacity (Per Castor) 110 kg
Maximum Load Capacity (Set of 4) 330 kg
Wheel Specifications
Wheel Diameter 125 mm
Tread Width 37.5 mm
Wheel Material Grey Rubber on Pressed Steel
Wheel Colour Grey
Tread Hardness 85 Shore A
Top Plate Dimensions
Plate Length 100 mm
Plate Width 85 mm
Plate Hole Centres 60 mm × 80 mm
Plate Hole Diameter 10 mm
Number of Holes 4-Hole Configuration
Material & Finish
Housing Material Pressed Steel
Finish Zinc Plated

Key Features & Benefits

  • 360-Degree Swivel Action: Full rotational movement enables effortless manoeuvrability in tight spaces and around obstacles
  • Ball Journal Bearing System: Precision bearing mechanism ensures smooth, consistent rotation with minimal friction
  • Shock-Absorbing Grey Rubber Tread: Reduces vibration and noise while protecting floor surfaces from marking and damage
  • Robust Pressed Steel Construction: Durable housing and wheel core provide long-lasting performance in demanding environments
  • Zinc Plated Finish: Corrosion-resistant coating extends service life and maintains appearance
  • 4-Hole Top Plate Mounting: Secure, stable attachment with standard hole pattern for easy installation
  • Medium-Duty Load Rating: Supports up to 110kg per castor, with 330kg total capacity when used in sets of four
  • Versatile Application Range: Suitable for trolleys, carts, workbenches, mobile storage units, and industrial equipment

Ideal Applications

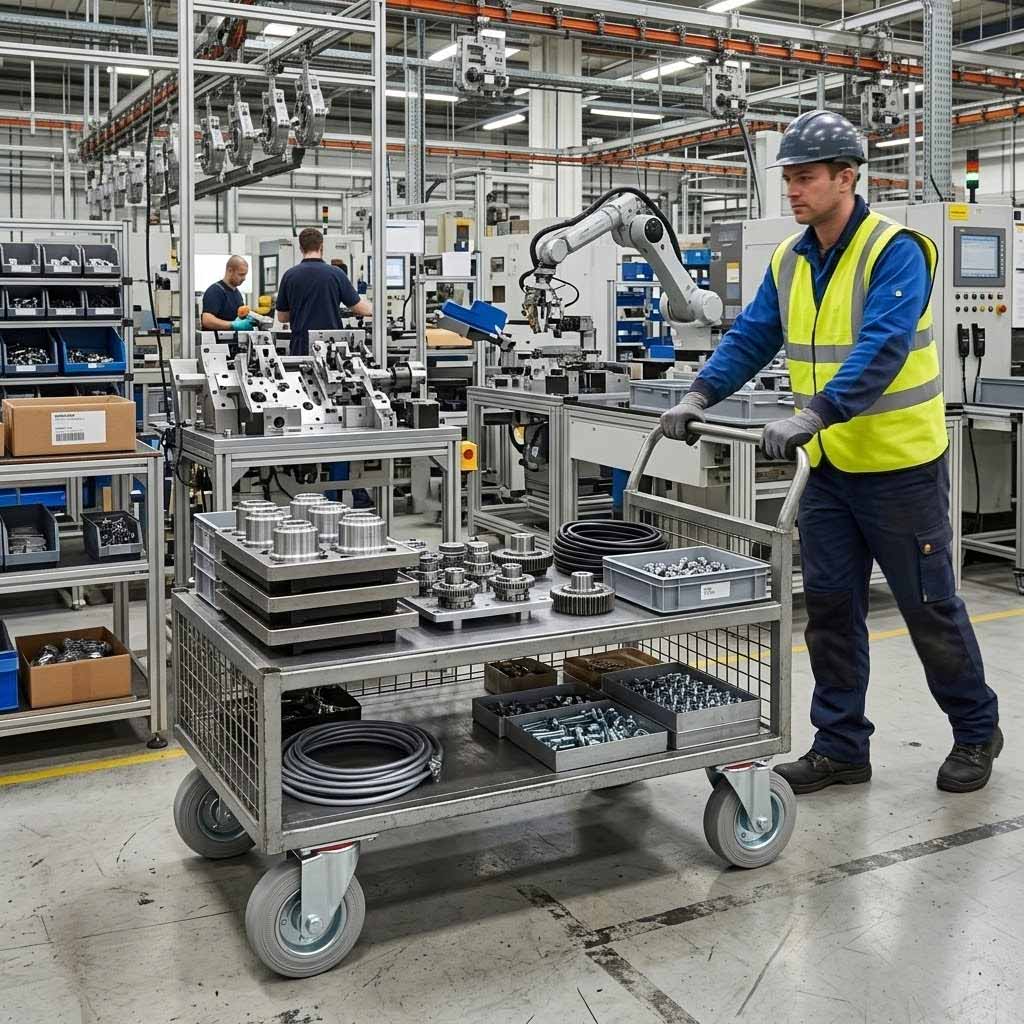

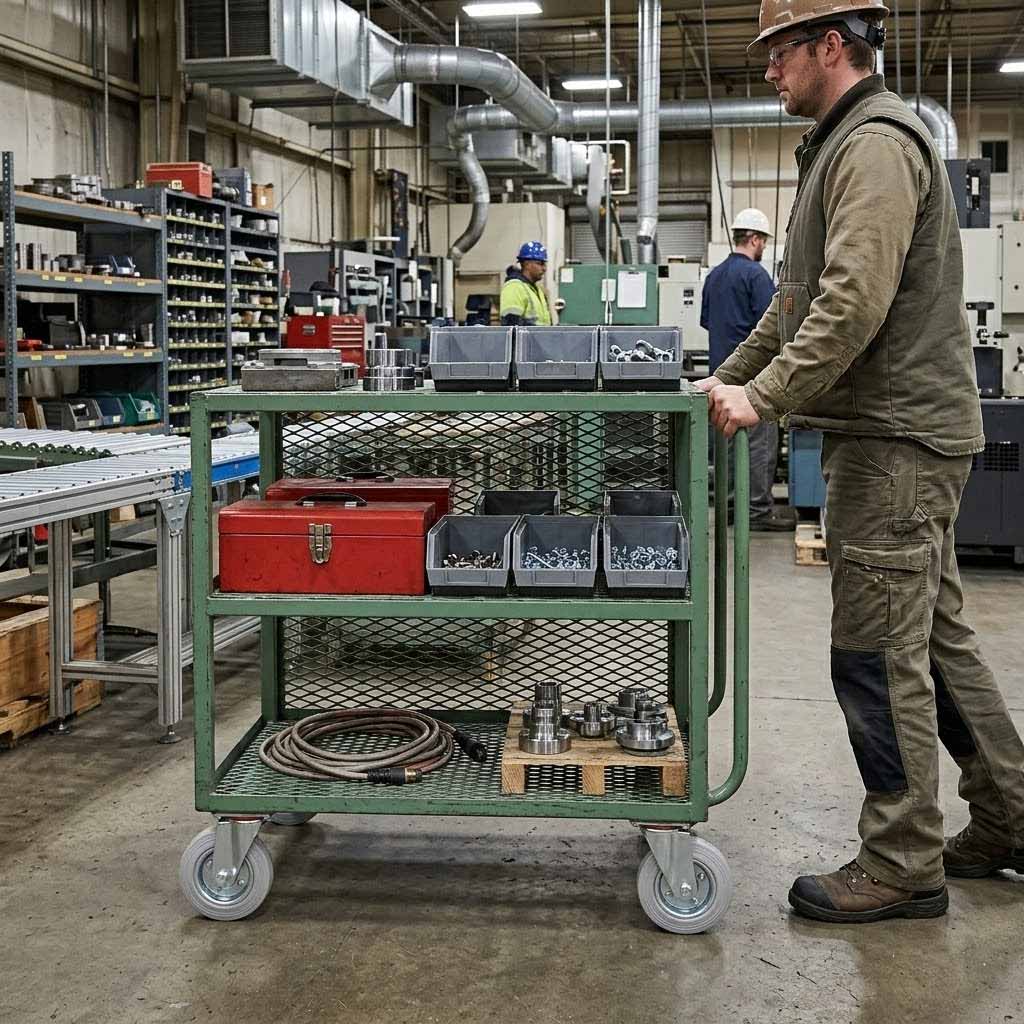

Industrial & Warehouse: Material handling trolleys, platform carts, tool cabinets, mobile workstations

Retail & Commercial: Display units, stock trolleys, service carts, mobile shelving systems

Workshop & Garage: Tool chests, equipment stands, mobile benches, parts bins

Hospitality & Catering: Service trolleys, cleaning carts, linen trolleys, kitchen equipment

Frequently Asked Questions

What is the maximum weight this castor can support?

Each castor has a load capacity of 110kg. When using a set of four castors, the maximum combined load capacity is 330kg. Always ensure the weight is evenly distributed across all castors for optimal performance and safety.

What type of floors is this castor suitable for?

The grey rubber wheel is designed for hard, smooth surfaces including concrete, tile, laminate, vinyl, and sealed wood floors. The rubber tread provides excellent grip, reduces noise, and protects floor surfaces from marking. It is not recommended for soft surfaces like carpet or outdoor rough terrain.

How do I install this castor to my equipment?

The castor features a 4-hole top plate measuring 100mm × 85mm with 10mm diameter holes positioned at 60mm × 80mm centres. Simply align the plate with your equipment's mounting surface, mark the hole positions, drill pilot holes if needed, and secure using appropriate bolts, screws, or fixings. Ensure all four mounting points are firmly fastened for maximum stability.

Will this castor swivel smoothly under load?

Yes, the ball journal bearing system provides smooth, low-friction swivel action even when loaded. The precision bearing mechanism ensures consistent 360-degree rotation, allowing easy directional changes and manoeuvrability. Regular maintenance, such as occasional lubrication, will help maintain optimal swivel performance over time.

Need assistance selecting the right castor? Our technical team can help you choose the perfect mobility solution for your specific application requirements.
