100mm Swivel Castor Wheel with Directional Brake - Grey Rubber - 4-Hole Top Plate, 75kg Load Capacity

100mm Swivel Castor Wheel with Directional Brake - Grey Rubber - 4-Hole Top Plate, 75kg Load Capacity

£25.38 GBP
£28.57 GBP £25.38 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

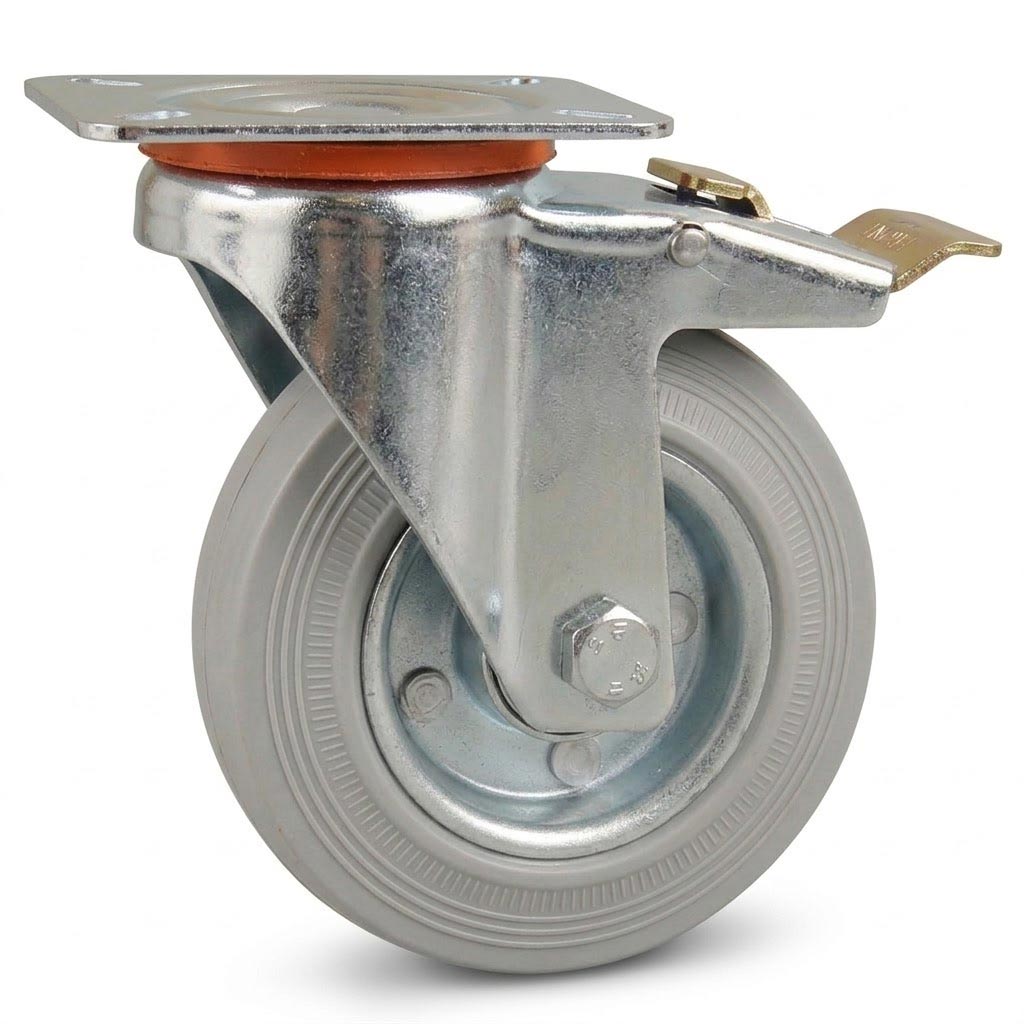

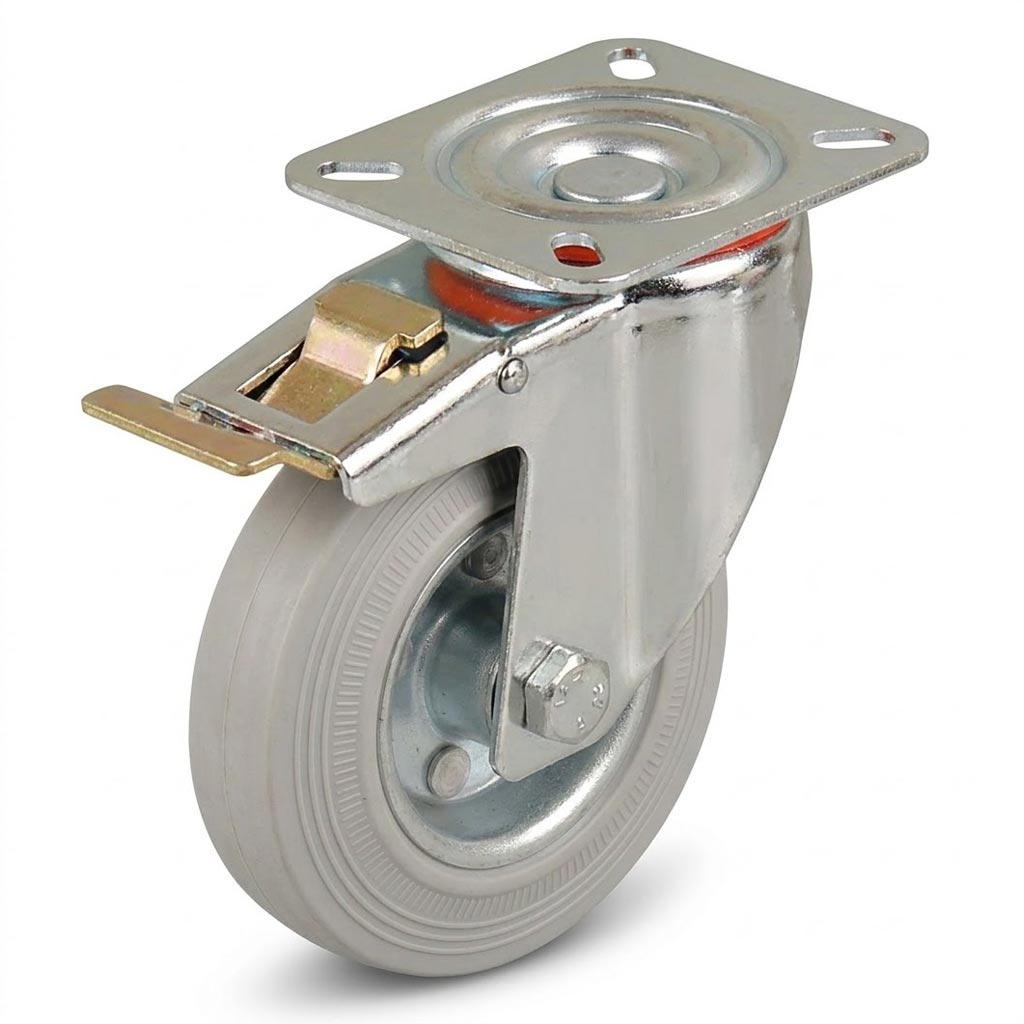

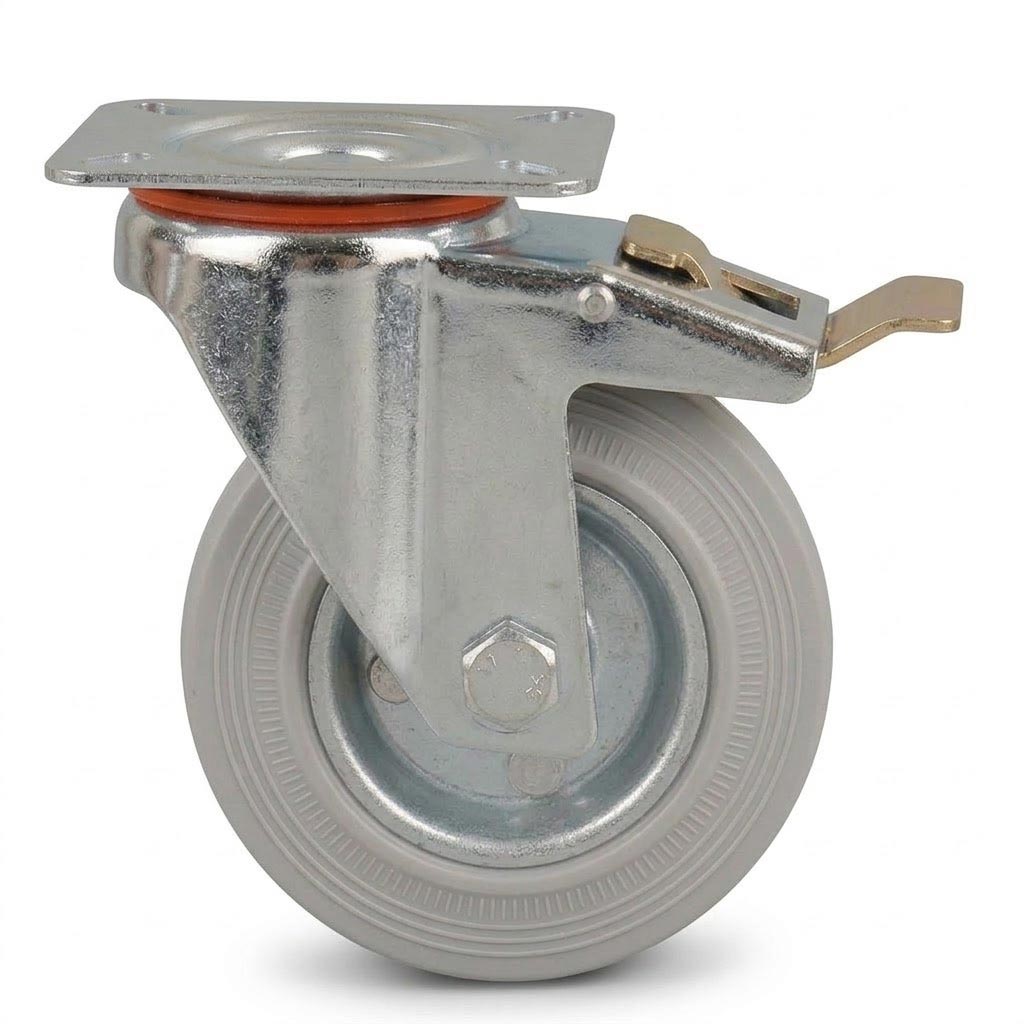

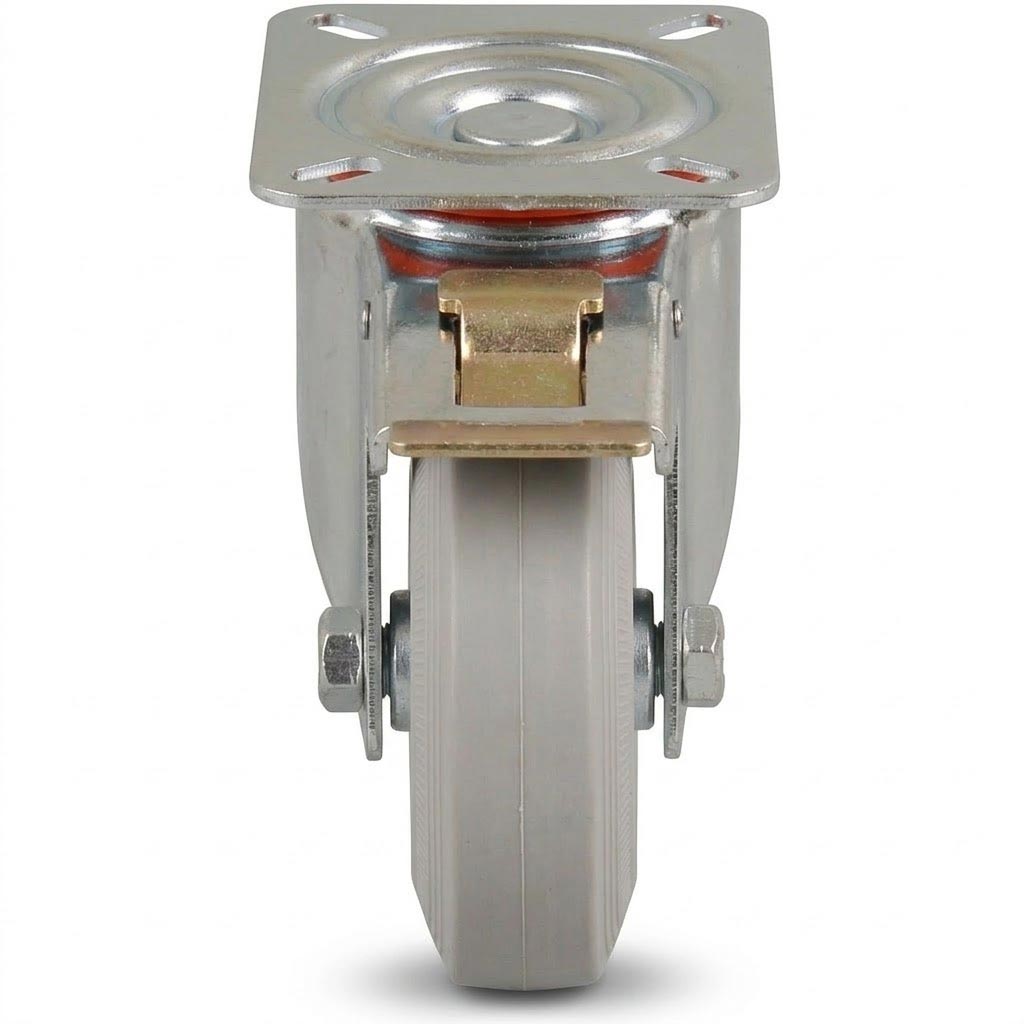

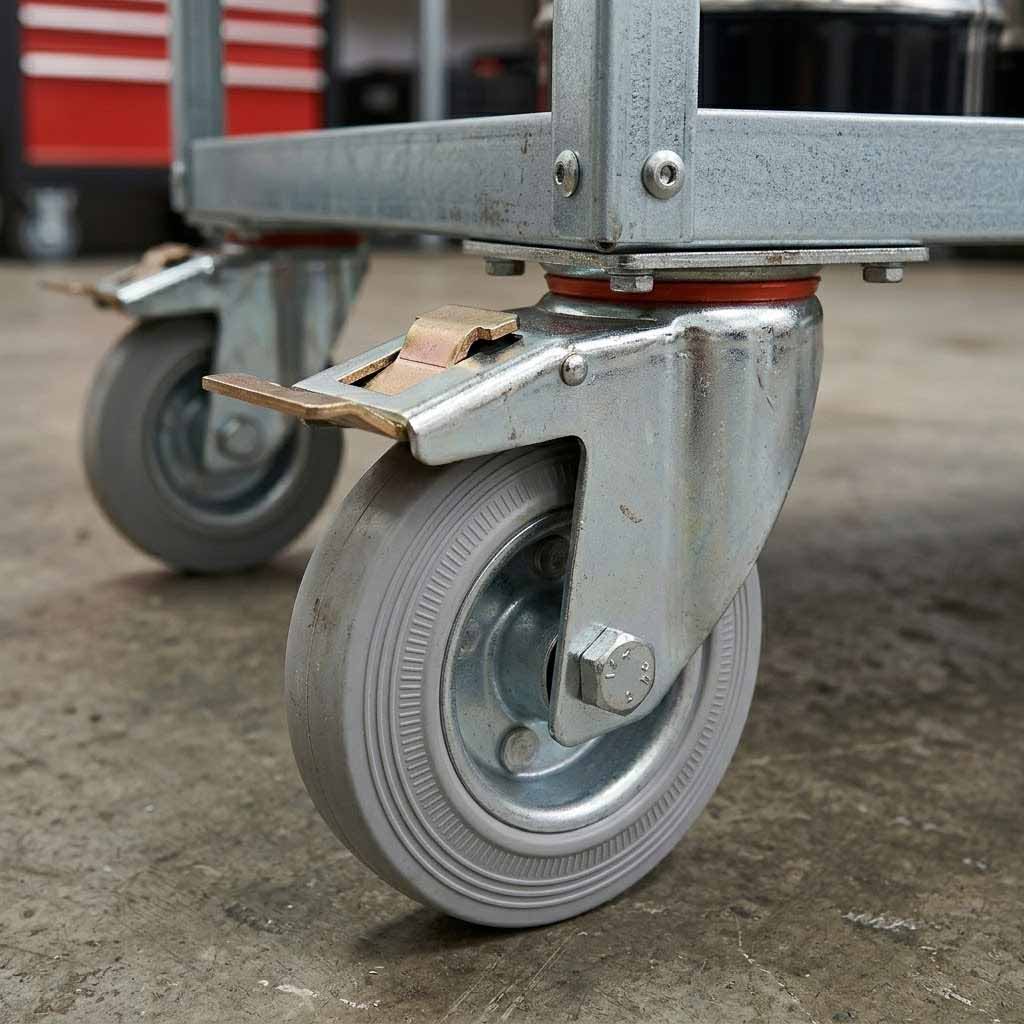

100mm Swivel Castor with Directional Brake

This 100mm swivel castor combines smooth, multi-directional manoeuvrability with the precision of a directional brake system. Designed for trolleys, mobile equipment, and industrial applications, it features a grey rubber wheel mounted on a pressed steel core for durability and floor protection. The directional brake locks the swivel head to maintain straight-line travel when required, making it ideal for environments where controlled movement and easy positioning are essential.

Technical Specifications

Wheel Specifications

Wheel Diameter 100mm
Wheel Width 32mm
Wheel Material Grey rubber tyre on pressed steel centre
Wheel Bore Diameter 12mm
Wheel Hub Length 37mm

Top Plate Specifications

Plate Type 4-hole top plate
Plate Dimensions 100mm × 85mm
Plate Thickness 3mm
Hole Diameter 11mm
Hole Spacing (Length) 80mm
Hole Spacing (Width) 60mm

Castor Dimensions & Performance

Overall Height 130mm
Swivel Radius 78mm
Load Capacity 75kg
Castor Type Swivel with directional brake
Finish Zinc plated pressed steel

Brake & Bearing Details

Brake Type Directional brake (locks swivel head)
Bearing Type Plain bearing
Swivel Bearing Ball race

Key Features & Benefits

  • ? Directional brake locks swivel head for controlled straight-line movement
  • ? Non-marking grey rubber tyre protects floors and reduces noise
  • ? Pressed steel wheel centre provides strength and durability
  • ? Zinc plated finish offers corrosion resistance
  • ? Ball race swivel bearing ensures smooth rotation and easy manoeuvrability
  • ? 4-hole top plate mounting for secure, stable installation
  • ? 75kg load capacity suitable for medium-duty applications

Typical Applications

This swivel castor with directional brake is commonly used across a wide range of mobile equipment and industrial applications, including:

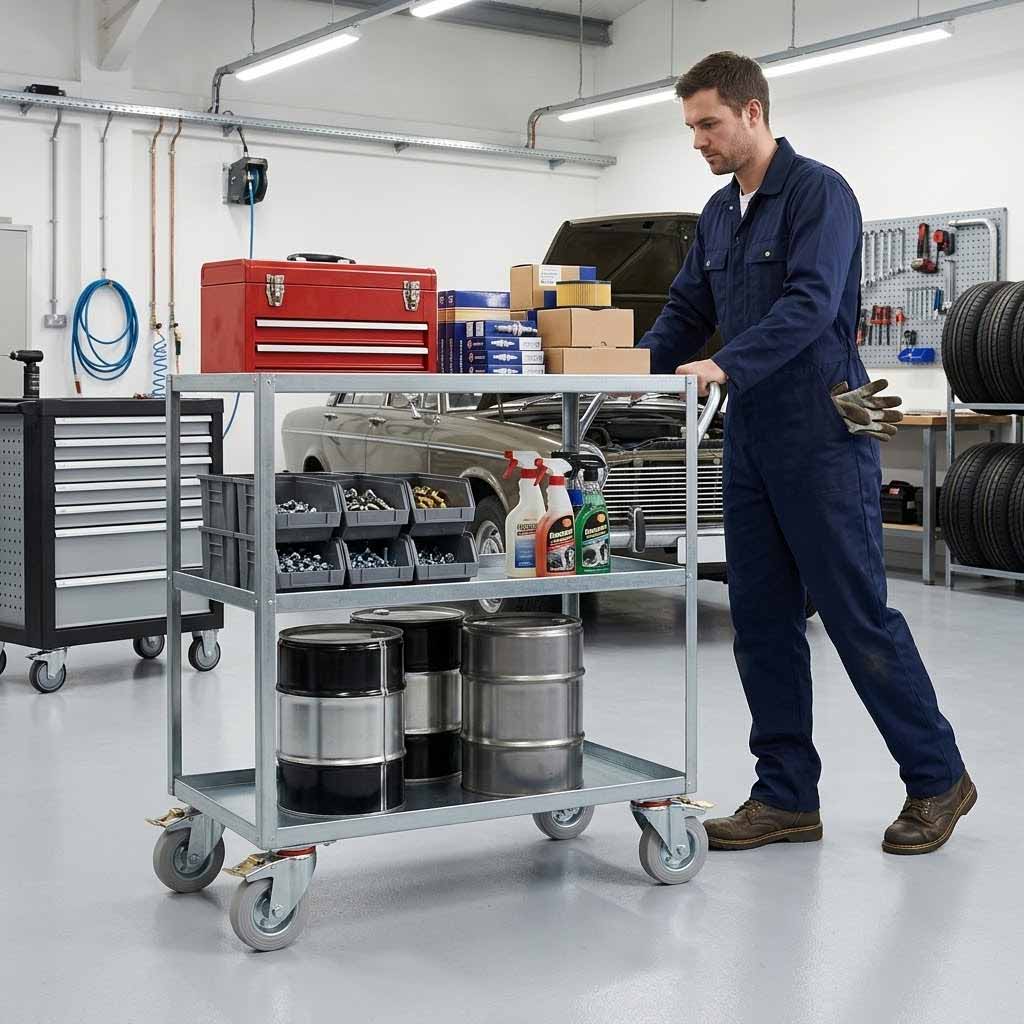

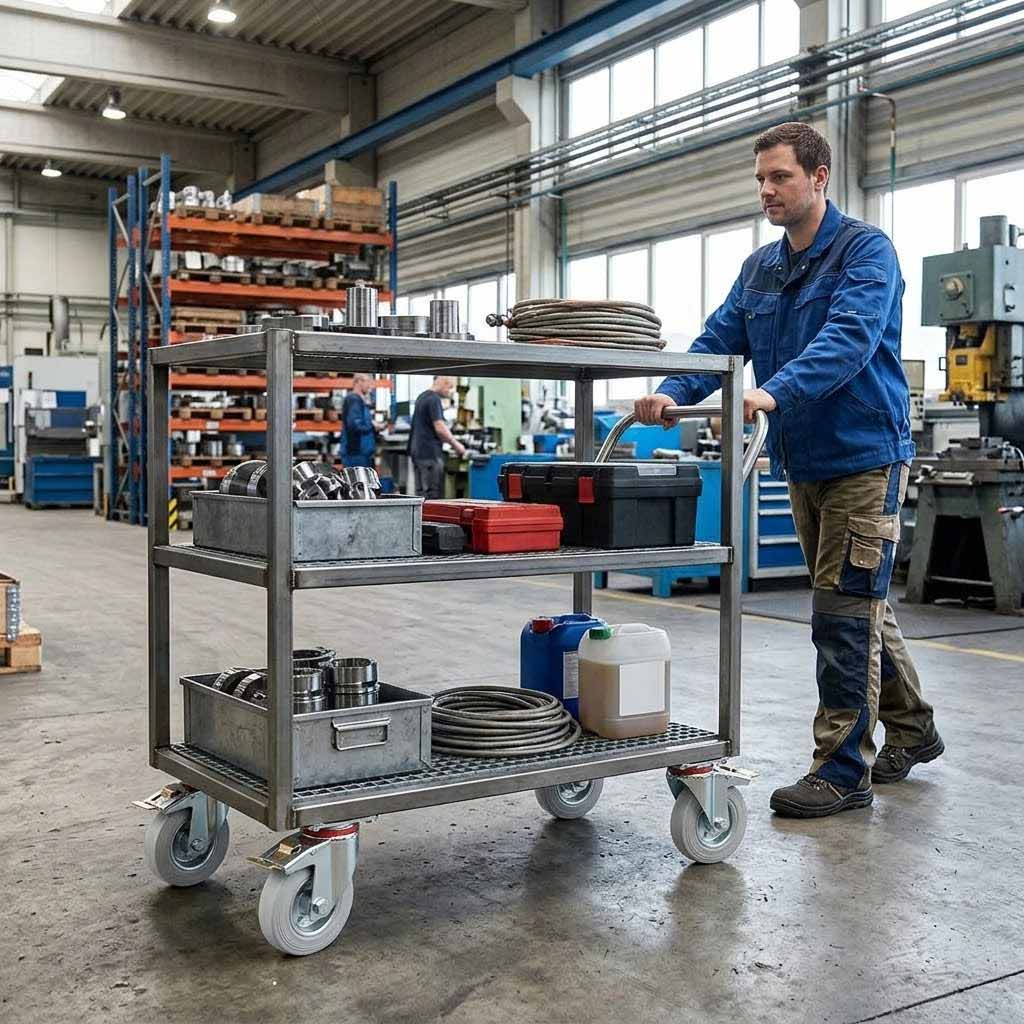

  • * Service trolleys and mobile workstations
  • * Display units and retail fixtures
  • * Medical and healthcare equipment
  • * Warehouse and logistics carts
  • * Catering and hospitality equipment
  • * Industrial containers and bins
  • * Workshop and garage equipment

Frequently Asked Questions

What is a directional brake and how does it work?

A directional brake locks the swivel head of the castor, preventing it from rotating. This allows the wheel to roll only in a straight line, making it easier to move equipment in a controlled direction without the castor swivelling. It is particularly useful when you need to guide trolleys or carts along narrow aisles or through doorways.

Will this castor damage or mark my floors?

No, the grey rubber tyre is designed to be non-marking and floor-safe. It provides excellent protection for hard floors including tile, vinyl, laminate, and polished concrete. The rubber material also helps reduce noise and vibration during movement, making it ideal for indoor environments.

How do I install this castor onto my equipment?

The castor features a 4-hole top plate measuring 100mm × 85mm with 11mm diameter holes. Simply align the plate with your equipment's mounting surface, ensuring the hole spacing matches (80mm × 60mm centres), and secure using four bolts or screws. Make sure the mounting surface is flat and strong enough to support the load.

What is the maximum weight this castor can support?

This castor has a load capacity of 75kg per wheel. When calculating the total weight your equipment can carry, multiply the load capacity by the number of castors you are using. For example, four of these castors can support up to 300kg in total. Always ensure the load is evenly distributed across all castors for optimal performance and safety.

Shipping & Returns

Express UK Shipping — Orders placed before 2pm are dispatched same day.

Delivery: 1-3 working days across the UK.

Returns: 30-day hassle-free returns policy.

Need Help?

Our castor experts are here to help. Call 01282 270214 or email sales@castorhub.co.uk.

Mon-Fri 08:30-17:00 GMT
