100mm Pressed Steel Swivel Castor with Blue Rubber on Polypropylene Wheel - 120kg Max Load

100mm Pressed Steel Swivel Castor with Blue Rubber on Polypropylene Wheel - 120kg Max Load

£20.75 GBP
£24.25 GBP £20.75 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

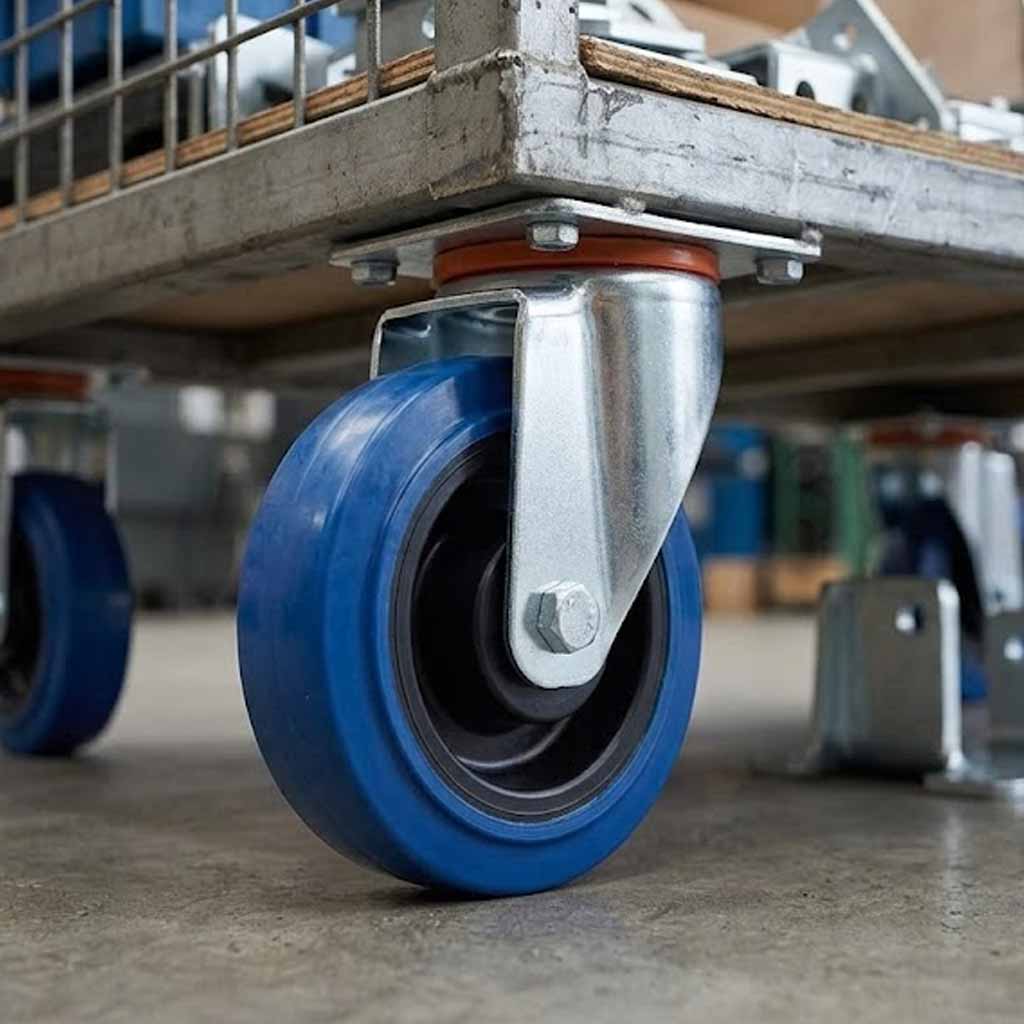

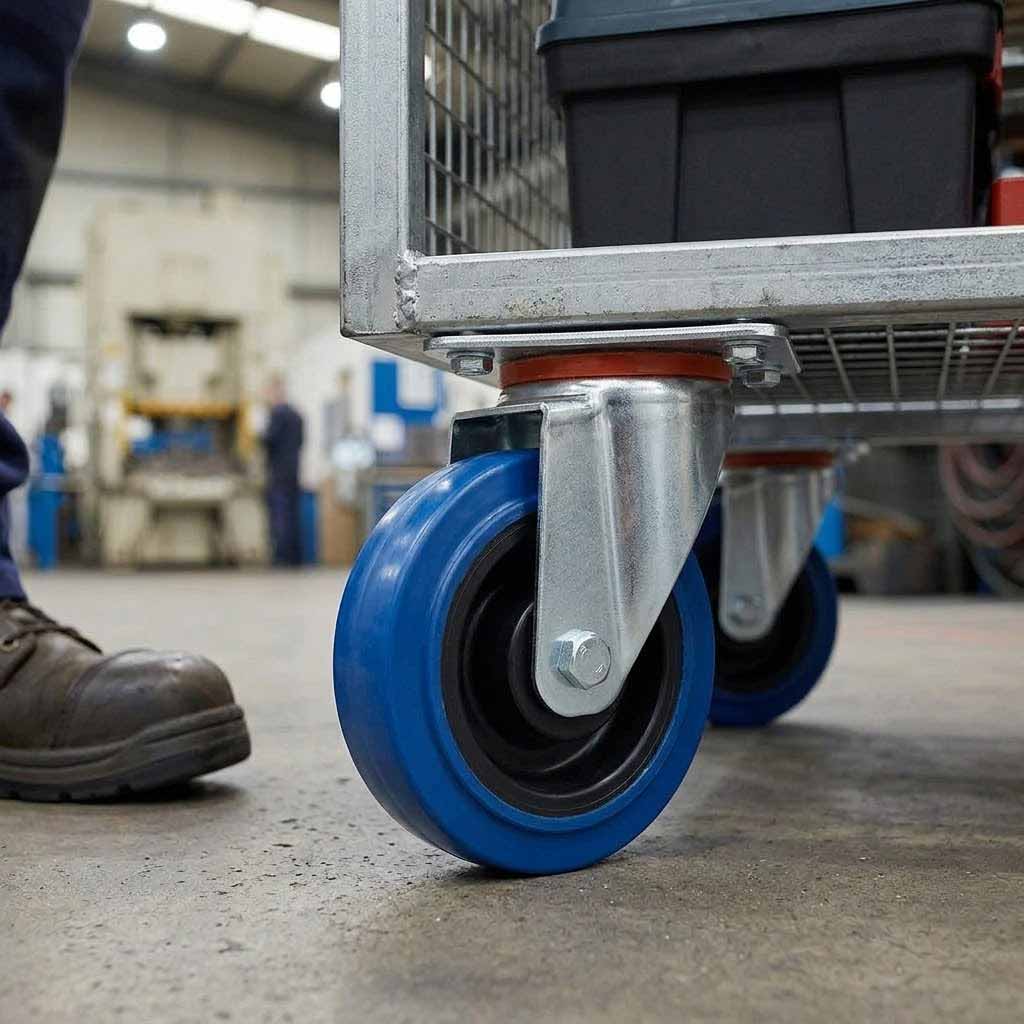

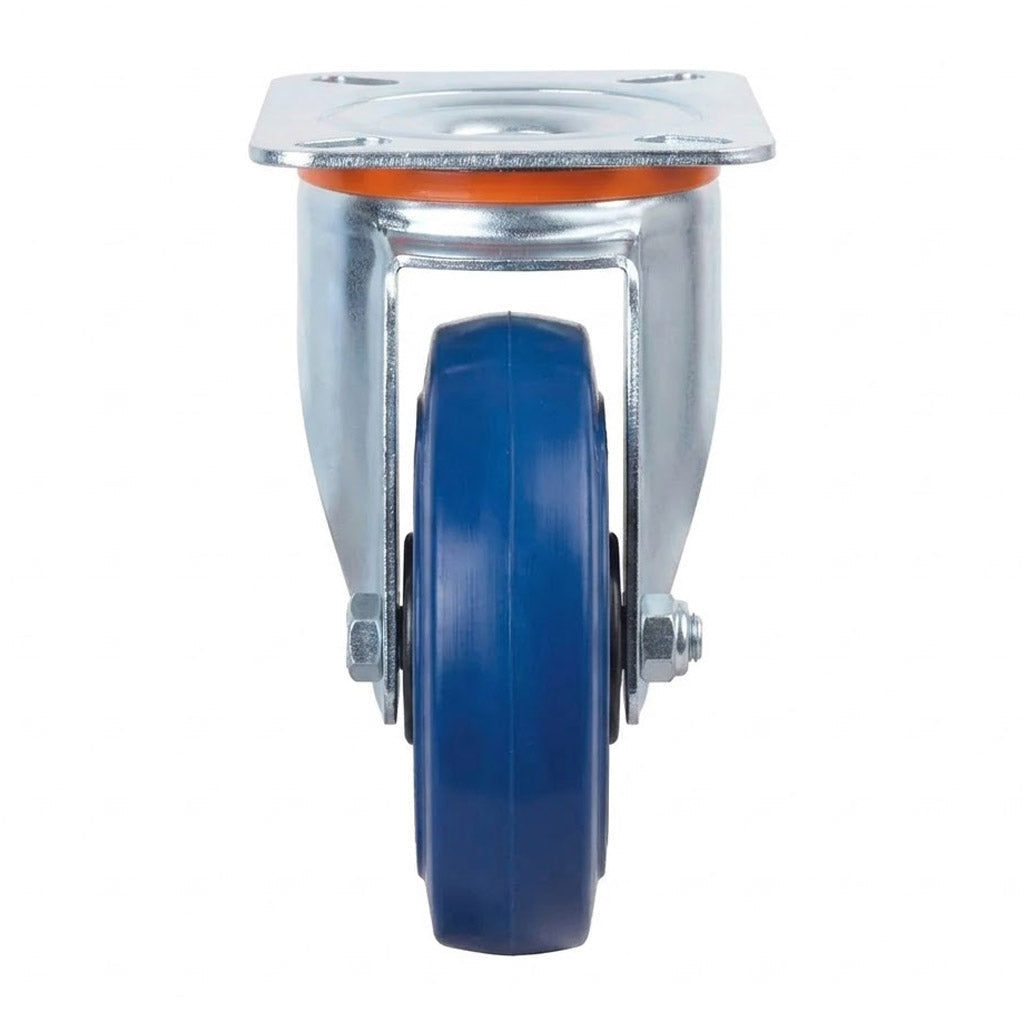

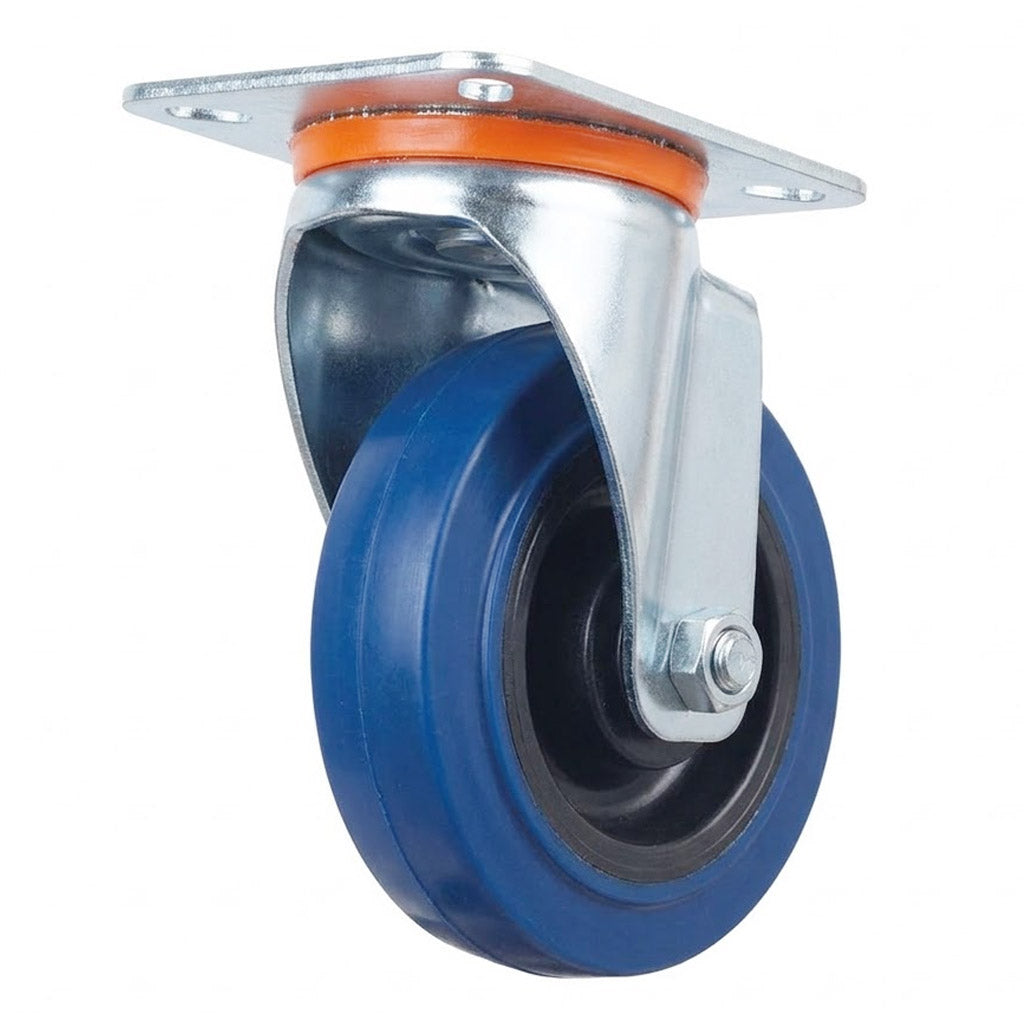

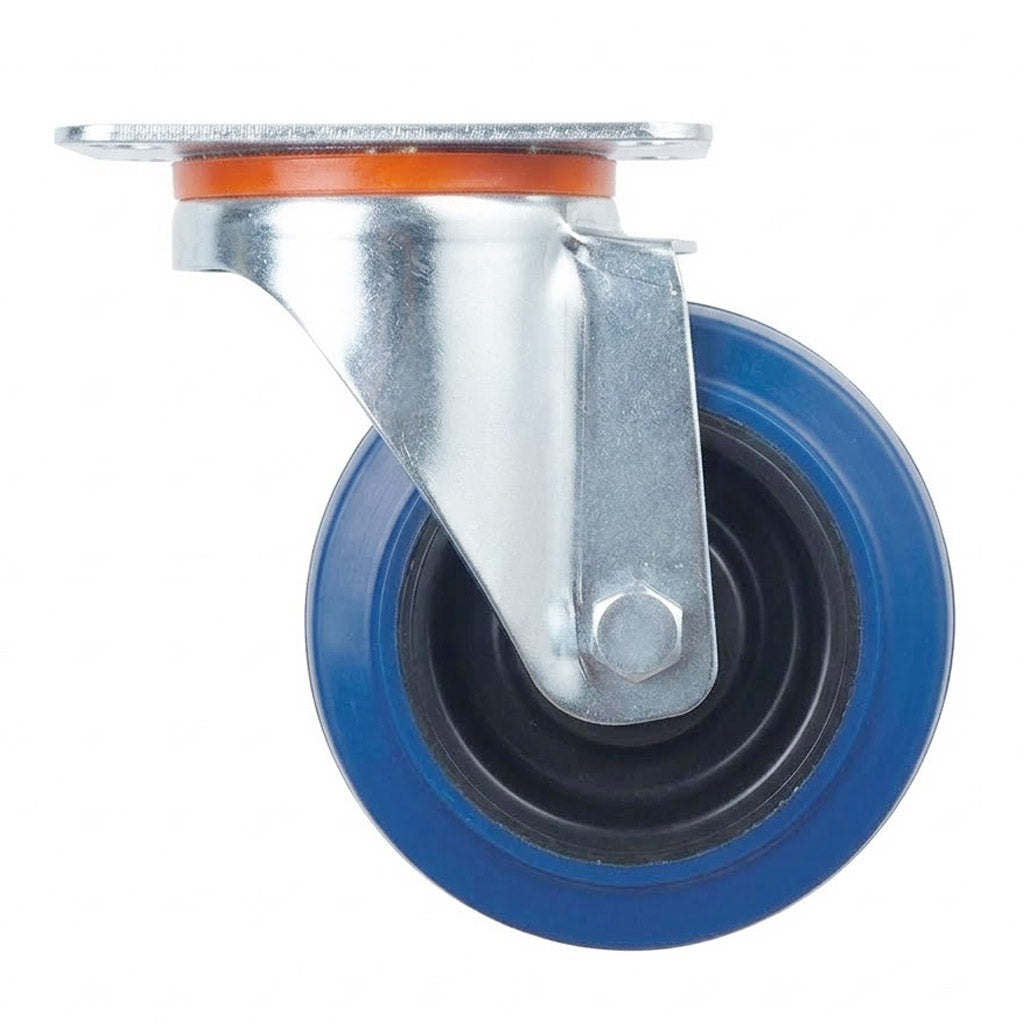

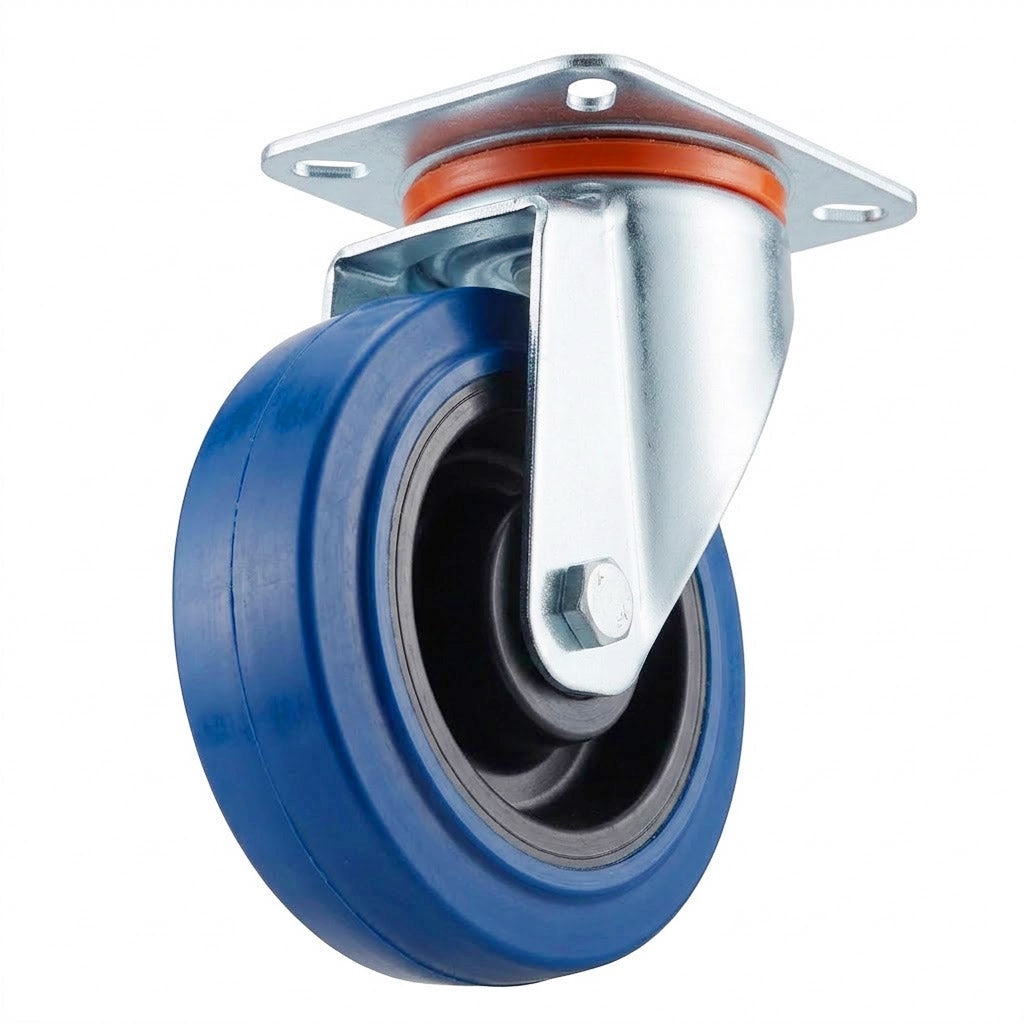

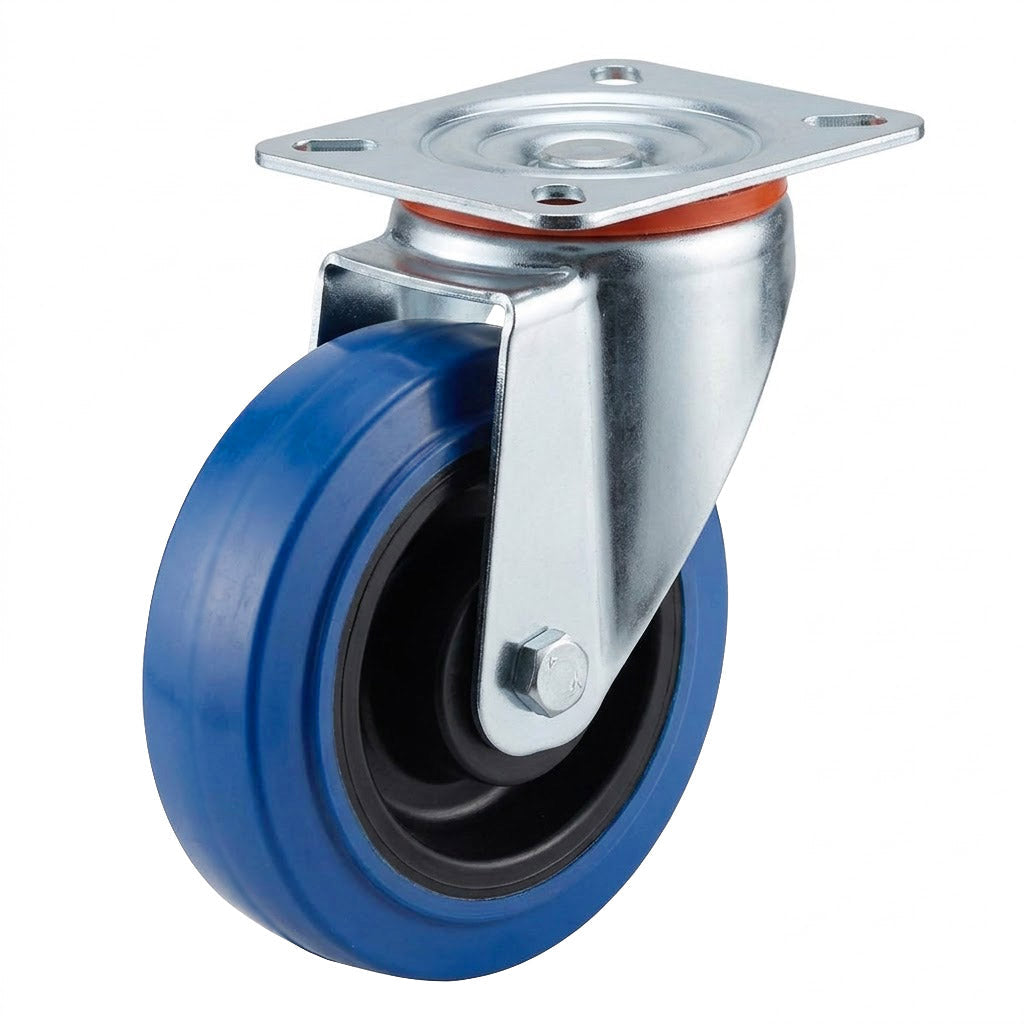

100mm Pressed Steel Swivel Castor ? Blue Rubber on Polypropylene Wheel

A robust, top-plate swivel castor engineered for demanding commercial and industrial environments. Fitted with a 100mm blue rubber tread bonded to a polypropylene core, this castor delivers smooth, quiet, and controlled movement across hard floors, concrete, and warehouse surfaces. With a 120kg individual load rating and a zinc-plated pressed steel housing, it is the dependable choice for trolleys, carts, shelving units, workbenches, and mobile equipment where reliability and floor protection are equally important.

Key Performance Features
  • Load Capacity 120kg per castor ? up to 360kg across a set of four
  • Swivel Action Full 360° swivel for precise directional control in confined spaces
  • Wheel Construction Blue rubber tread bonded to a black polypropylene core for grip, resilience, and floor protection
  • Bearing Type Ball journal bearing for smooth, low-effort rotation and extended service life
  • Top Plate Mounting Zinc-plated pressed steel plate with a standard 4-bolt-hole pattern for straightforward installation
  • Tread Hardness 75 Shore A ? firm enough for load stability, compliant enough to absorb surface irregularities
  • Surface Compatibility Suitable for concrete, vinyl, timber, ceramic tile, and sealed warehouse floors
Typical Applications

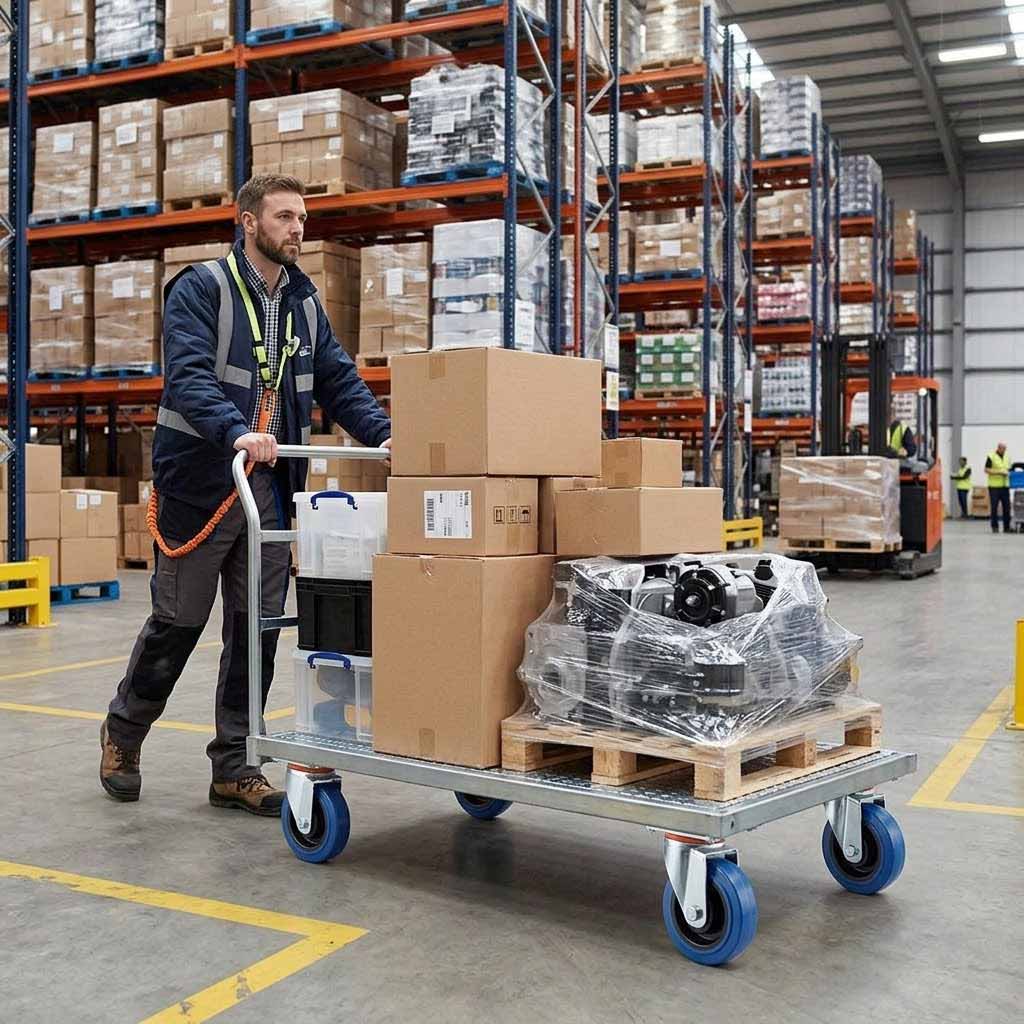

Warehousing & Logistics

Ideal for picking trolleys, pallet dollies, and mobile racking where consistent load performance is essential.

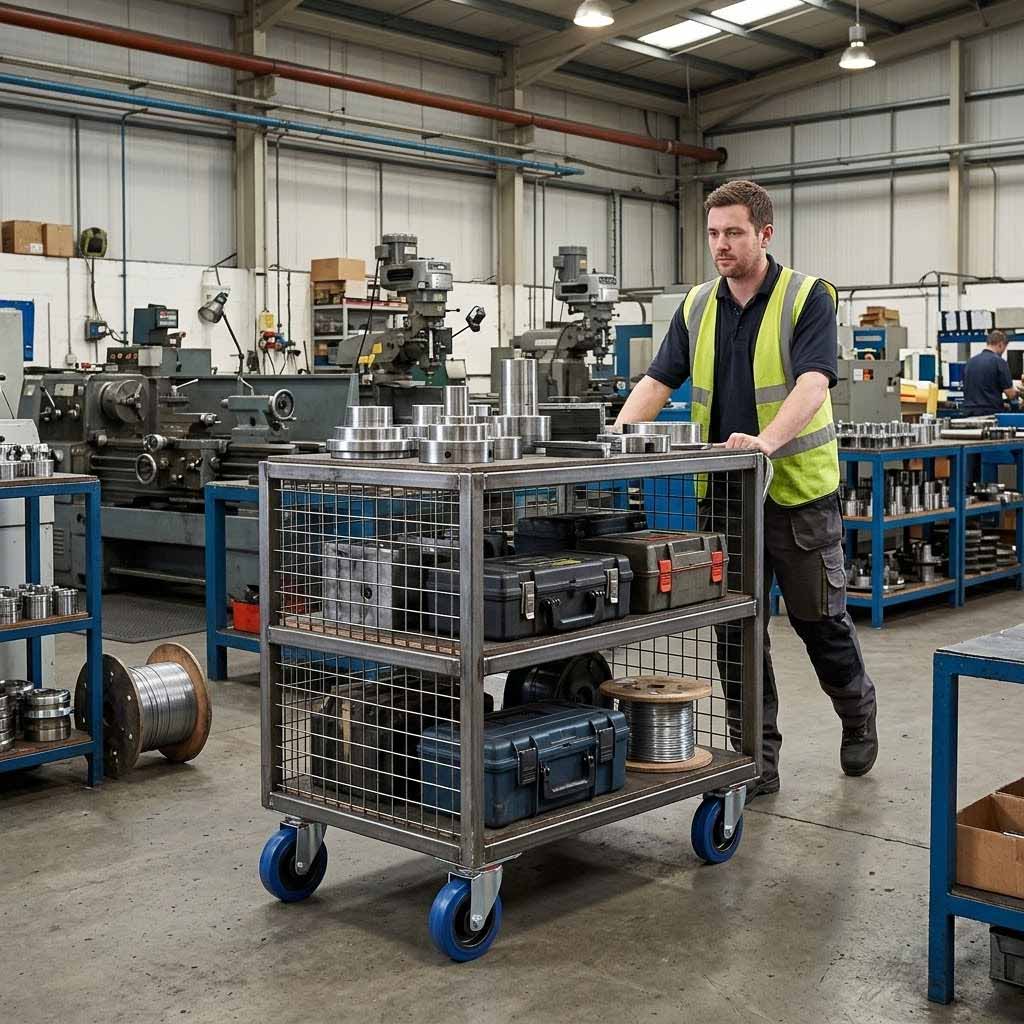

Manufacturing & Production

Supports the movement of assembly jigs, component carts, and equipment across factory floors.

Retail & Display

Suited to display units, garment rails, and point-of-sale fixtures requiring quiet, smooth mobility.

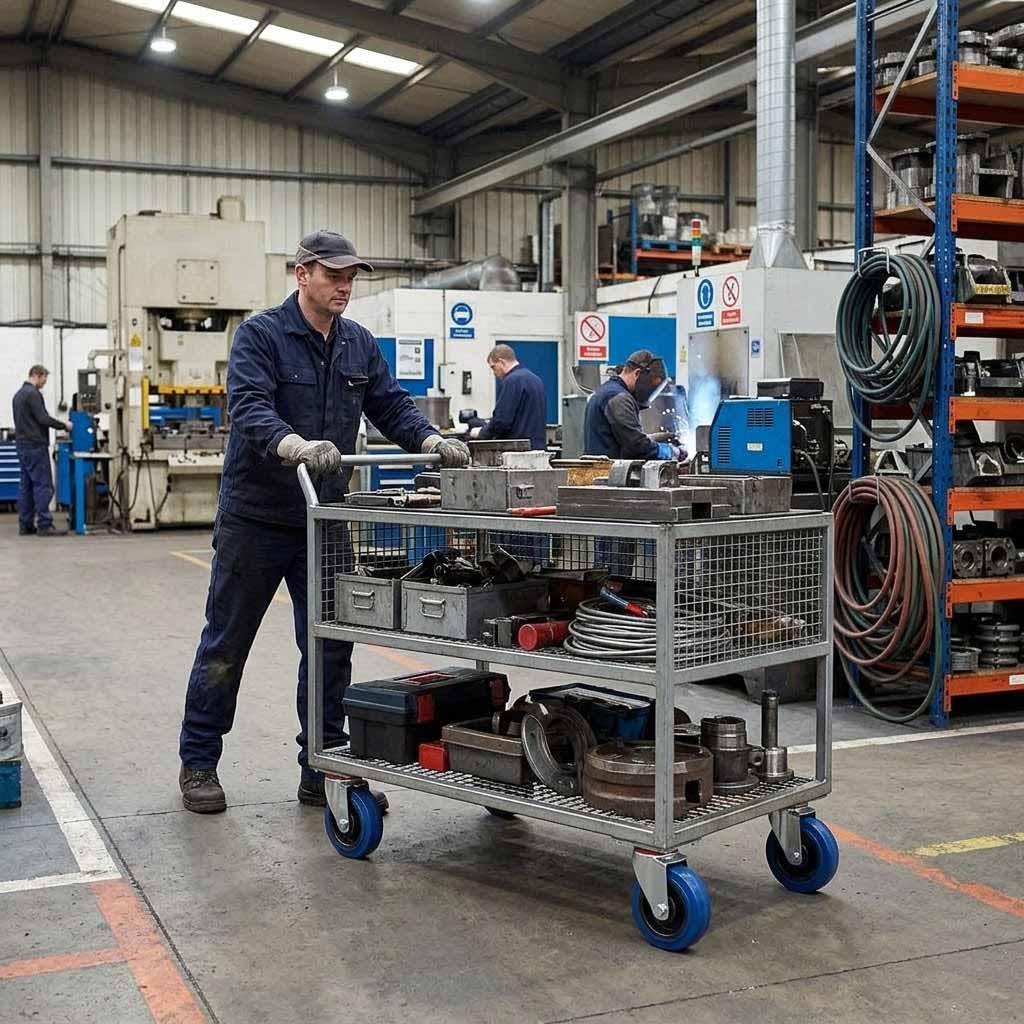

Workshop & Maintenance

Keeps tool cabinets, service carts, and mobile workstations manoeuvrable across workshop surfaces.

Technical Specifications
Specification Detail
Castor Type Swivel ? Top Plate Mounting
Wheel Diameter 100 mm
Wheel Colour Blue
Wheel Material Blue Rubber tread on Black Polypropylene core
Tread Width 32 mm
Tread Hardness 75 Shore A
Total Castor Height 127 mm
Bearing Type Ball Journal
Load Capacity (Single Castor) 120 kg
Max Load Capacity (Set of 4) 360 kg
Plate Material Pressed Steel ? Zinc Plated
Plate Length 100 mm
Plate Width 85 mm
Plate Hole Centres (Width) 60 mm / 80 mm
Plate Hole Diameter 10 mm
Bolt Holes 4-bolt-hole pattern
Frequently Asked Questions

What is the maximum load this castor can support?

Each castor is rated to a maximum of 120kg. When fitted as a set of four, the combined maximum load capacity is 360kg. For safety, it is recommended to calculate the total load including the weight of the equipment itself and distribute it evenly across all castors.

Is this castor suitable for use on hard floors such as concrete or tile?

Yes. The blue rubber tread at 75 Shore A hardness provides sufficient compliance to protect hard floor surfaces from marking or damage while maintaining stable load-bearing performance. It is well suited to concrete, sealed timber, vinyl, and ceramic tile surfaces commonly found in warehouses, workshops, and retail environments.

How is this castor mounted, and what fixings are required?

The castor uses a standard 4-bolt-hole top plate measuring 100mm x 85mm. The plate hole centres are 60mm and 80mm (width), with a hole diameter of 10mm. Standard M10 bolts, washers, and nuts are required for installation and are not included. The zinc-plated plate is compatible with most commercial trolleys, carts, and shelving frames.

What type of bearing does this castor use, and how does it affect performance?

This castor is fitted with a ball journal bearing, which reduces rolling resistance and allows the wheel to rotate smoothly with minimal effort. Ball journal bearings are well suited to applications involving regular movement of moderate to heavy loads, offering a longer service life and more consistent performance compared to plain bore alternatives.

* All dimensions are nominal and measured in millimetres unless otherwise stated. Load ratings apply to static and dynamic conditions on flat, level surfaces. For applications involving ramps, uneven terrain, or continuous heavy-duty cycling, consult a qualified engineer before specifying.
