100mm Pressed Steel Swivel Castor Wheel - Grey Rubber - 4-Hole Top Plate - 75kg Load Capacity

100mm Pressed Steel Swivel Castor Wheel - Grey Rubber - 4-Hole Top Plate - 75kg Load Capacity

£18.25 GBP
£21.85 GBP £18.25 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

100mm Pressed Steel Swivel Castor Wheel ? Grey Rubber ? 4-Hole Top Plate ? 75kg Load Capacity

Product Overview

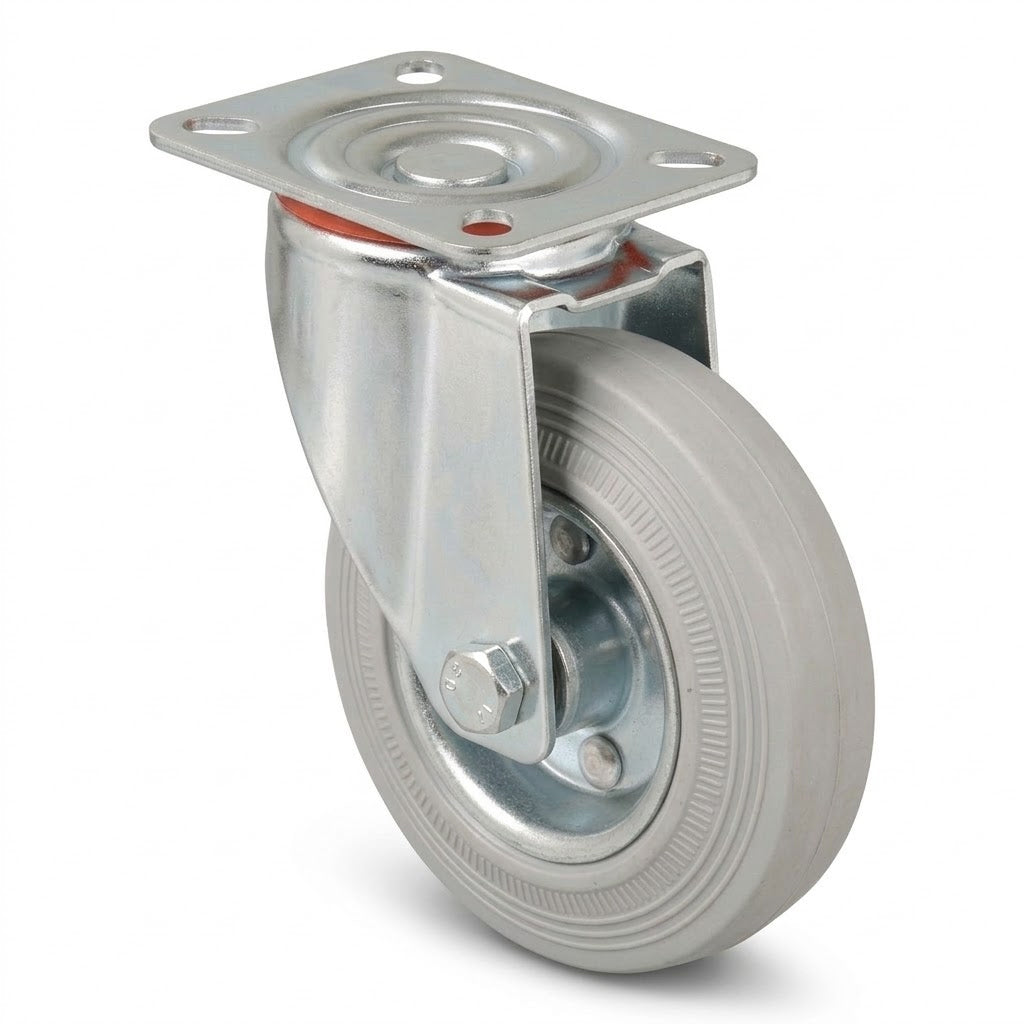

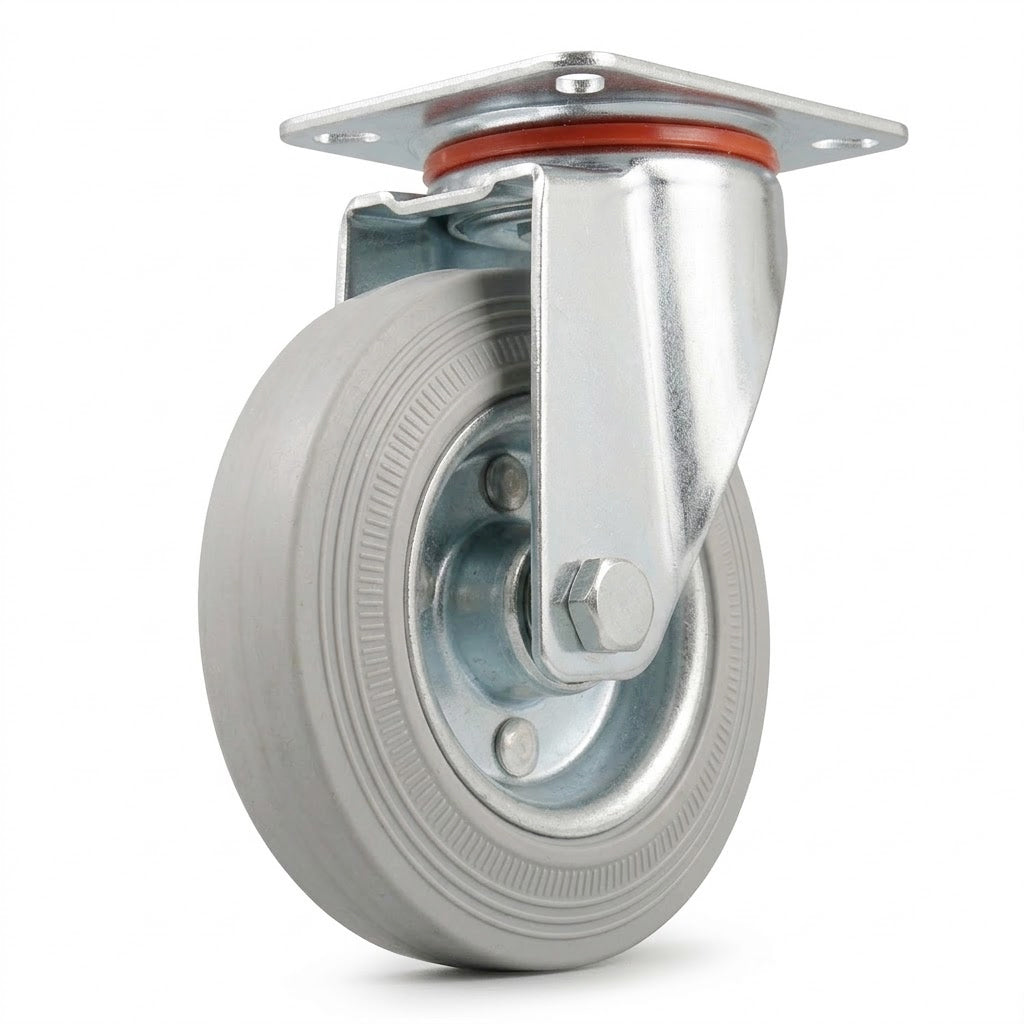

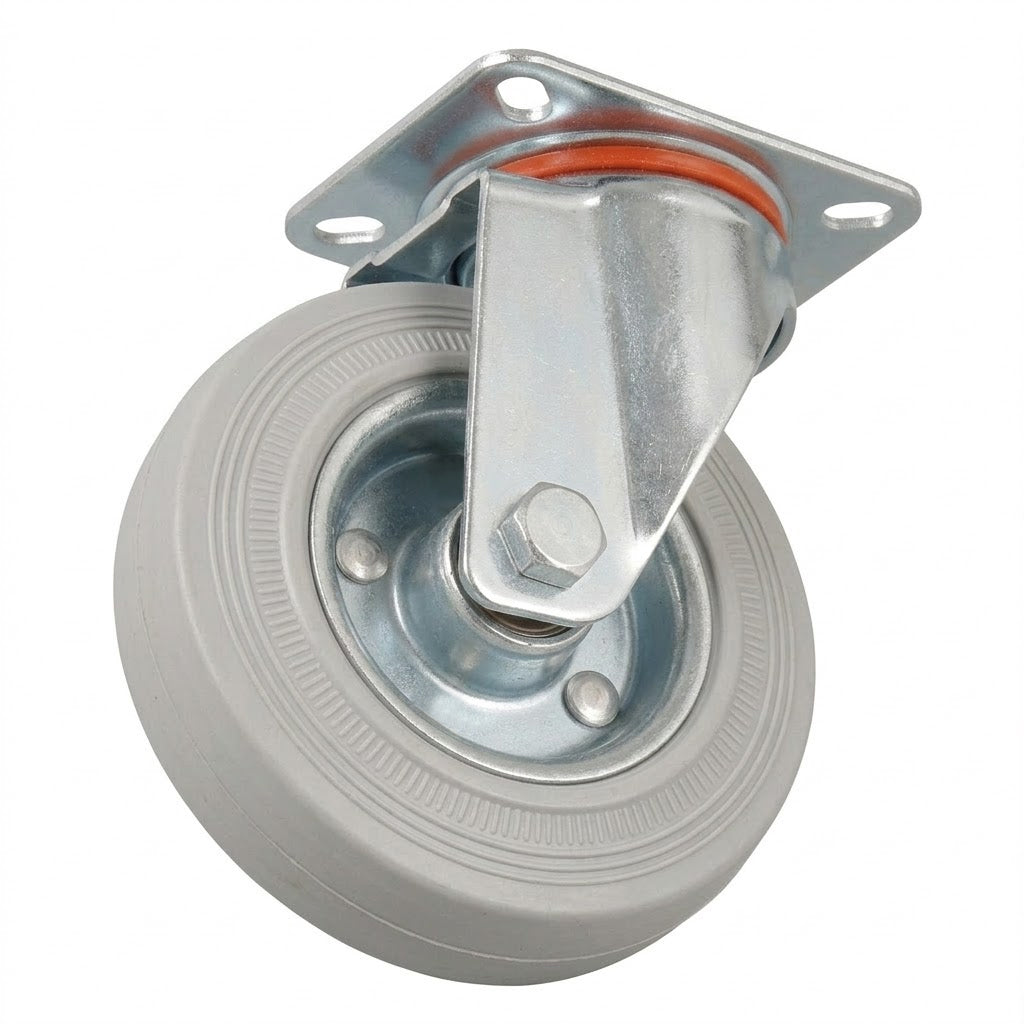

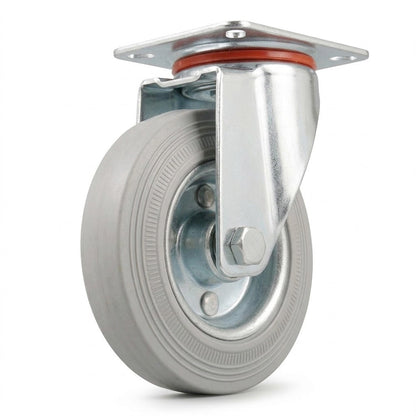

This 100mm pressed steel swivel castor features a grey rubber wheel bonded to a pressed steel centre, delivering smooth manoeuvrability and reliable rolling performance for light to medium-duty applications. Designed with a ball journal bearing and 4-hole top plate mounting, this castor provides easy directional changes and secure installation for trolleys, mobile workstations, handling equipment, and industrial carts.

With a 75kg load capacity per castor and non-marking grey rubber tread, this swivel castor is ideal for indoor environments requiring quiet operation, controlled rolling, and frequent repositioning. The pressed steel construction ensures durability and impact resistance across workshop, retail, and commercial settings.

Key Features & Benefits

  • ?Swivel Design: 360-degree rotation for superior manoeuvrability and easy directional changes in confined spaces
  • ?100mm Wheel Diameter: Improved rolling efficiency, obstacle clearance, and reduced rolling resistance
  • ?75kg Load Capacity: Suitable for light to medium-duty trolleys, carts, and mobile equipment (225kg total for 4 castors)
  • ?Grey Rubber Wheel: Non-marking tread with 85 Shore A hardness for quiet, controlled rolling and effective shock absorption
  • ?Pressed Steel Construction: Durable, impact-resistant wheel centre with rubber bonded to pressed steel for long service life
  • ?Ball Journal Bearing: Smooth swivel rotation under load with reduced friction and improved manoeuvrability
  • ?4-Hole Top Plate Fixing: Secure, reliable mounting with 100mm × 85mm plate and 10mm diameter fixing holes

Technical Specifications

Castor Type Swivel with Top Plate Fixing
Bearing Type Ball Journal
Load Capacity (Per Castor) 75 kg
Max Load Capacity (4 Castors) 225 kg
Wheel Diameter 100 mm
Wheel Material Grey Rubber on Pressed Steel
Wheel Colour Grey
Tread Width 30 mm
Tread Hardness 85 Shore A
Total Castor Height 127 mm
Top Plate Dimensions 100 mm (Length) × 85 mm (Width)
Plate Hole Centres 60 mm × 80 mm
Plate Hole Diameter 10 mm
Mounting Type 4-Hole Top Plate (Bolt Fixing)

Typical Applications

This 100mm swivel castor with grey rubber wheel is commonly used across a wide range of indoor applications requiring smooth manoeuvrability and reliable rolling performance:

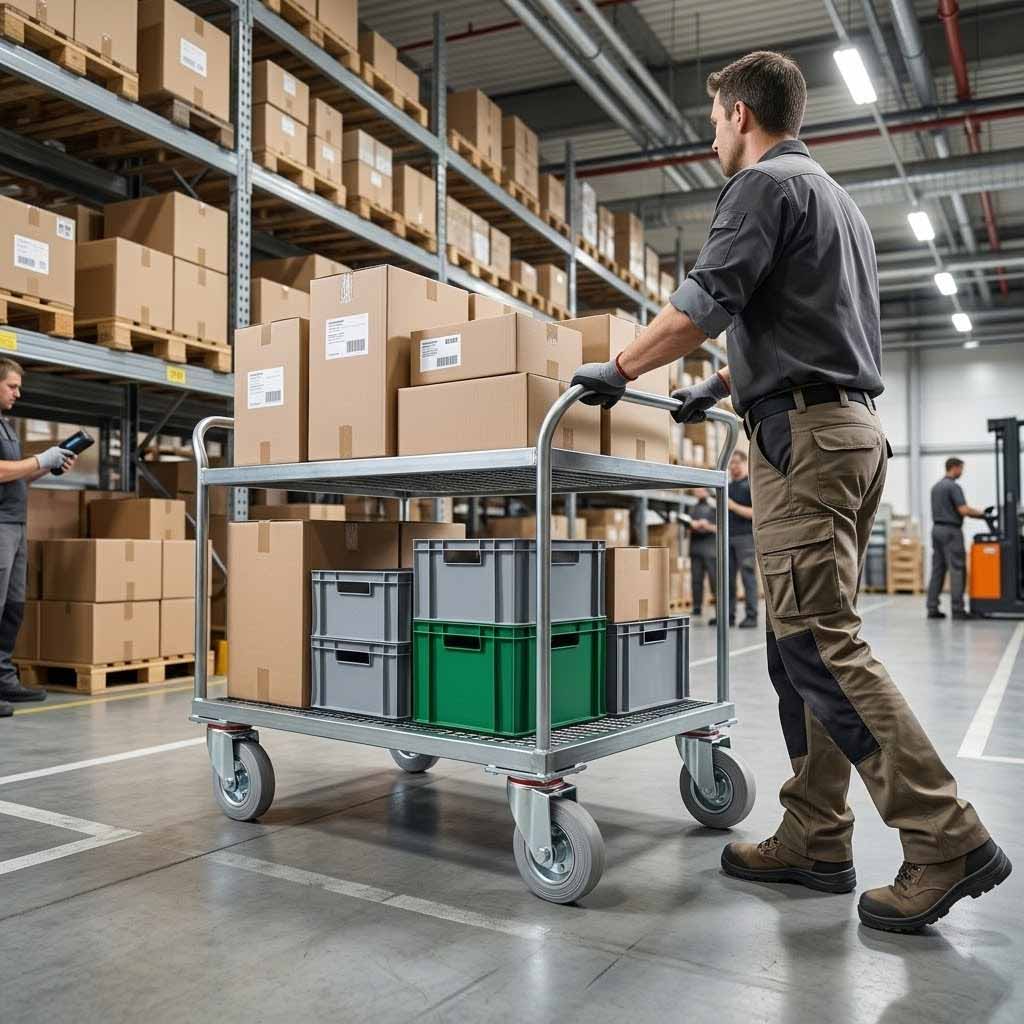

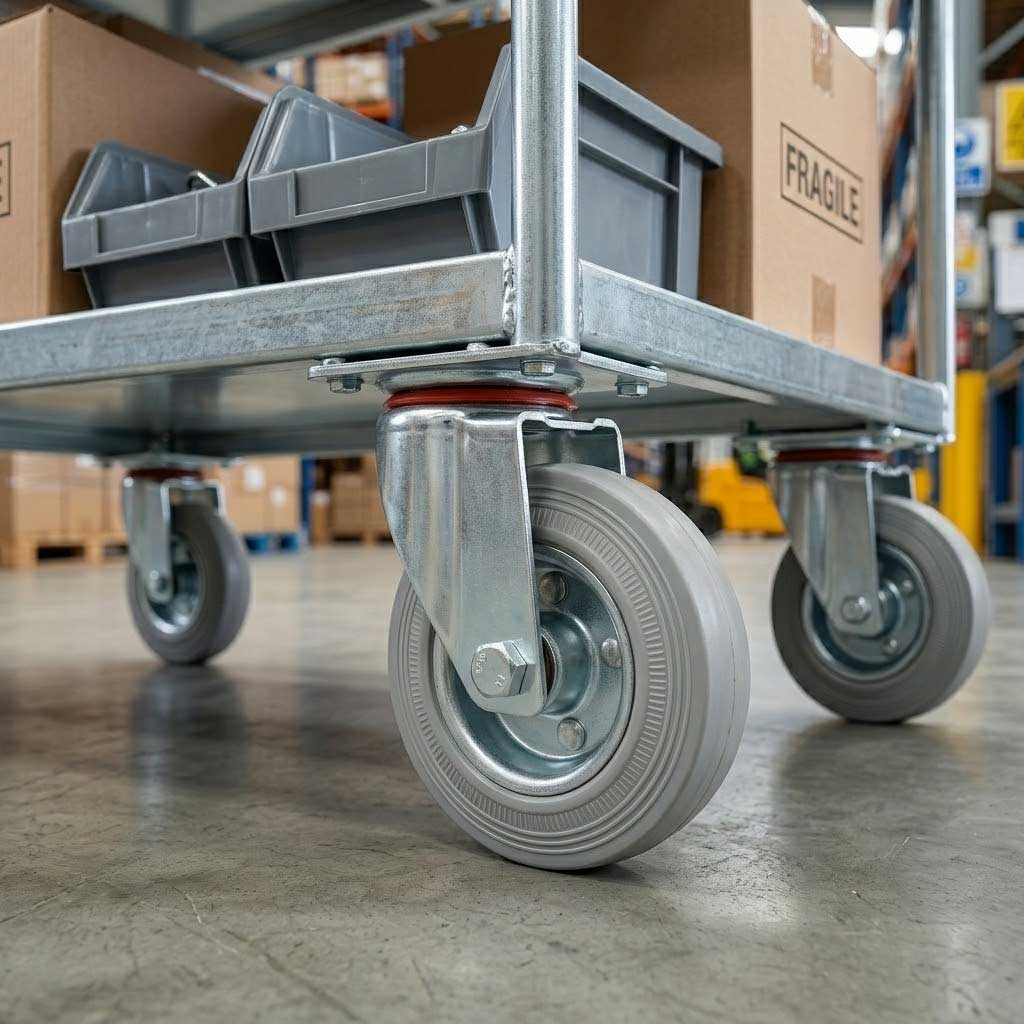

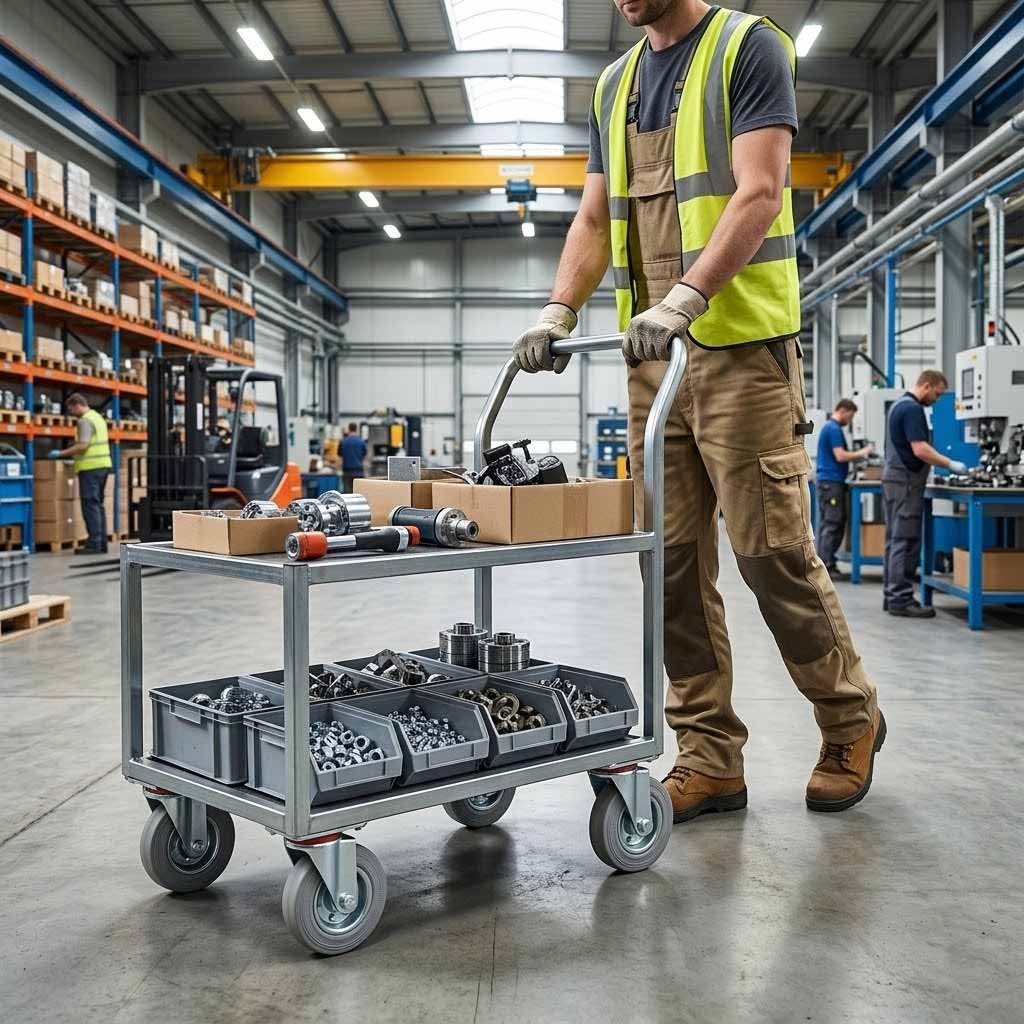

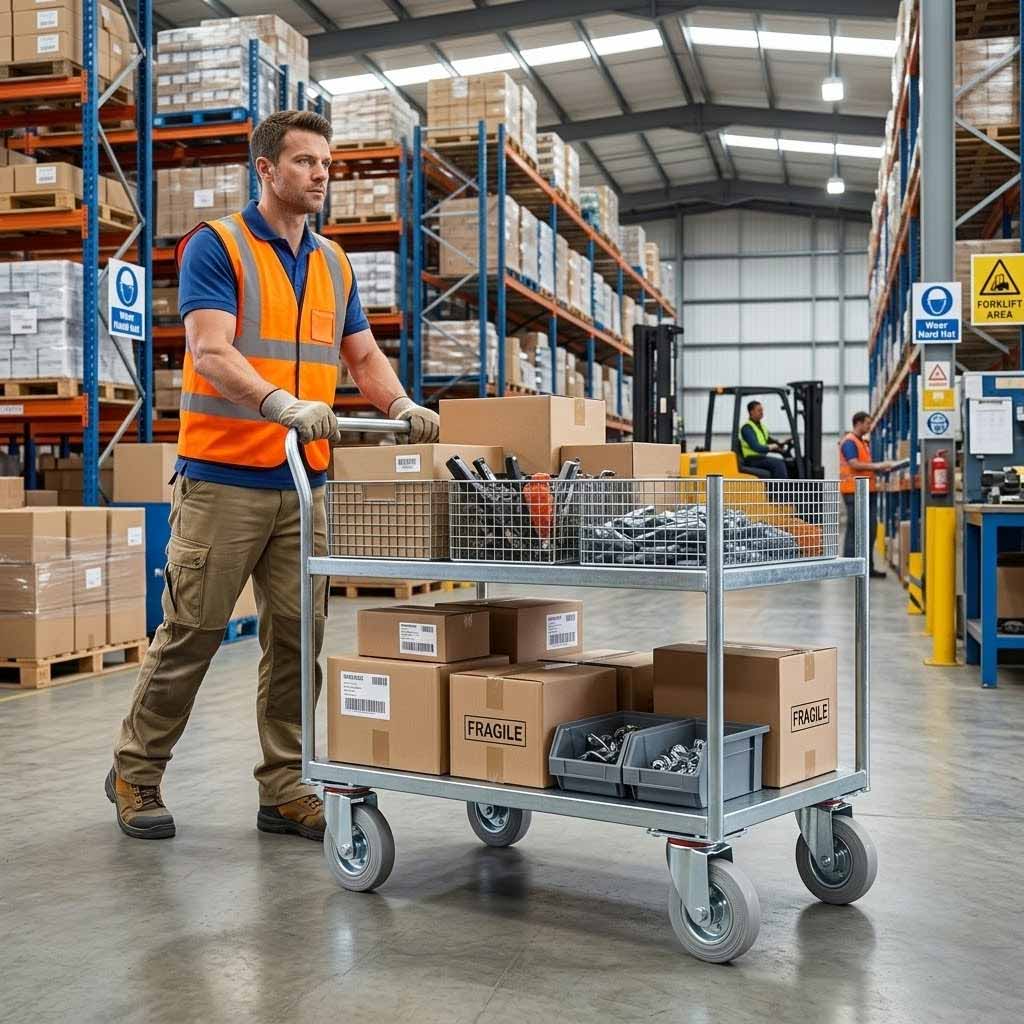

  • * Trolleys and carts requiring frequent directional changes

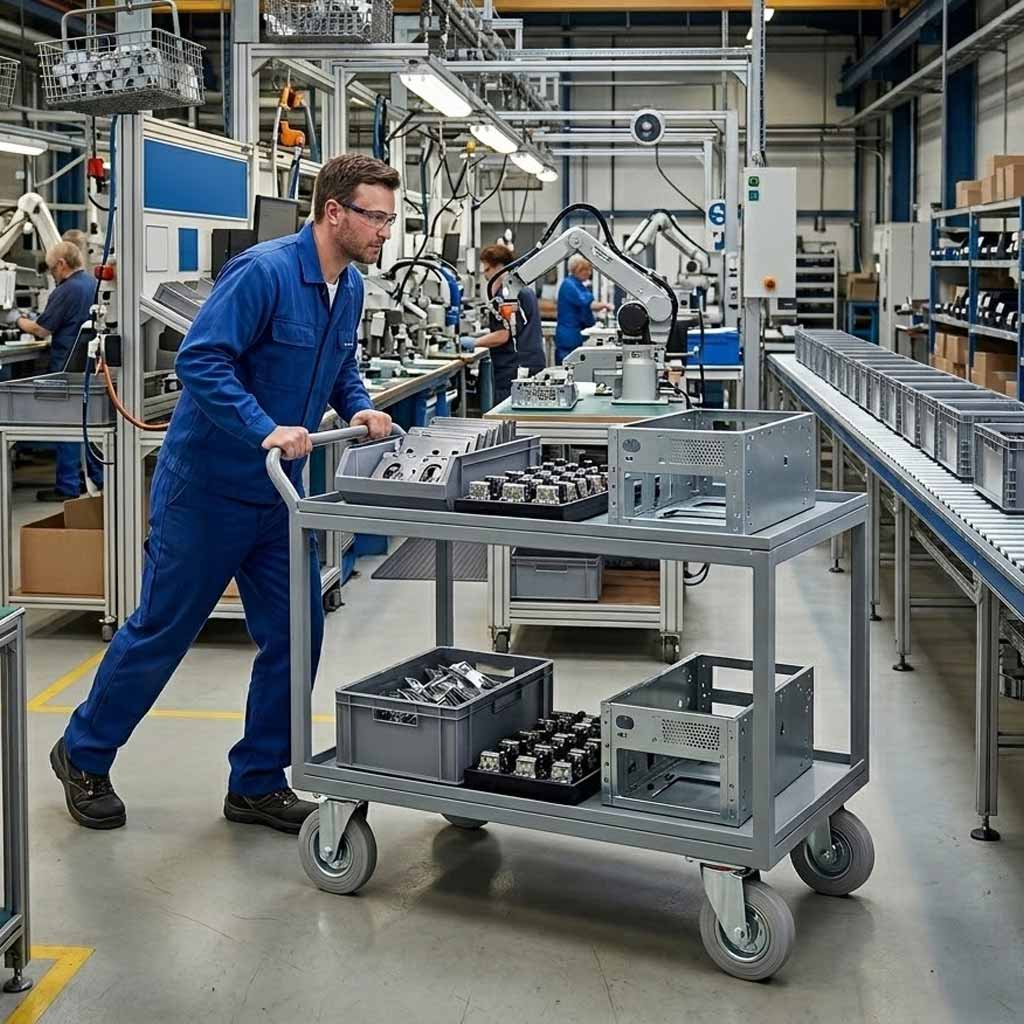

  • * Mobile workstations and equipment stands

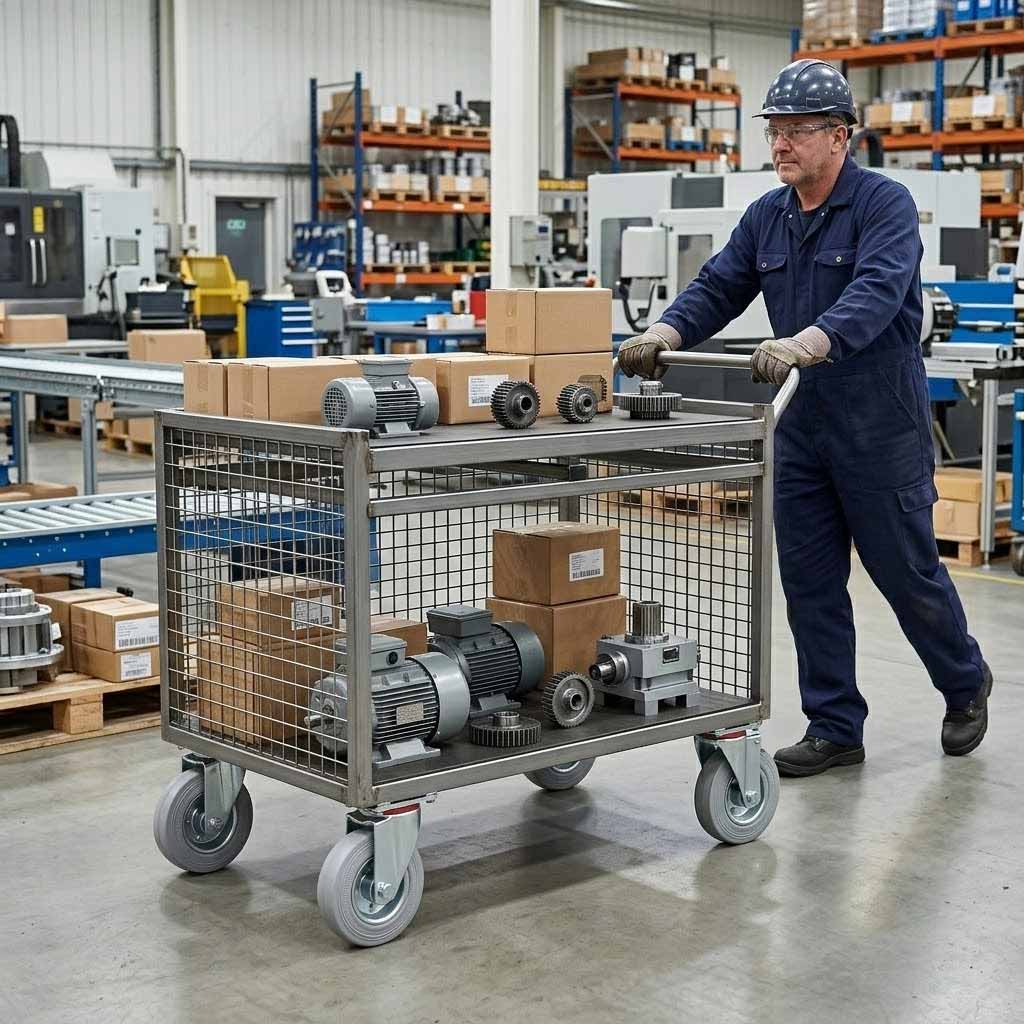

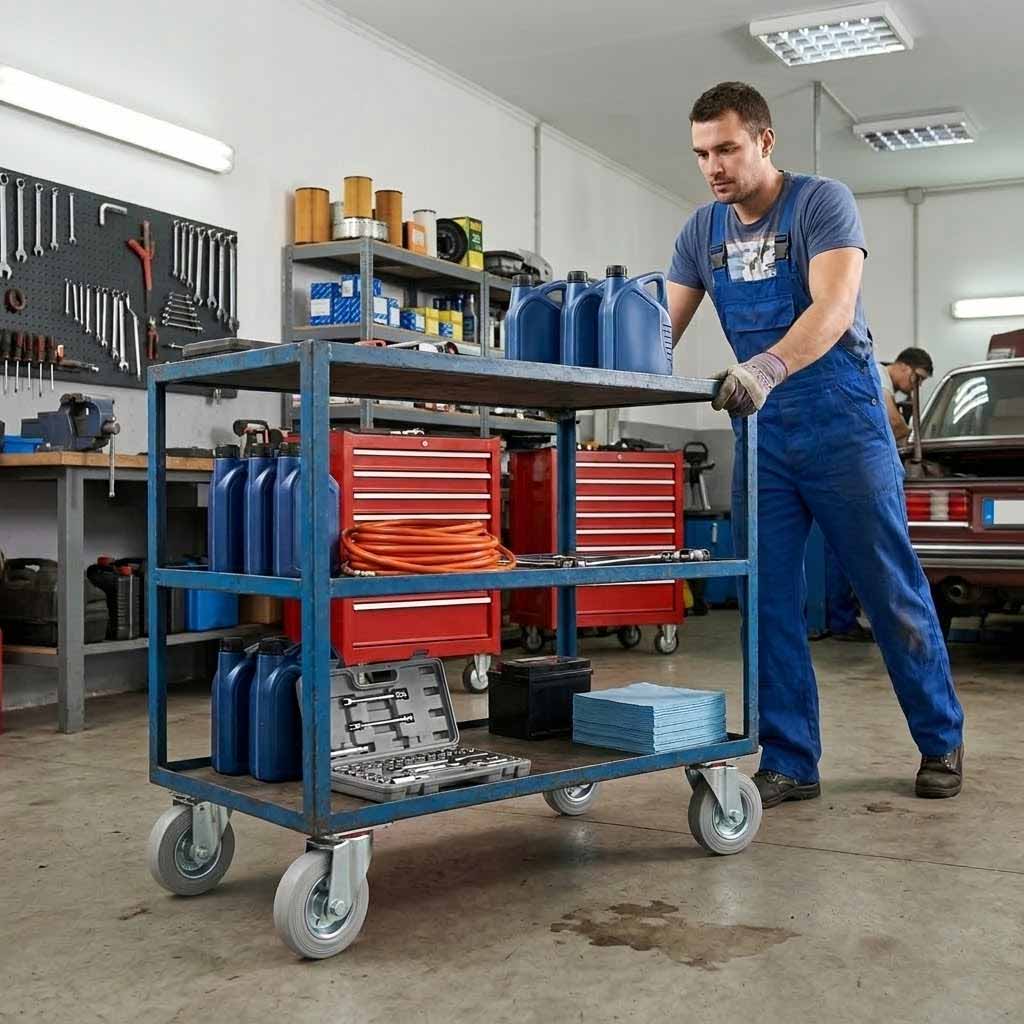

  • * Handling and transport equipment in workshops
  • * Industrial and commercial environments
  • * Retail display units and merchandising fixtures
  • * Light to medium-duty material handling applications

Frequently Asked Questions

What is the difference between a swivel castor and a fixed castor?

A swivel castor rotates 360 degrees, allowing easy directional changes and manoeuvrability, making it ideal for equipment that needs to be steered or repositioned frequently. A fixed castor only rolls in a straight line and provides stability. Most applications use a combination of both ? swivel castors at one end for steering and fixed castors at the other for directional control.

How do I calculate the total load capacity I need for my trolley or cart?

Calculate the total weight of your equipment plus the maximum load it will carry, then divide by the number of castors you plan to use. Add a safety margin of 25-30% to account for uneven weight distribution and dynamic loads. For this 75kg castor, four units provide a combined capacity of 225kg, but we recommend not exceeding 170-180kg total load for optimal performance and longevity.

Will grey rubber castors mark my floors?

Grey rubber wheels are designed to be non-marking on most indoor floor surfaces including tile, vinyl, sealed concrete, and polished floors. The 85 Shore A hardness provides a good balance between floor protection and load-bearing performance. However, floor marking can occasionally occur due to dirt accumulation on wheels, so regular cleaning of both castors and floors is recommended.

What fixing bolts do I need to install this castor?

This castor features a 4-hole top plate with 10mm diameter fixing holes. You will need four M8 or M10 bolts (depending on your application), along with washers and lock nuts. Bolt length depends on your mounting surface thickness ? typically 25-40mm bolts are suitable for most applications. Ensure bolts are tightened securely but avoid over-tightening which may distort the mounting plate.

Why Choose This Castor

This 100mm pressed steel swivel castor combines reliable construction, smooth manoeuvrability, and quiet operation for demanding indoor applications. The grey rubber wheel delivers non-marking performance with effective shock absorption, while the ball journal bearing ensures smooth rotation under load.

Suitable for light to medium-duty trolleys, mobile workstations, and handling equipment, this castor provides long service life, secure top plate mounting, and consistent rolling performance across commercial and industrial environments.
