100mm Pressed Steel Swivel Castor Wheel - Black Rubber & 4-Hole Plate - 75kg Load Capacity

100mm Pressed Steel Swivel Castor Wheel - Black Rubber & 4-Hole Plate - 75kg Load Capacity

£16.15 GBP
£19.25 GBP £16.15 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

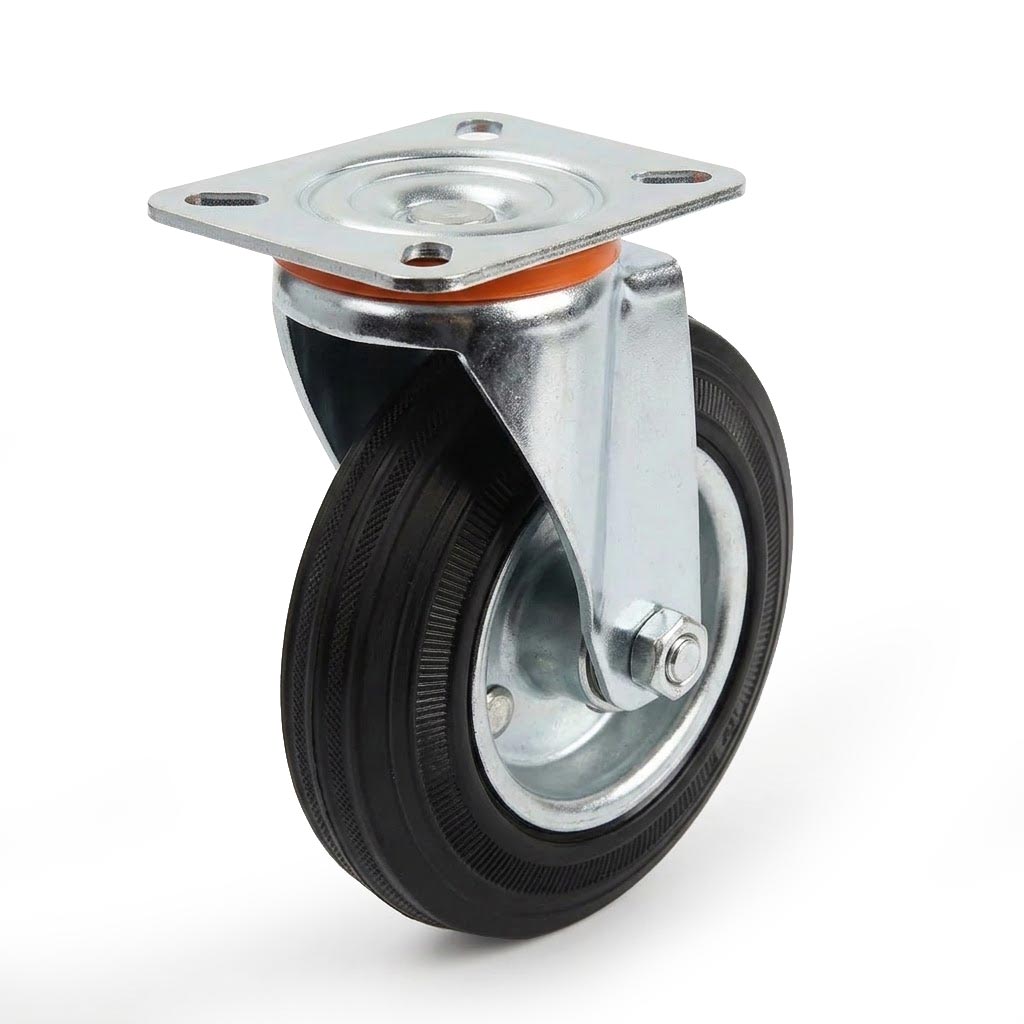

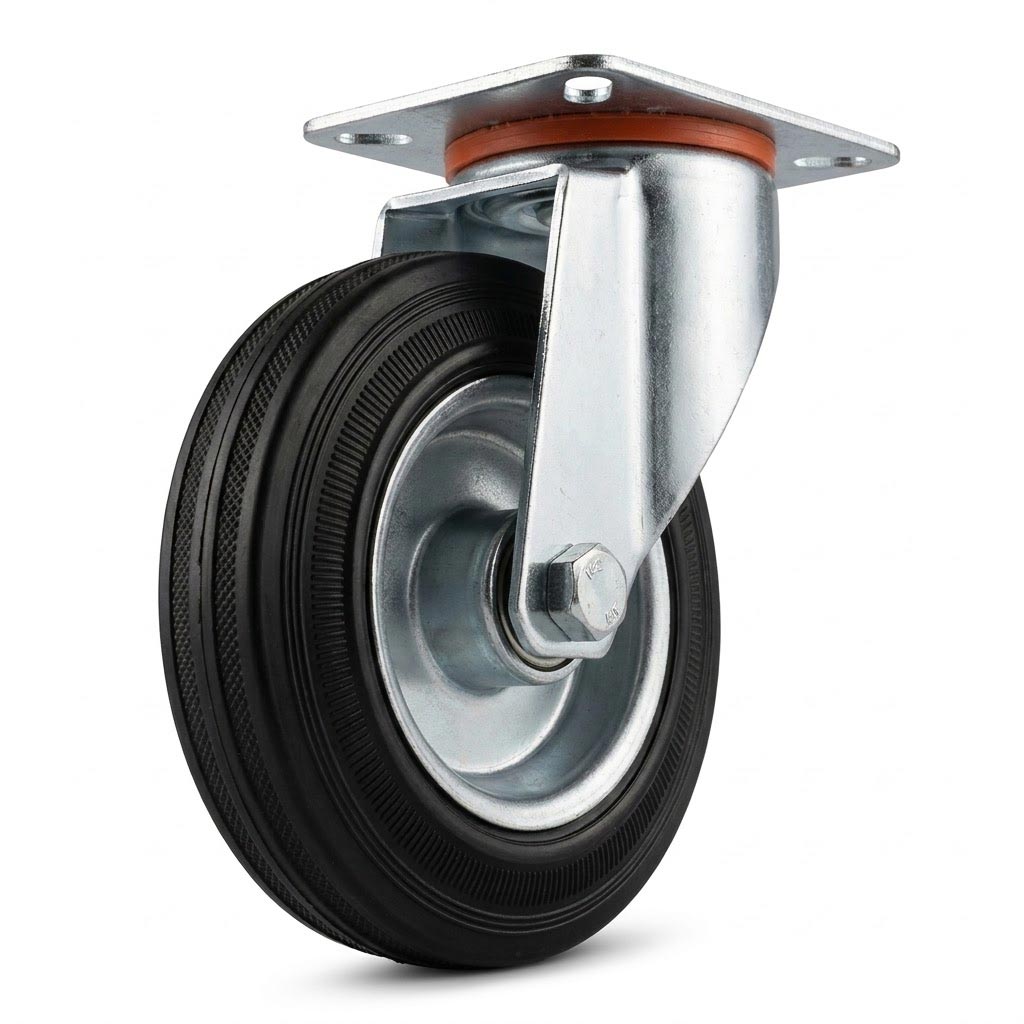

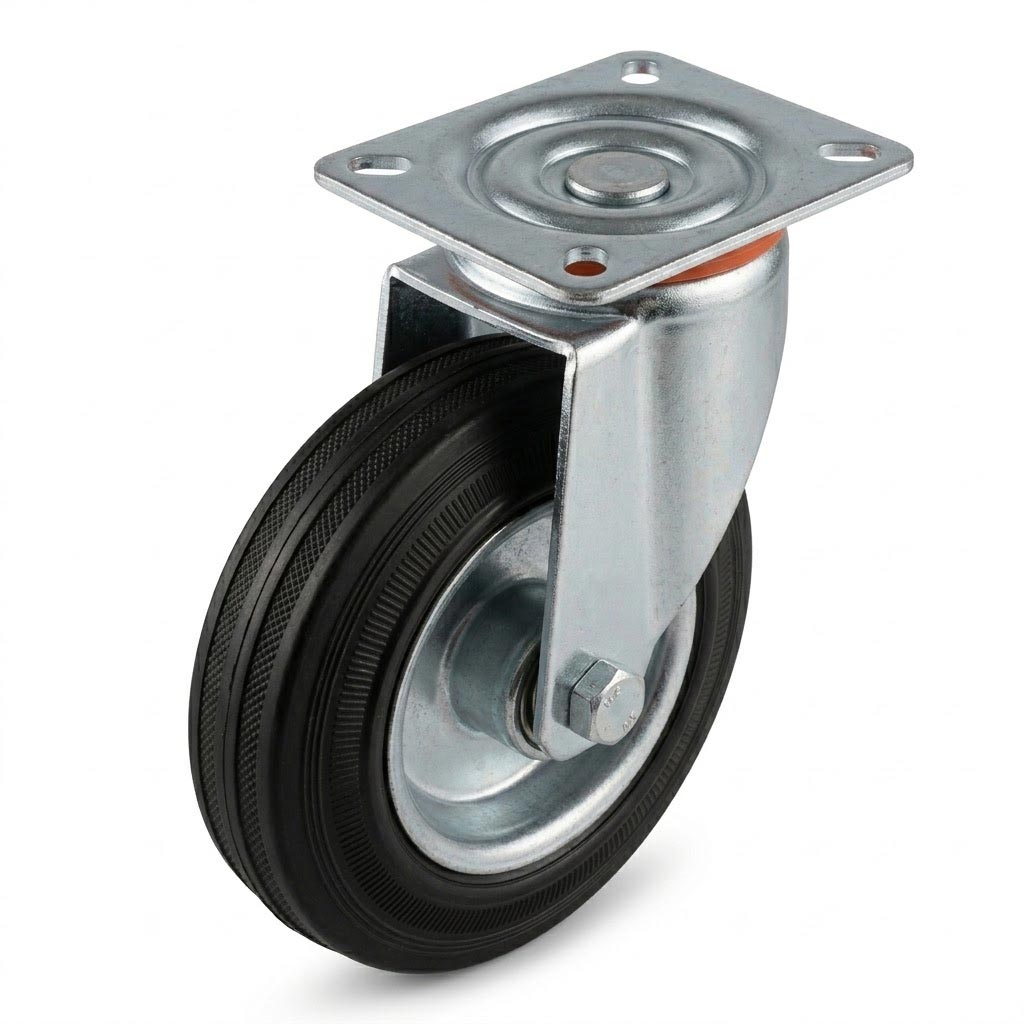

100mm Pressed Steel Swivel Castor Wheel

Black Rubber Wheel | 4-Hole Top Plate | 75kg Load Capacity

Product Overview

This 100mm pressed steel swivel castor combines robust construction with smooth rolling performance, making it an ideal mobility solution for light to medium-duty industrial and commercial applications. Engineered with a durable pressed steel housing and black rubber wheel, this castor delivers reliable movement across indoor surfaces while protecting floors from damage.

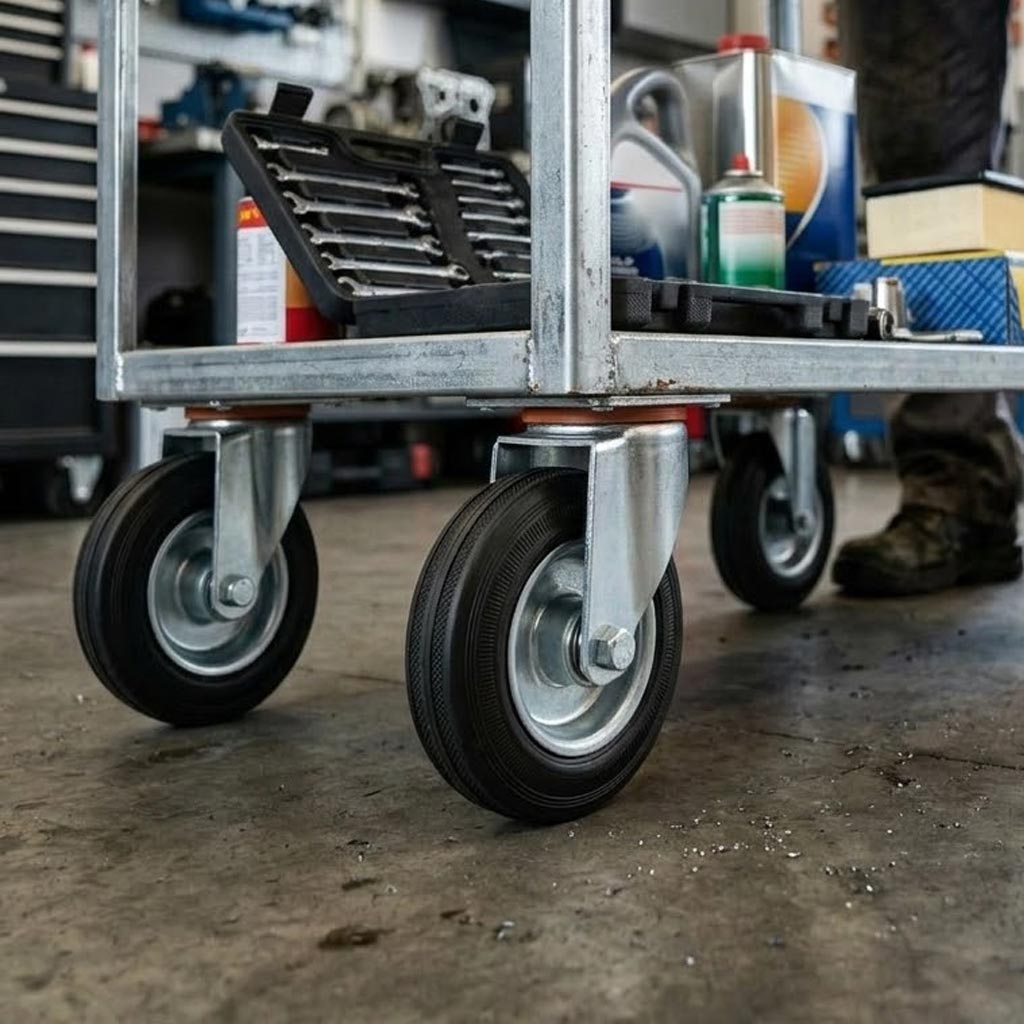

Designed for trolleys, workshop carts, mobile workstations, and handling equipment, this castor features a ball journal bearing for enhanced manoeuvrability and a secure 4-hole top plate mounting system. With a 75kg load capacity per castor, it provides dependable support for equipment requiring controlled rolling with reduced vibration and noise.

Key Features & Benefits

Pressed Steel Construction: Robust housing provides superior strength and durability for demanding industrial environments

100mm Wheel Diameter: Enhanced rolling performance with improved obstacle clearance and smoother movement

75kg Load Capacity: Reliable weight support per castor for light to medium-duty applications

Black Rubber Wheel: Controlled rolling with reduced vibration and noise for quieter operation

Ball Journal Bearing: Smooth 360-degree rotation with improved manoeuvrability under load

Floor Protection: Rubber tread prevents floor marking and damage on indoor surfaces

Technical Specifications

Castor Specifications

Castor Type Swivel with Top Plate Fixing
Bearing Type Ball Journal Bearing
Total Castor Height 127mm
Load Capacity (Per Castor) 75kg
Maximum Load Capacity (4 Castors) 220kg

Wheel Specifications

Wheel Diameter 100mm
Wheel Material Black Rubber on Pressed Steel
Wheel Colour Black
Tread Width 30mm
Tread Hardness 85 Shore A

Top Plate Specifications

Plate Length 100mm
Plate Width 85mm
Plate Hole Centres (Width) 60mm / 80mm
Plate Hole Diameter 10mm
Number of Fixing Holes 4 Holes

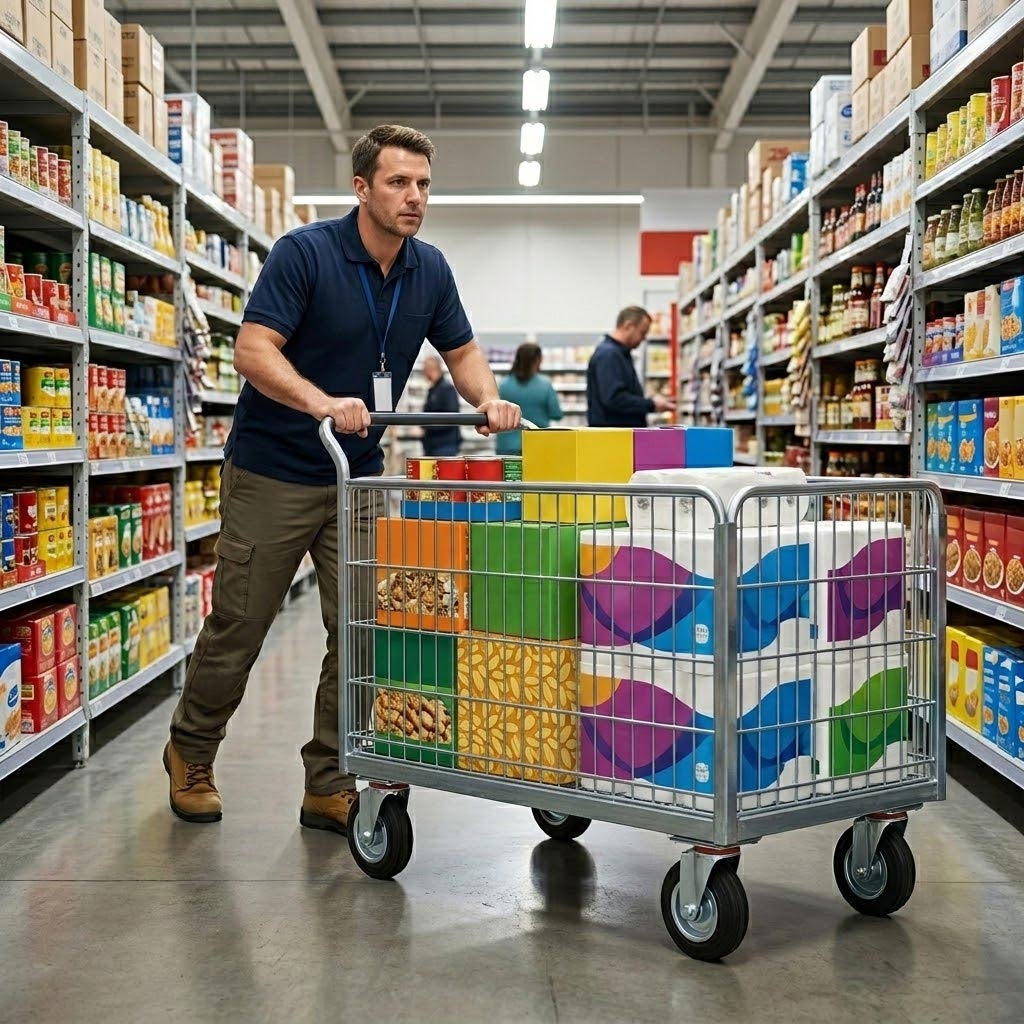

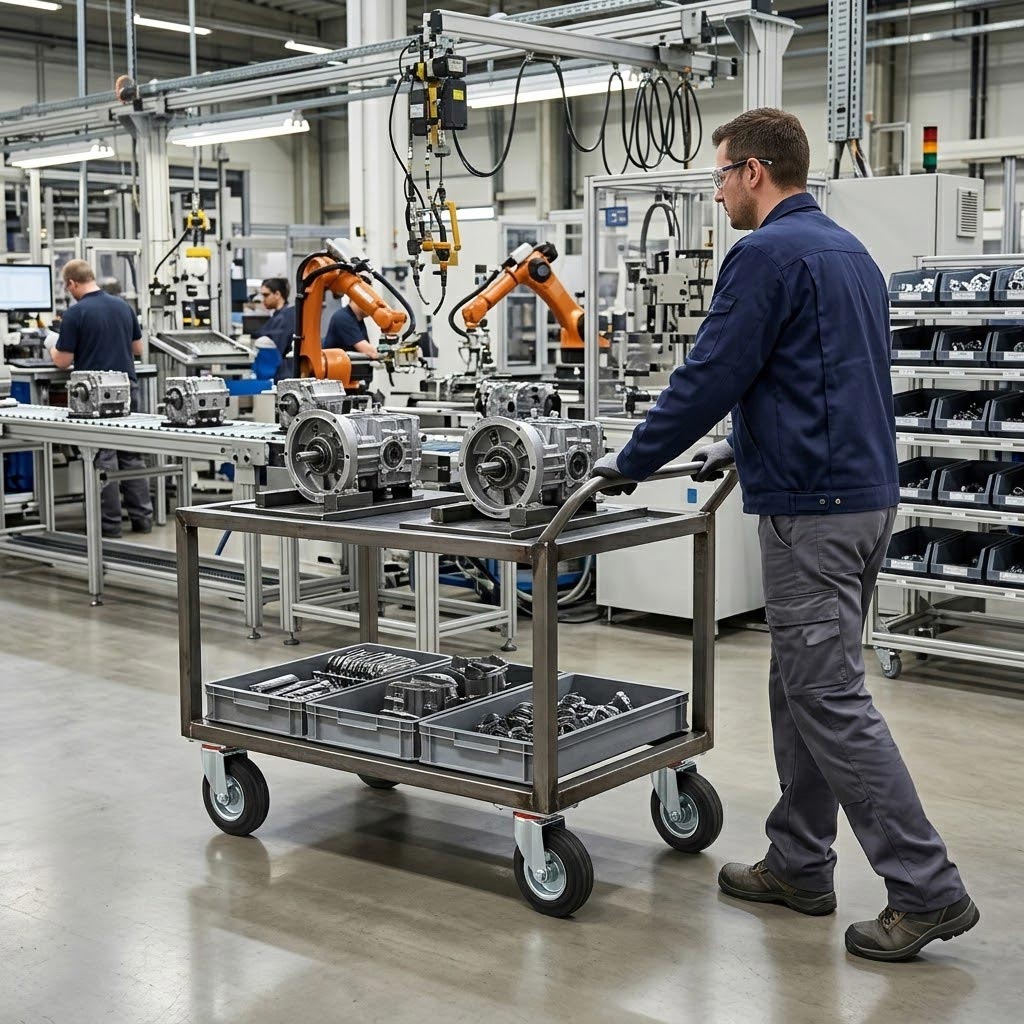

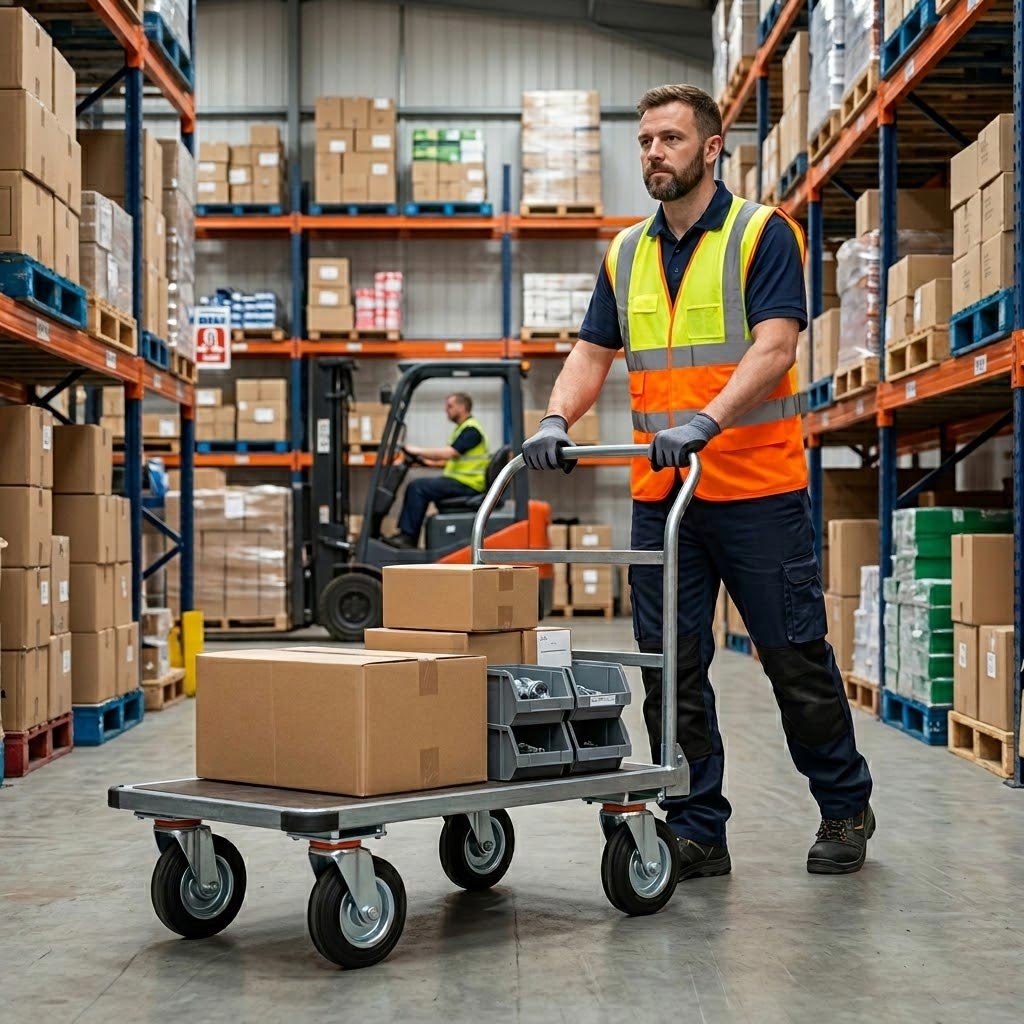

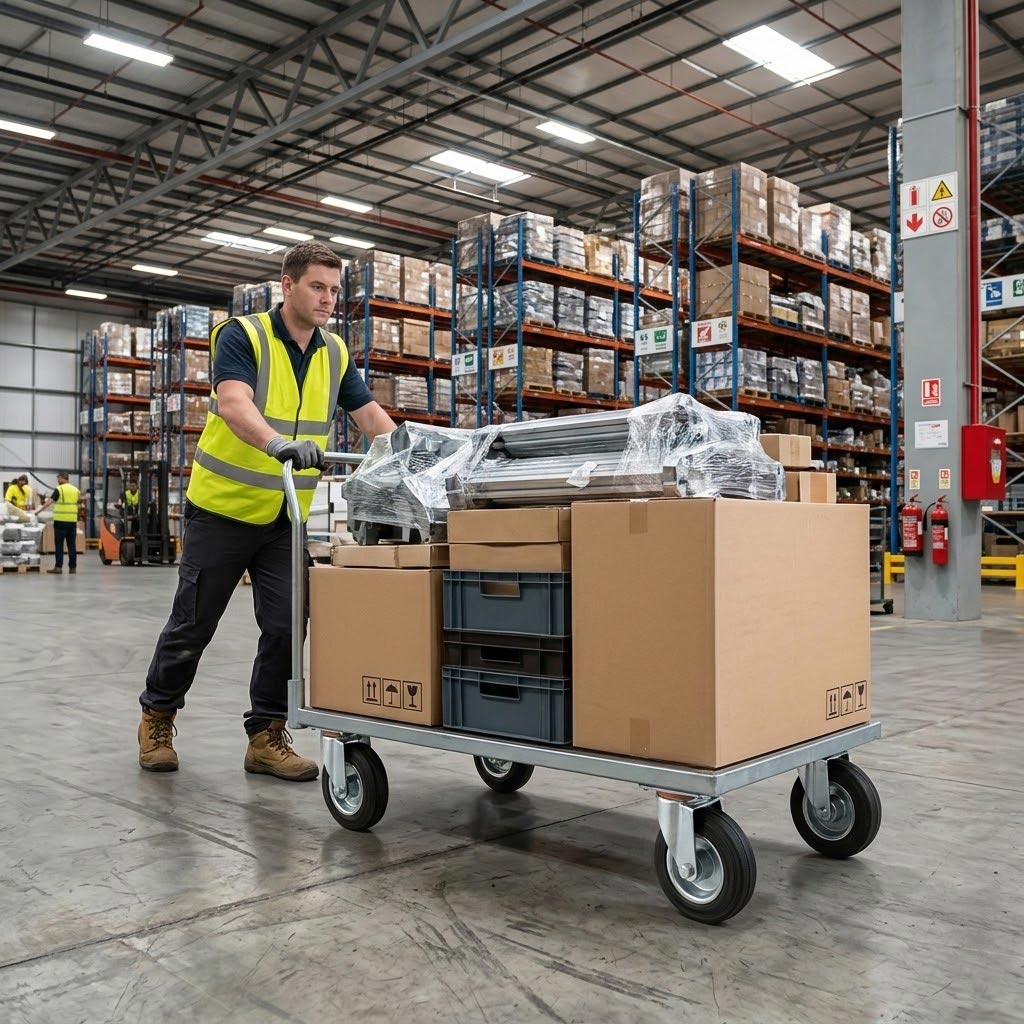

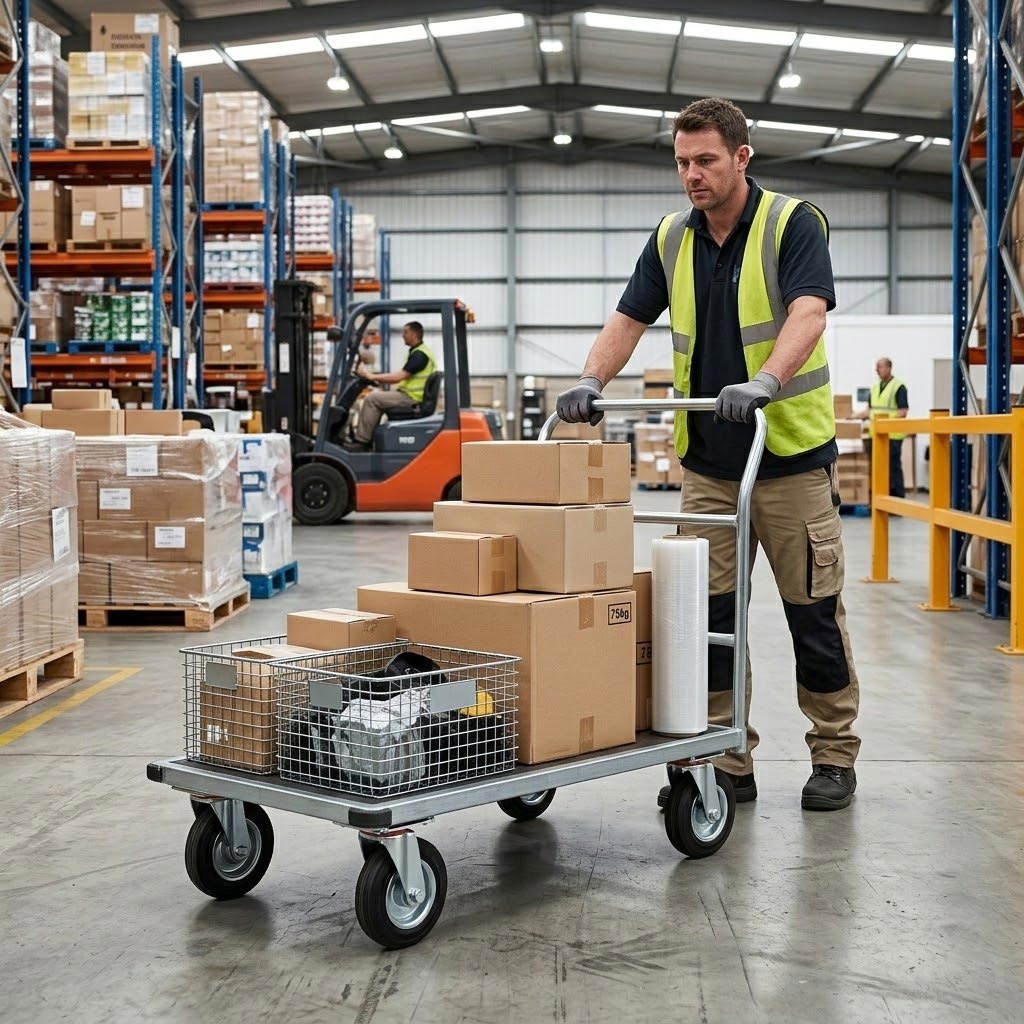

Ideal Applications

? Industrial trolleys and carts

? Workshop equipment and benches

? Mobile workstations

? Material handling equipment

? Storage units and shelving

? Commercial display units

Frequently Asked Questions

What is the maximum weight this castor can support?

Each castor has a load capacity of 75kg. When using four castors together on a single piece of equipment, the combined maximum load capacity is 220kg. Always ensure the load is evenly distributed across all castors for optimal performance and safety.

What type of floors is this castor suitable for?

This black rubber wheel castor is designed for indoor use on smooth surfaces including concrete, tile, vinyl, and sealed wood floors. The rubber tread provides floor protection by preventing marking and damage, while the 85 Shore A hardness offers controlled rolling with reduced vibration and noise.

How do I install this castor to my equipment?

This castor features a 4-hole top plate mounting system measuring 100mm x 85mm. The plate has fixing holes with a 10mm diameter, positioned at 60mm and 80mm centres. Simply align the plate with your equipment base, mark the hole positions, drill pilot holes, and secure using appropriate bolts or screws (not included) that match the 10mm hole diameter.

What is the difference between a swivel and fixed castor?

A swivel castor rotates 360 degrees, allowing for enhanced manoeuvrability and easier directional changes, making it ideal for equipment that needs to move in multiple directions. This 100mm swivel castor features a ball journal bearing for smooth rotation. For optimal stability, many applications use a combination of swivel castors at the front and fixed castors at the rear.

Premium Quality Mobility Solutions

Engineered for durability and consistent performance in demanding commercial and industrial environments. This pressed steel swivel castor delivers reliable mobility with smooth operation and long-lasting construction.
