100mm Pressed Steel Swivel Castor Wheel - Black Polypropylene & 4-Hole Top Plate - 85kg Max Load

100mm Pressed Steel Swivel Castor Wheel - Black Polypropylene & 4-Hole Top Plate - 85kg Max Load

£18.10 GBP
£22.05 GBP £18.10 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

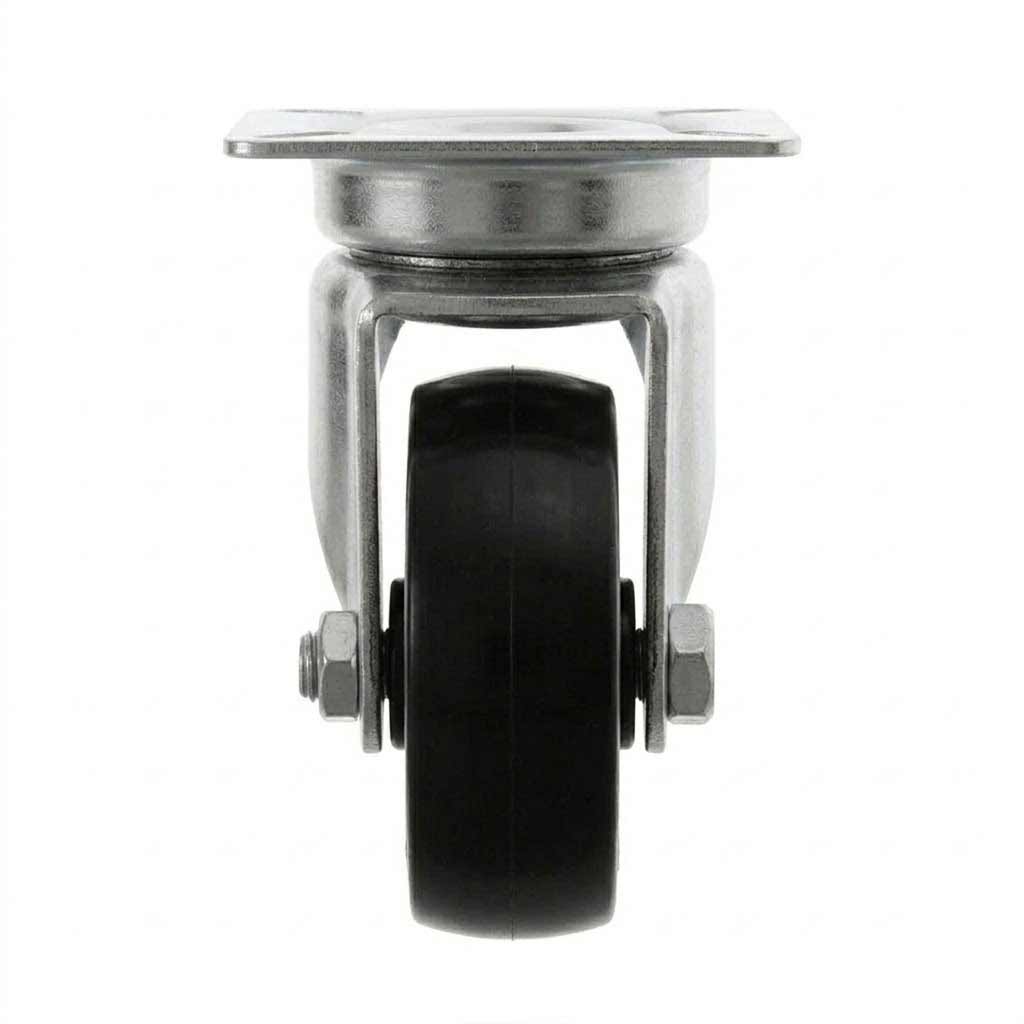

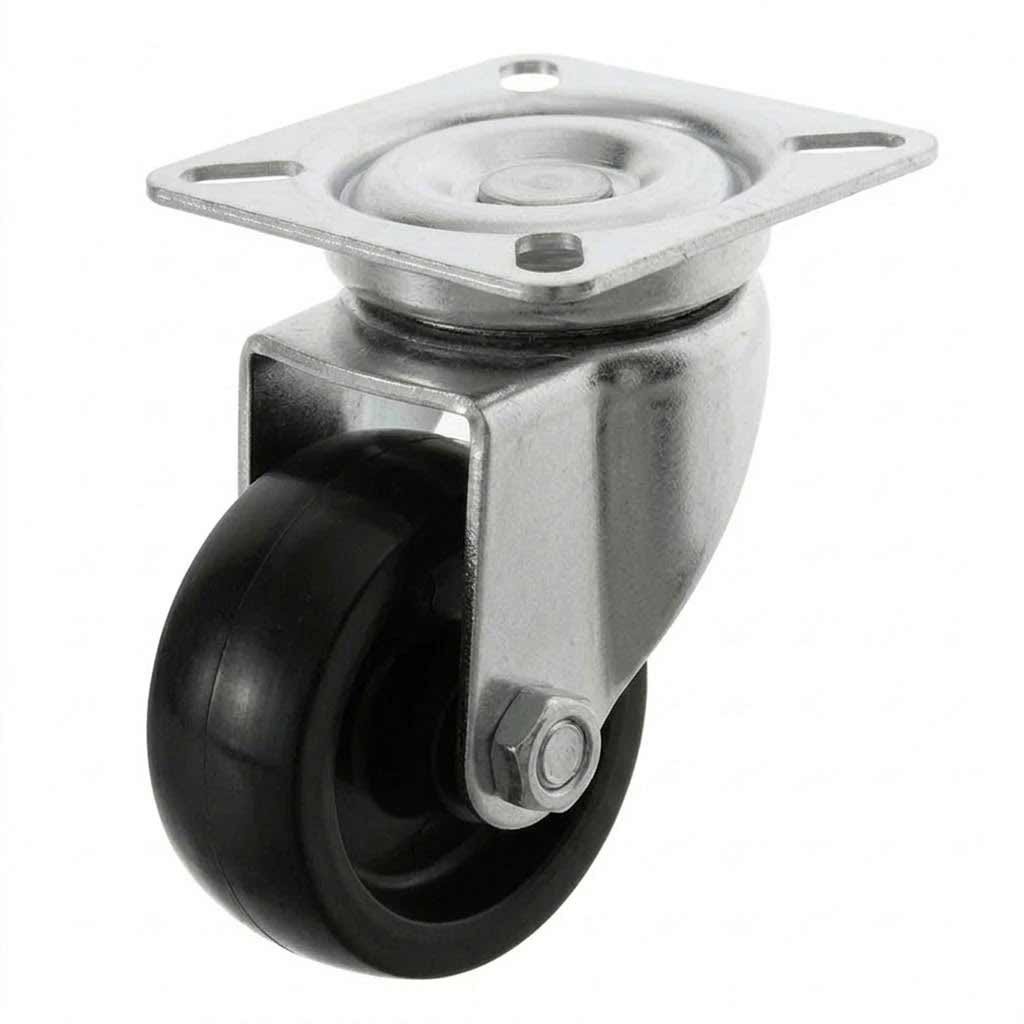

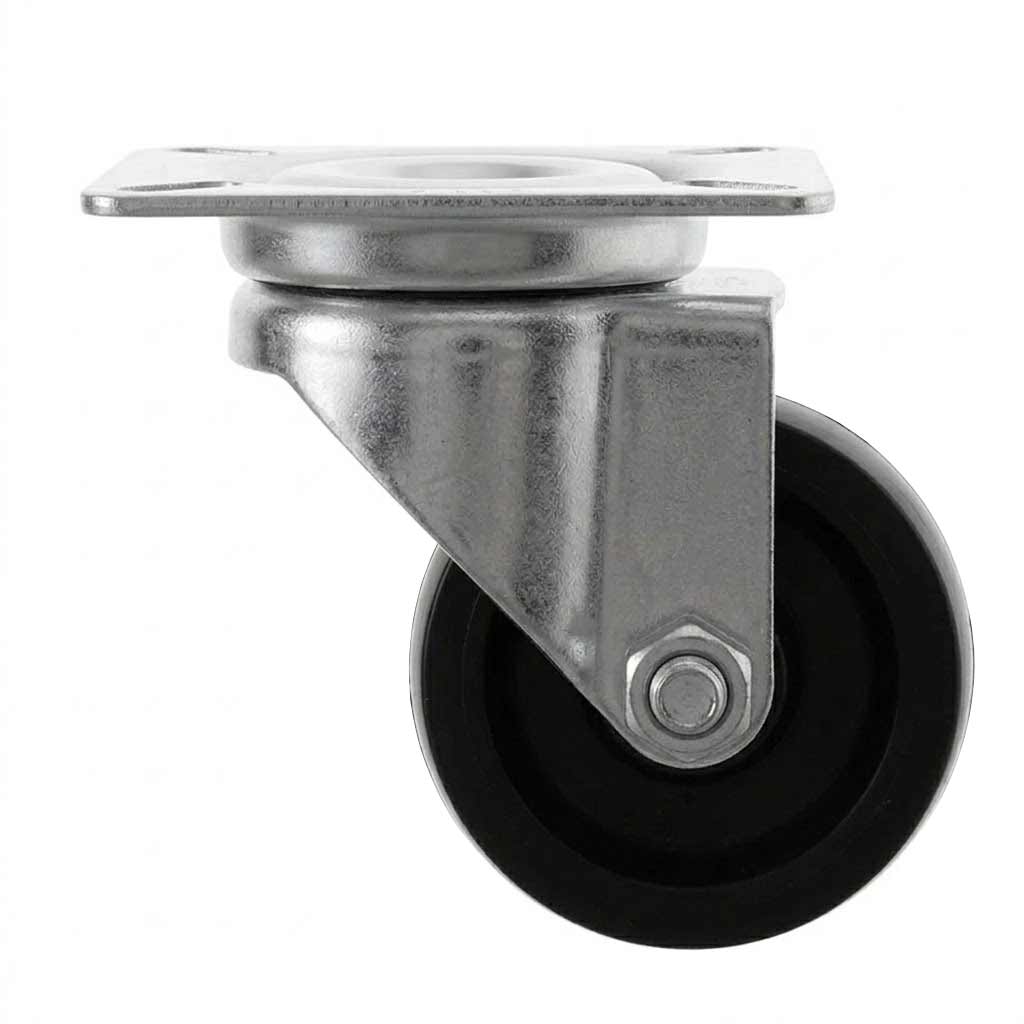

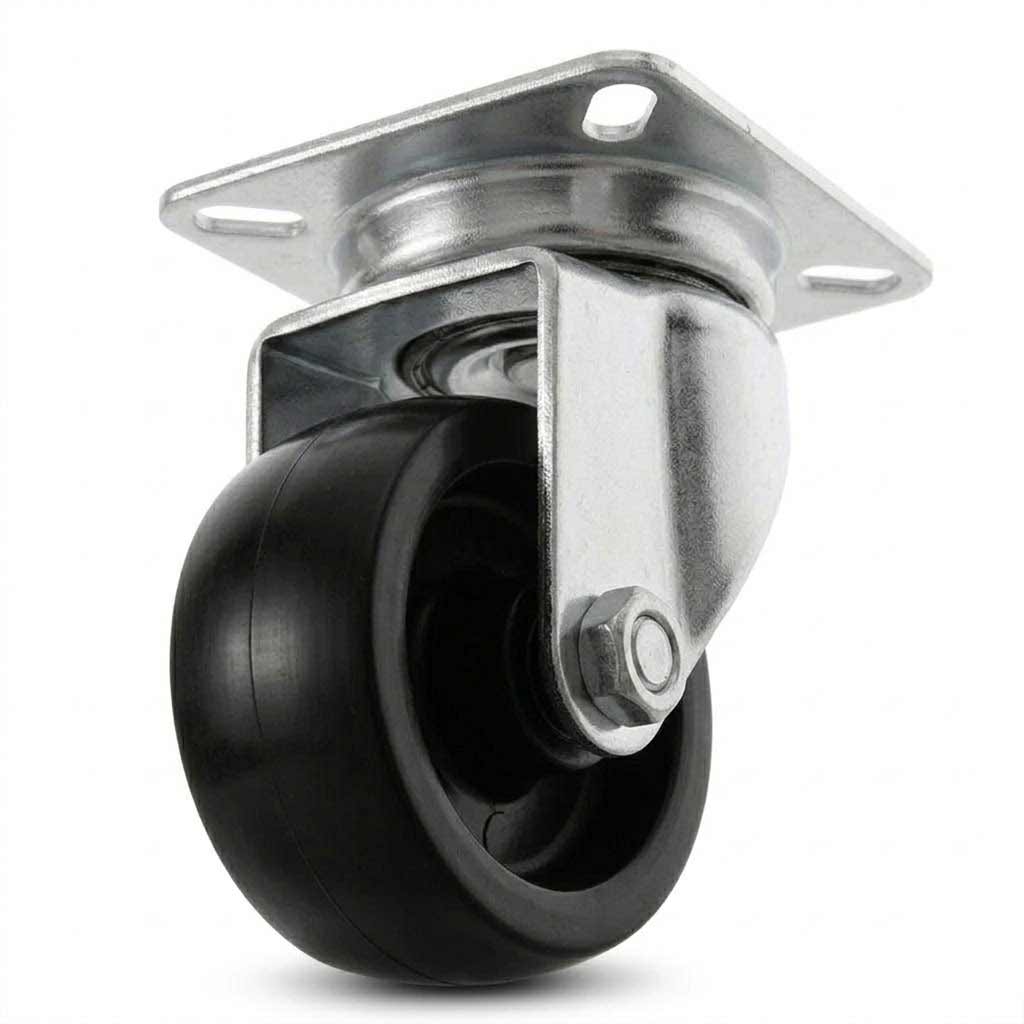

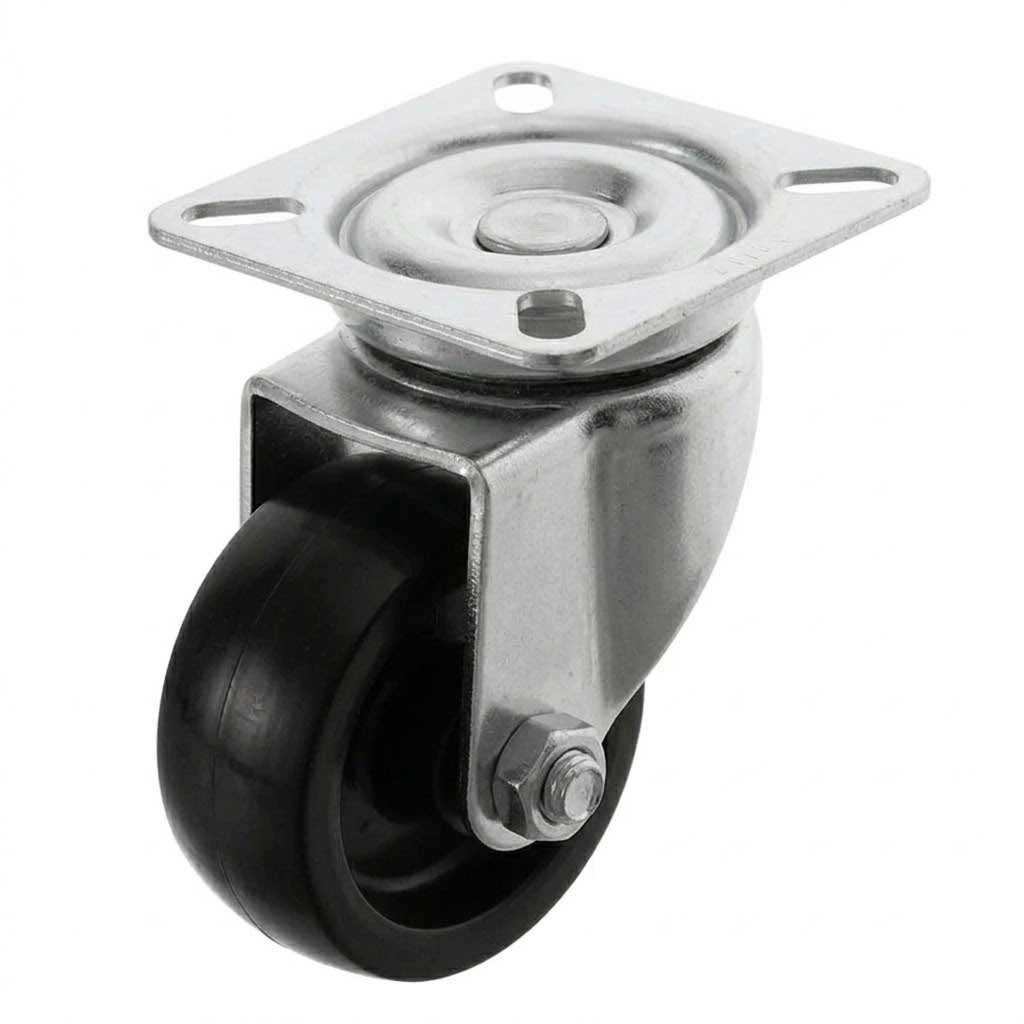

100mm Pressed Steel Swivel Castor Wheel

A precision-engineered swivel castor combining a pressed steel top plate with a black polypropylene wheel ? built for reliable, everyday mobility across industrial, commercial, and workshop environments.

Overview

This 100mm swivel castor is designed for applications where smooth directional movement and dependable load-bearing performance are essential. Fitted with a black polypropylene wheel and mounted on a zinc-plated pressed steel swivel plate, it delivers a practical, low-maintenance mobility solution suited to trolleys, shelving units, workbenches, and light industrial equipment.

With an individual load capacity of 85kg and a combined capacity of 255kg across four castors, this unit is well-suited to medium-duty tasks in warehouses, retail fit-outs, workshops, and maintenance environments. The plain bore bearing provides straightforward, reliable rotation without the complexity of sealed or precision bearing systems.

Key Features

  • 100mm wheel diameter for smooth floor clearance
  • 85kg individual load capacity per castor
  • 255kg combined load capacity (4 castors)
  • Pressed steel swivel top plate, zinc plated
  • 4-hole bolt fixing for secure, stable mounting
  • Black polypropylene wheel ? lightweight and durable
  • Plain bore bearing for straightforward rotation
  • 83mm swivel radius for easy manoeuvrability
  • 22mm tread width for balanced floor contact
  • Total castor height of 122mm

Full Technical Specifications

Specification Detail
Castor Type Swivel (Top Plate)
Wheel Diameter 100mm
Wheel Material Polypropylene (Black)
Wheel Colour Black
Tread Width 22mm
Bearing Type Plain Bore
Load Capacity (Single) 85kg
Max Load Capacity (4 Castors) 255kg
Total Castor Height 122mm
Swivel Radius 83mm
Plate Type Pressed Steel, Zinc Plated
Plate Dimensions 60mm x 60mm
Plate Hole Centres 48mm x 38mm
Plate Hole Diameter 6mm
Number of Fixing Holes 4
Fixing Type 4-Hole Bolt Top Plate
Finish Zinc Plated Plate / Black Wheel

Typical Applications

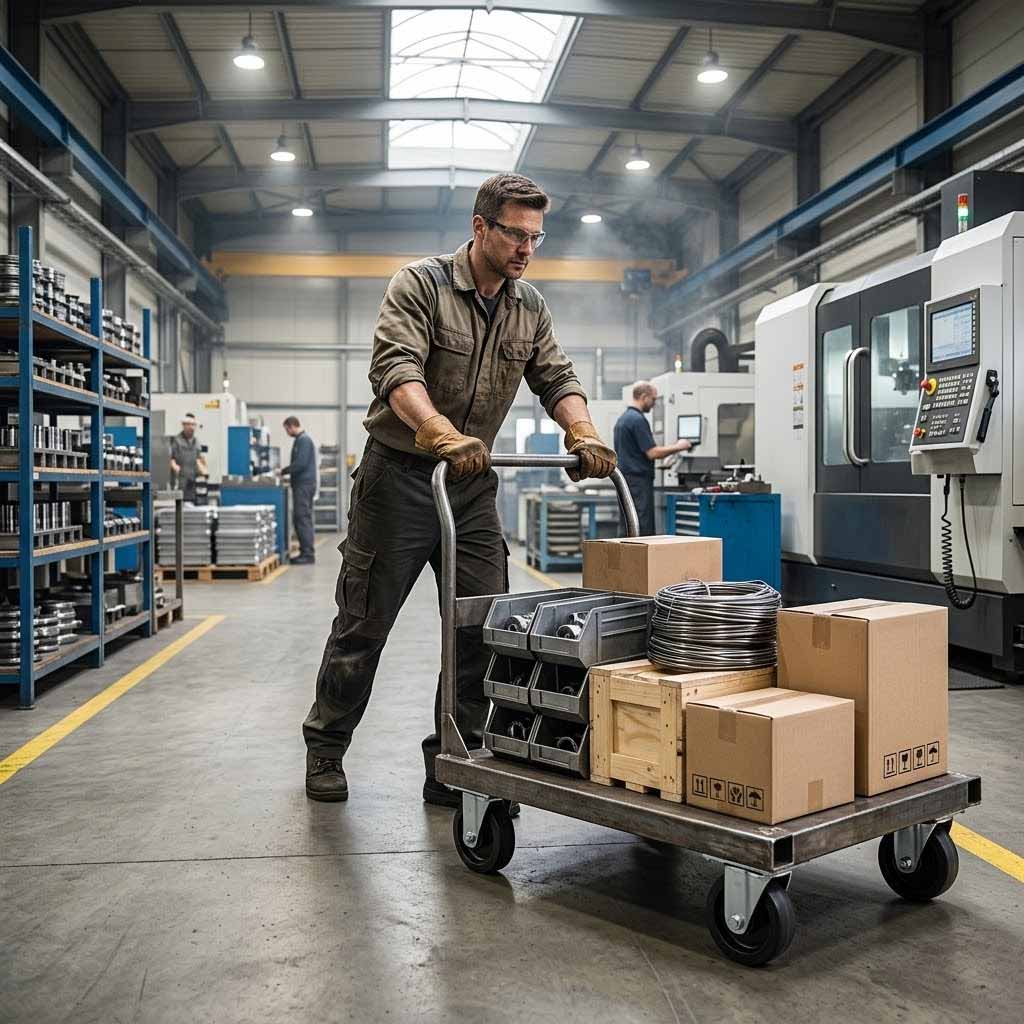

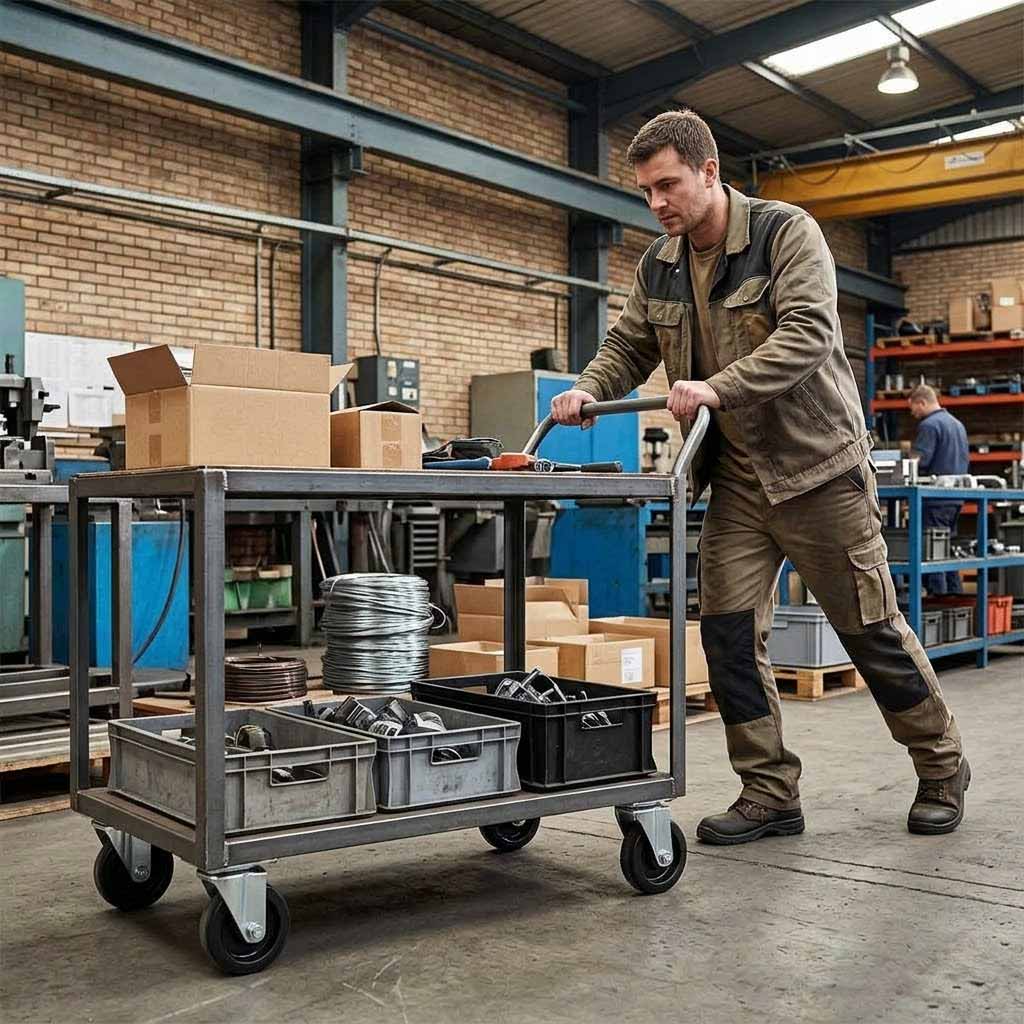

  • Warehouse Trolleys & Carts ? Reliable mobility for goods movement across warehouse and distribution floors.
  • Retail & Shop Fitting ? Ideal for mobile shelving, display units, and retail fixtures requiring repositioning.

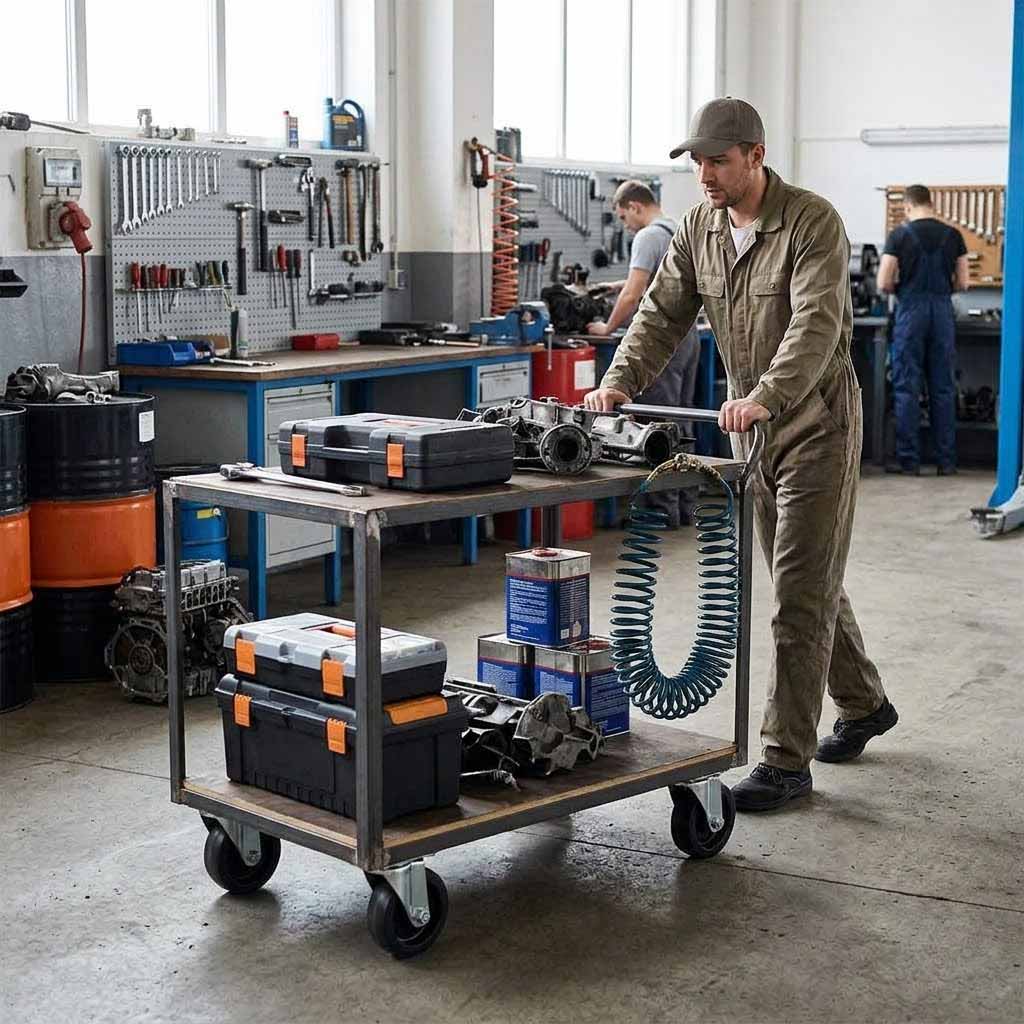

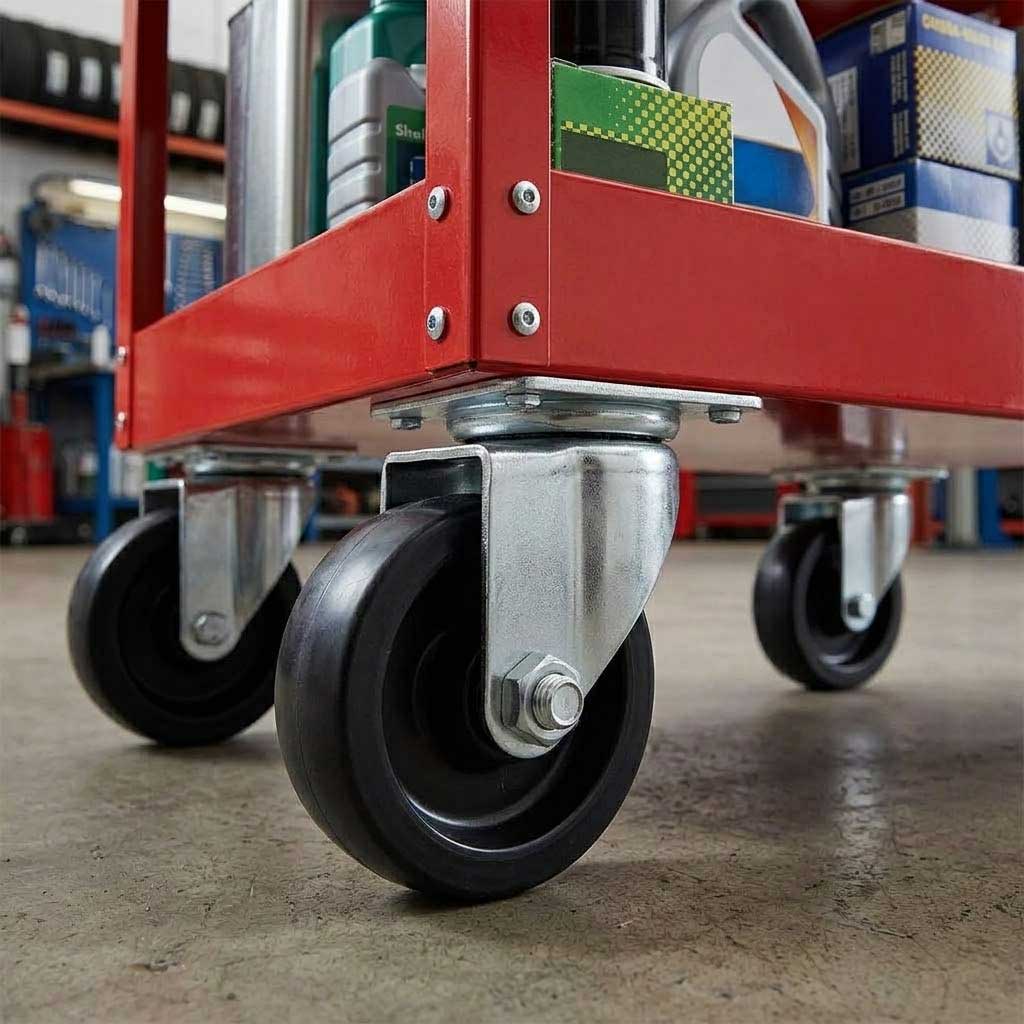

  • Workshop Equipment ? Suitable for workbenches, tool cabinets, and mobile storage in workshop settings.
  • Furniture & Office Fit-Out ? Adds smooth, directional movement to furniture pieces and modular office units.
  • Maintenance & Facilities ? Supports the movement of equipment and supplies in maintenance, facilities, and light industrial environments.

Frequently Asked Questions

What is the maximum load this castor can support?

Each castor has an individual load capacity of 85kg. When four castors are used together, the combined maximum load capacity is 255kg. Always ensure the total load is distributed evenly across all castors for safe and effective use.

What floor surfaces is this castor suitable for?

The black polypropylene wheel is well-suited to smooth, hard floor surfaces including concrete, tile, vinyl, and sealed timber. It performs reliably in dry indoor environments such as warehouses, workshops, and retail spaces. It is not recommended for heavily uneven, outdoor, or wet surfaces.

How is this castor fixed to the equipment?

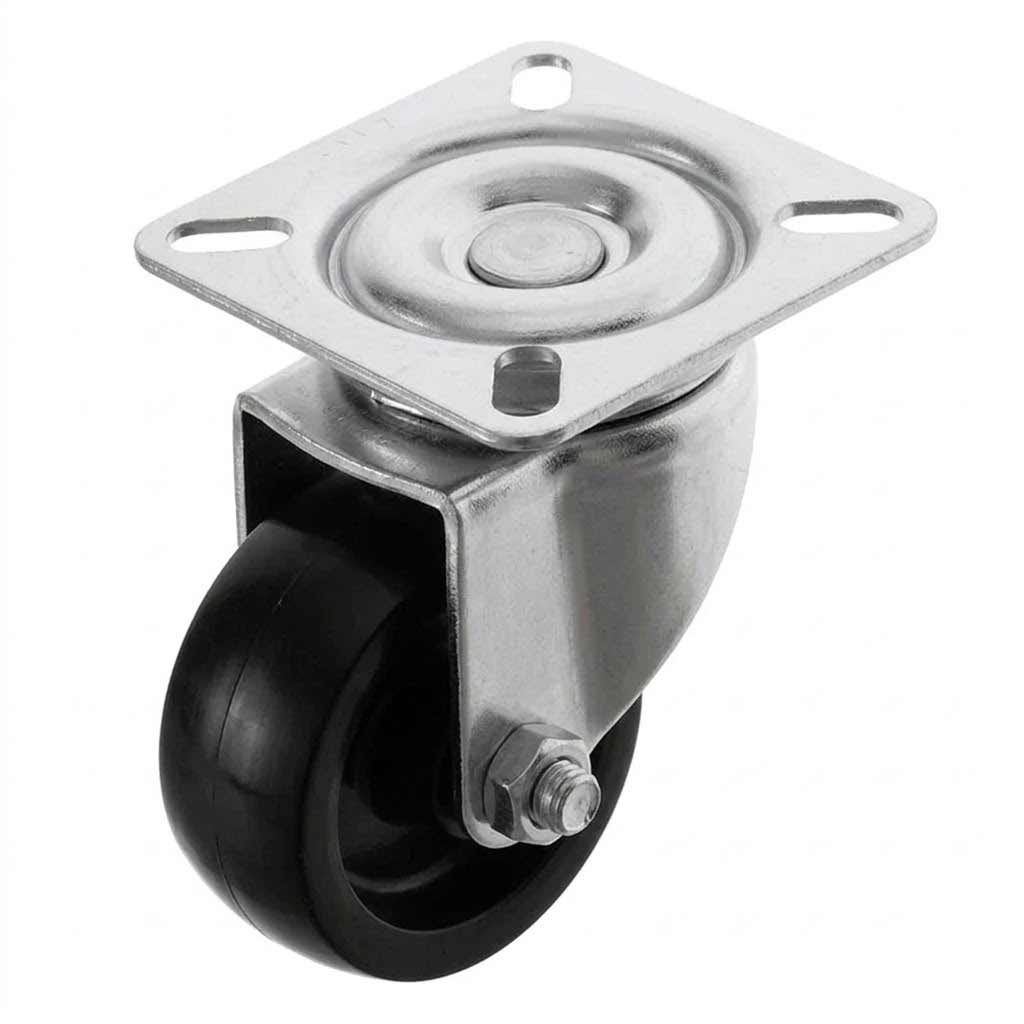

This castor uses a 4-hole bolt top plate fixing. The pressed steel plate measures 60mm x 60mm with hole centres of 48mm x 38mm and a hole diameter of 6mm. It is bolted directly to the base of the equipment using four standard M6 bolts (not included), providing a secure and stable mounting.

Does this castor include a brake or locking mechanism?

This model is a swivel castor without a brake. It is designed for free-rolling, directional movement. If a locking or braking function is required, a swivel castor with brake variant should be selected to suit your application.
